Discharge Headlight Control Module Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Remove screws.
  5. Disconnect the connector.
  6. Remove the discharge headlight control module.
  7. Install in the reverse order of removal.

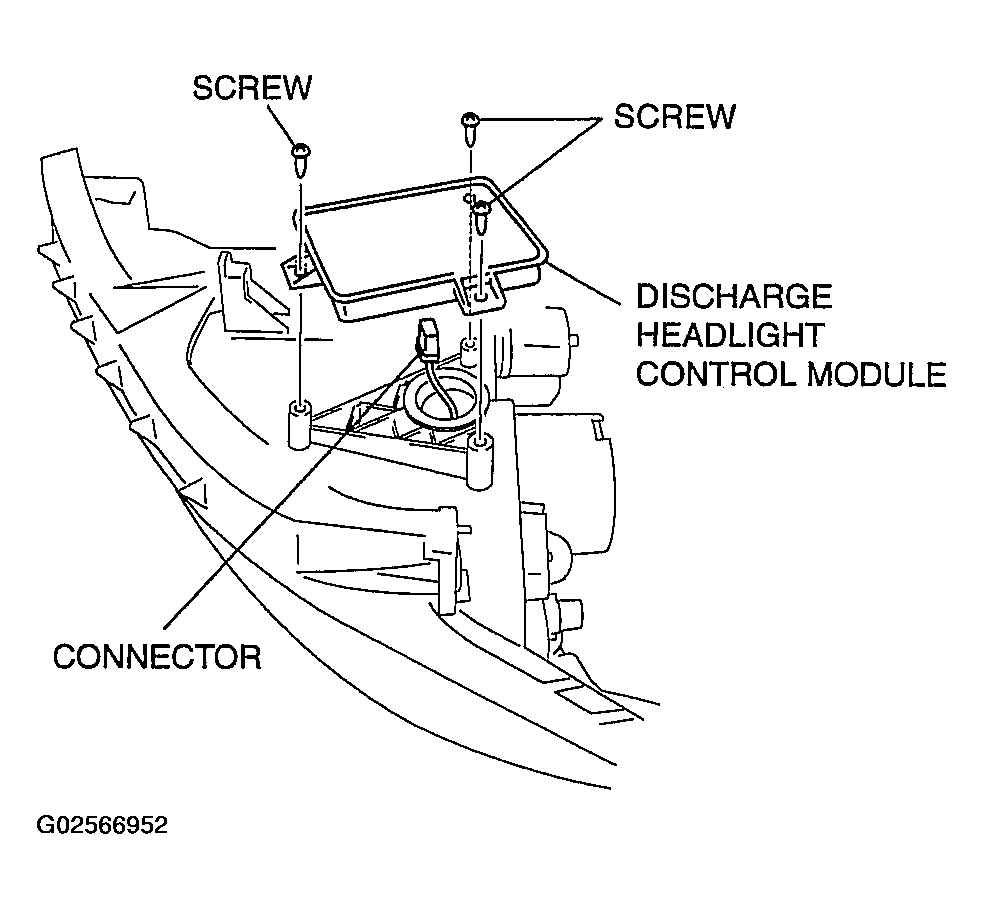

    Fig 1: Removing/Installing Discharge Headlight Control Module
    G02566952Courtesy of MAZDA MOTORS CORP.
