Lighting Systems Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

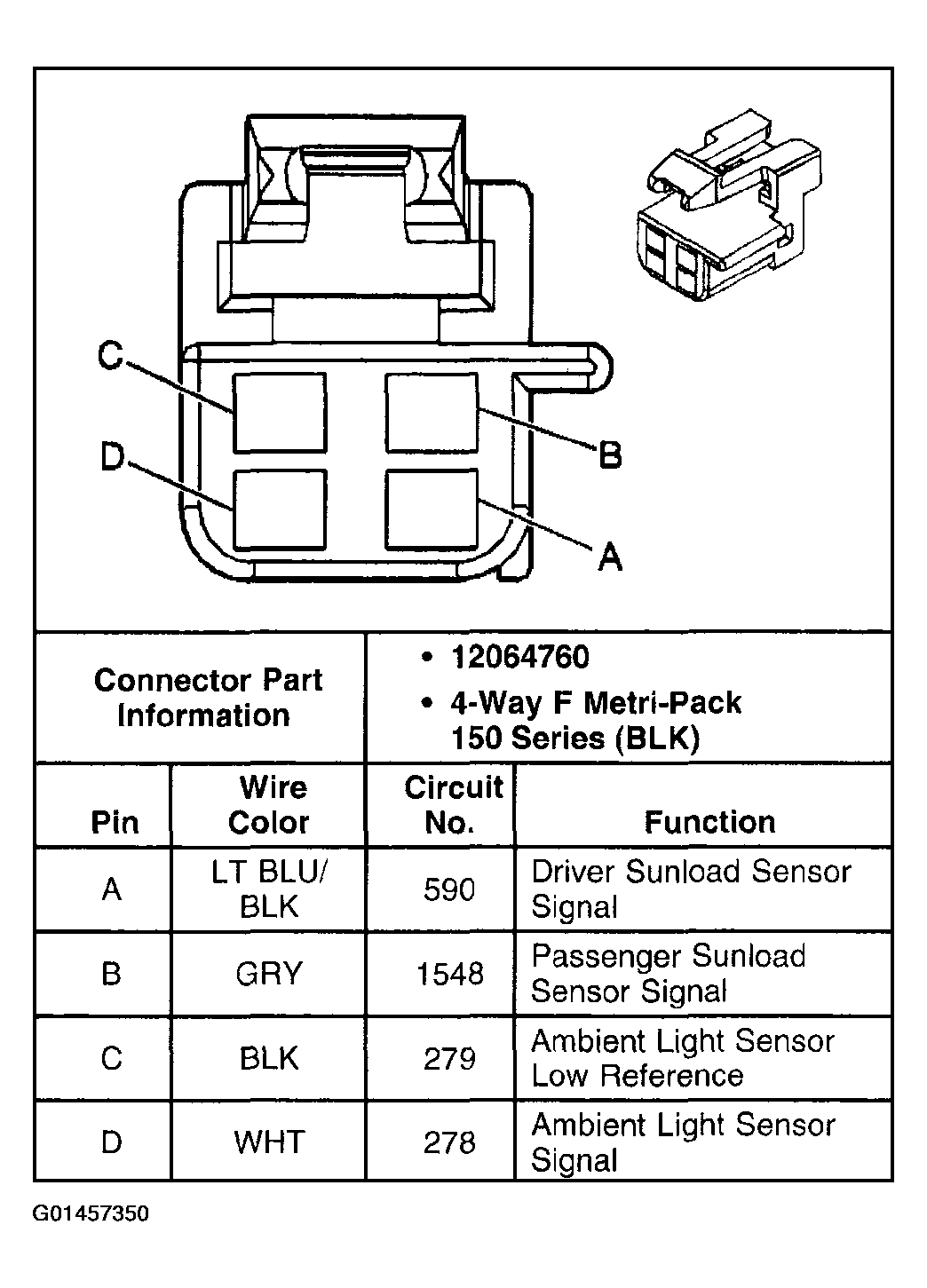

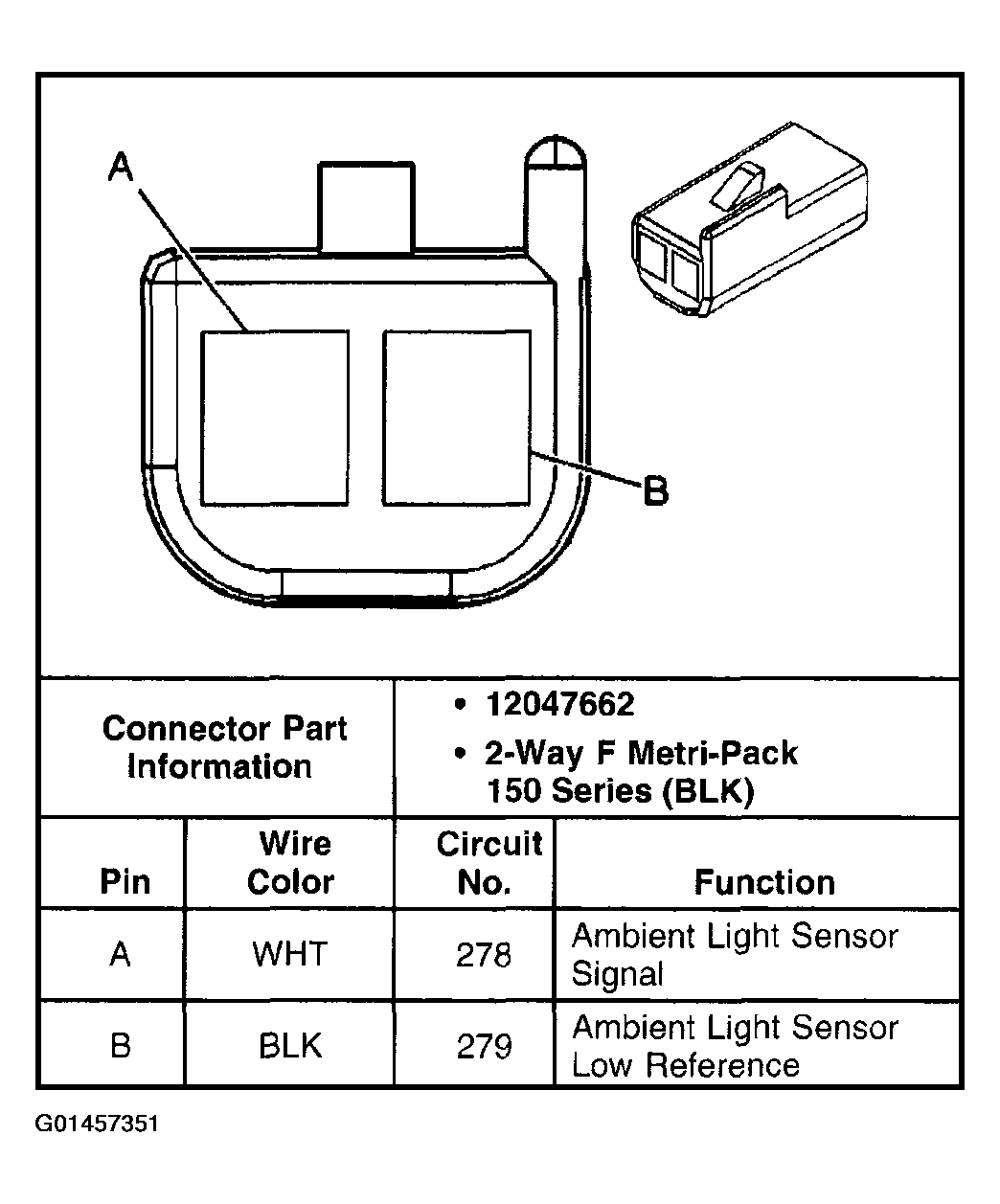

Fig 1: Identifying Ambient Light Sensor (W/CJ2) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Ambient Light Sensor (W/O2) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

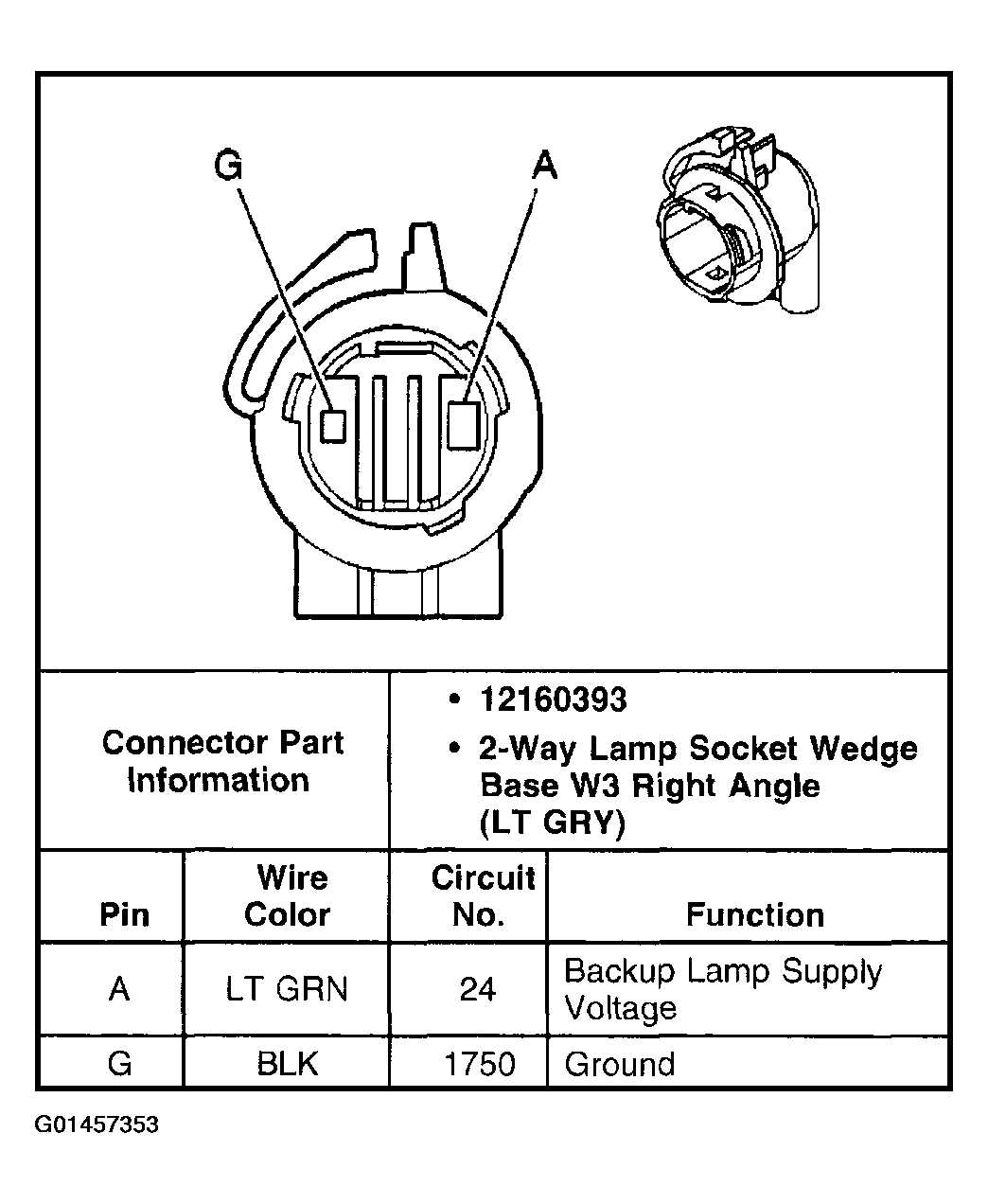

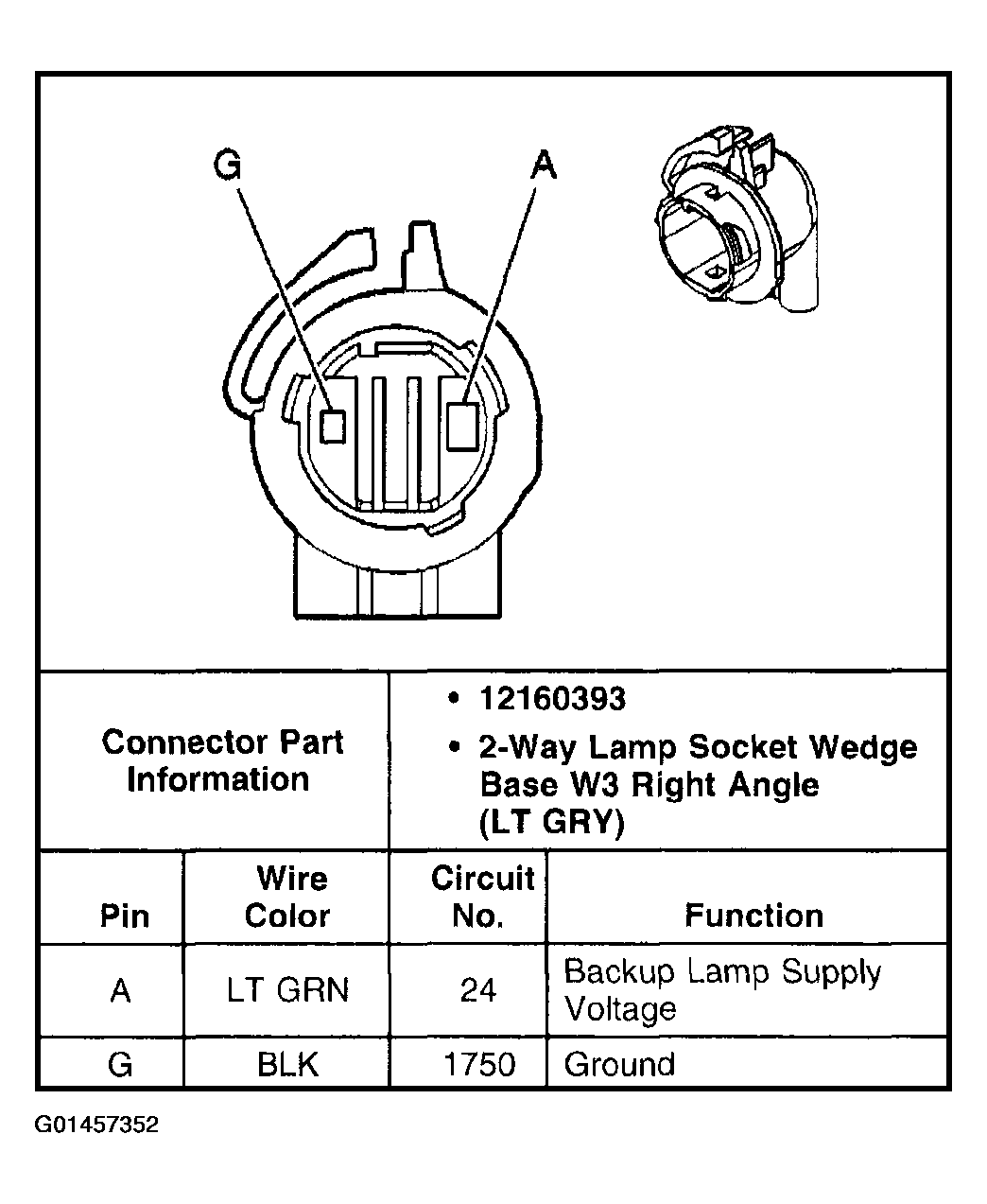

Fig 3: Identifying Backup Lamp - Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Backup Lamp - Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.

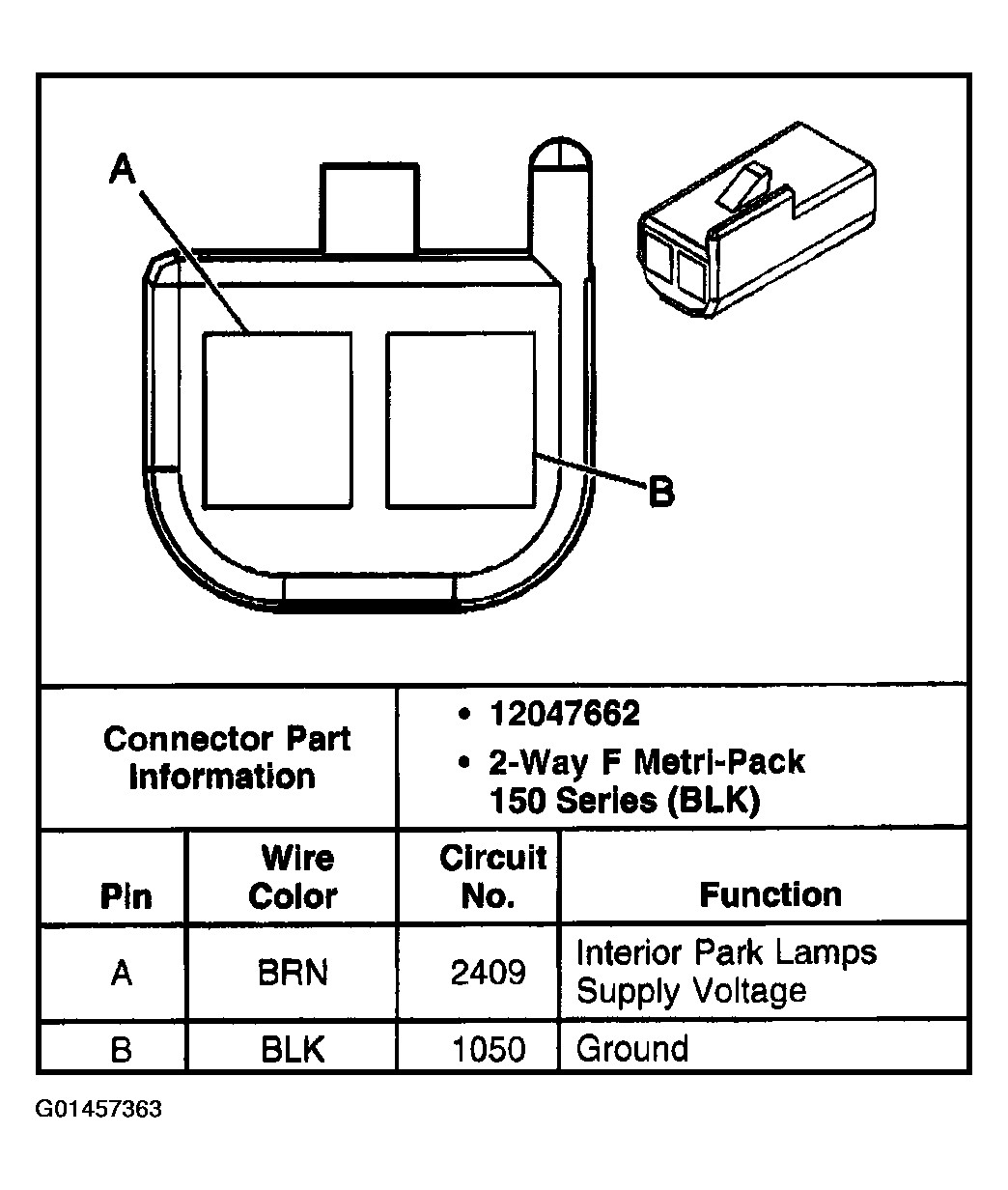

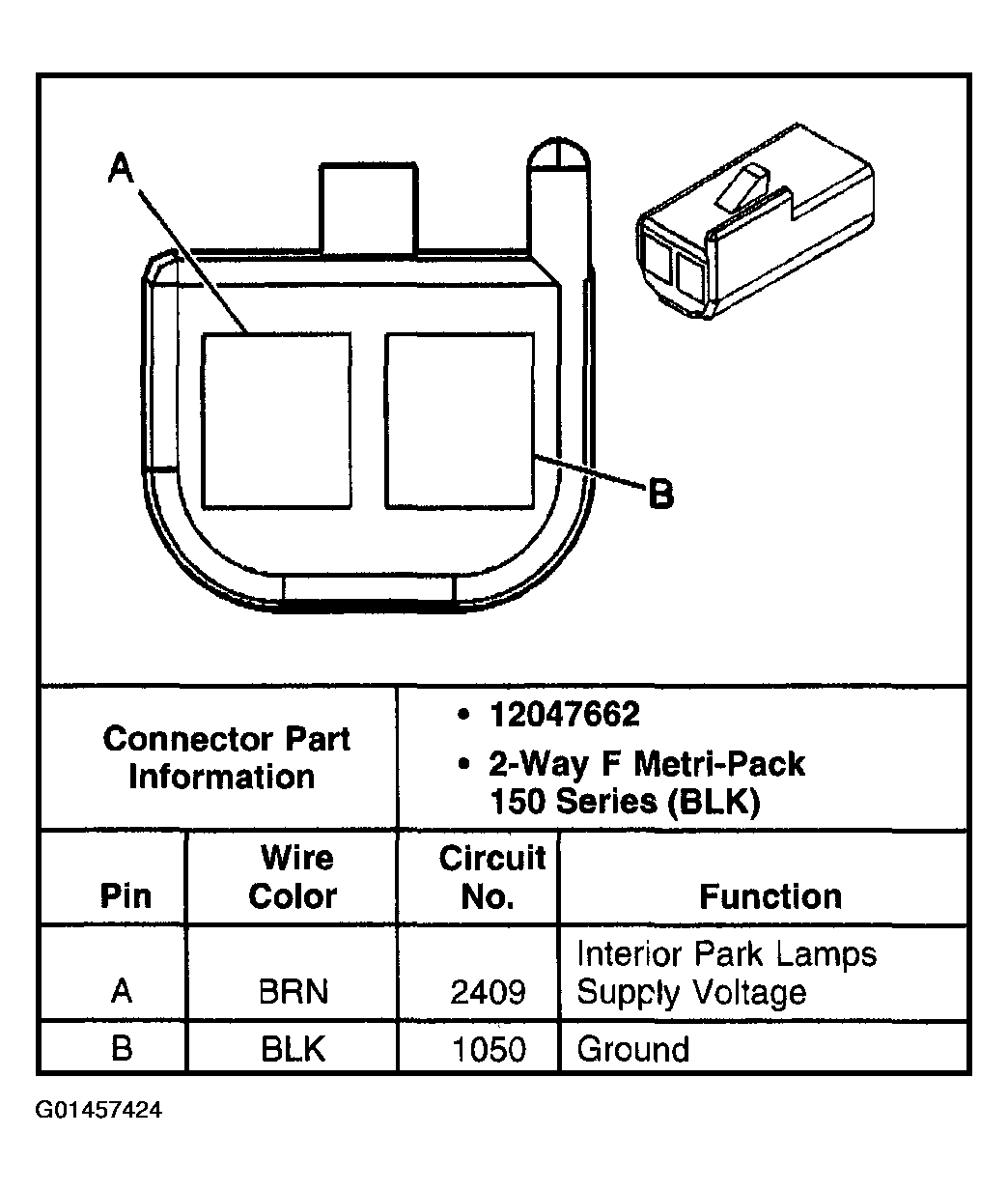

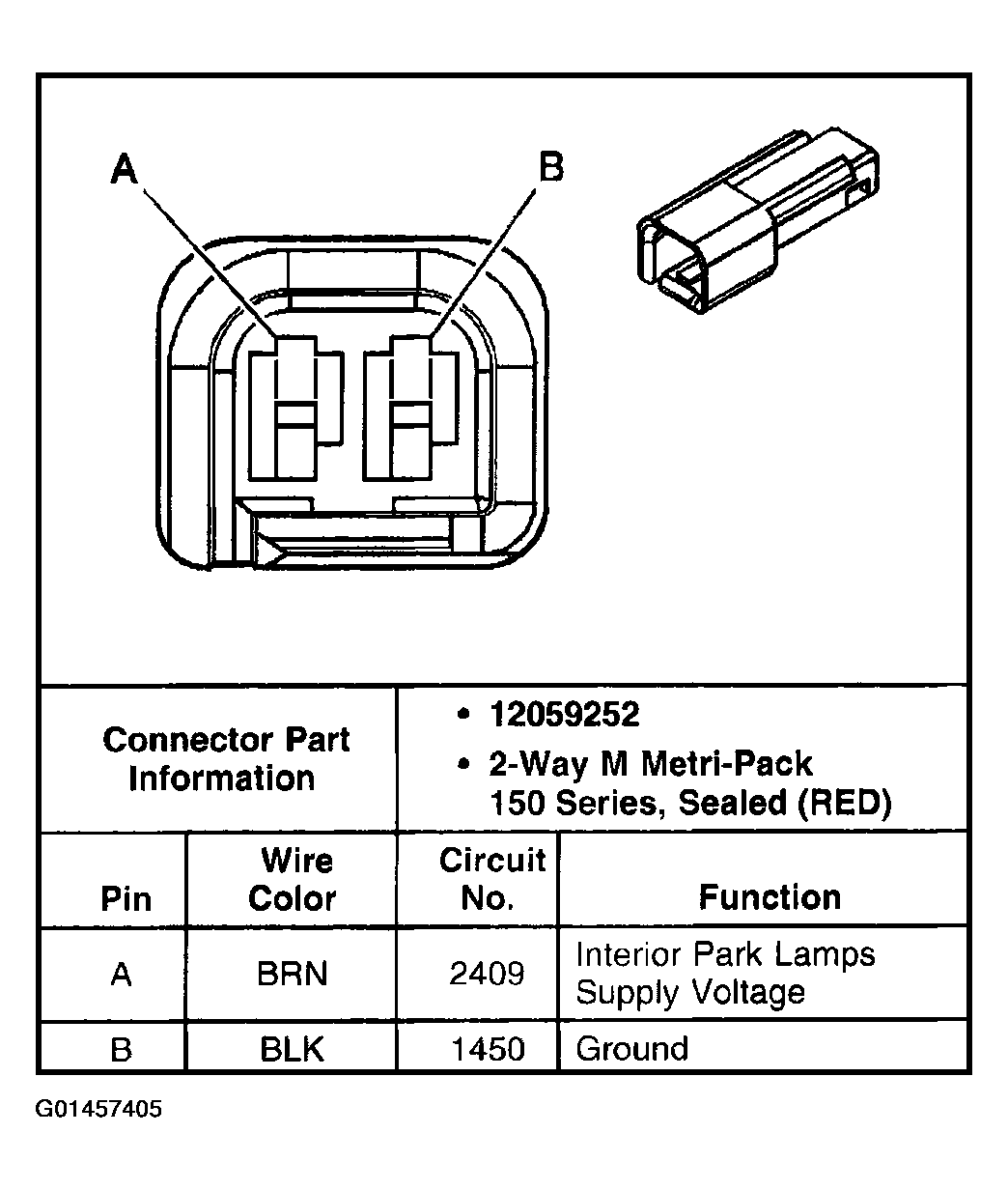

Fig 5: Identifying Bezel Lamp (Y91) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

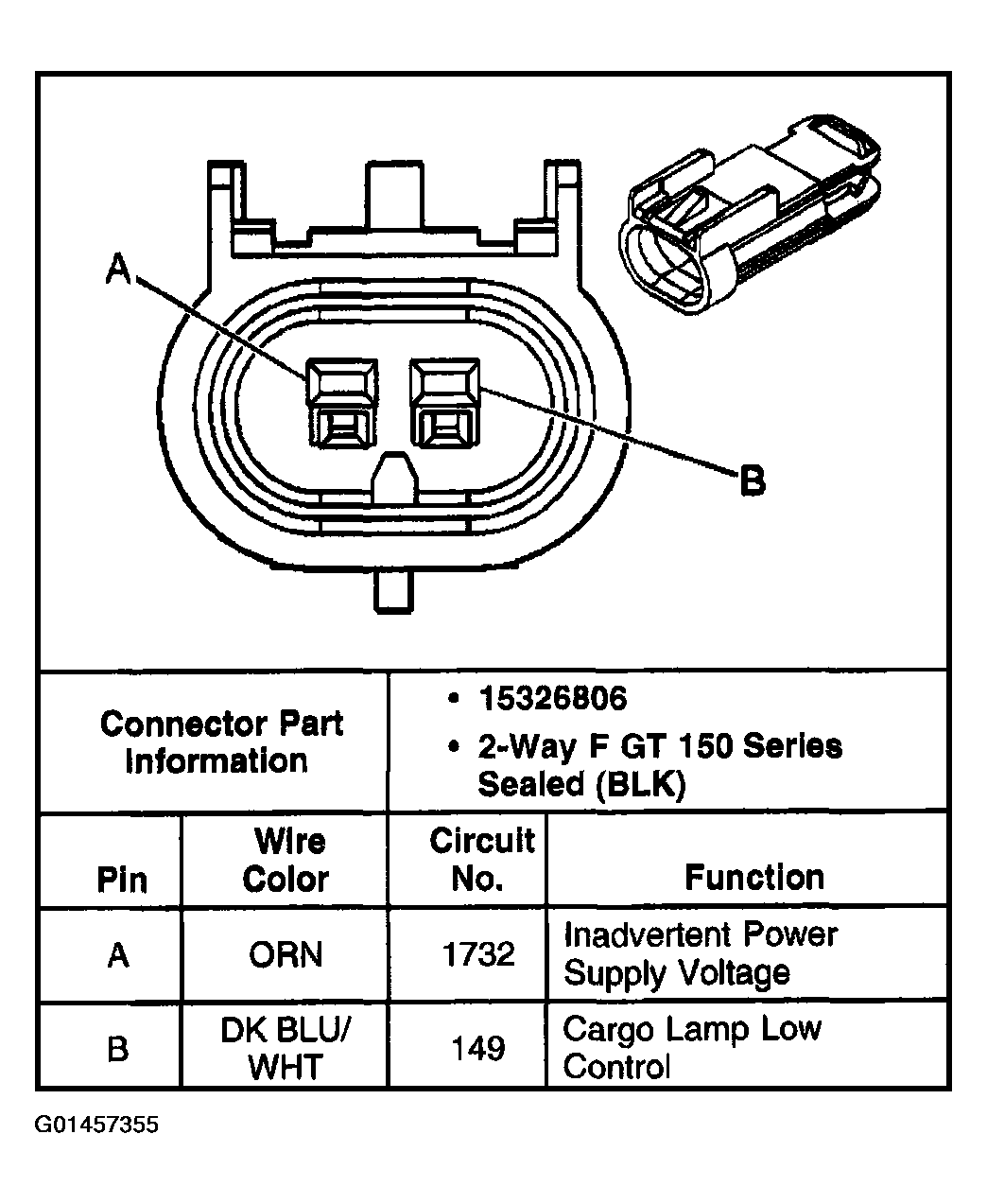

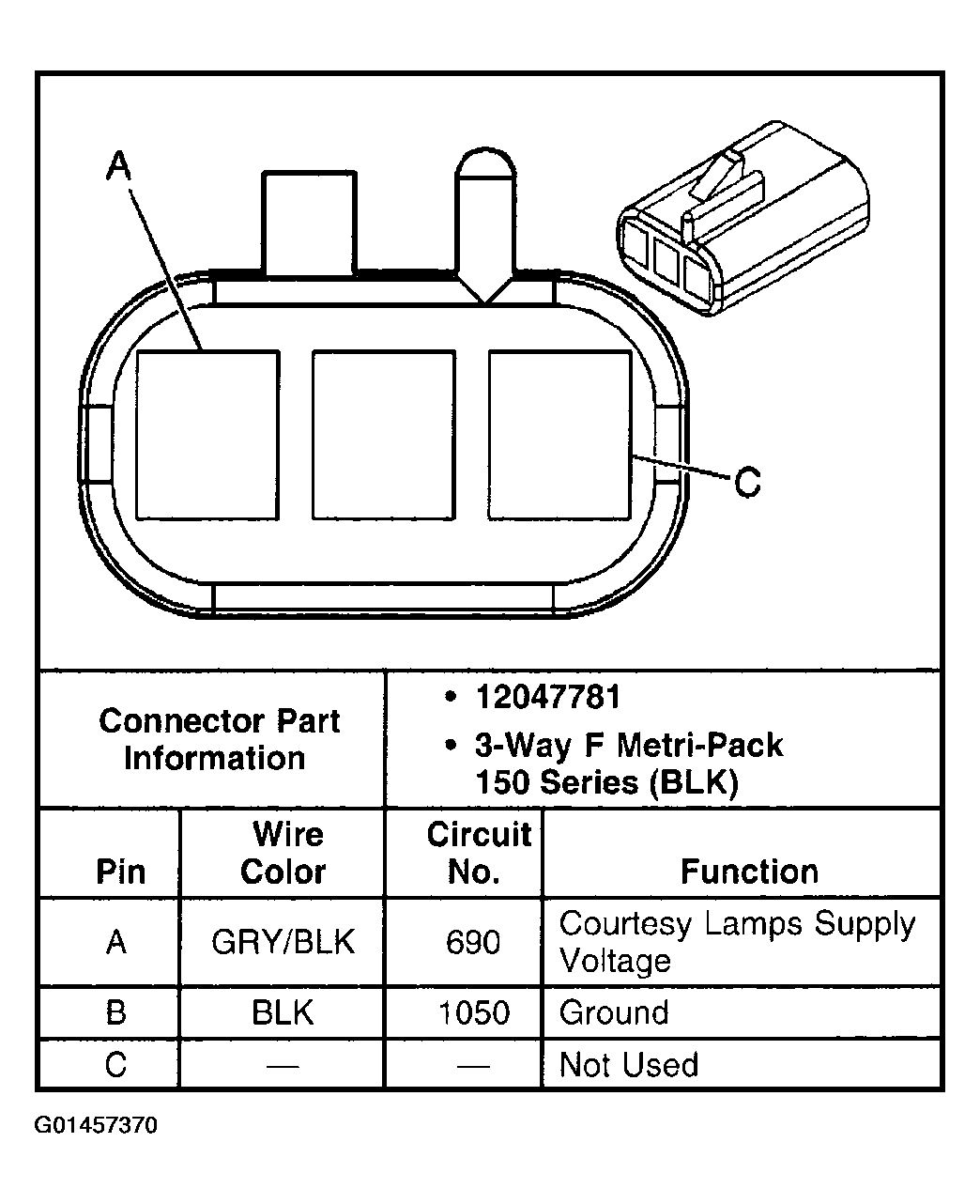

Fig 6: Identifying Cargo Lamp Assembly - Driver (Avalanche & Escalade EXT Only) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Cargo Lamp Assembly - Passenger (Avalanche & Escalade EXT Only) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

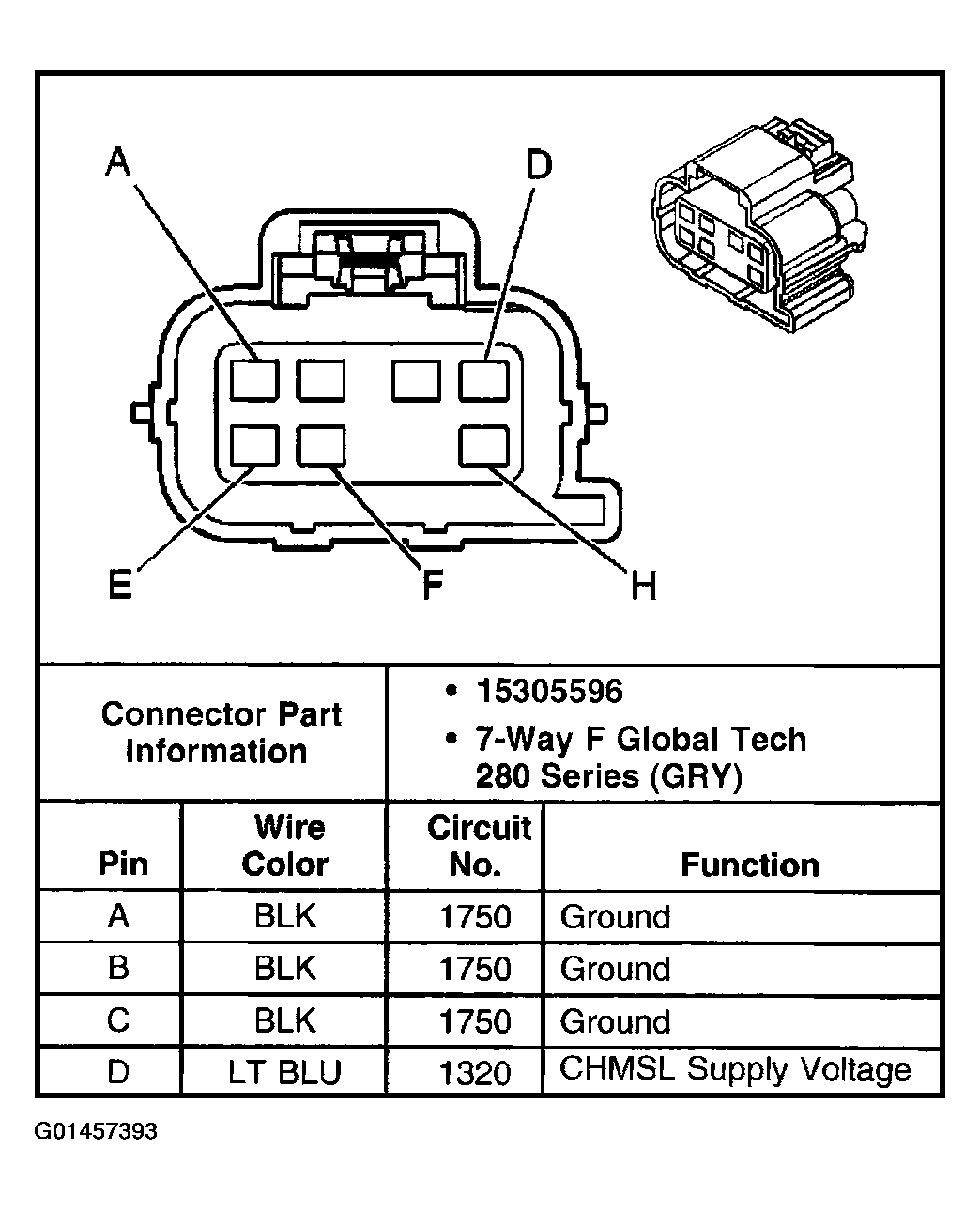

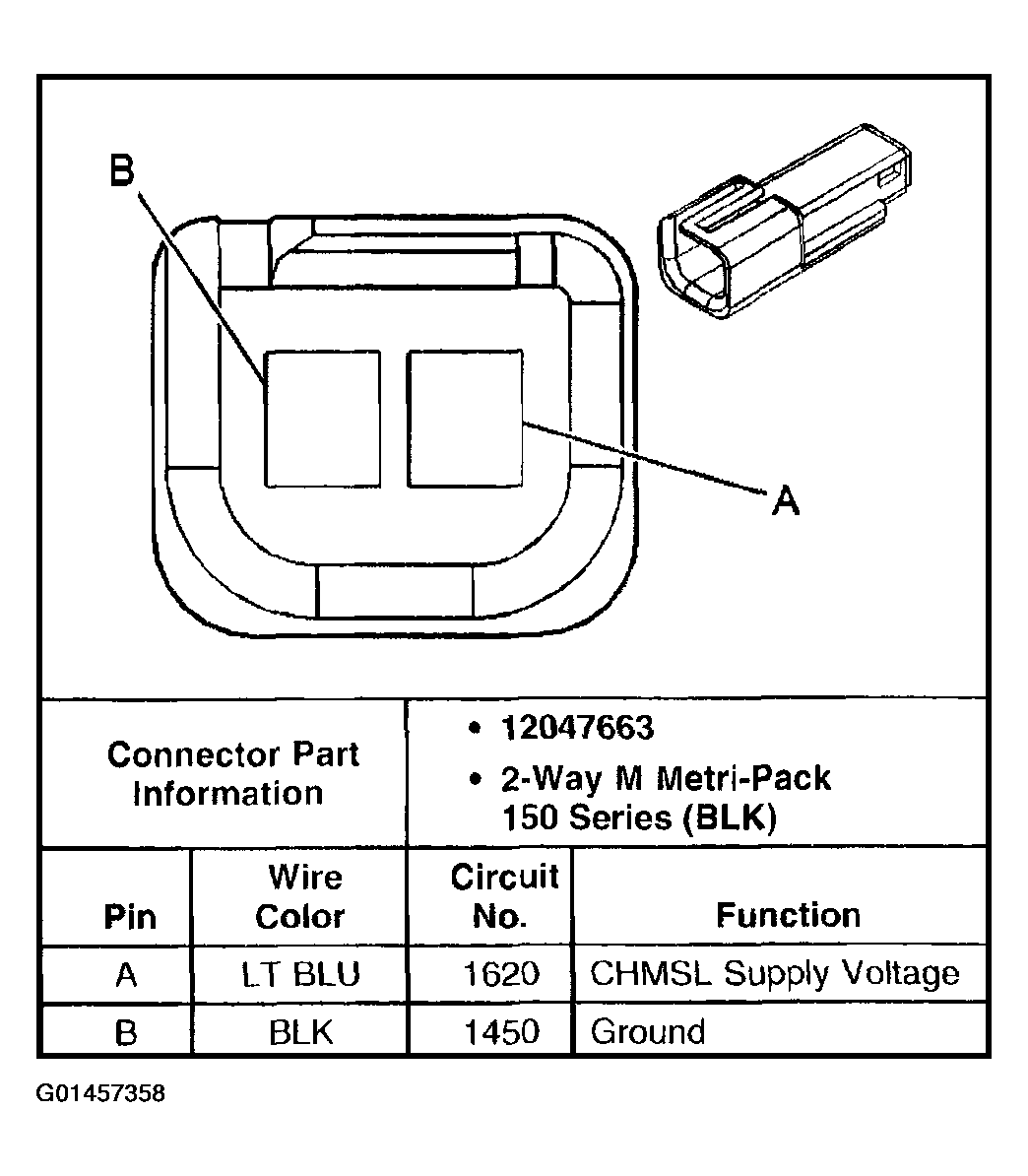

Fig 8: Identifying Center High Mounted Stop Lamp (CHMSL) (Avalanche & Escalade EXT) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

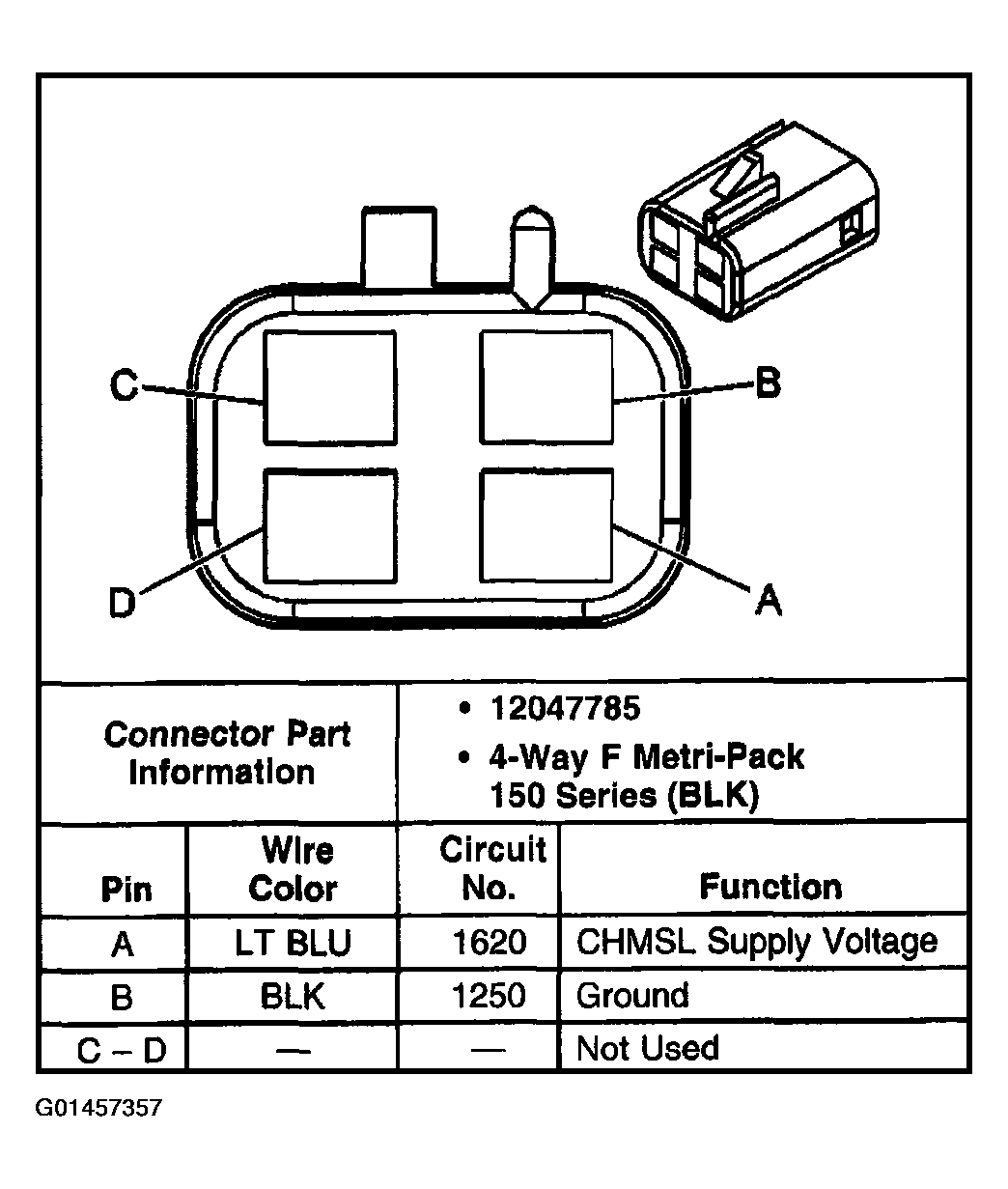

Fig 9: Identifying Center High Mounted Stop Lamp (CHMSL) (Except Avalanche And Escalade EXT) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Clearance Lamp - LF (w/NYS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Clearance Lamp - LR (w/NYS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Clearance Lamp - RF (w/NYS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Clearance Lamp - RR (w/NYS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Clearance Lamps (w/U01) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

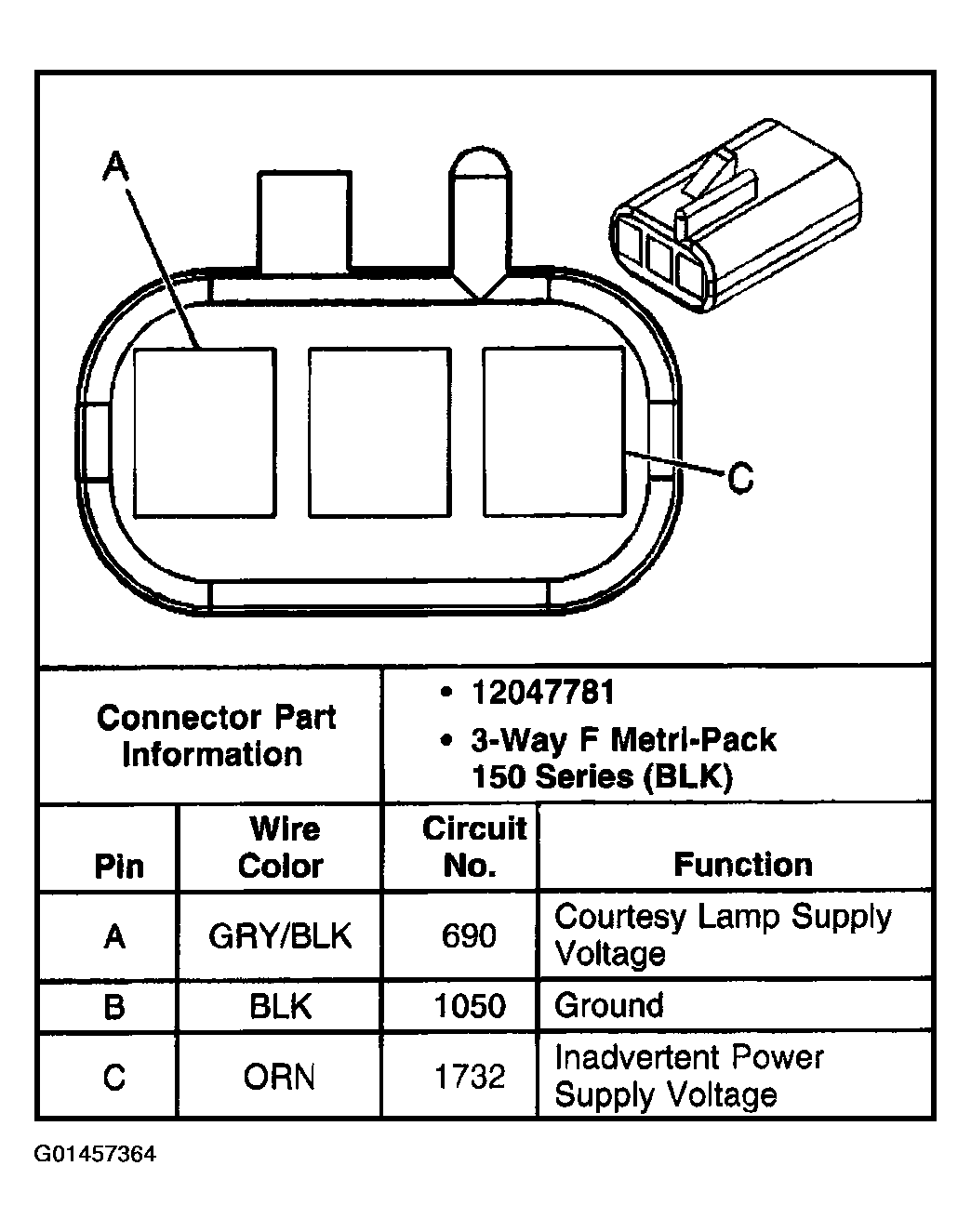

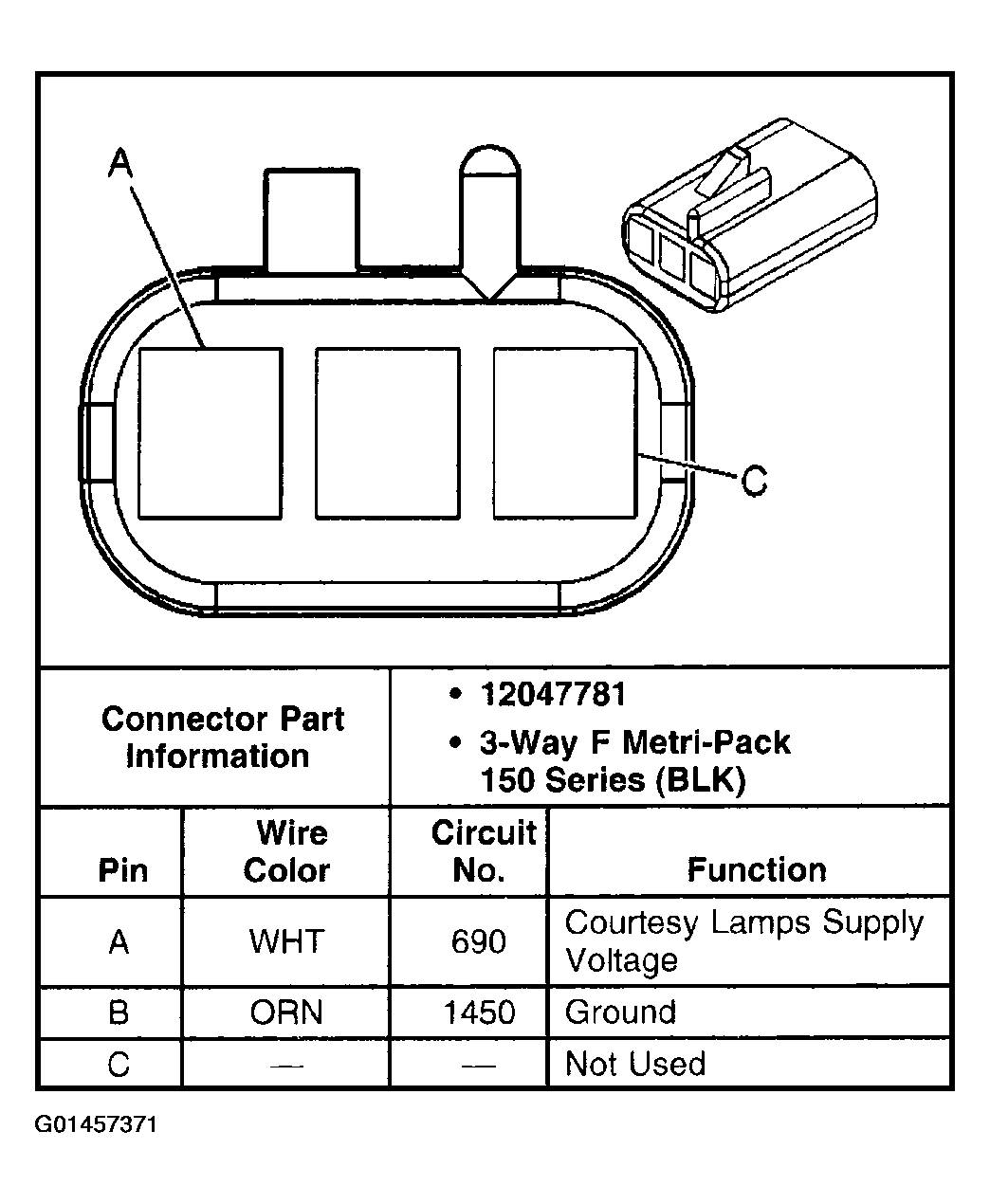

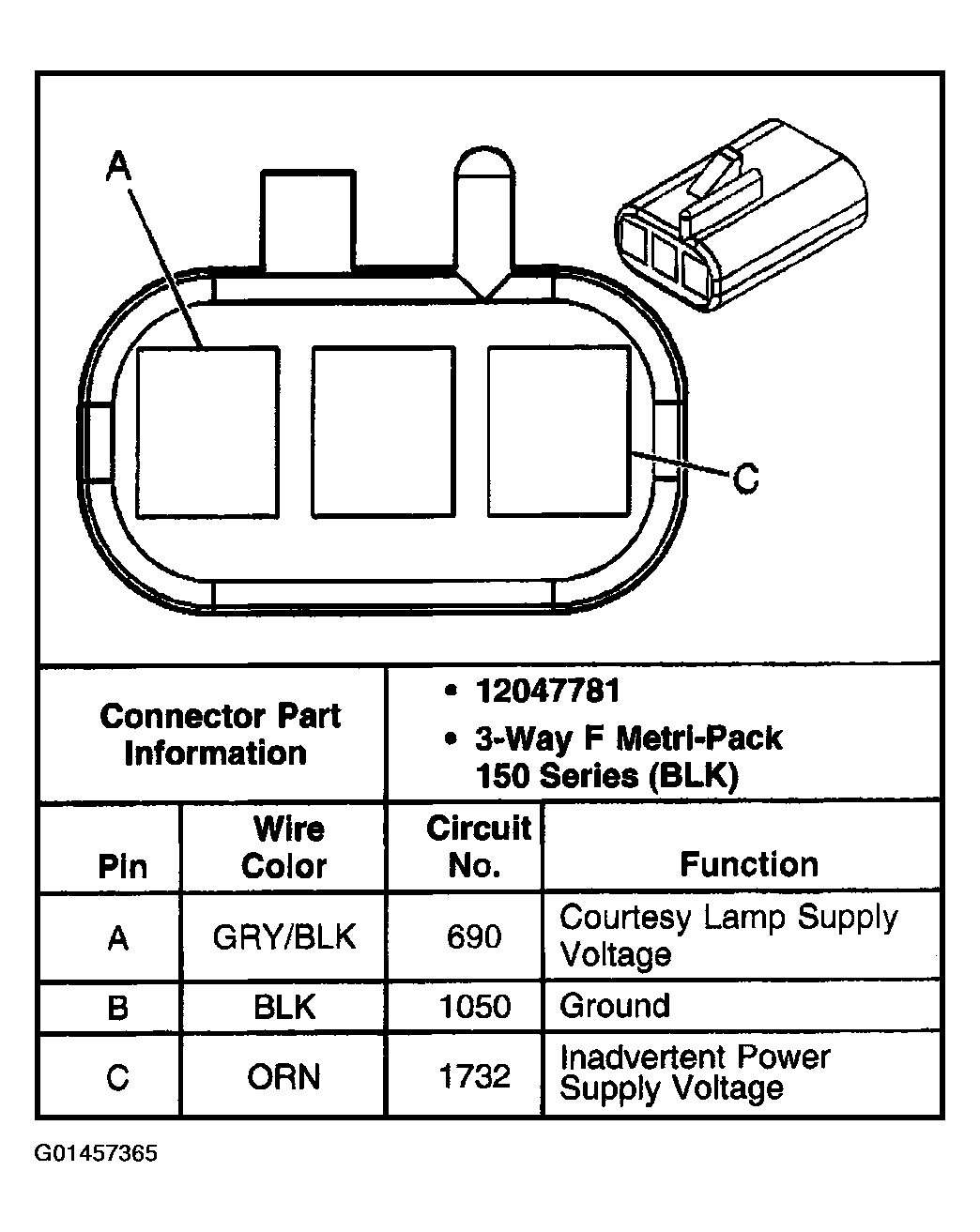

Fig 15: Identifying Courtesy/Reading Lamp - Mid Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Courtesy/Reading Lamp - Rear (Tahoe & Yukon Only) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

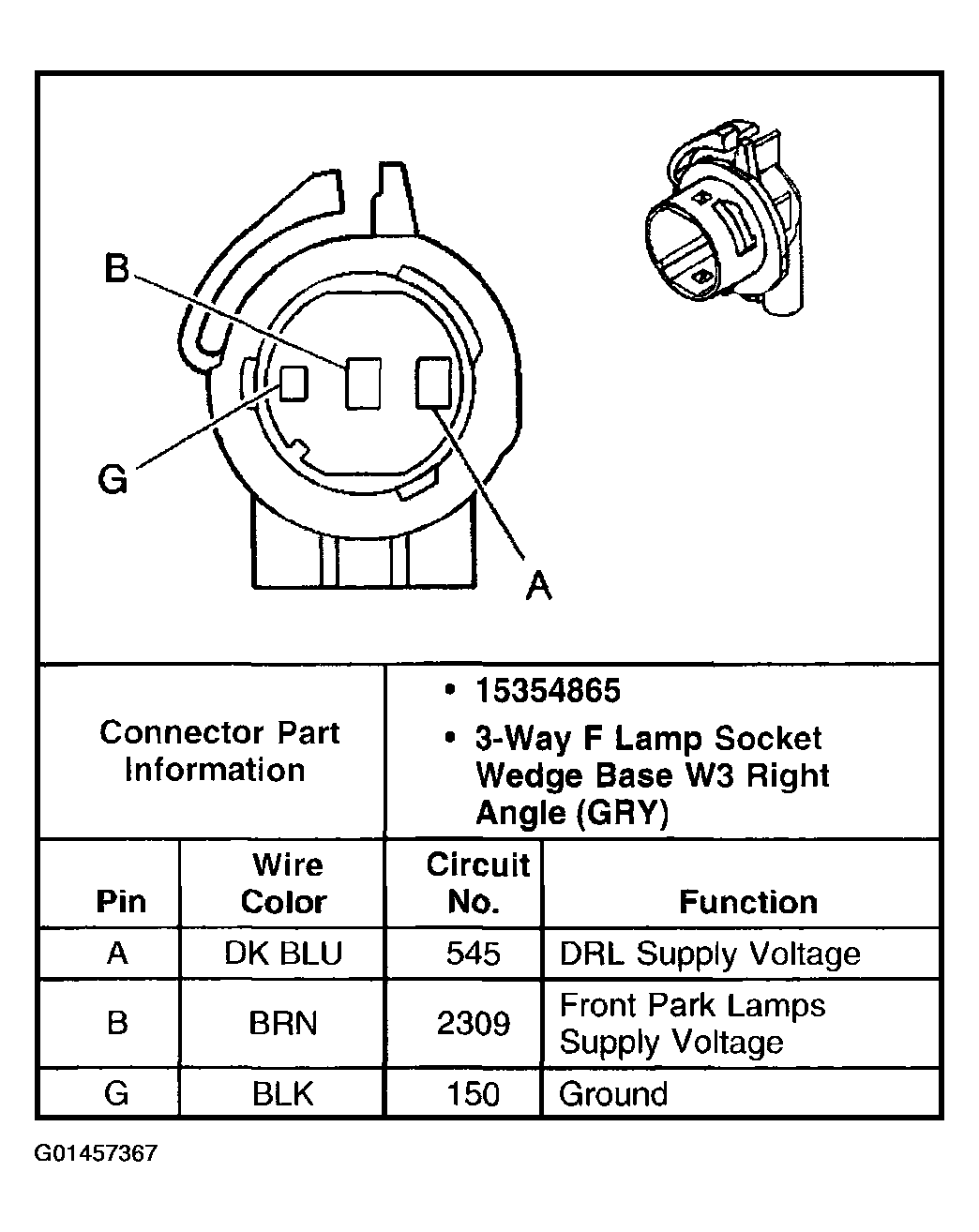

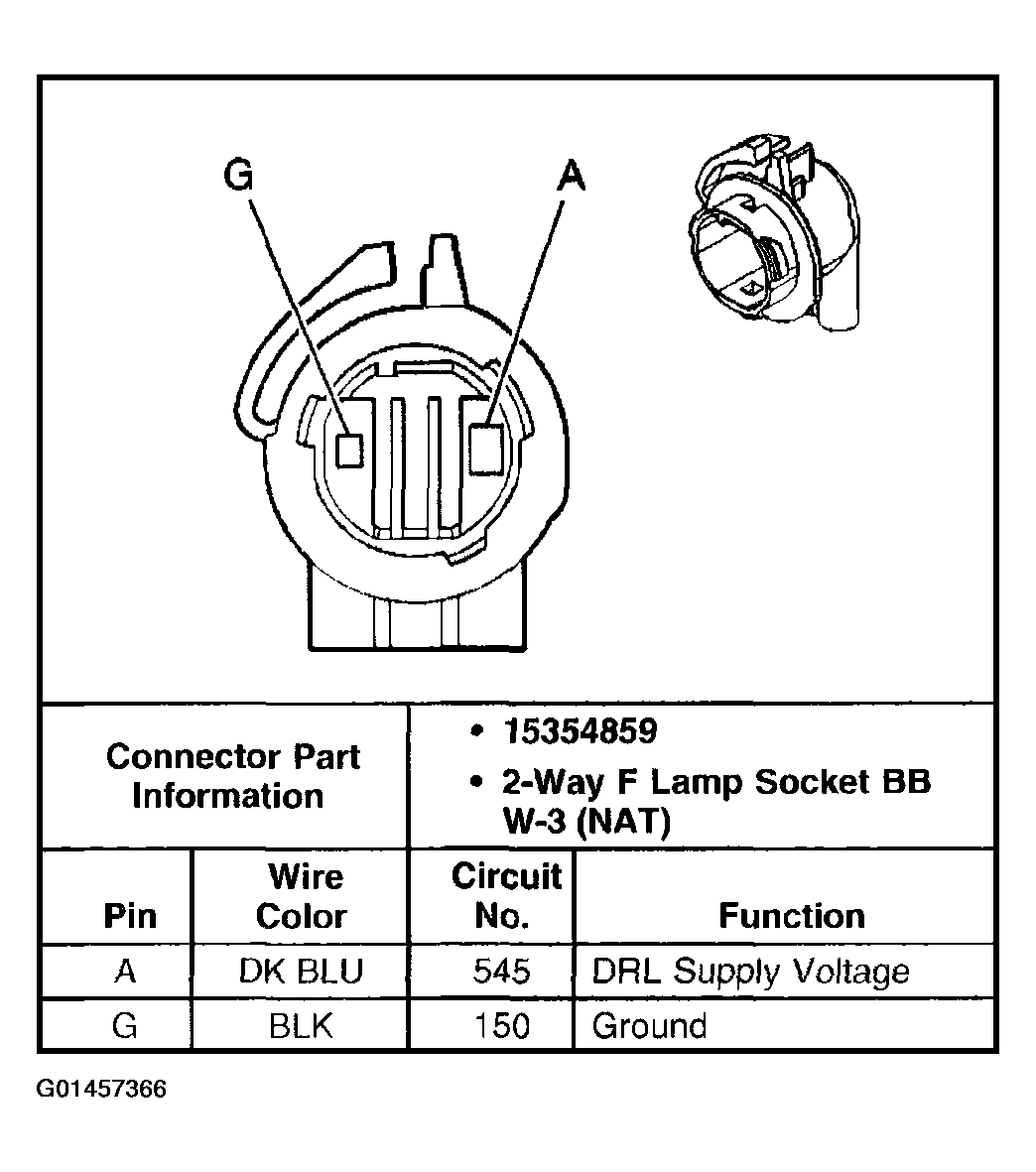

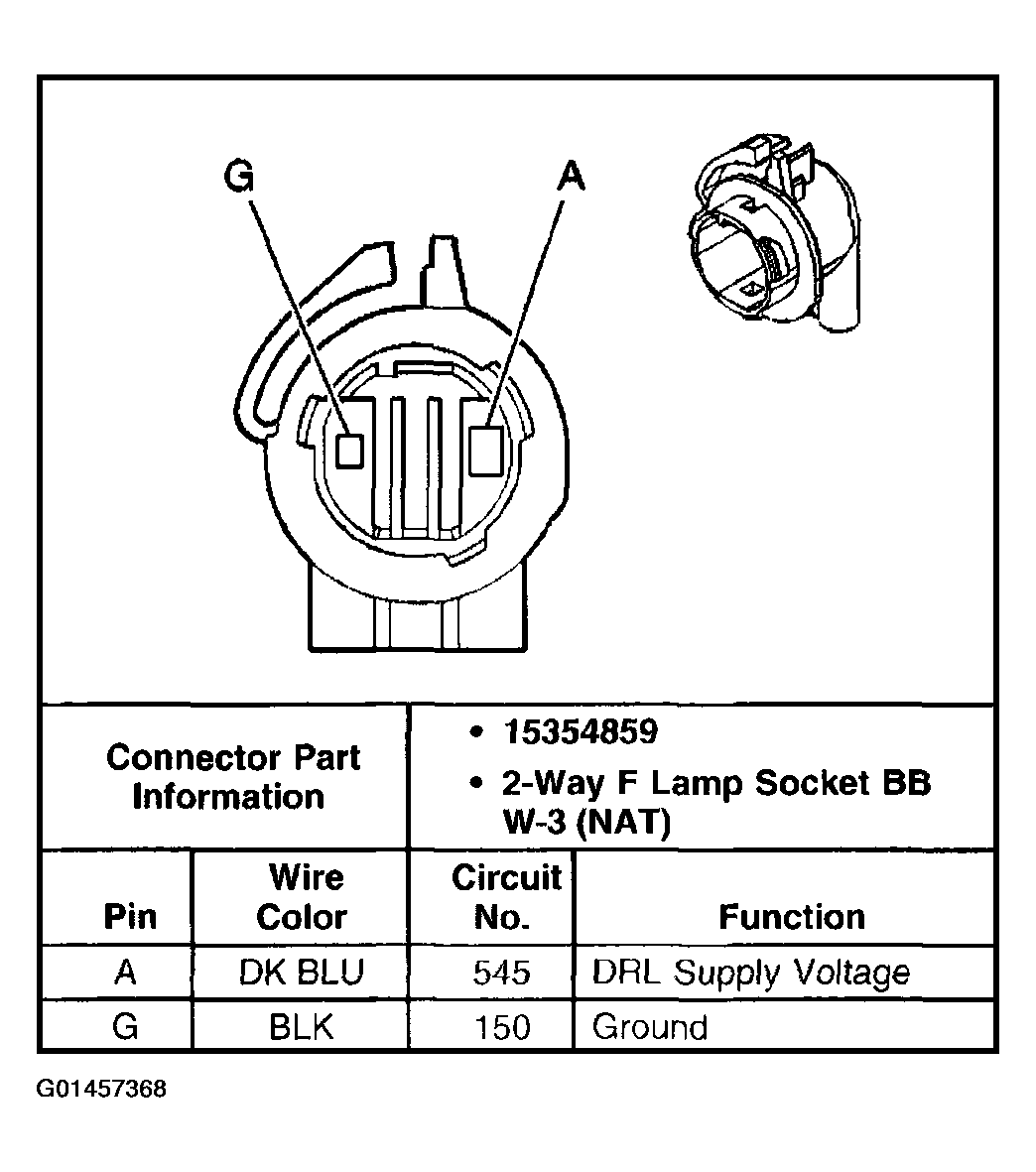

Fig 17: Identifying Daytime Running Lamp (DRL) - Left (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Daytime Running Lamp (DRL) - Left (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

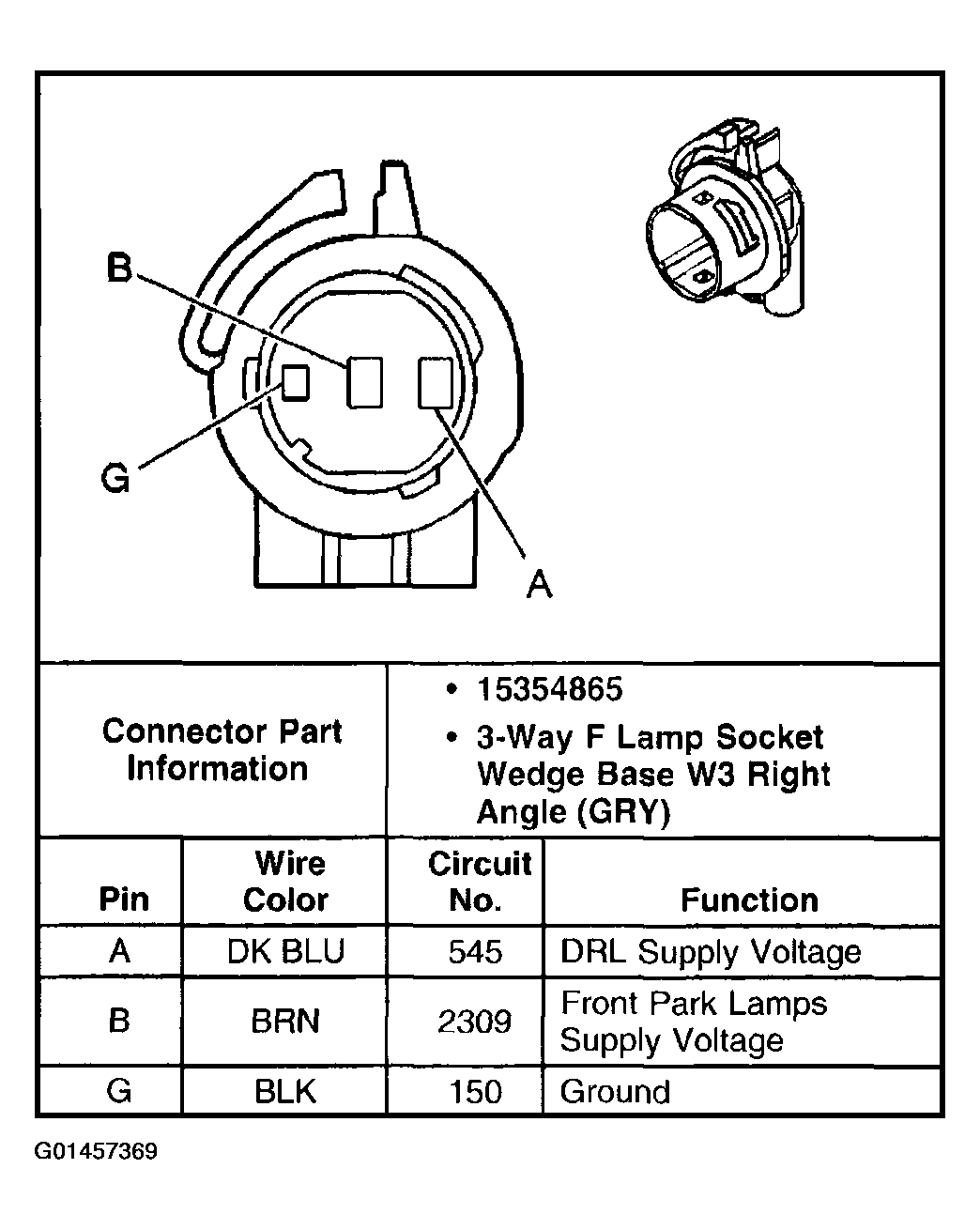

Fig 19: Identifying Daytime Running Lamp (DRL) - Right (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Daytime Running Lamp (DRL) - Right (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Dome Lamp - C - Pillar (Suburban & Yukon XL Only) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying Dome Lamp - D - Pillar (Suburban & Yukon XL Only) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

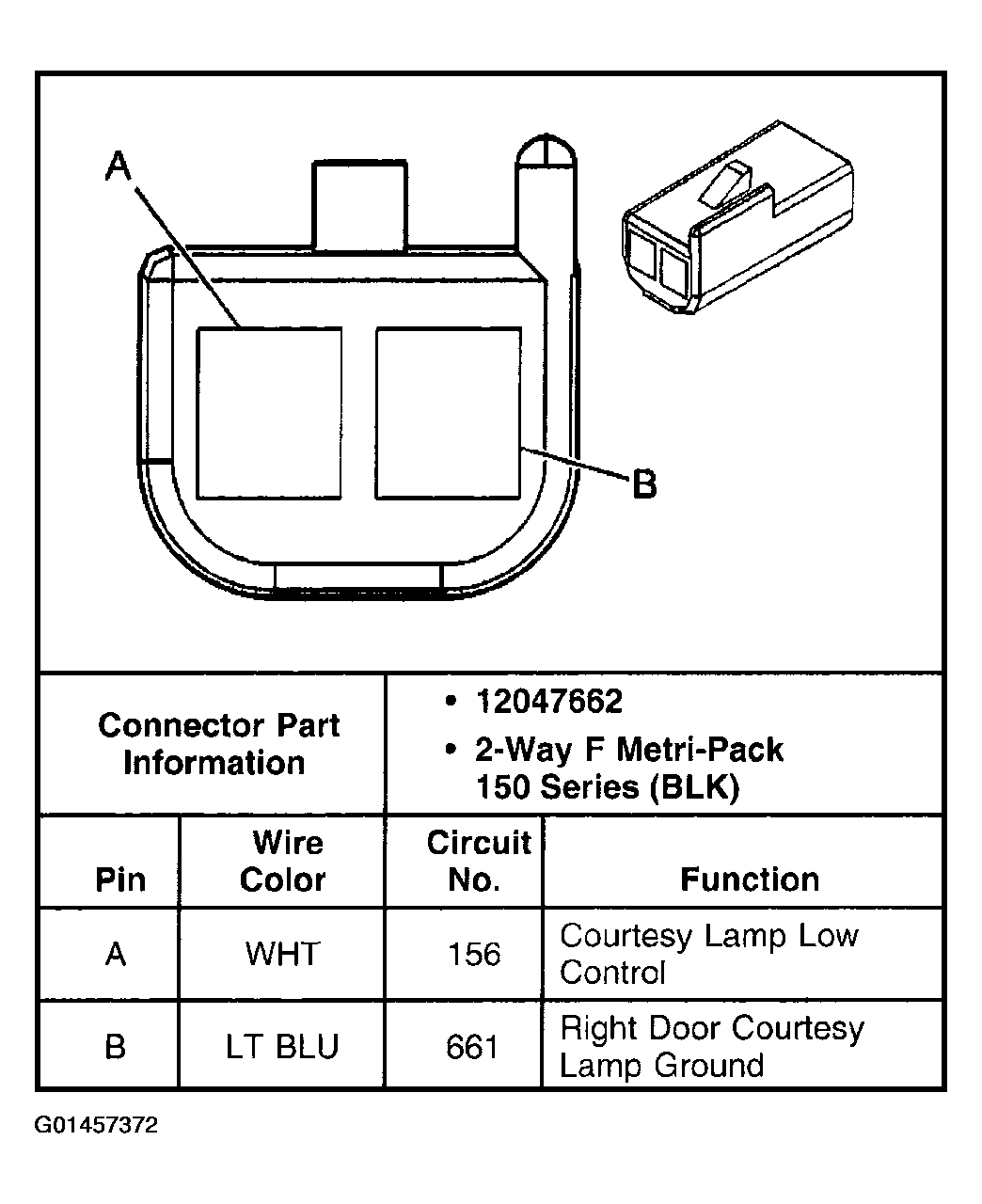

Fig 23: Identifying Door Courtesy Lamp - Front Passenger Connector Terminal

Courtesy of GENERAL MOTORS CORP.

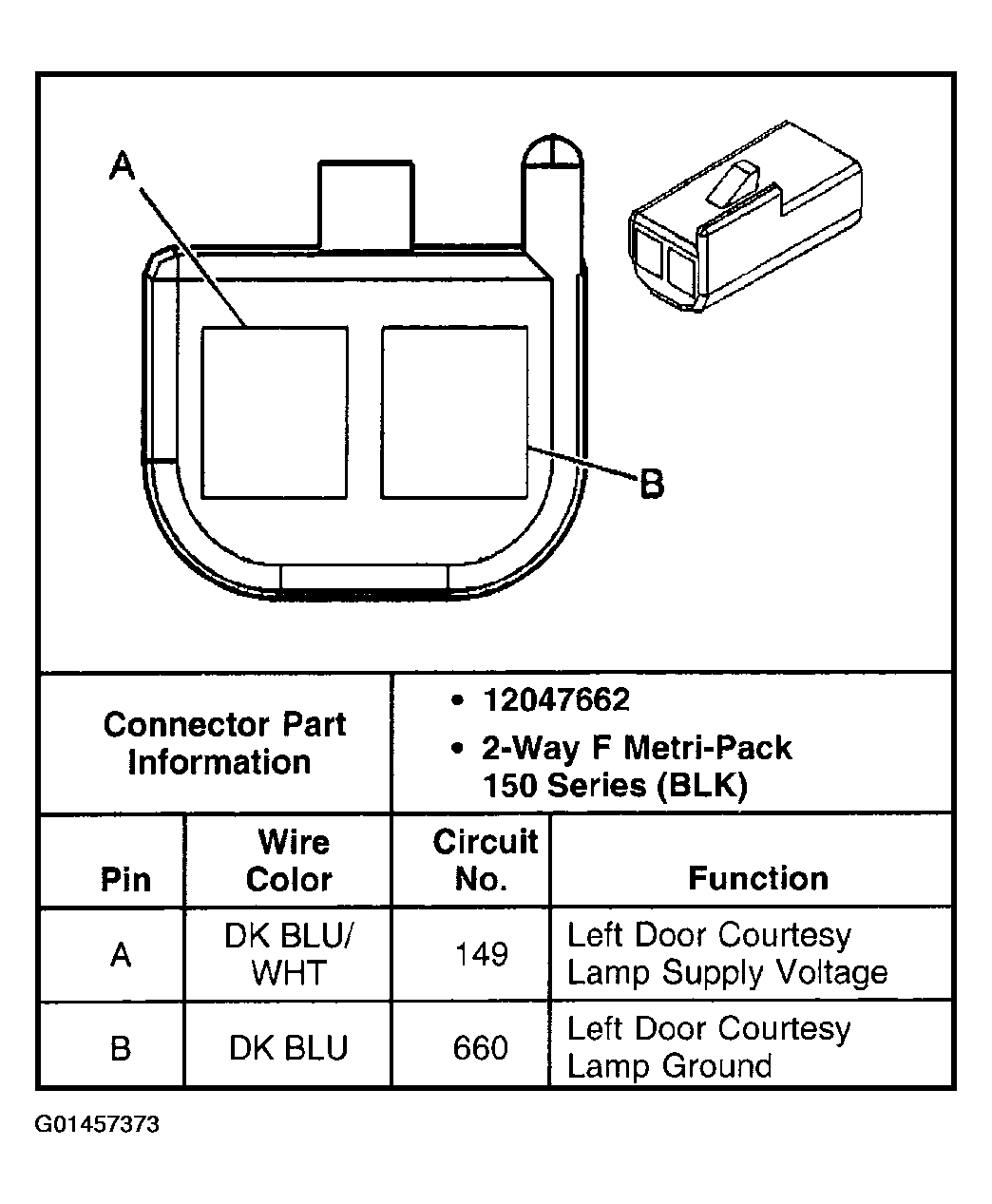

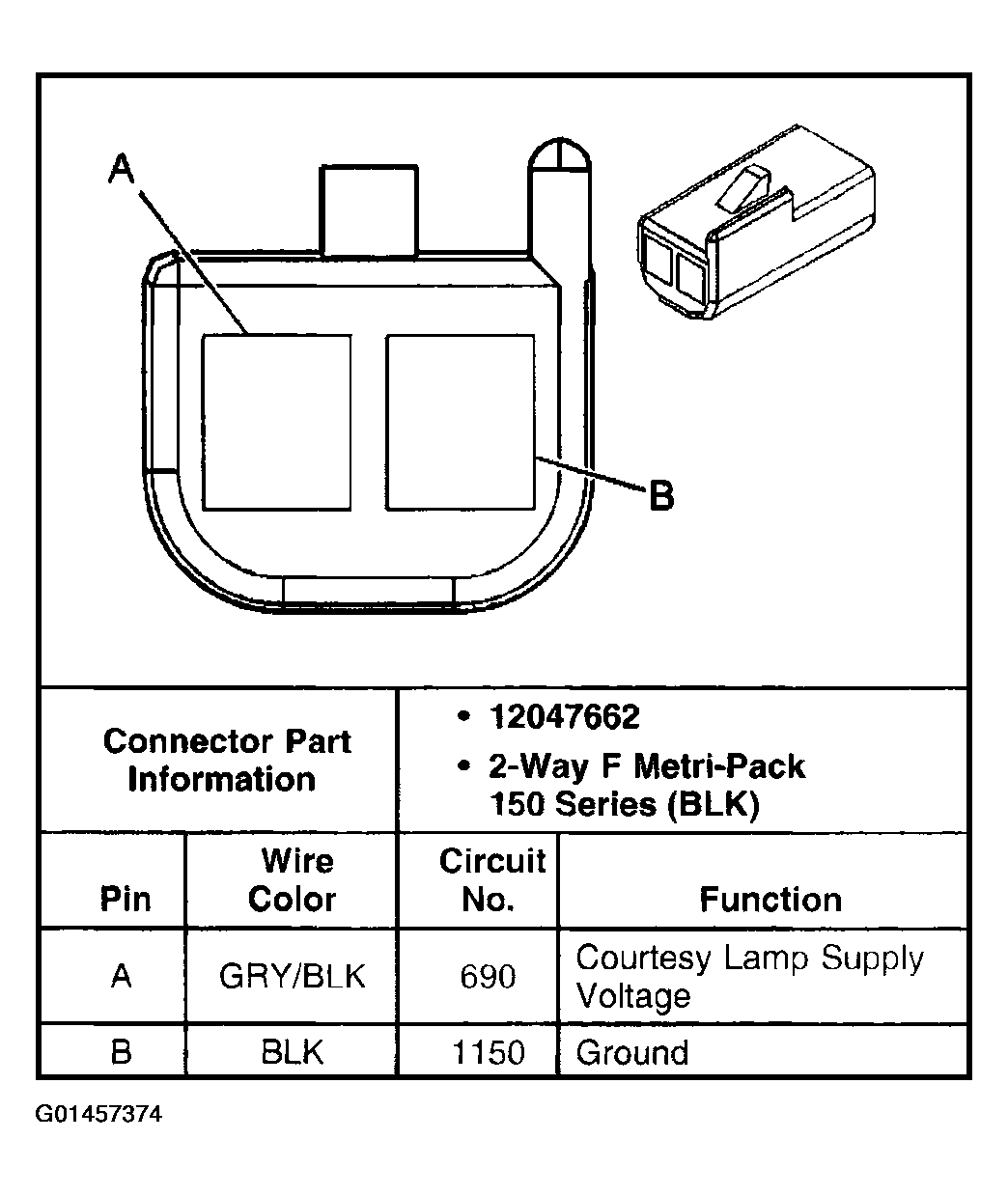

Fig 24: Identifying Door Courtesy Lamp - LF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

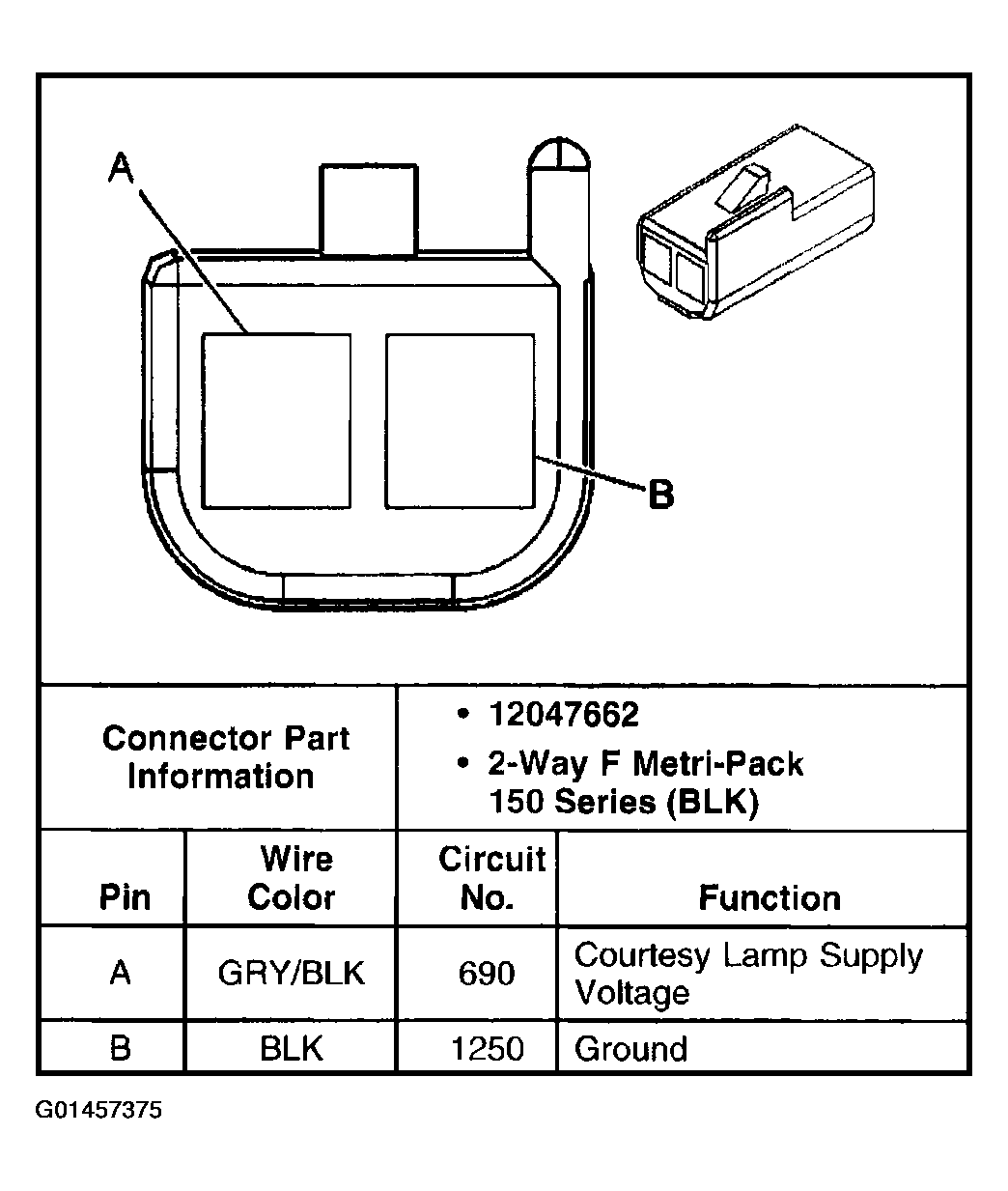

Fig 25: Identifying Door Courtesy Lamp - LR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Door Courtesy Lamp - RR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

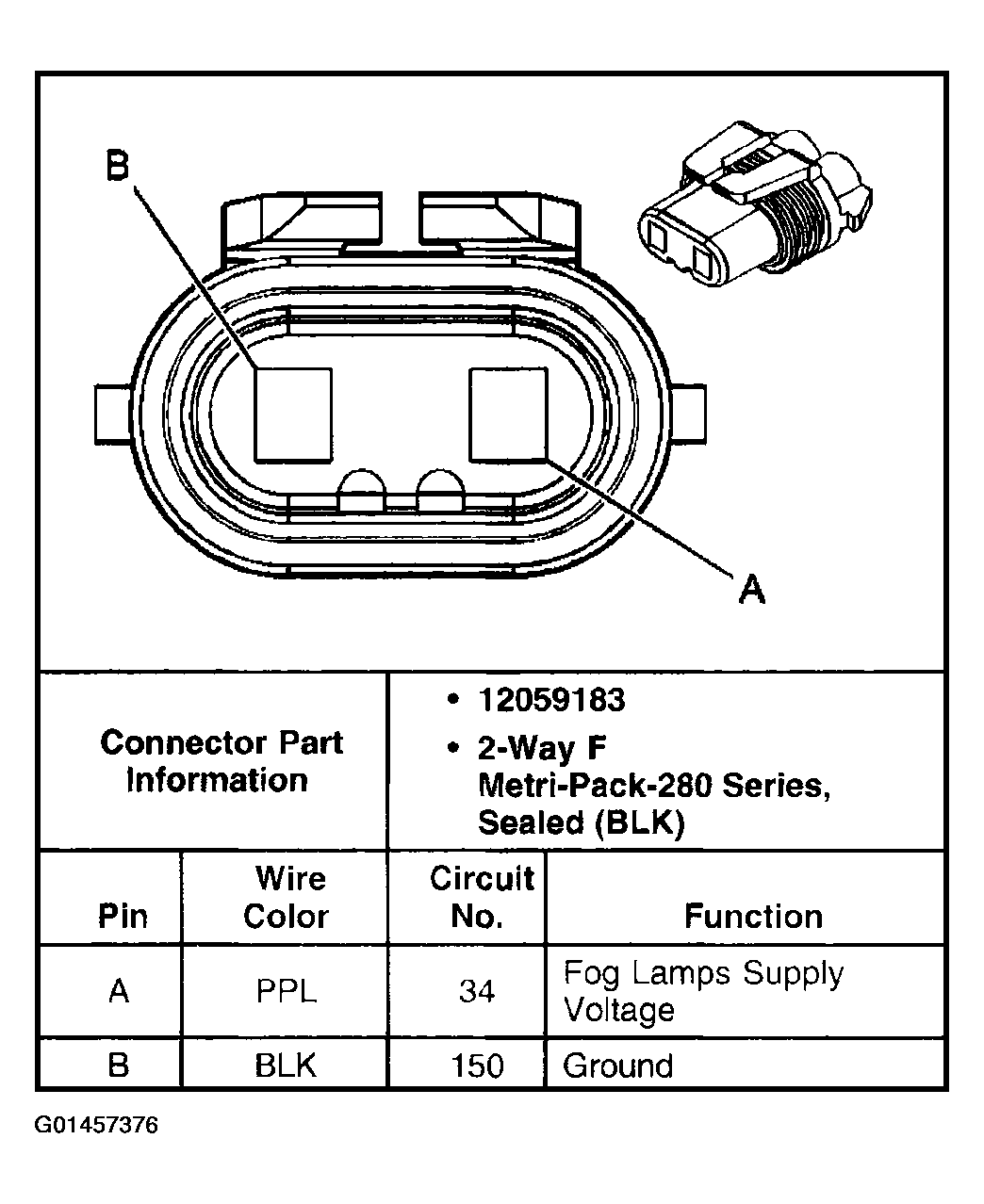

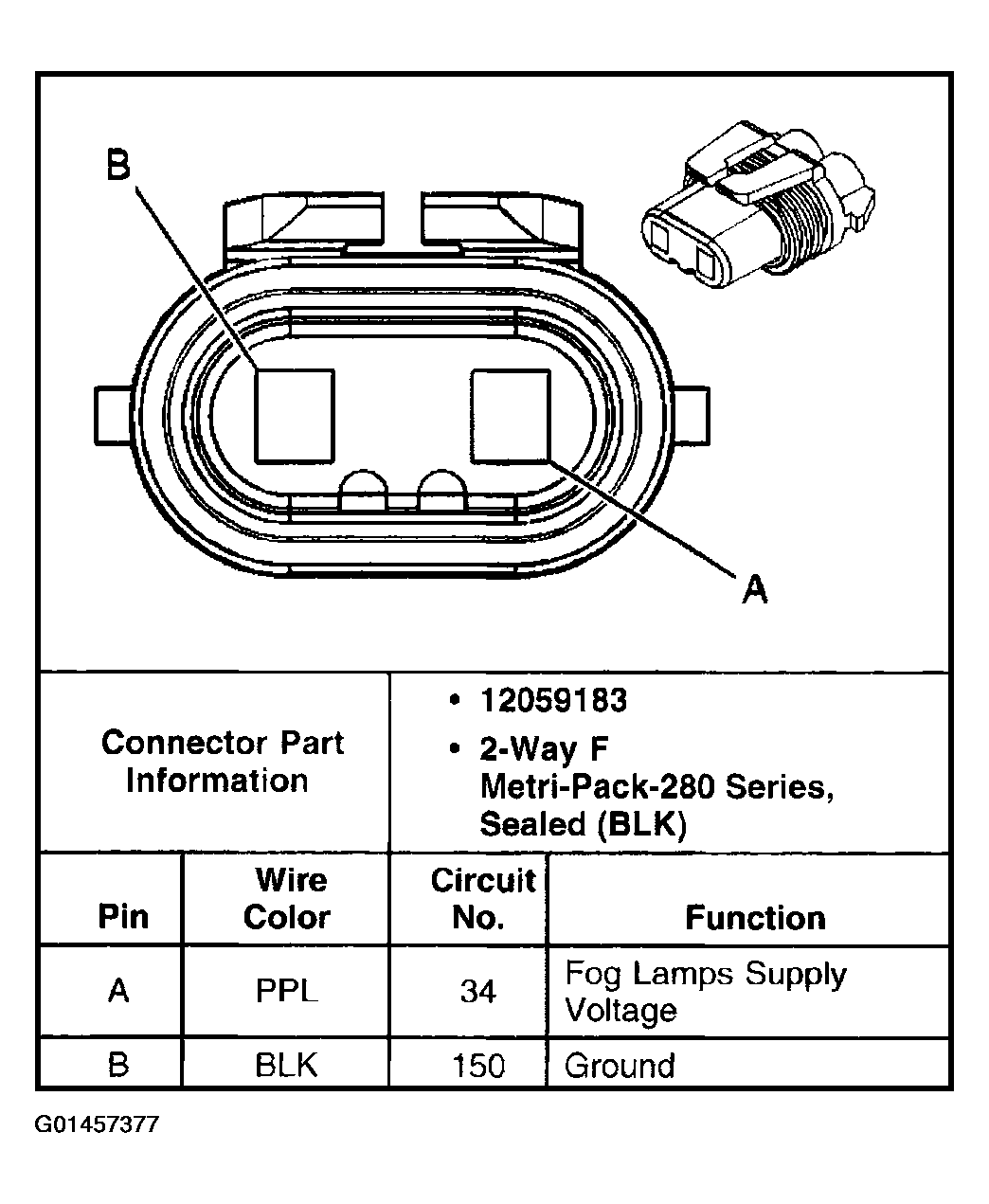

Fig 27: Identifying Fog Lamp - LF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying Fog Lamp - RF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying Fog Lamp - Rear (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

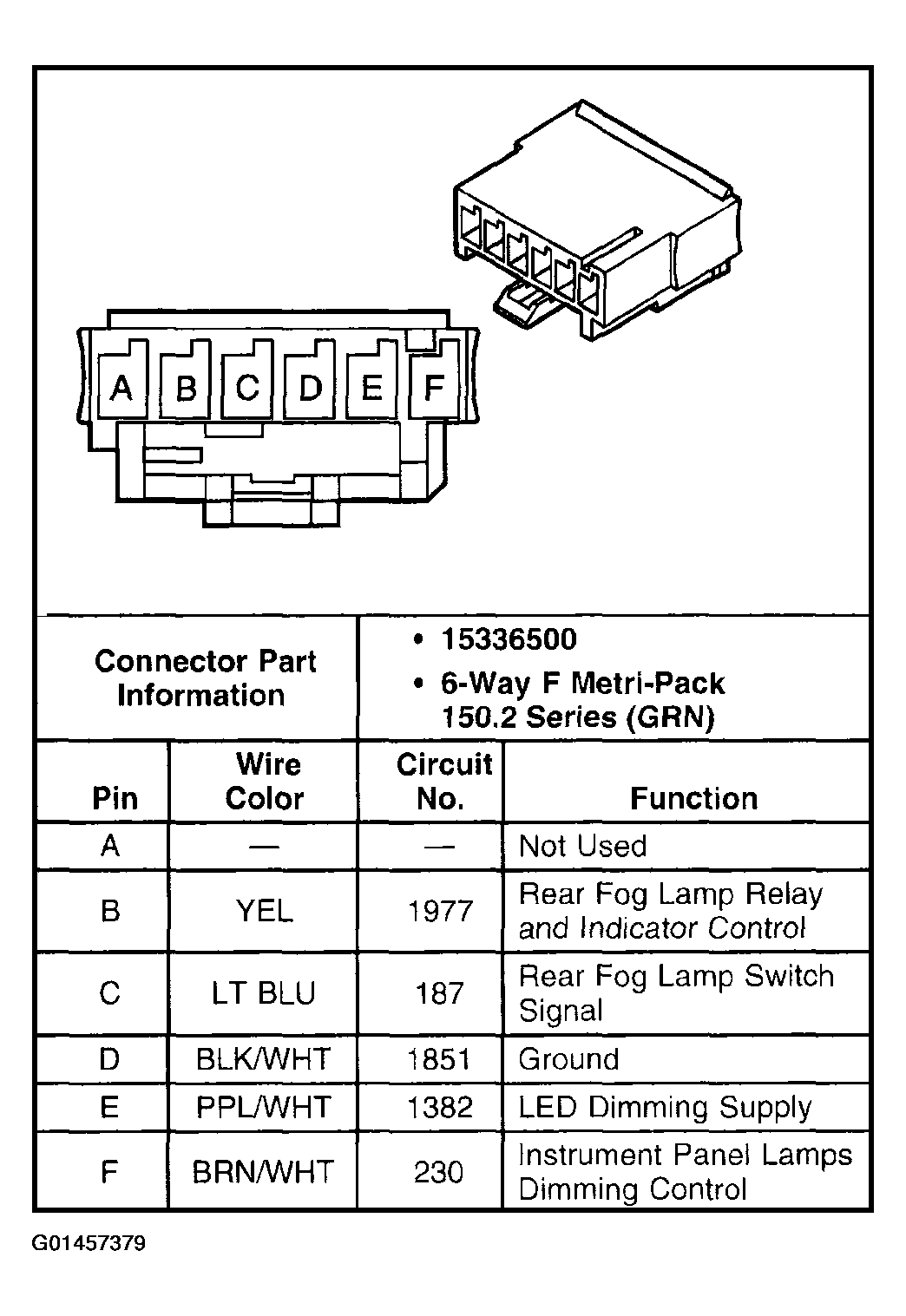

Fig 30: Identifying Fog Lamp Switch Rear (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

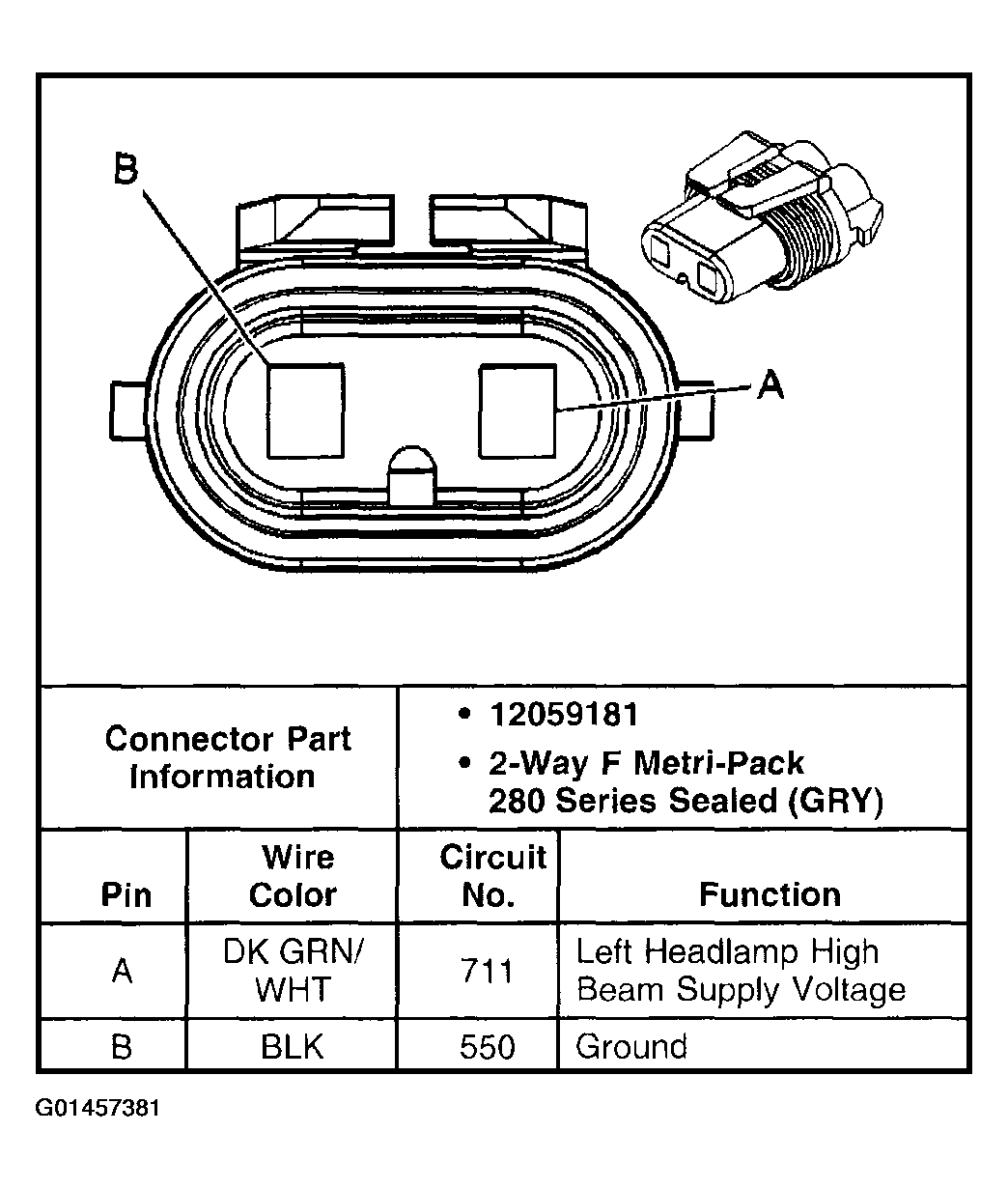

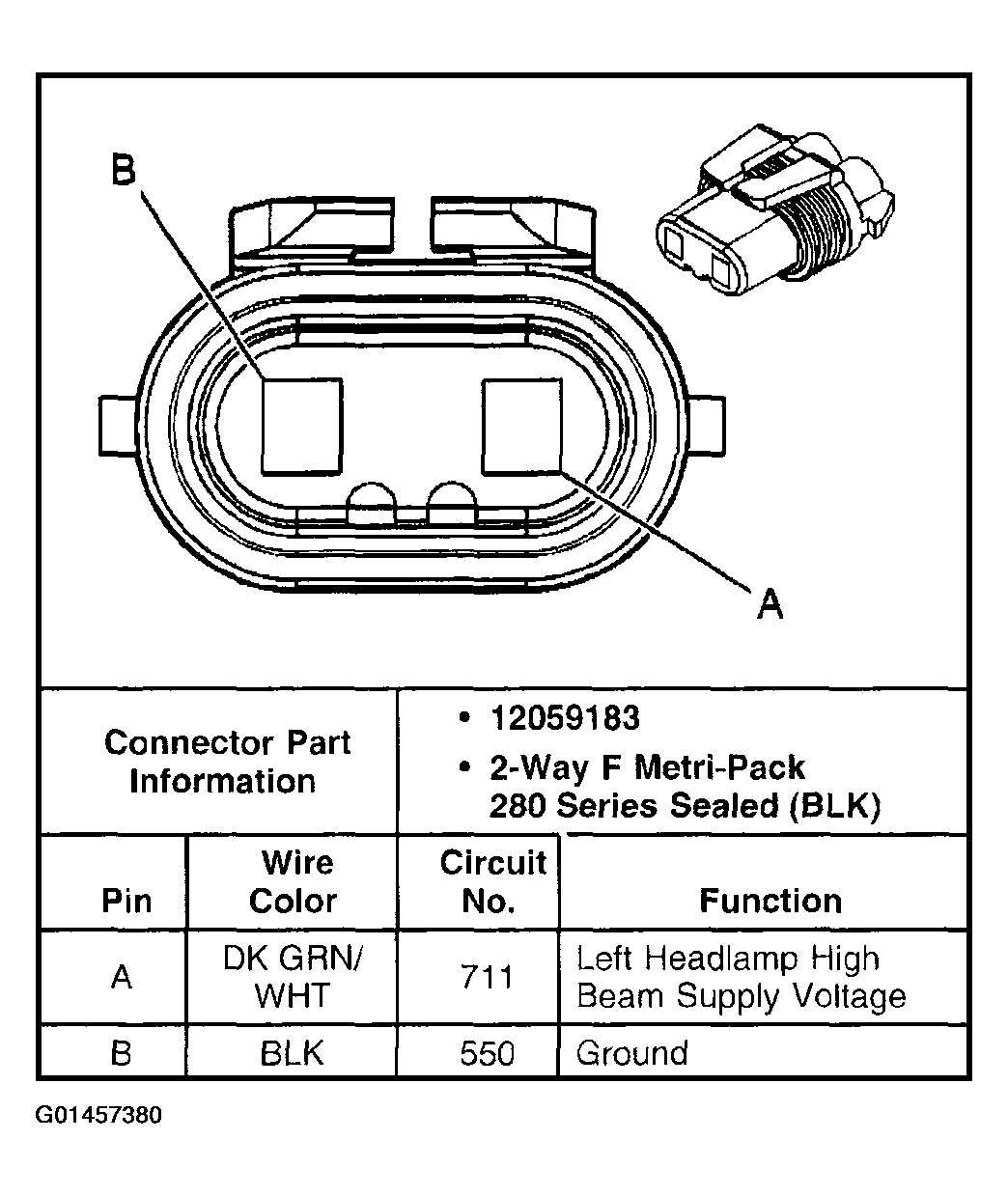

Fig 31: Headlamp - High Beam - Left (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 32: Identifying Headlamp - High Beam - Left (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

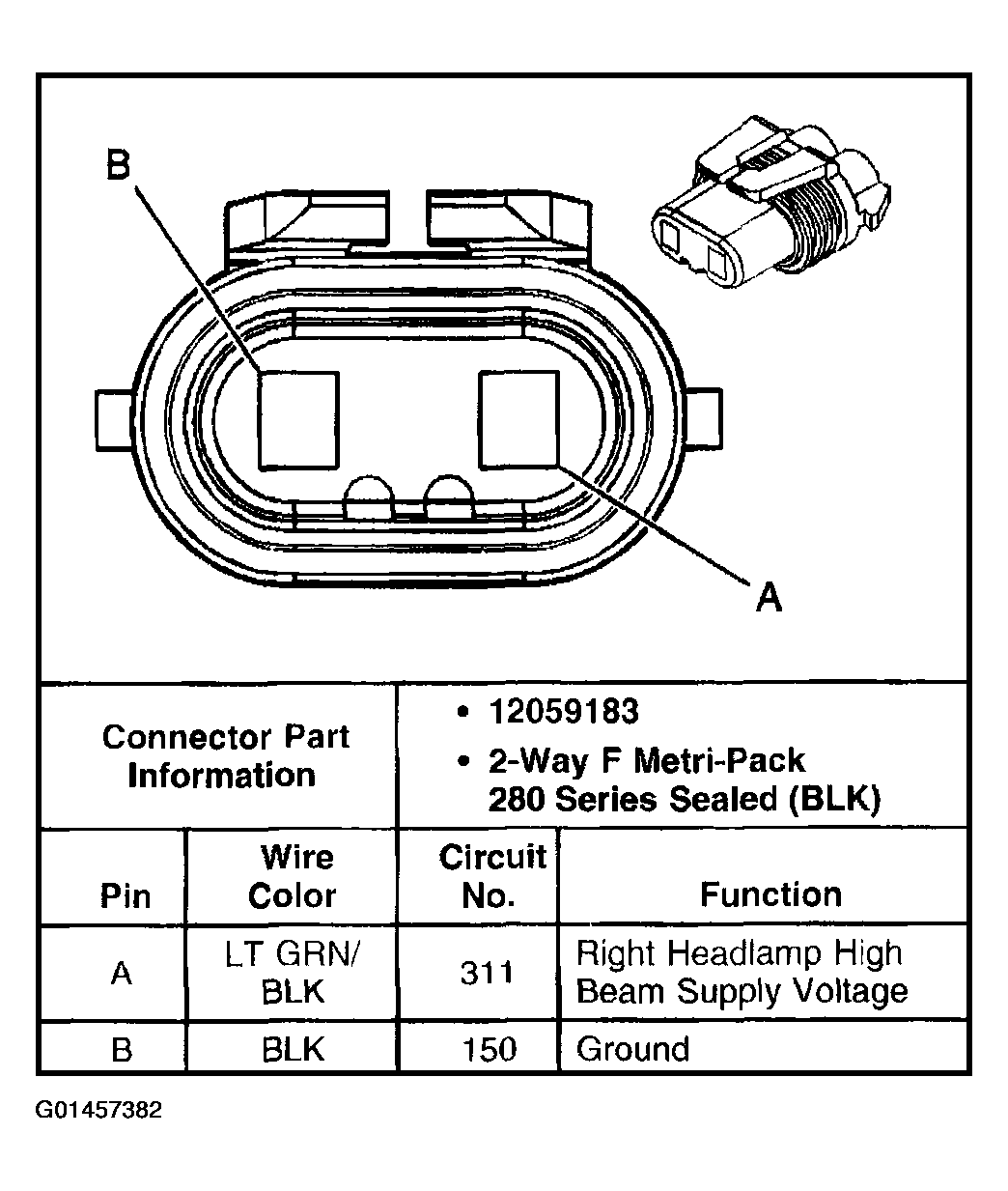

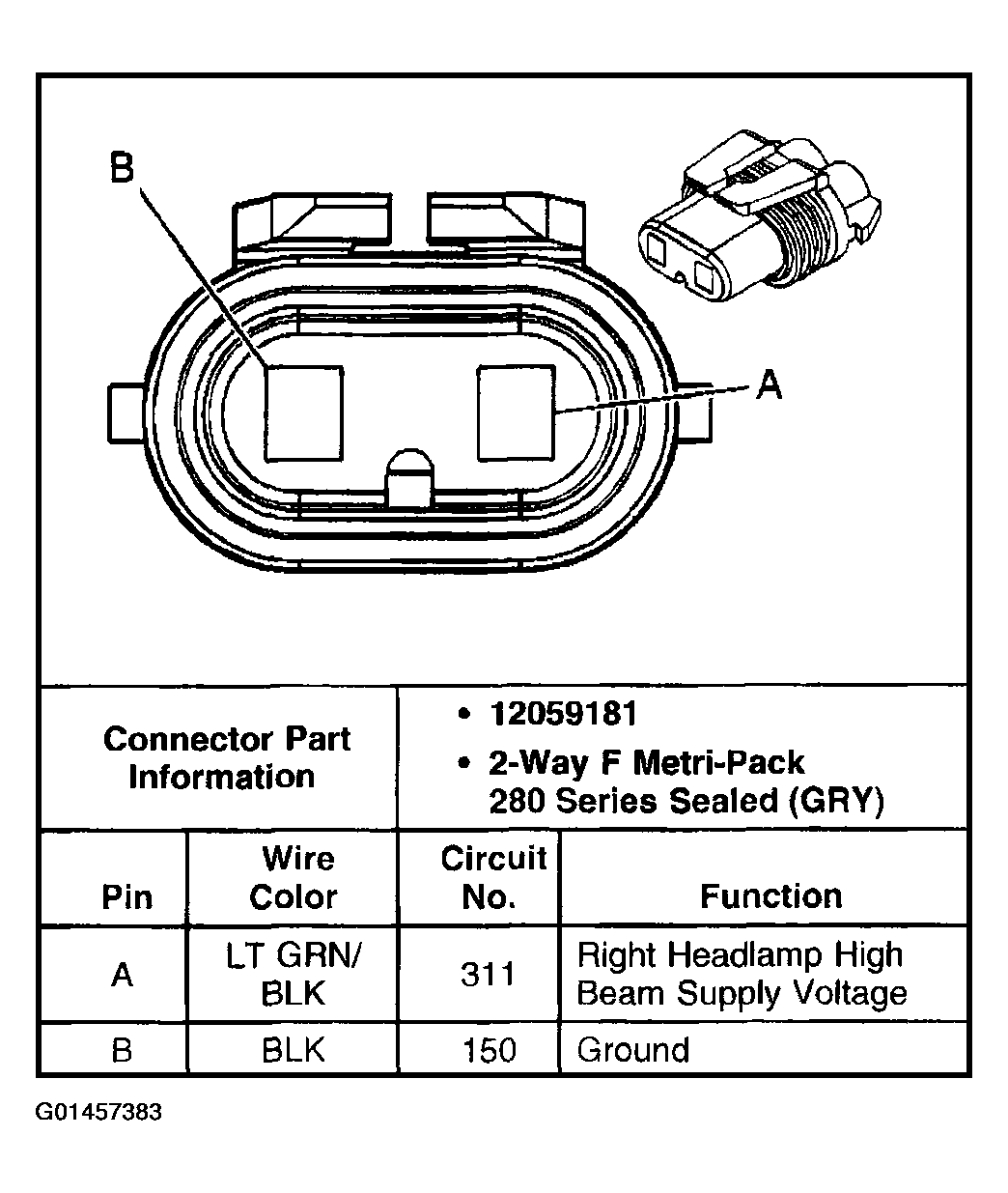

Fig 33: Identifying Headlamp - High Beam - Right (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying Headlamp - High Beam - Right (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

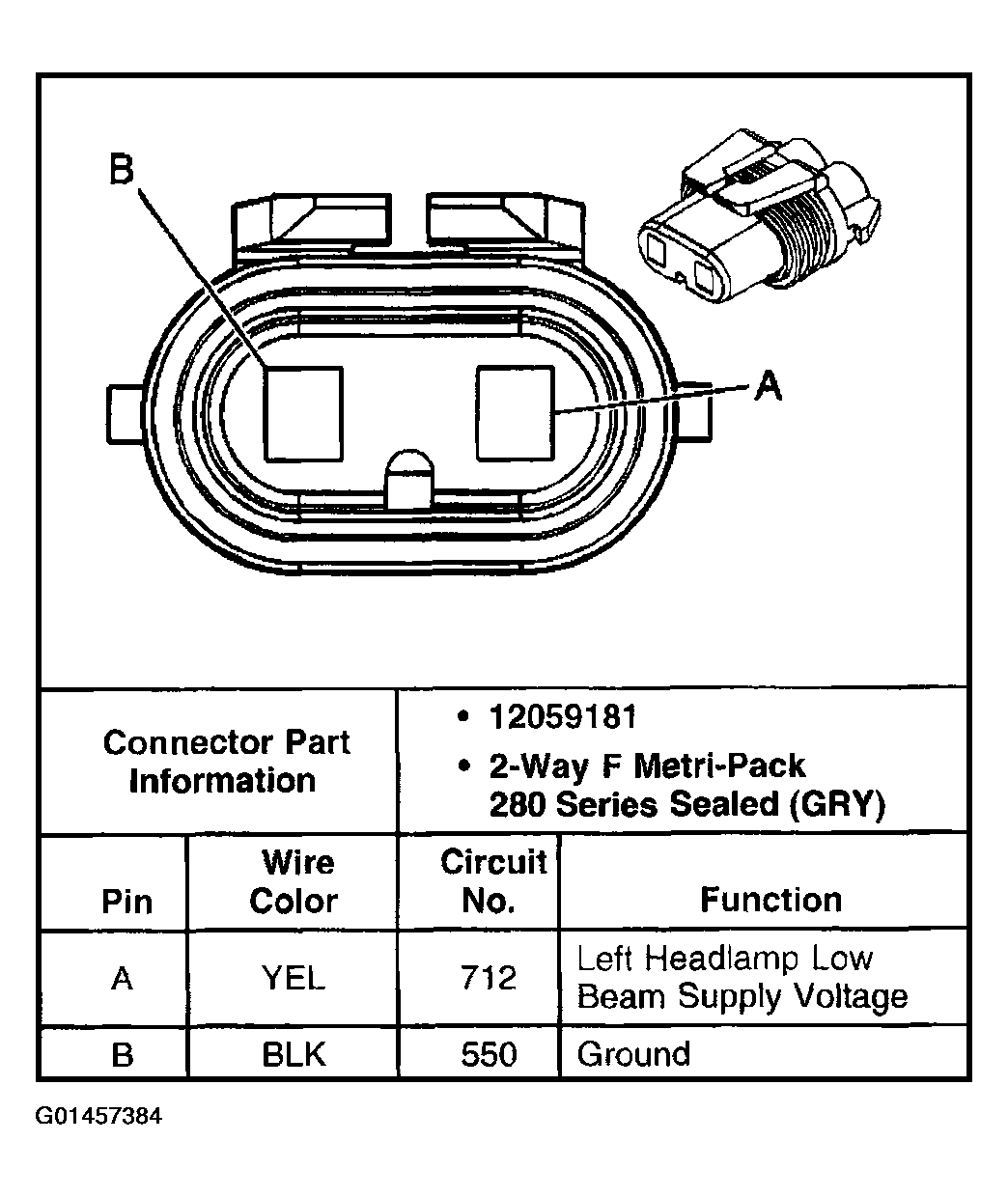

Fig 35: Identifying Headlamp - Low Beam - Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying Headlamp - Low Beam - Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.

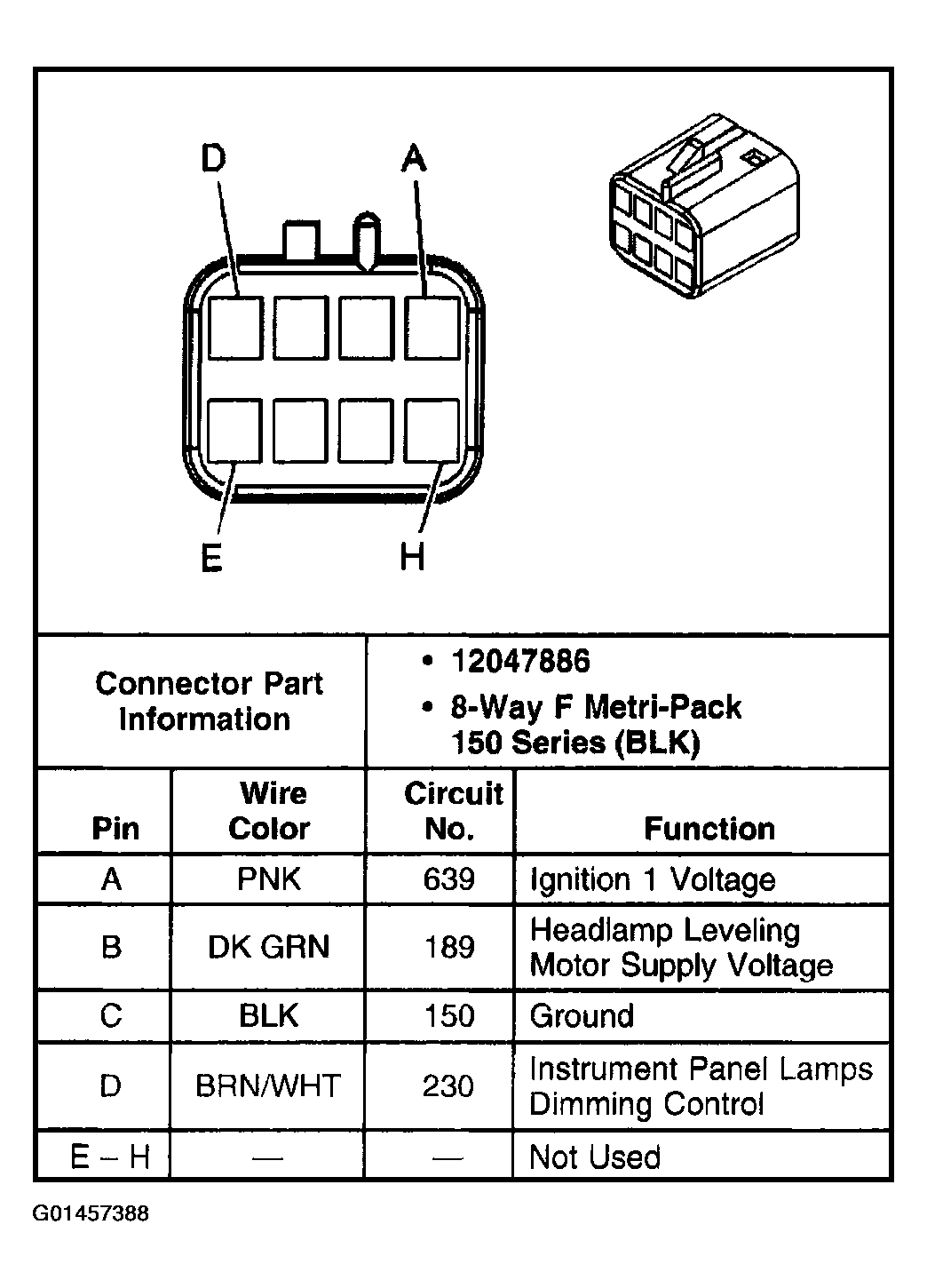

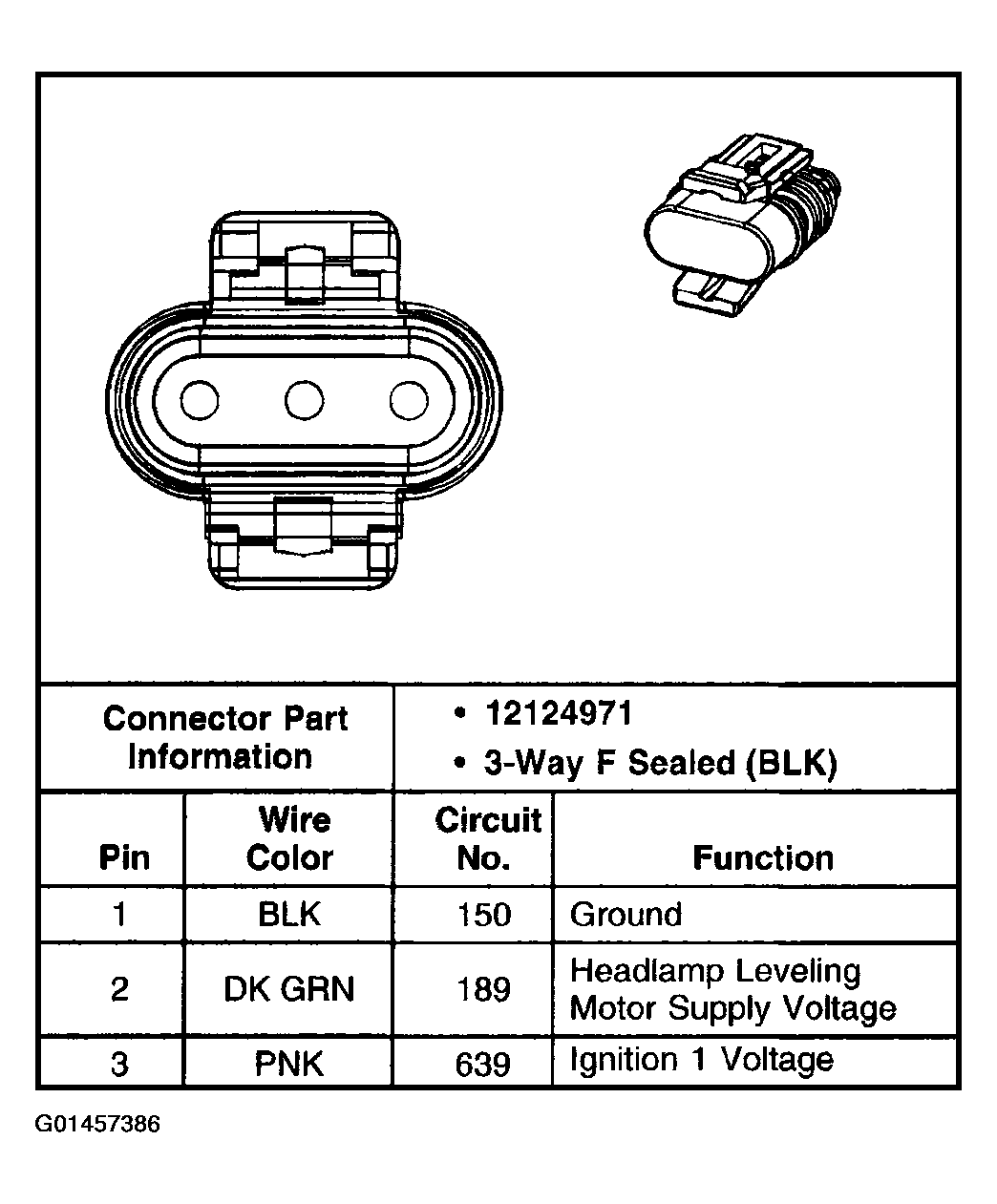

Fig 37: Identifying Headlamp Leveling Actuator - Left (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

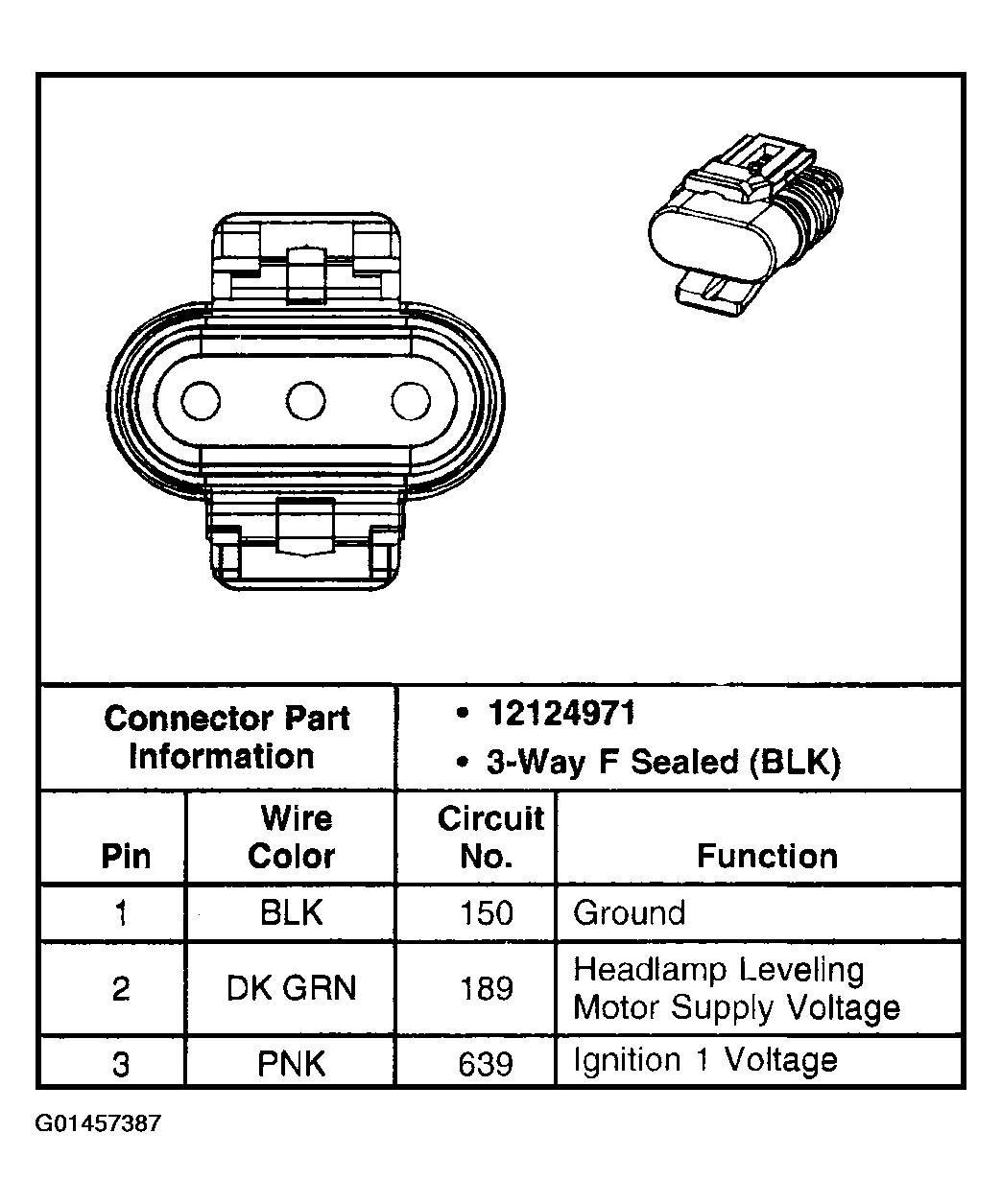

Fig 38: Identifying Headlamp Leveling Actuator - Right (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying Headlamp Leveling Switch (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

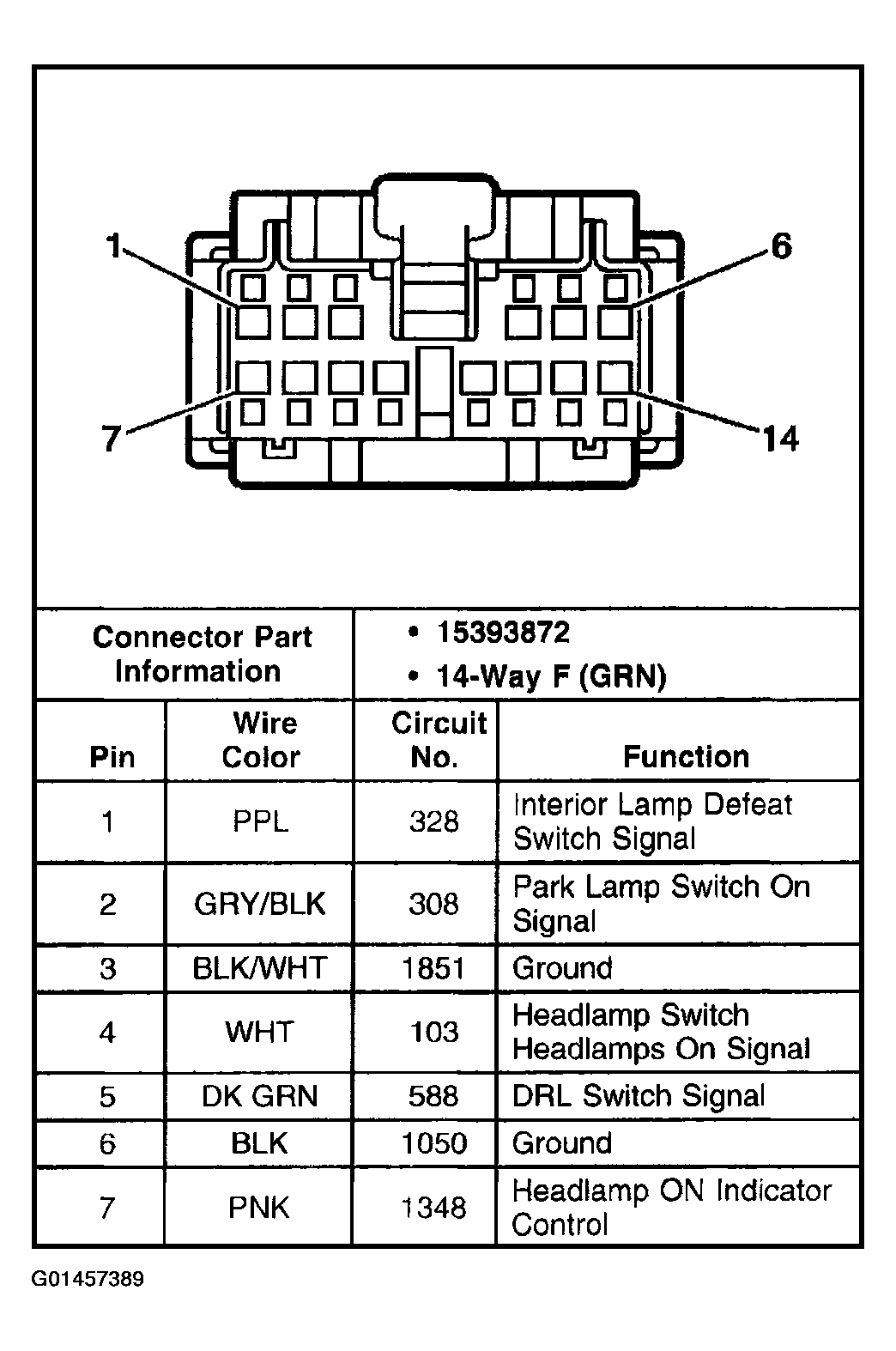

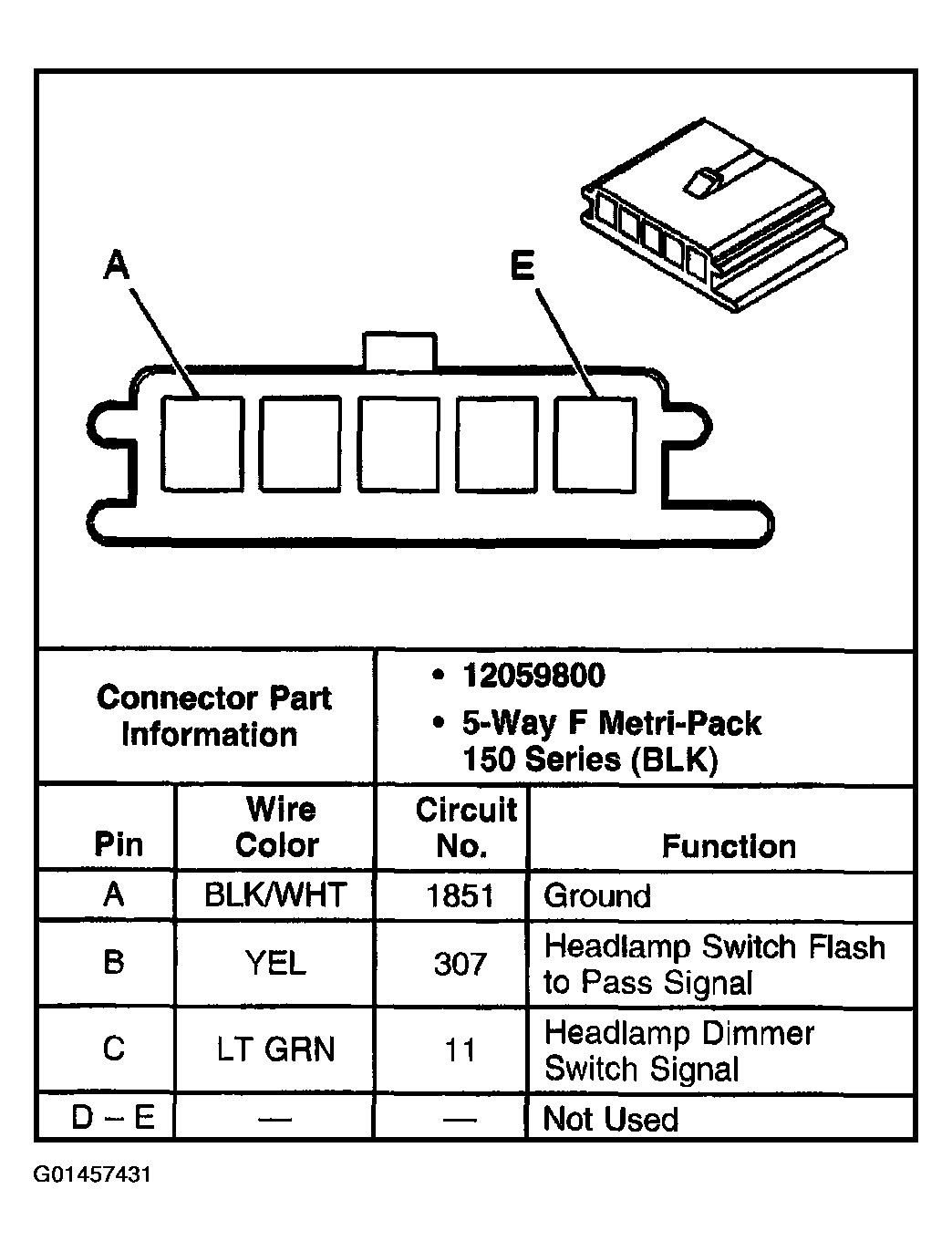

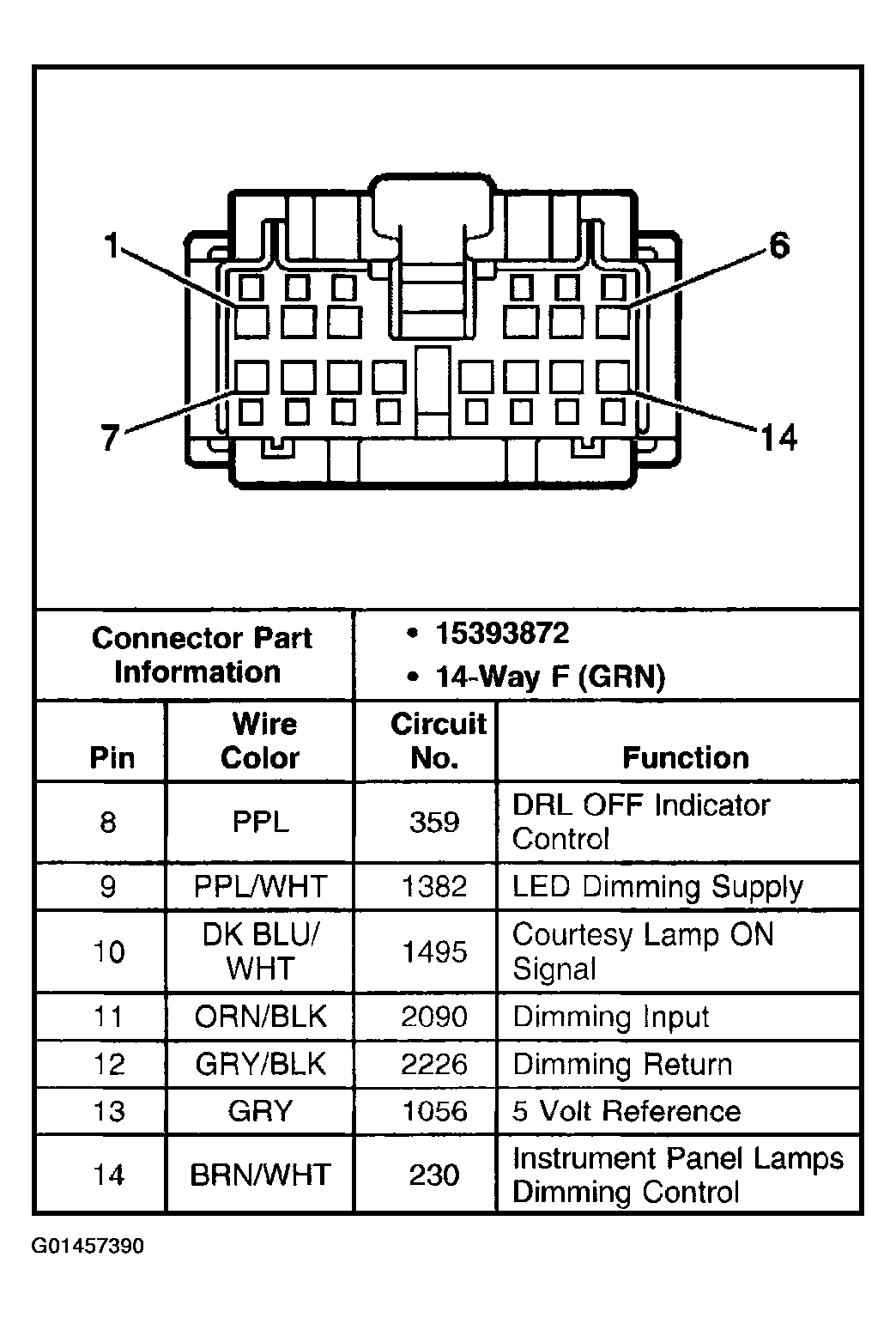

Fig 40: Identifying Headlamp Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 41: Identifying Headlamp Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

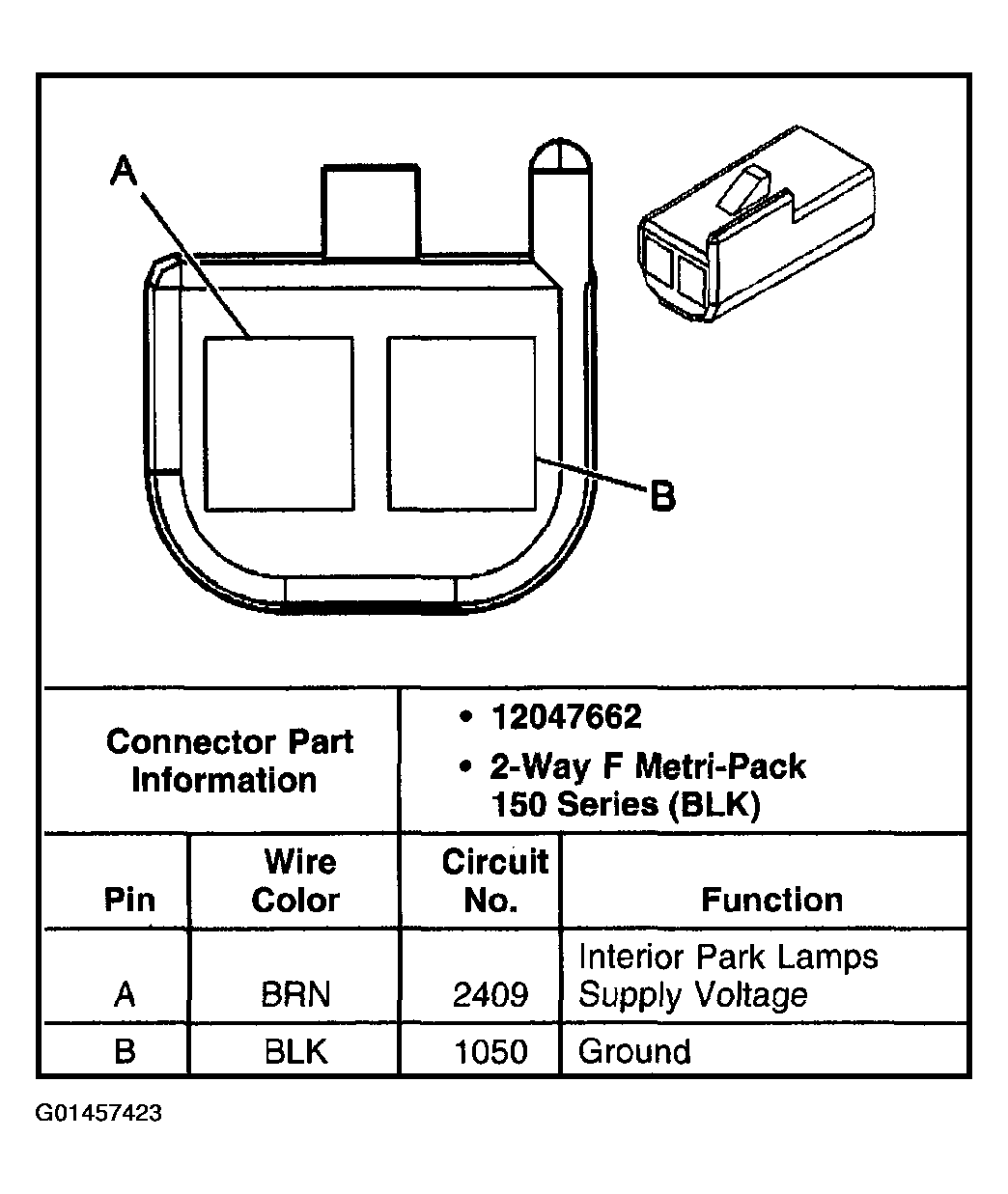

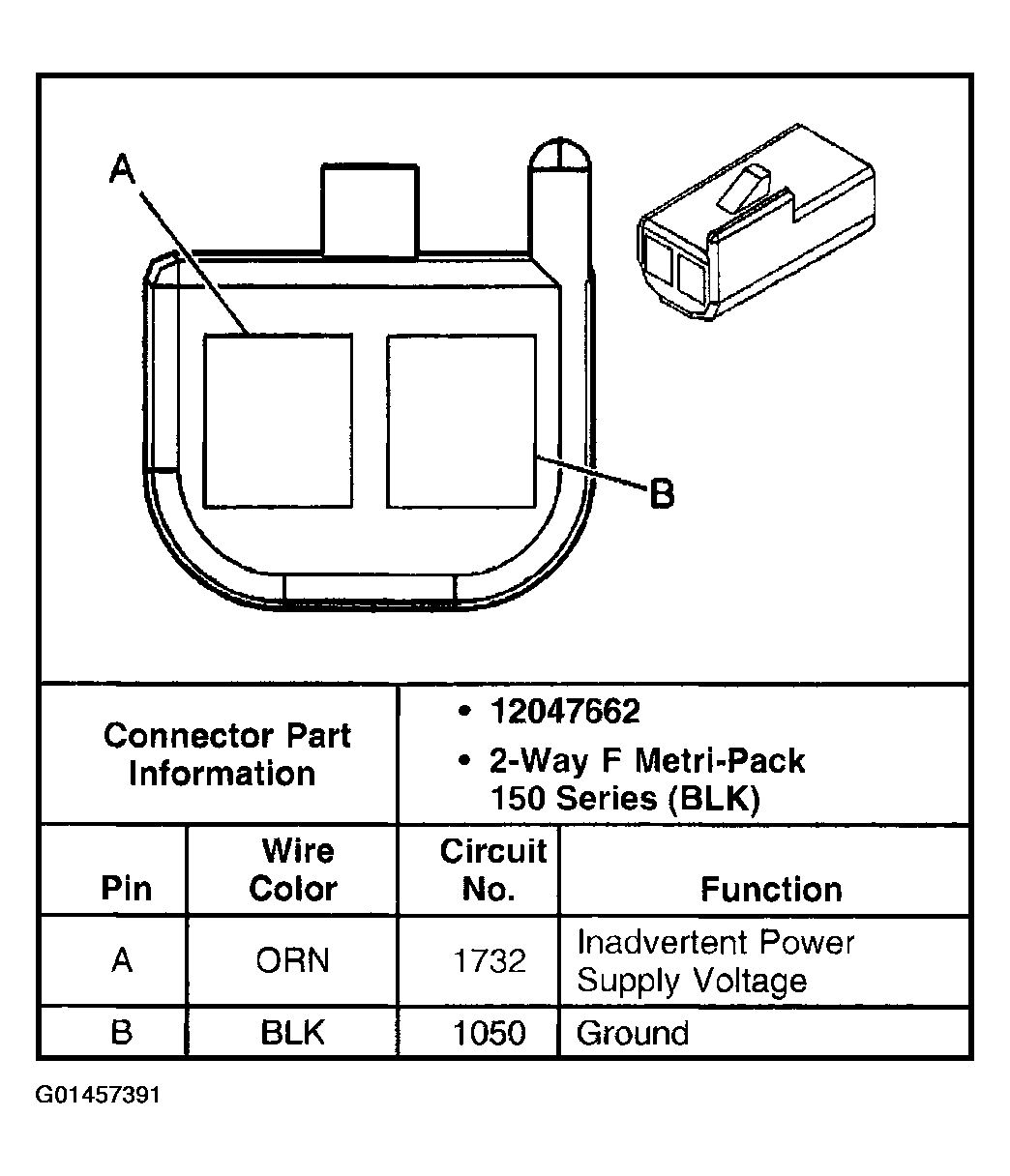

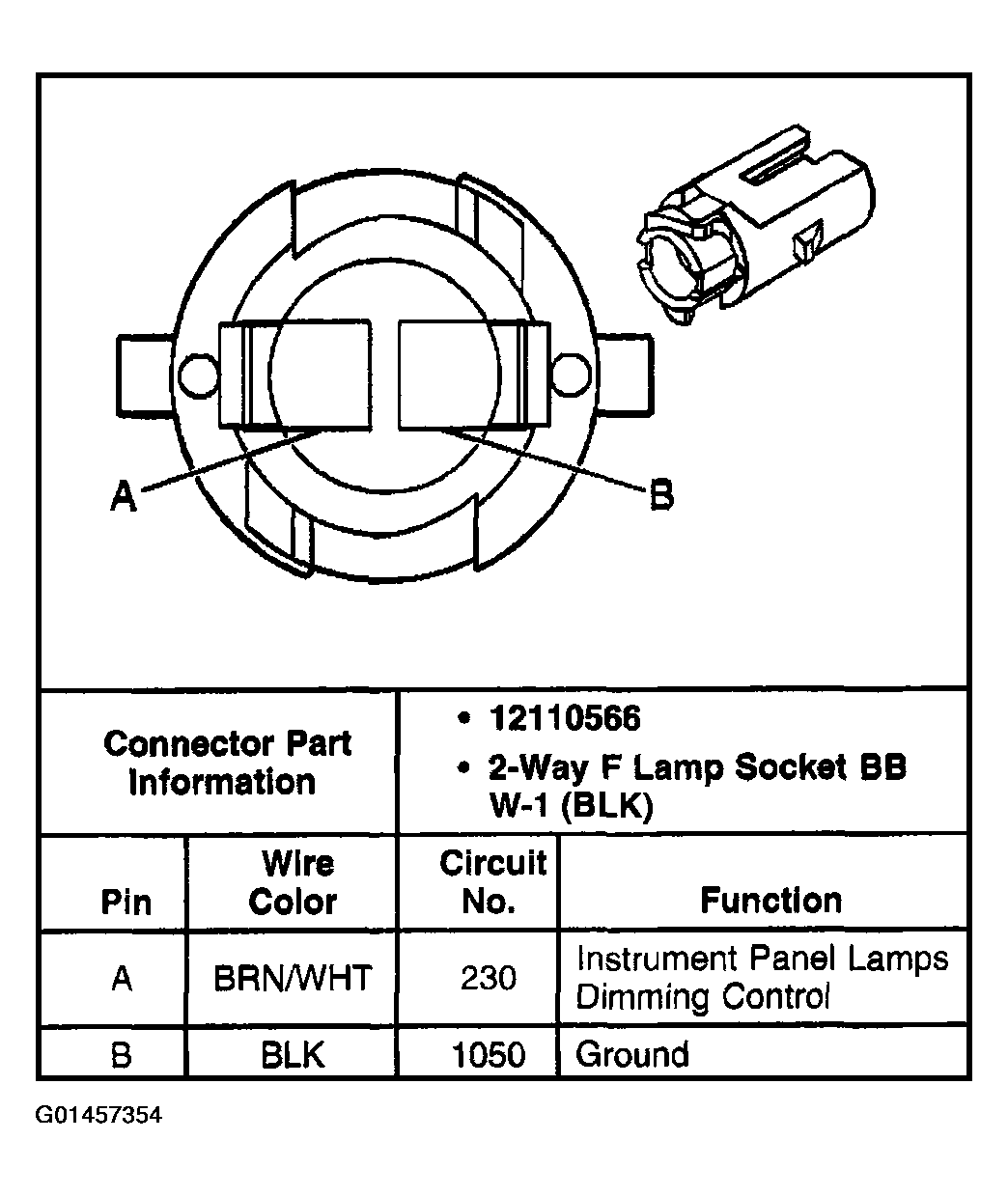

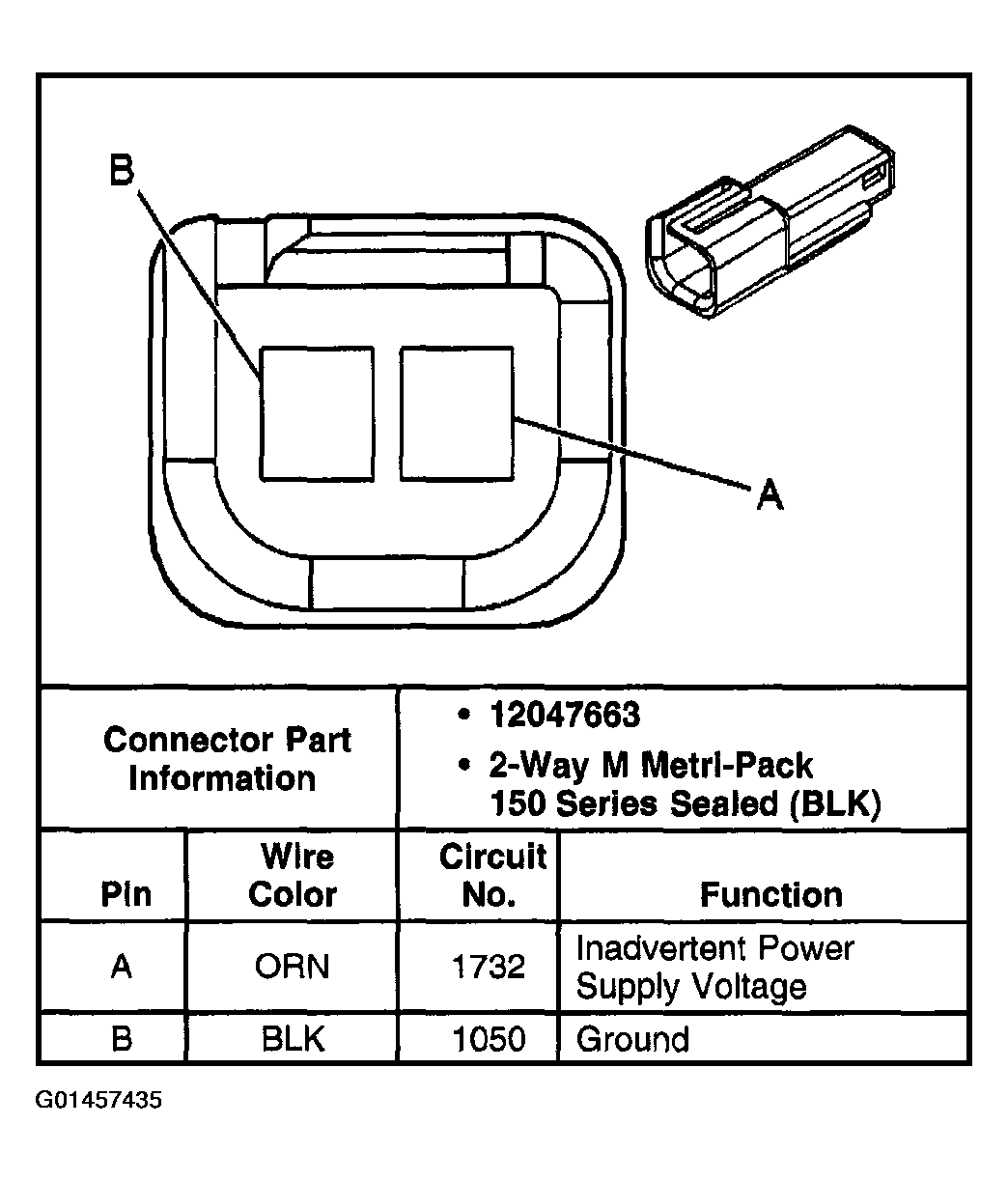

Fig 42: Identifying I/P Compartment Lamp Connector Terminal

Courtesy of GENERAL MOTORS CORP.

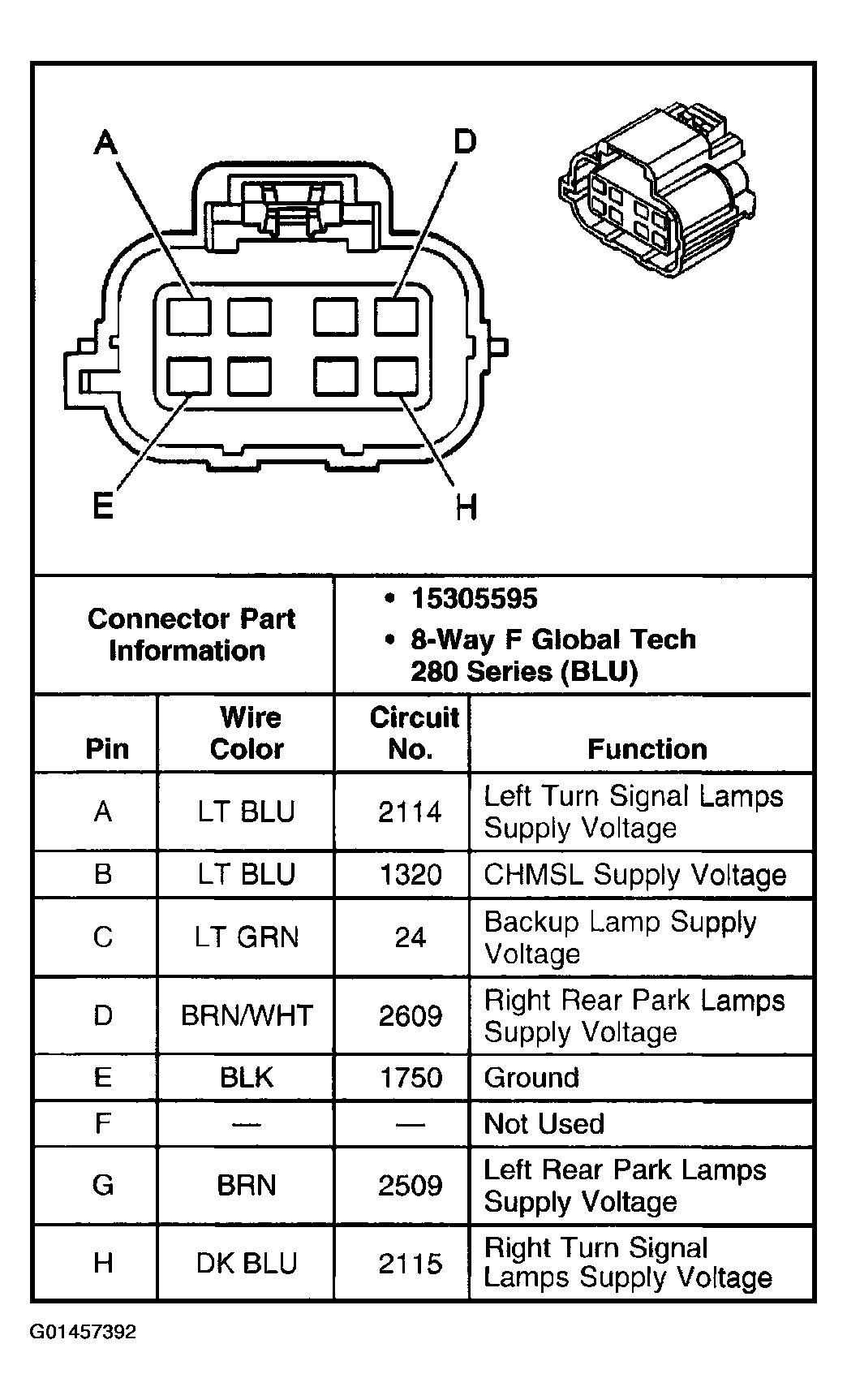

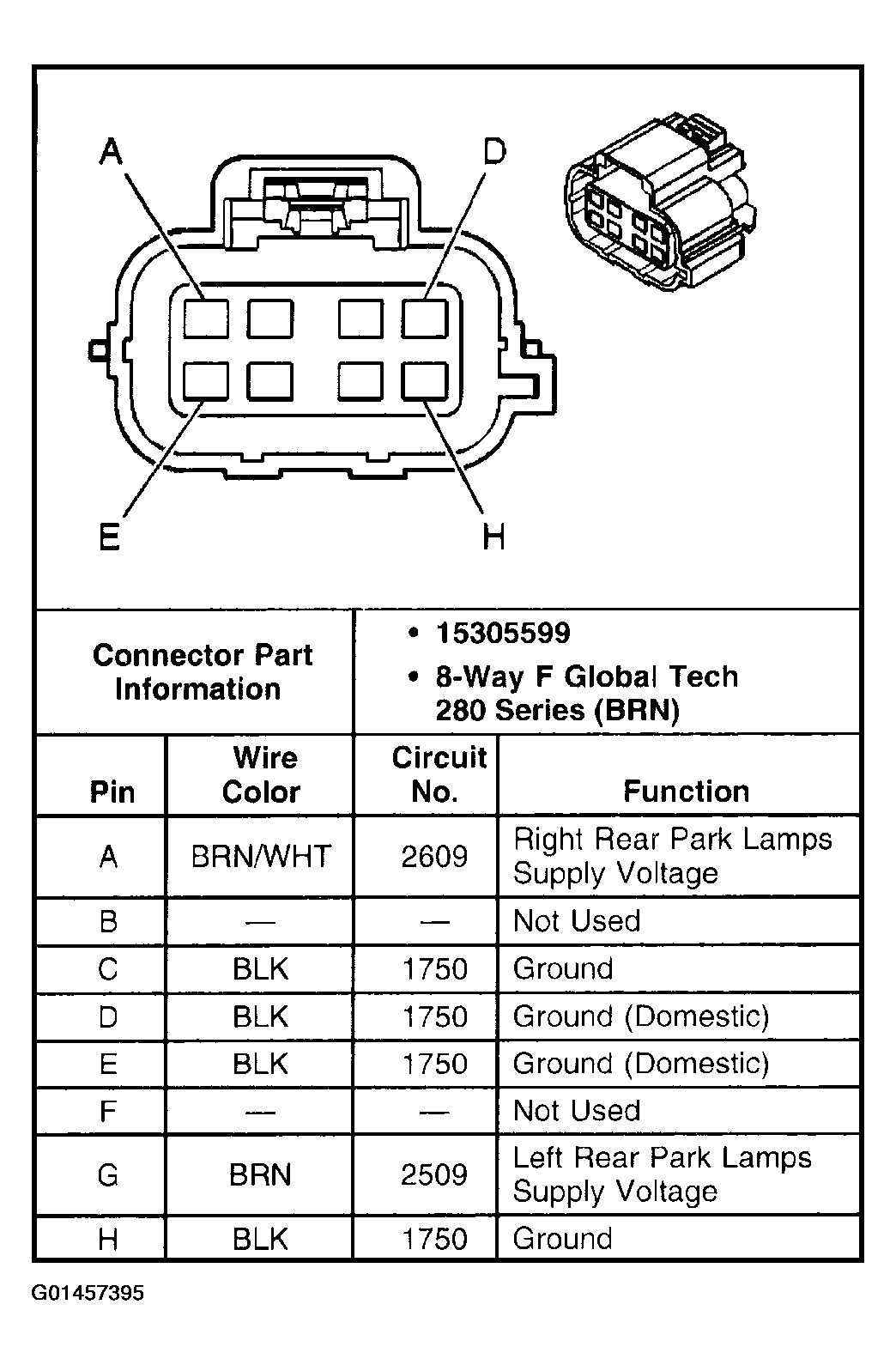

Fig 43: Identifying Junction Block - Rear Lamps - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 44: Identifying Junction Block - Rear Lamps - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 45: Identifying Junction Block - Rear Lamps - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 46: Identifying Junction Block - Rear Lamps - C3 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 47: Identifying Junction Block - Rear Lamps - C4 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

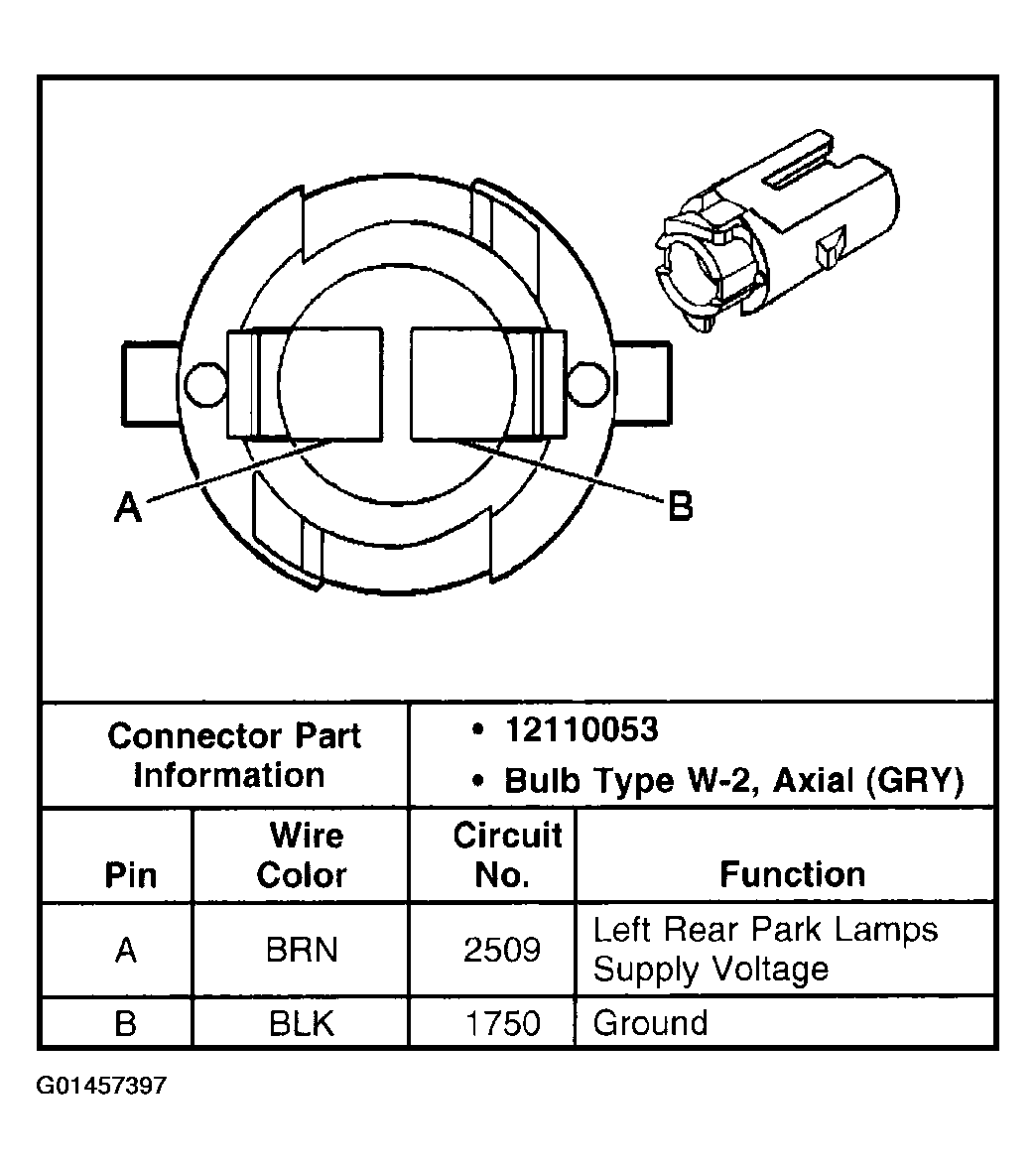

Fig 48: Identifying License Lamp - Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

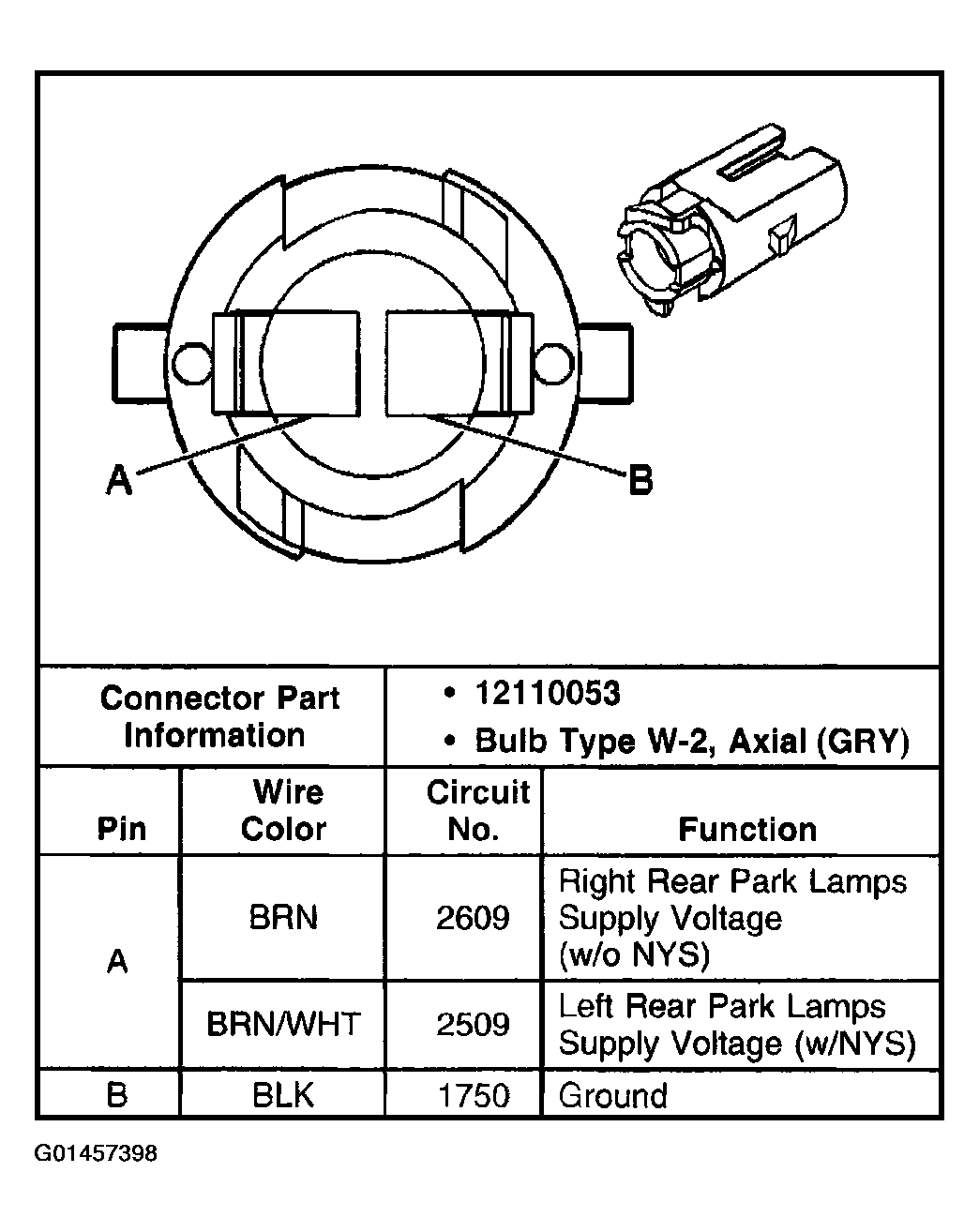

Fig 49: Identifying License Lamp - Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.

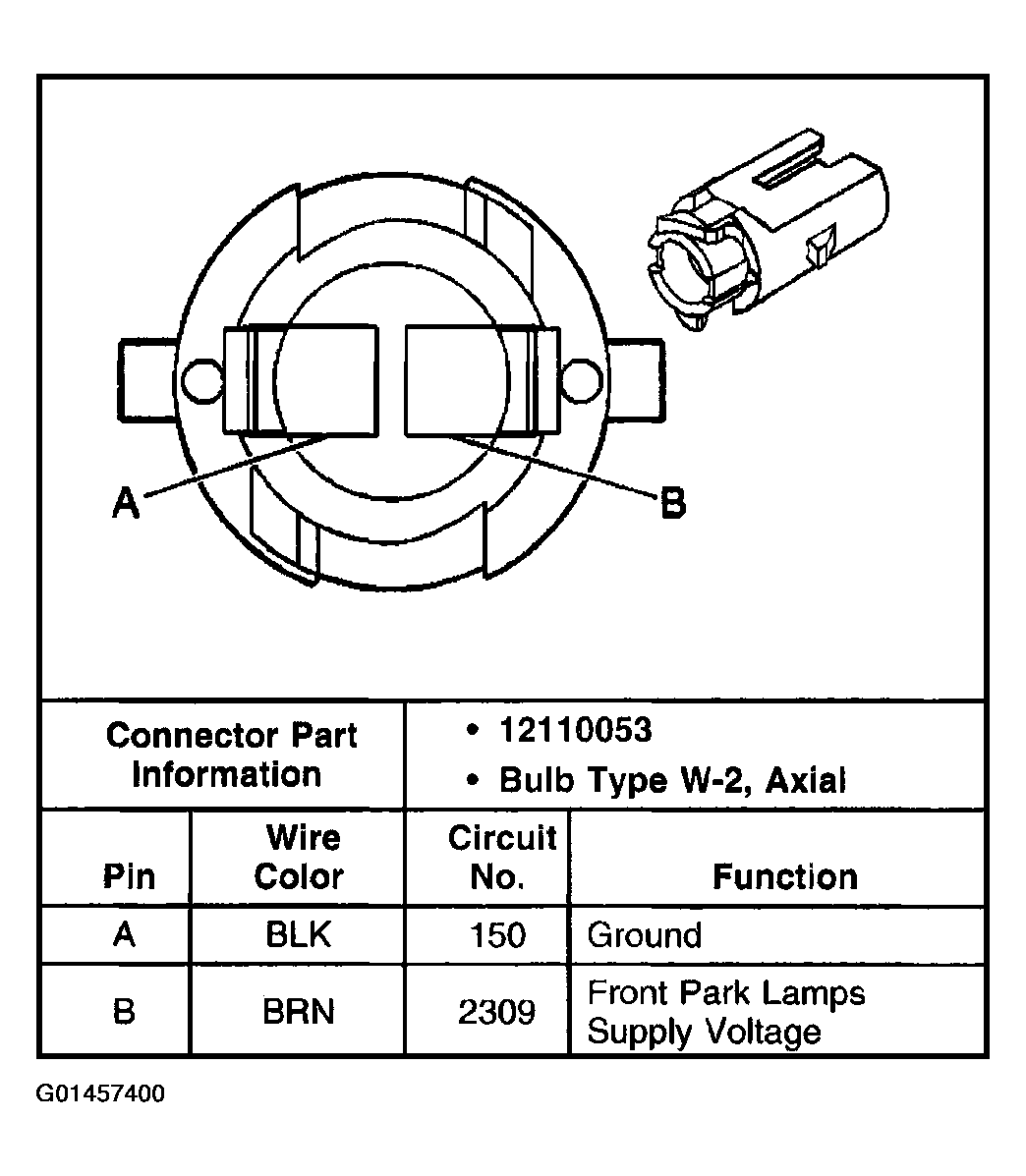

Fig 50: Identifying Marker Lamp - LF (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 51: Identifying Marker Lamp - LF (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

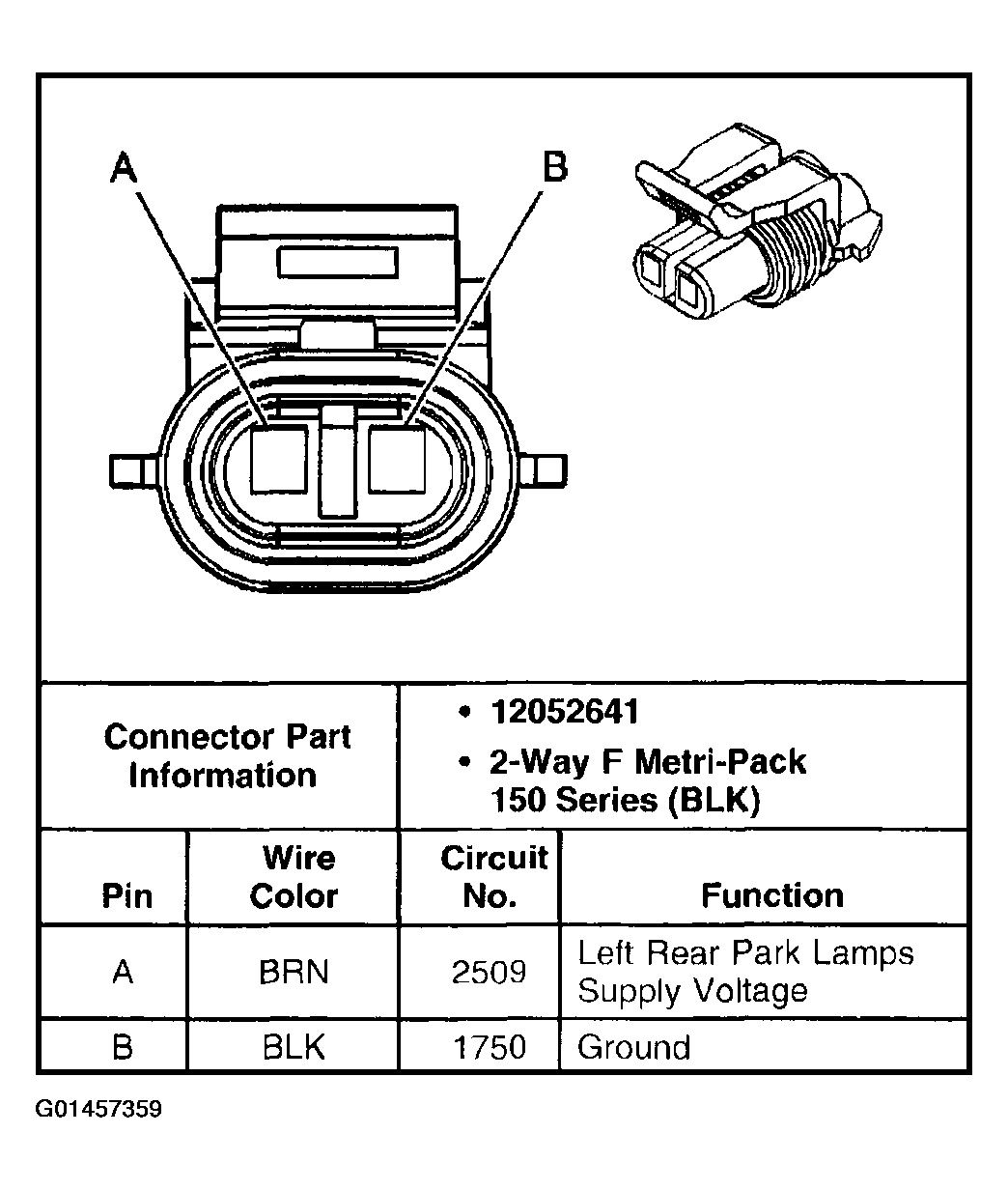

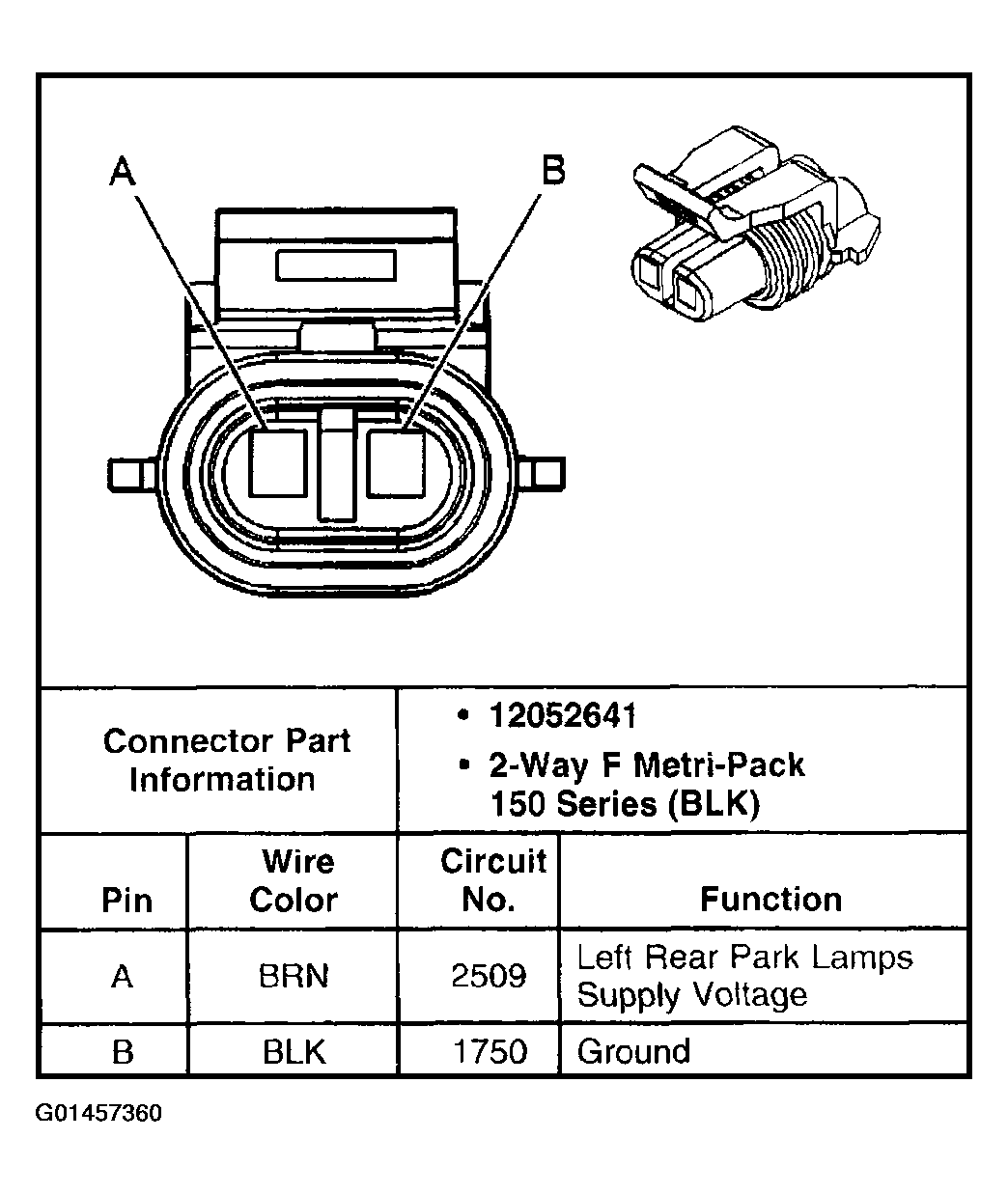

Fig 52: Identifying Marker Lamp - LR (w/X88) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 53: Identifying Marker Lamp - RF (Domestic) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 54: Identifying Marker Lamp - RF (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

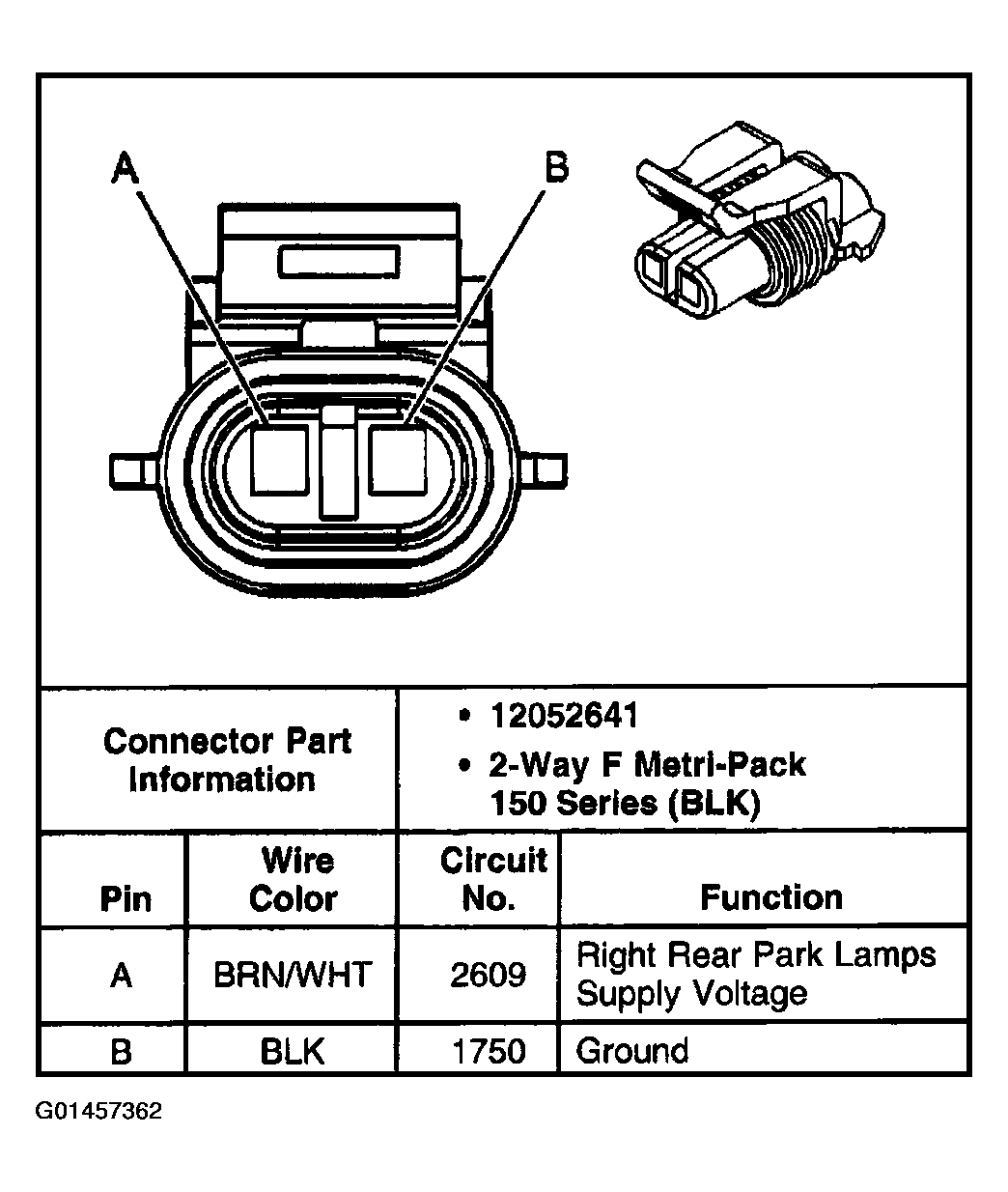

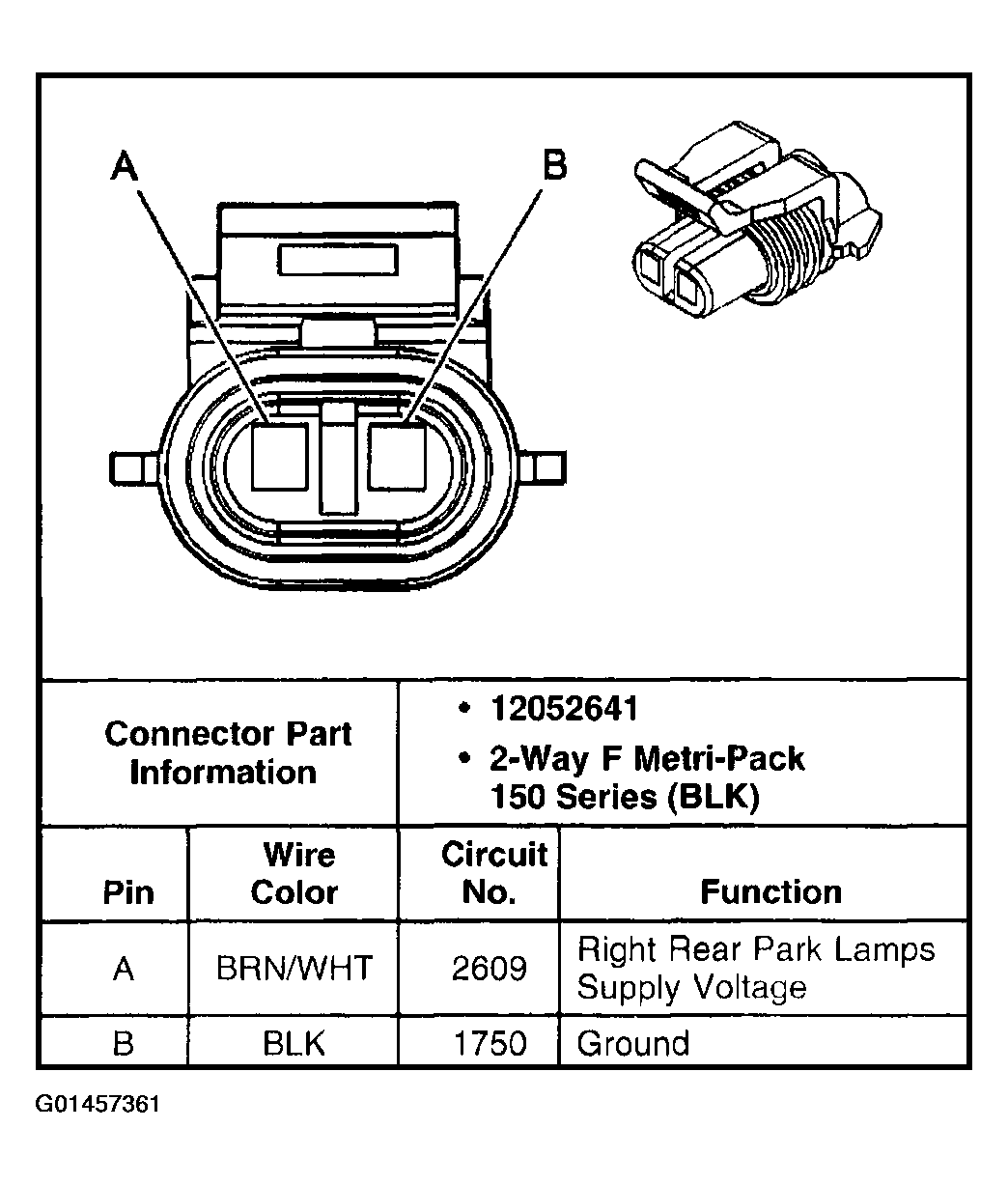

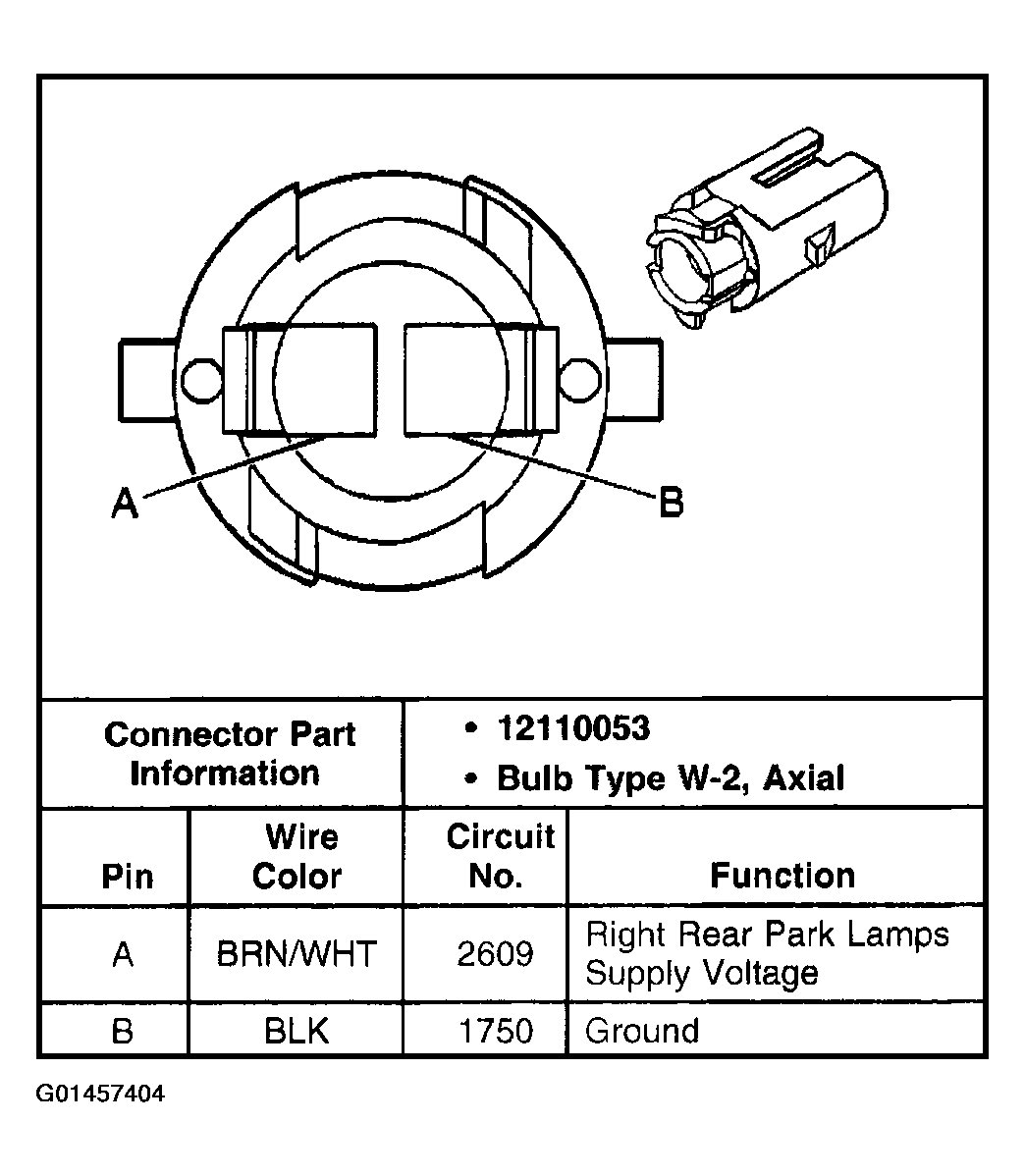

Fig 55: Identifying Marker Lamp - RR (w/X88) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 56: Identifying Marker Lamp - Body Rear (w/NYS) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

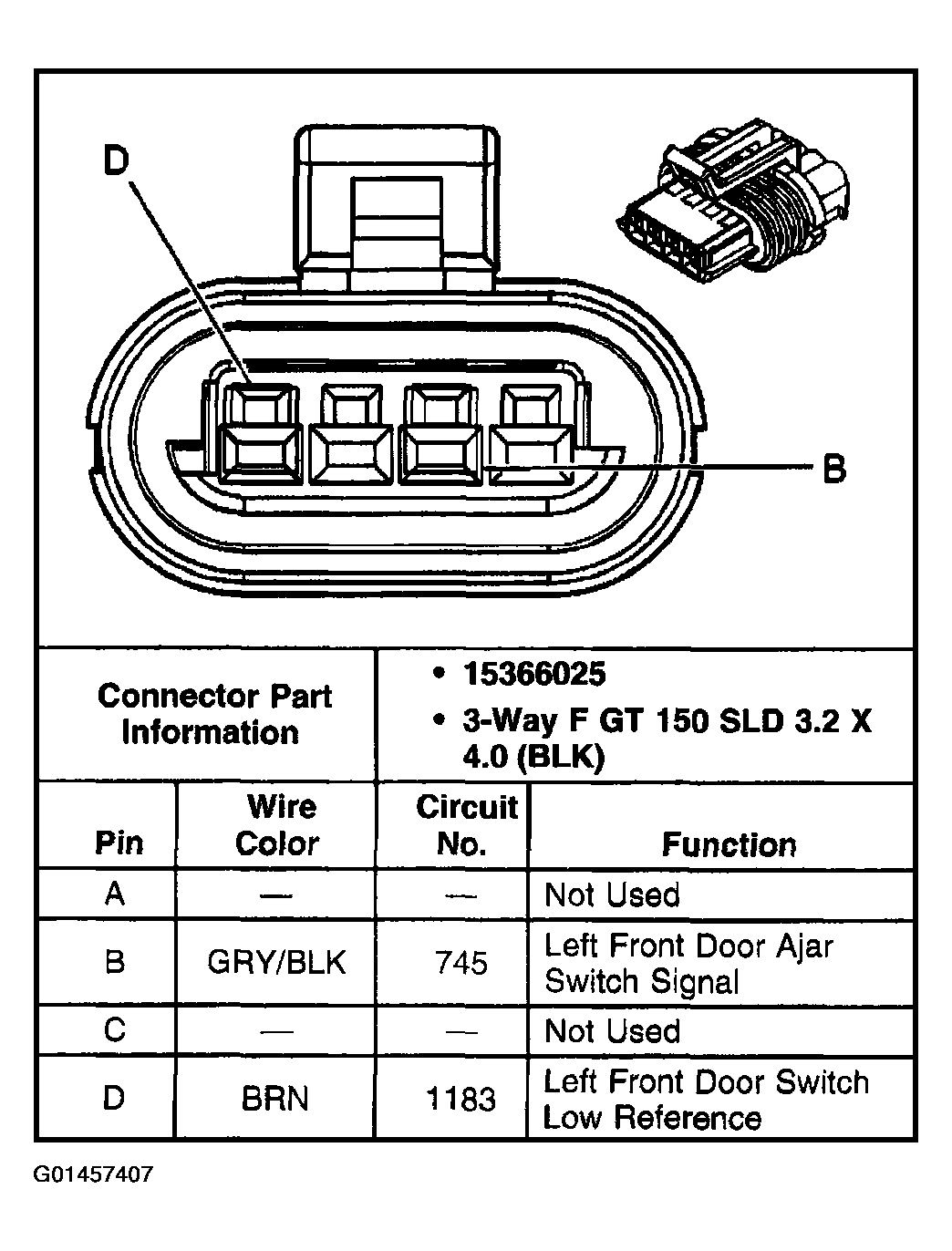

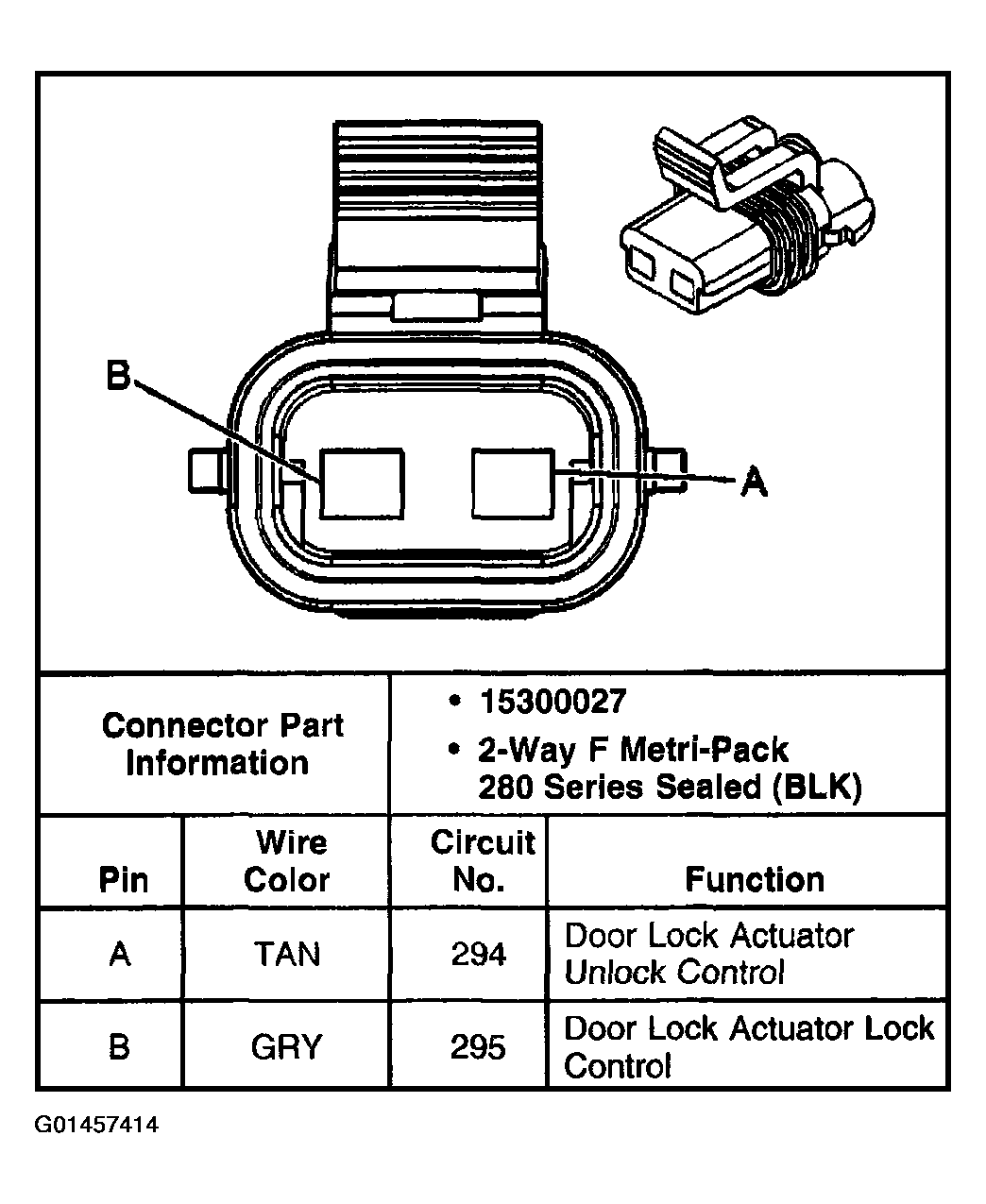

Fig 57: Identifying Mini Wedge (Door Jamb Switch) - Driver - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 58: Identifying Mini Wedge (Door Jamb Switch) - Driver - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 59: Identifying Mini Wedge (Door Jamb Switch) - Driver - C3 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

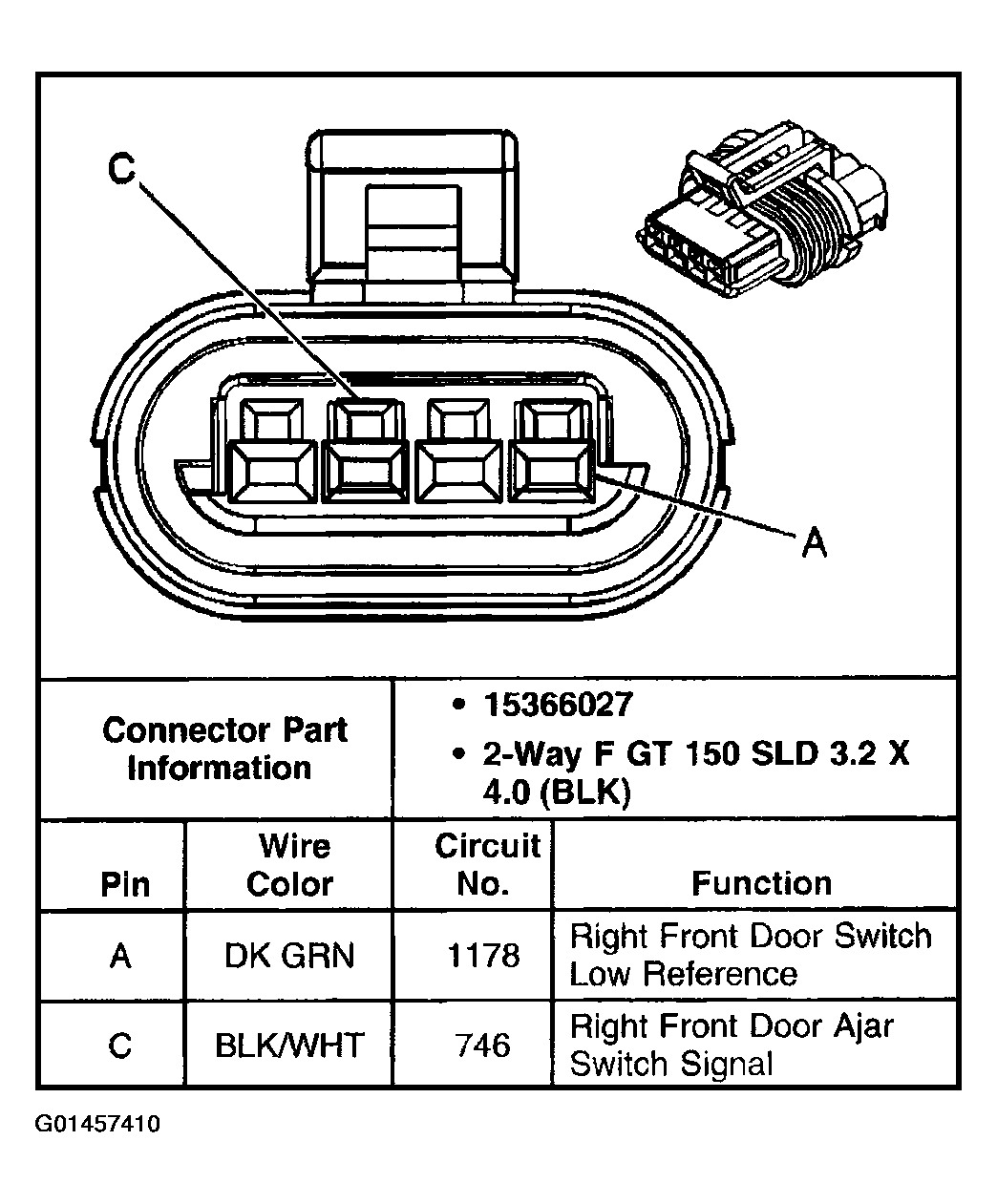

Fig 60: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 61: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 62: Identifying Mini Wedge (Door Jamb Switch) - Front Passenger - C3 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

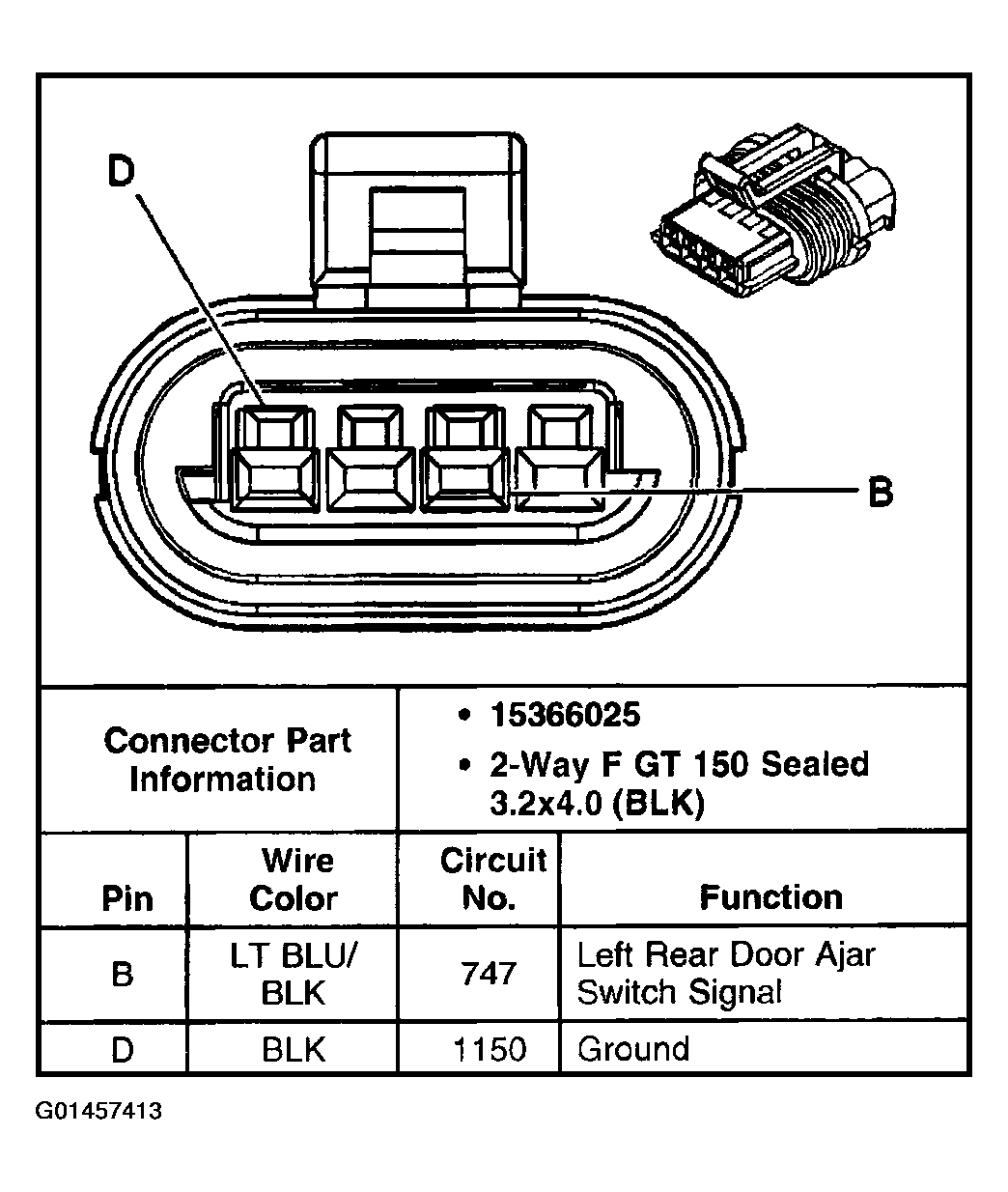

Fig 63: Identifying Mini Wedge (Door Jamb Switch) - LR - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 64: Identifying Mini Wedge (Door Jamb Switch) - LR - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

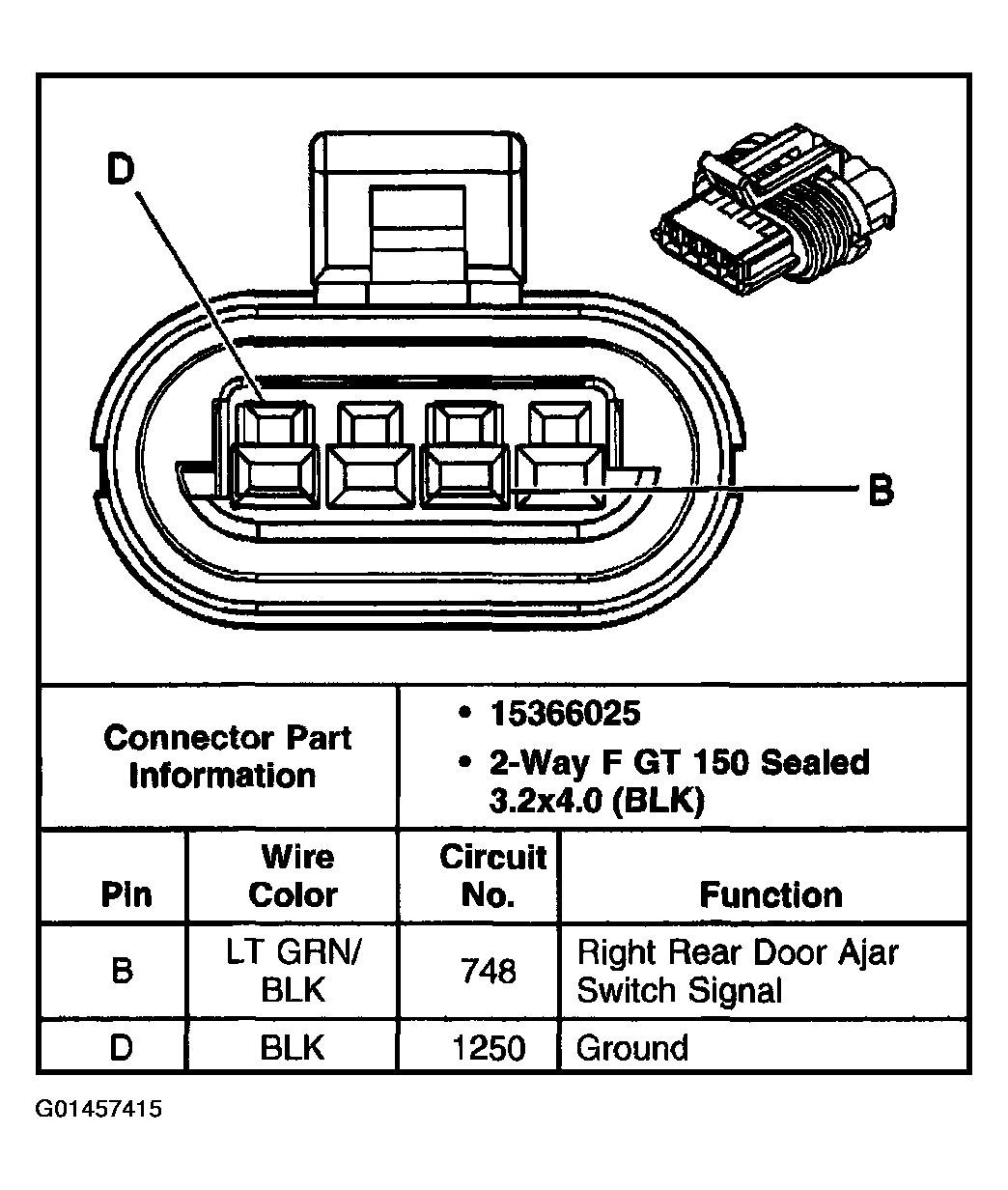

Fig 65: Identifying Mini Wedge (Door Jamb Switch) - RR - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 66: Identifying Mini Wedge (Door Jamb Switch) - RR - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

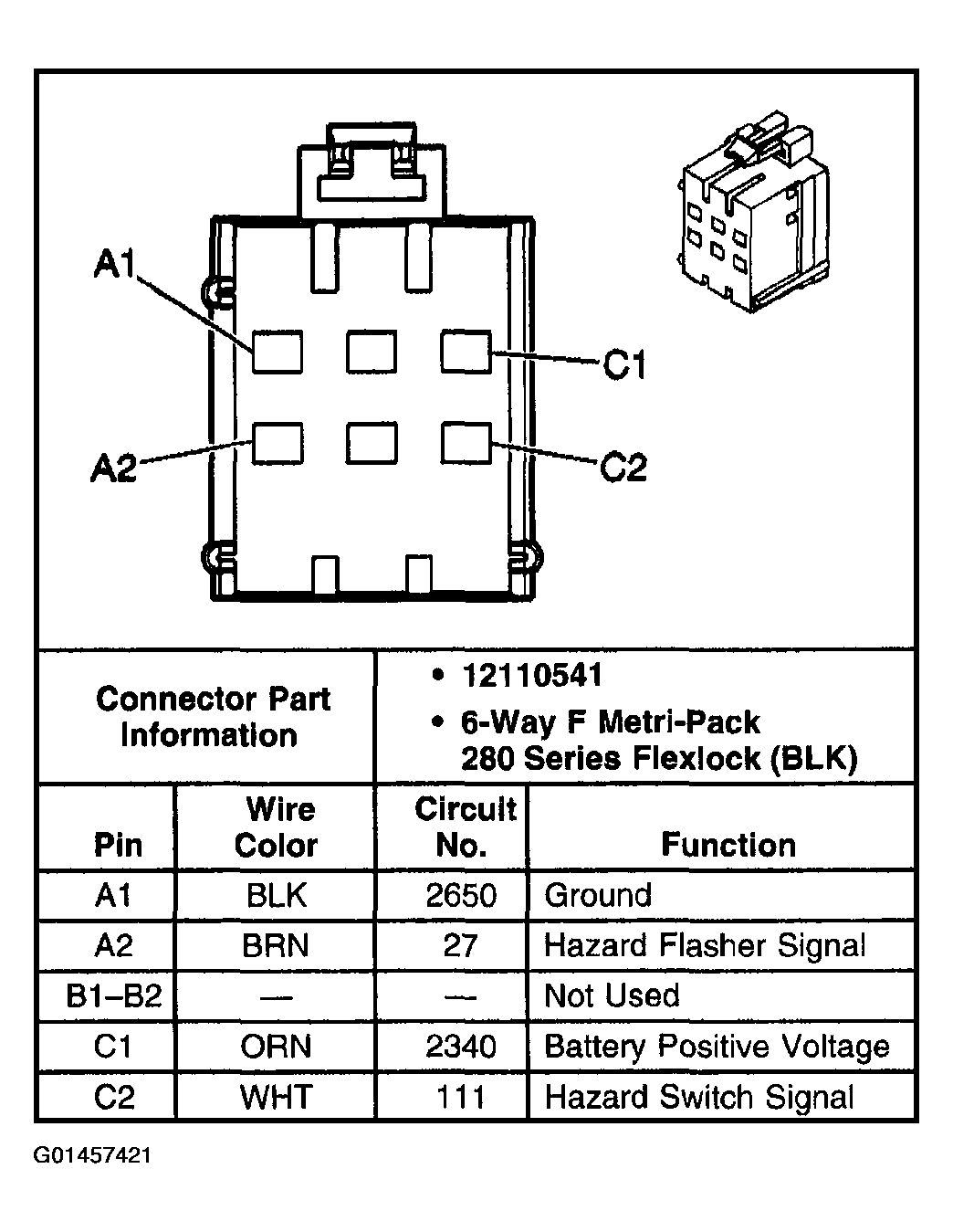

Fig 67: Identifying Multifunction Accessory Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

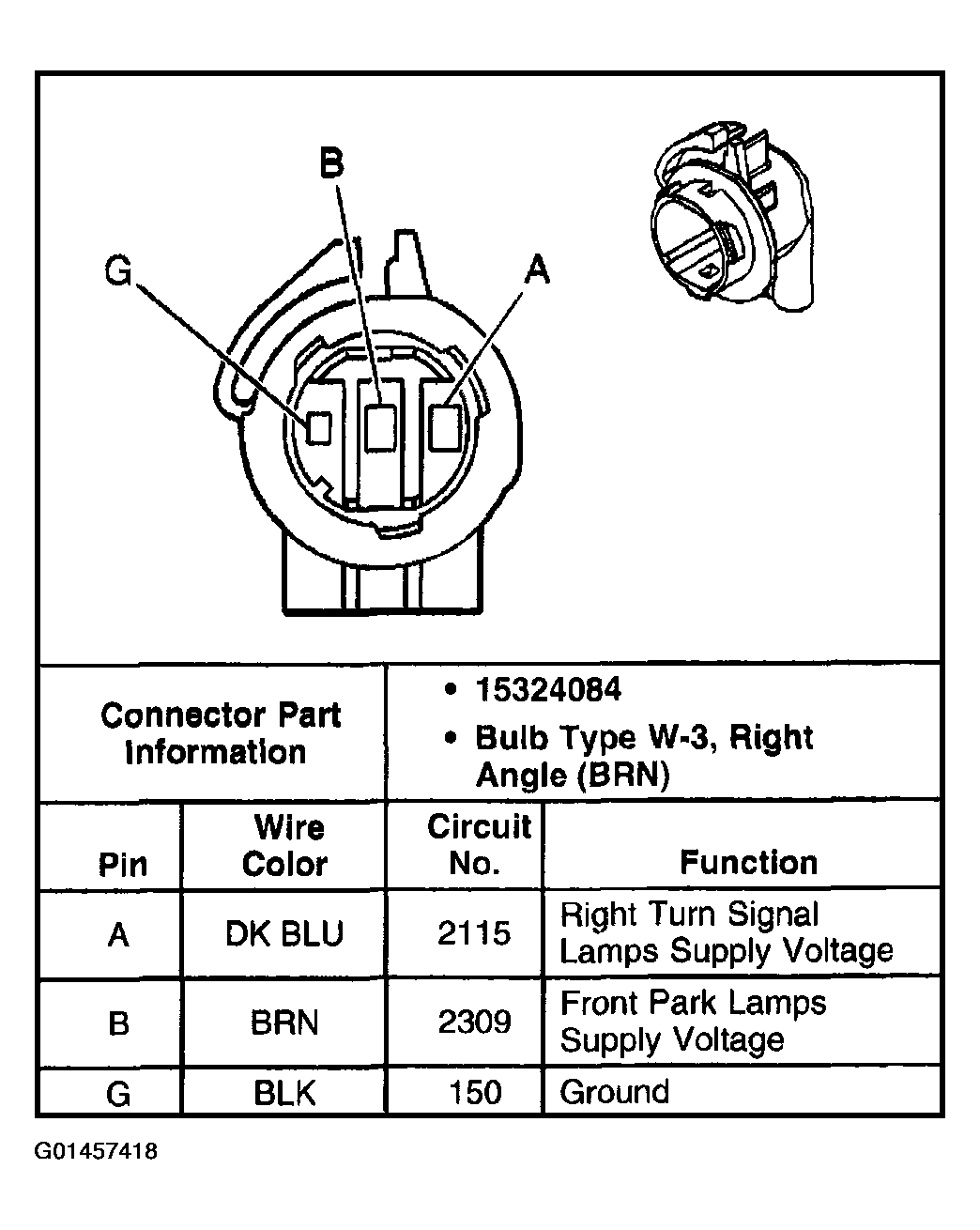

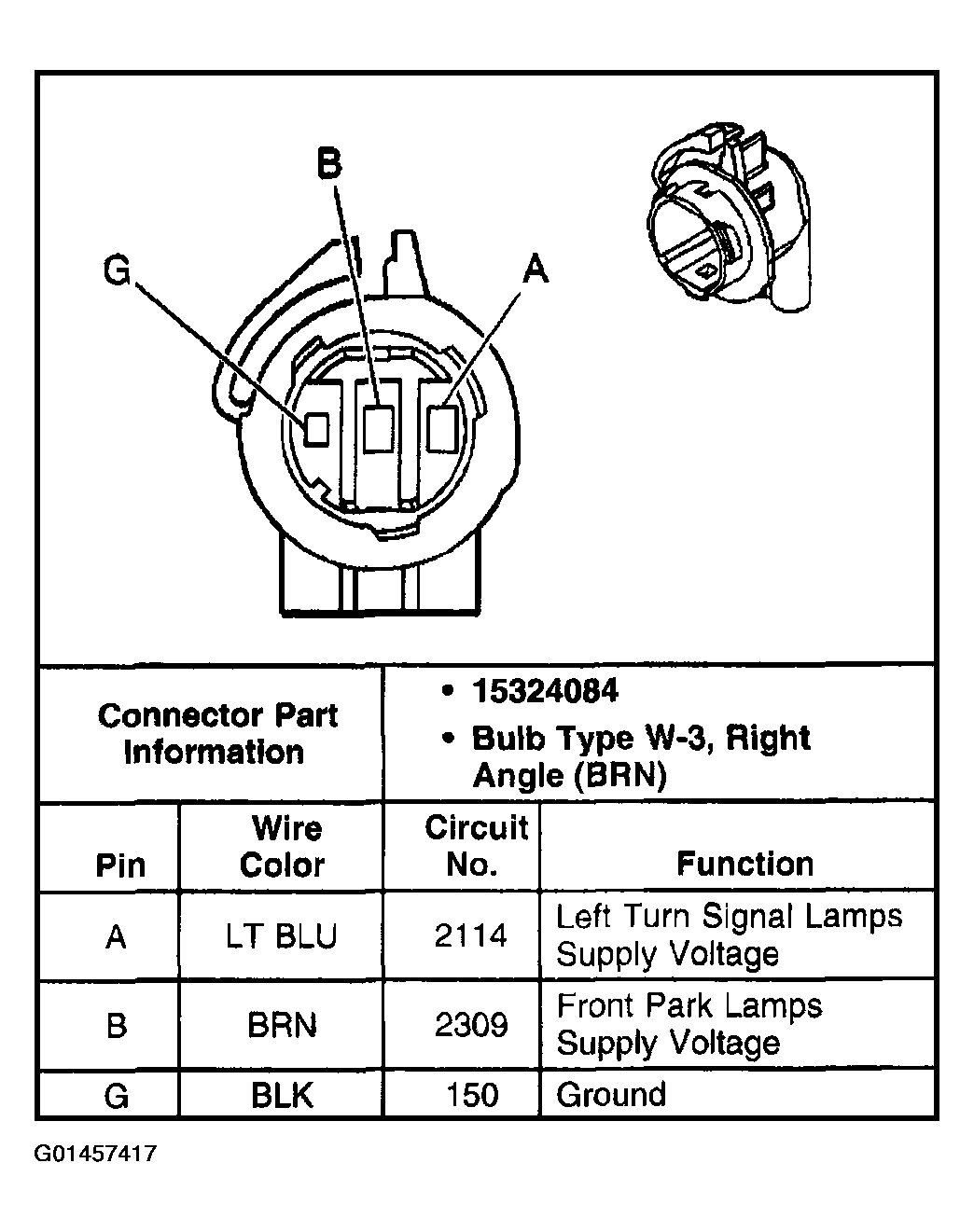

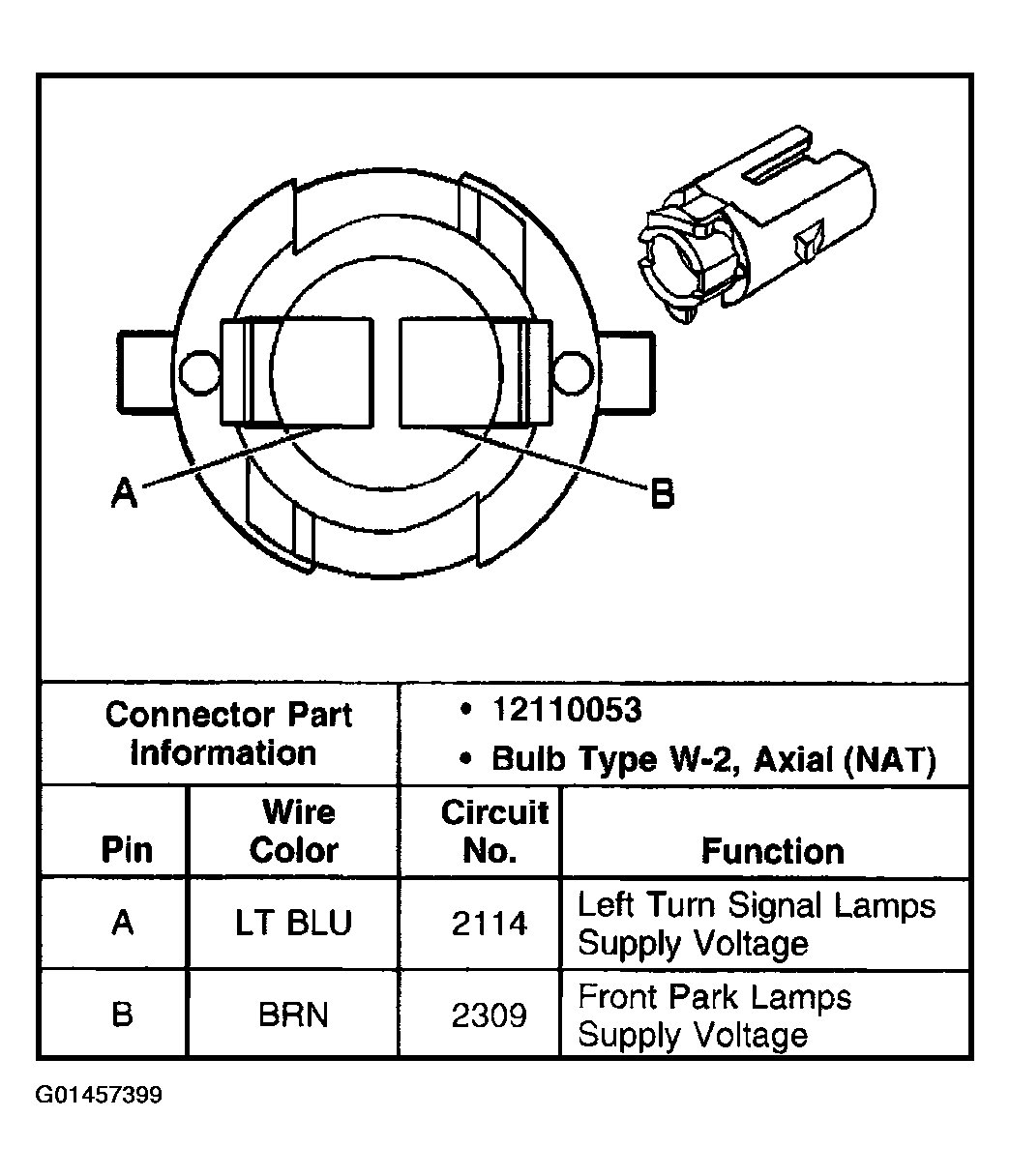

Fig 68: Identifying Park/Turn Signal Lamp - LF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

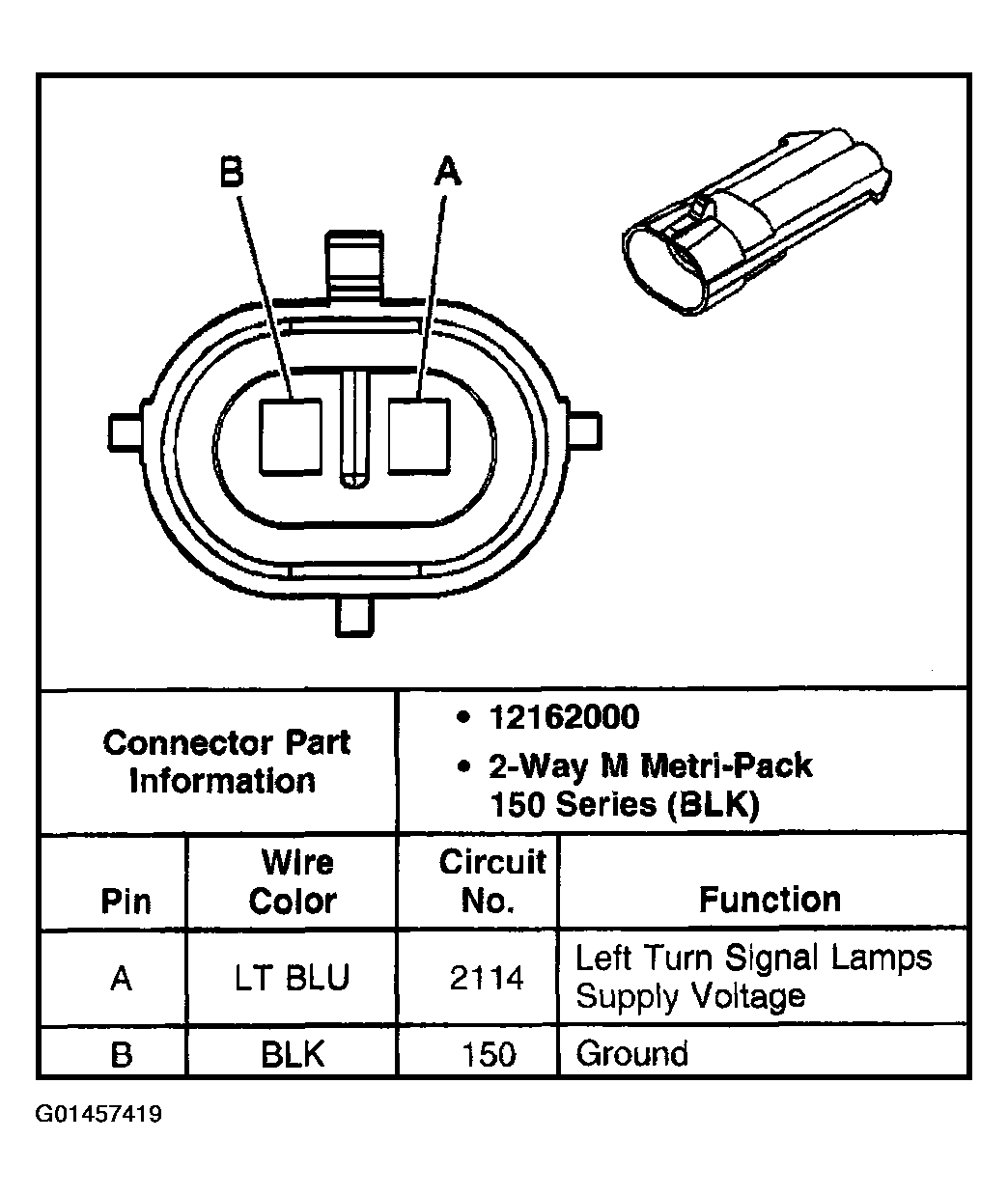

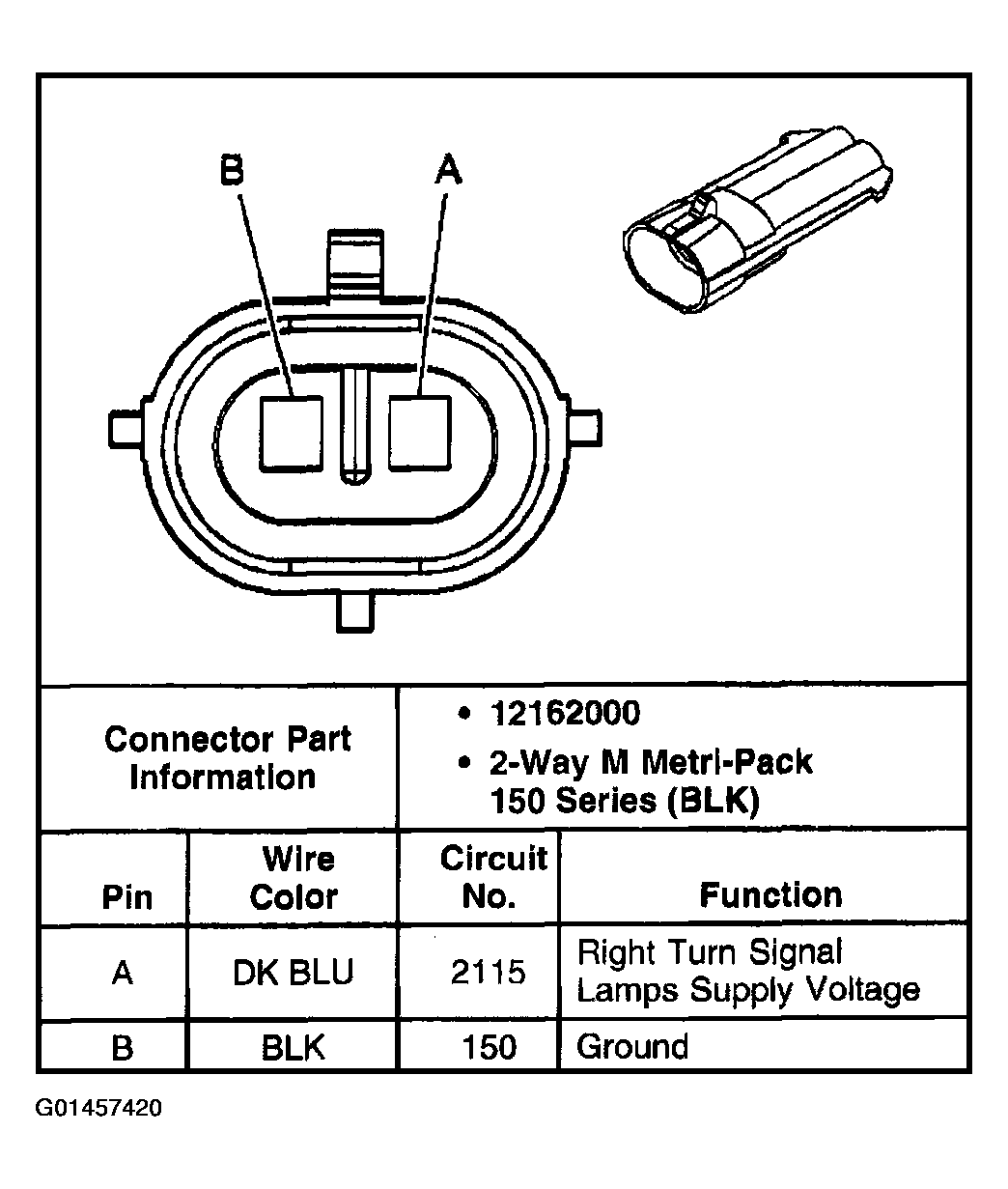

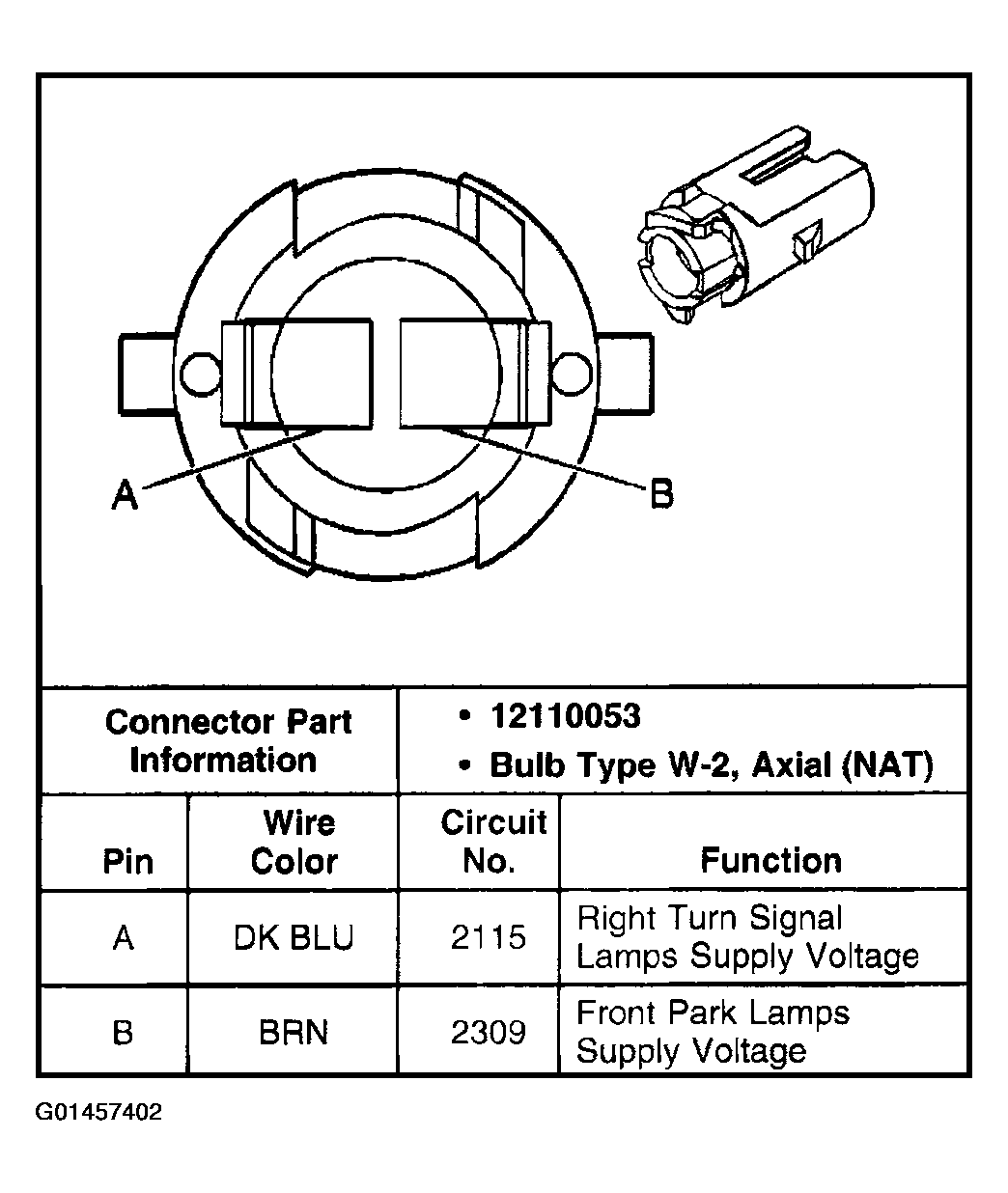

Fig 69: Identifying Park/Turn Signal Lamp - RF Connector Terminal

Courtesy of GENERAL MOTORS CORP.

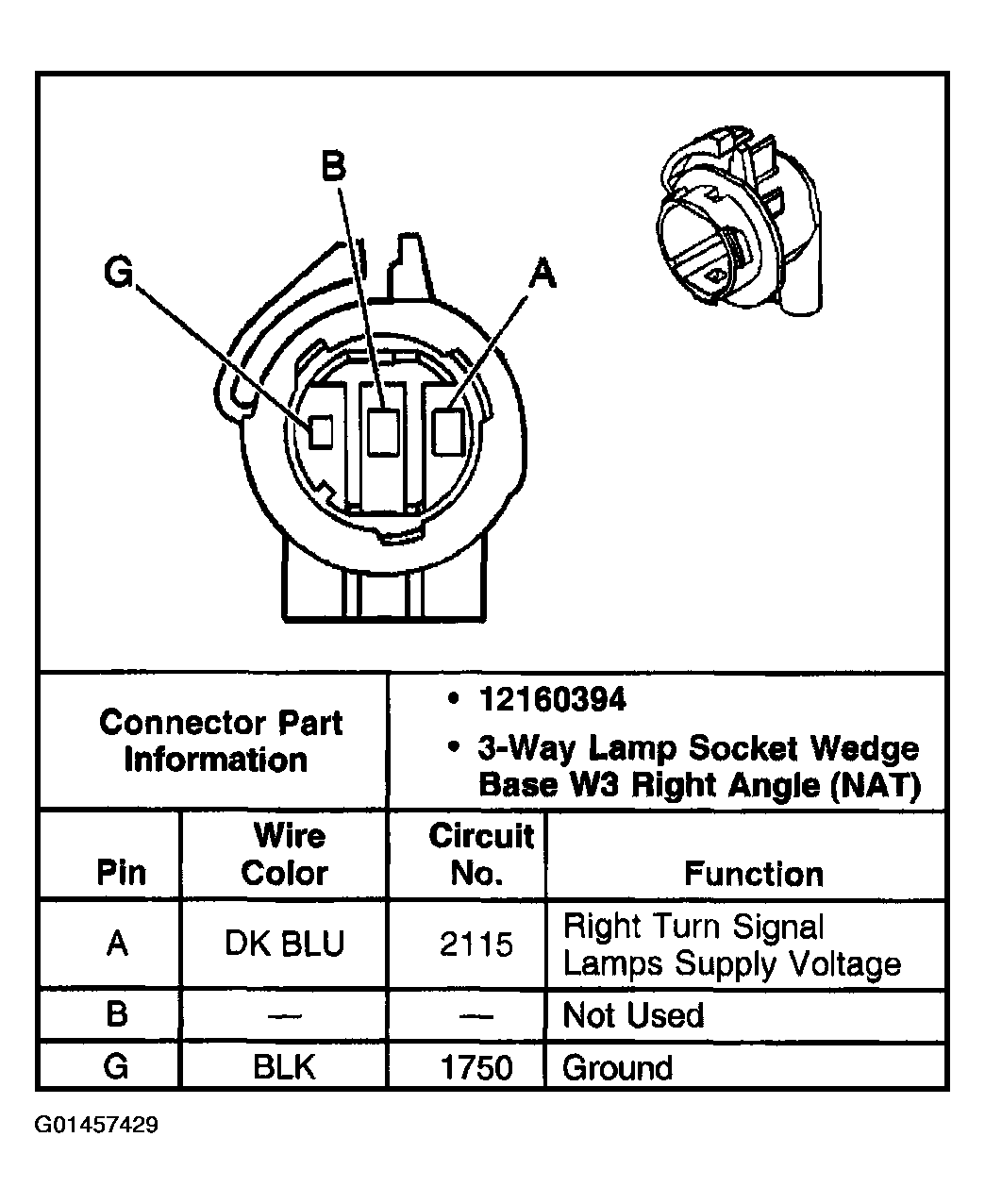

Fig 70: Identifying Repeater Lamp - LF (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 71: Identifying Repeater Lamp - RF (Export) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 72: Identifying Roof Beacon Relay (w/5X7, 5G4, TRW, Or 5Y0) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 73: Identifying Roof Beacon Switch (w/5X7, 5G4, TRW, Or 5Y0) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

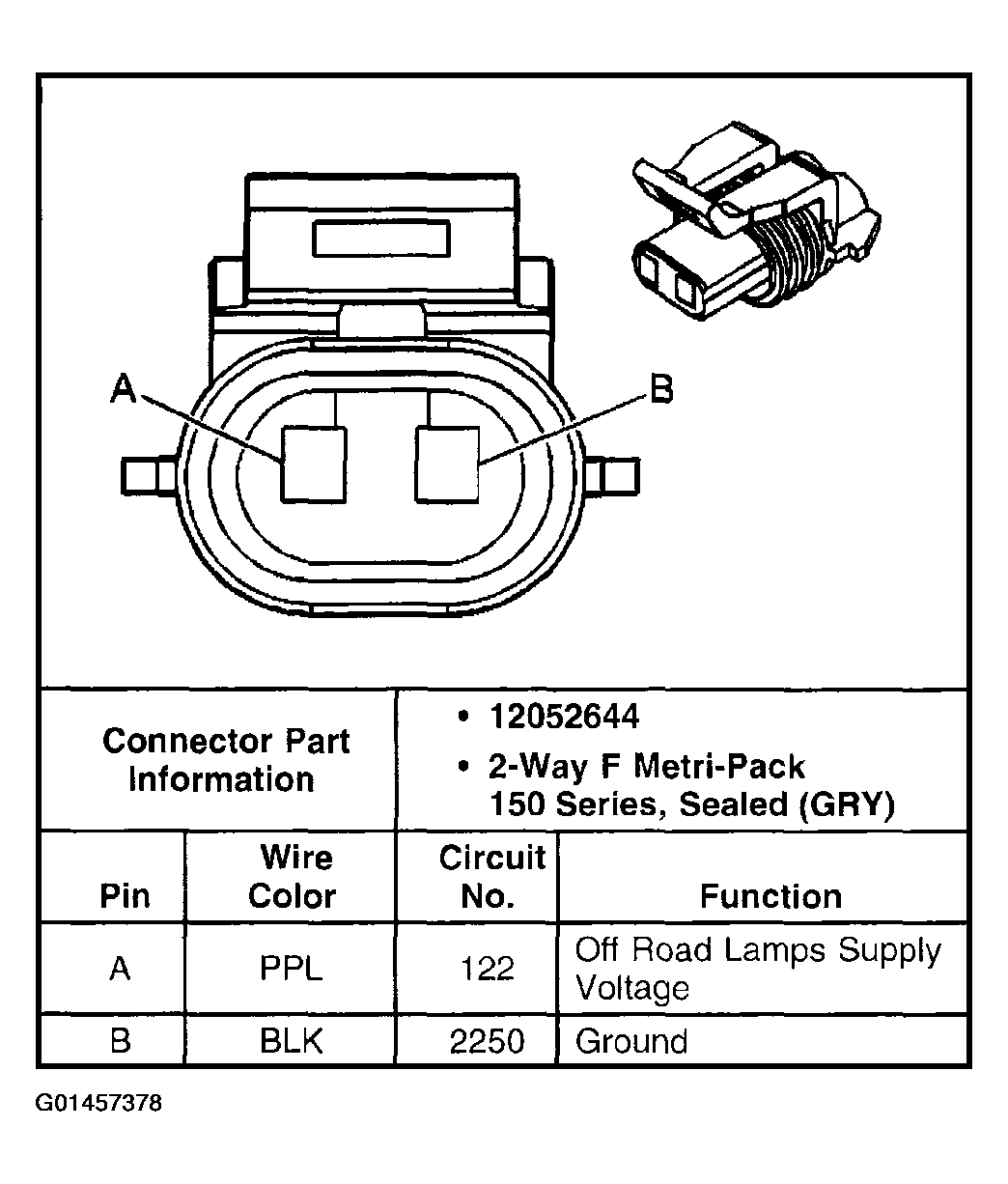

Fig 74: Identifying Roof Marker Lamp - Left (w/U01) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 75: Identifying Roof Marker Lamp - Right (w/U01) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

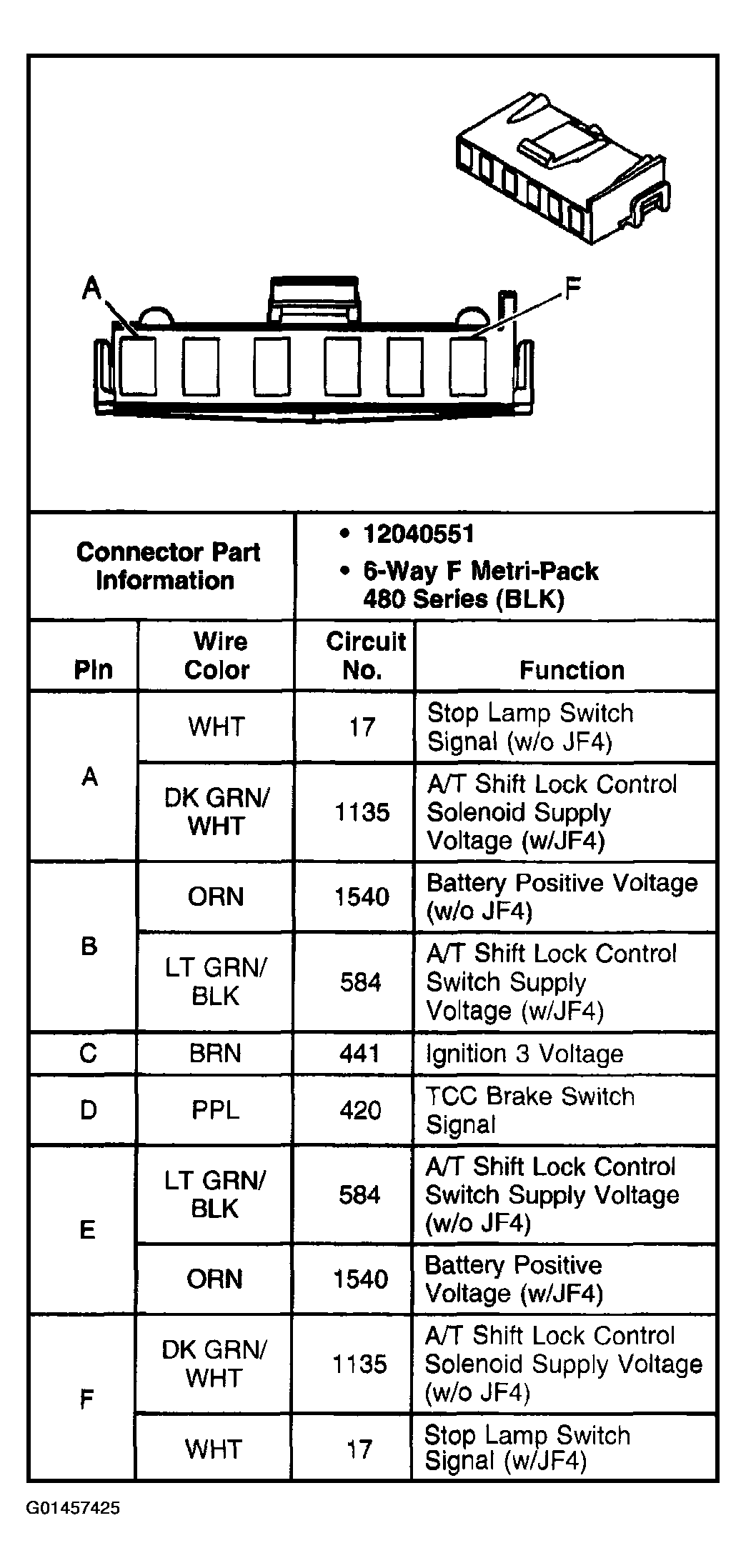

Fig 76: Identifying Stop Lamp Switch Connector Terminal

Courtesy of GENERAL MOTORS CORP.

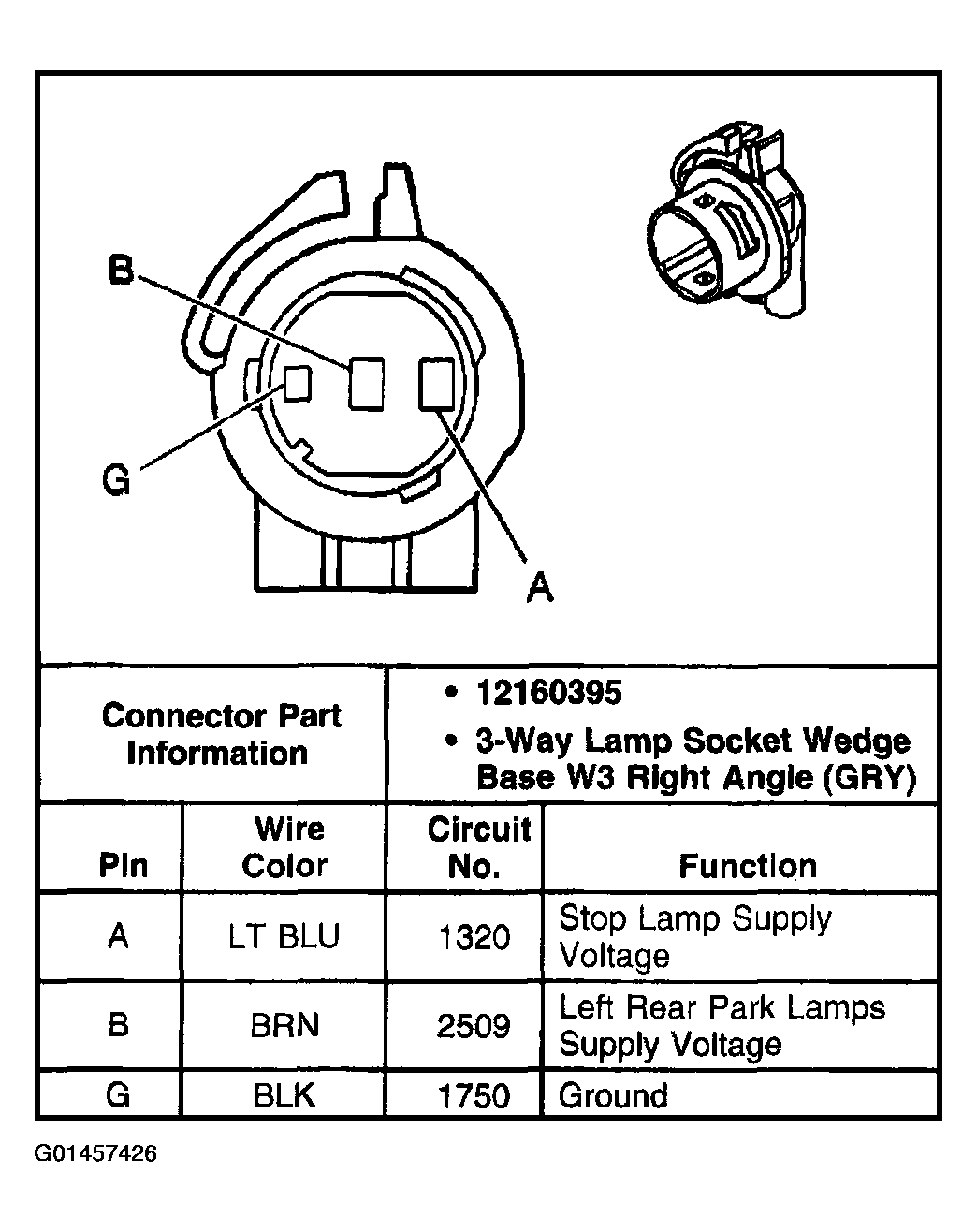

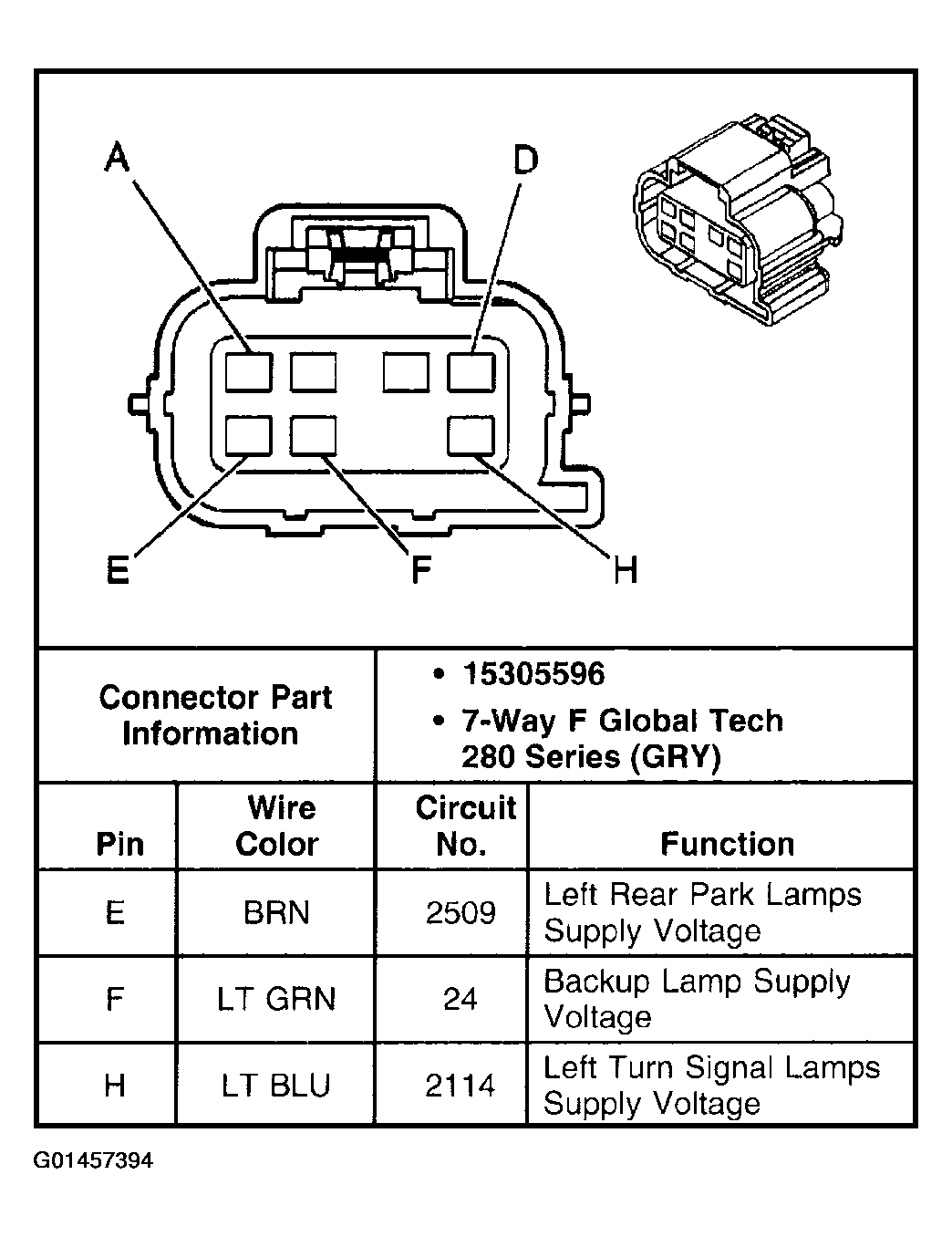

Fig 77: Identifying Tall/Stop Lamp - Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

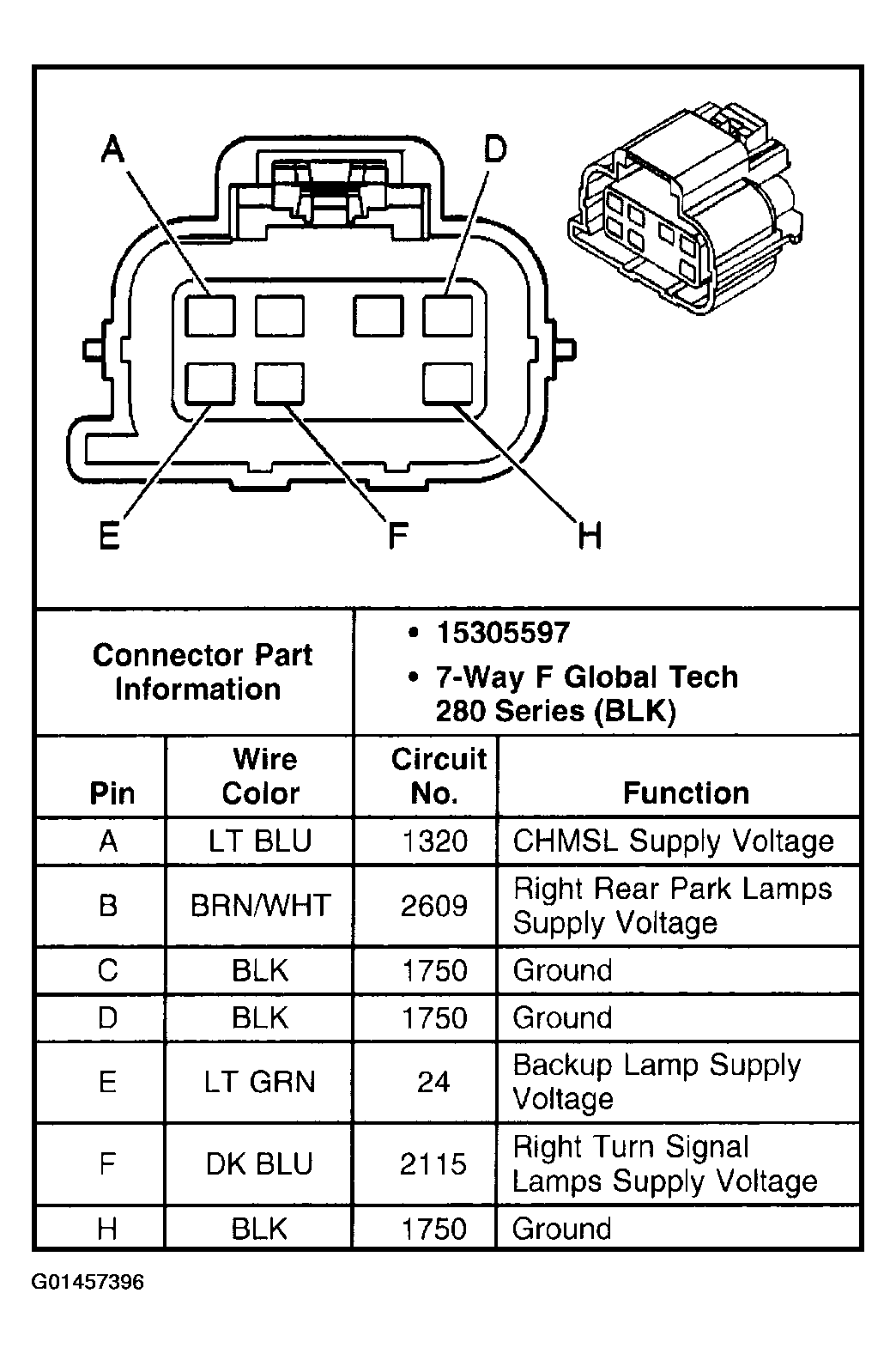

Fig 78: Identifying Tail/Stop Lamp - Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.

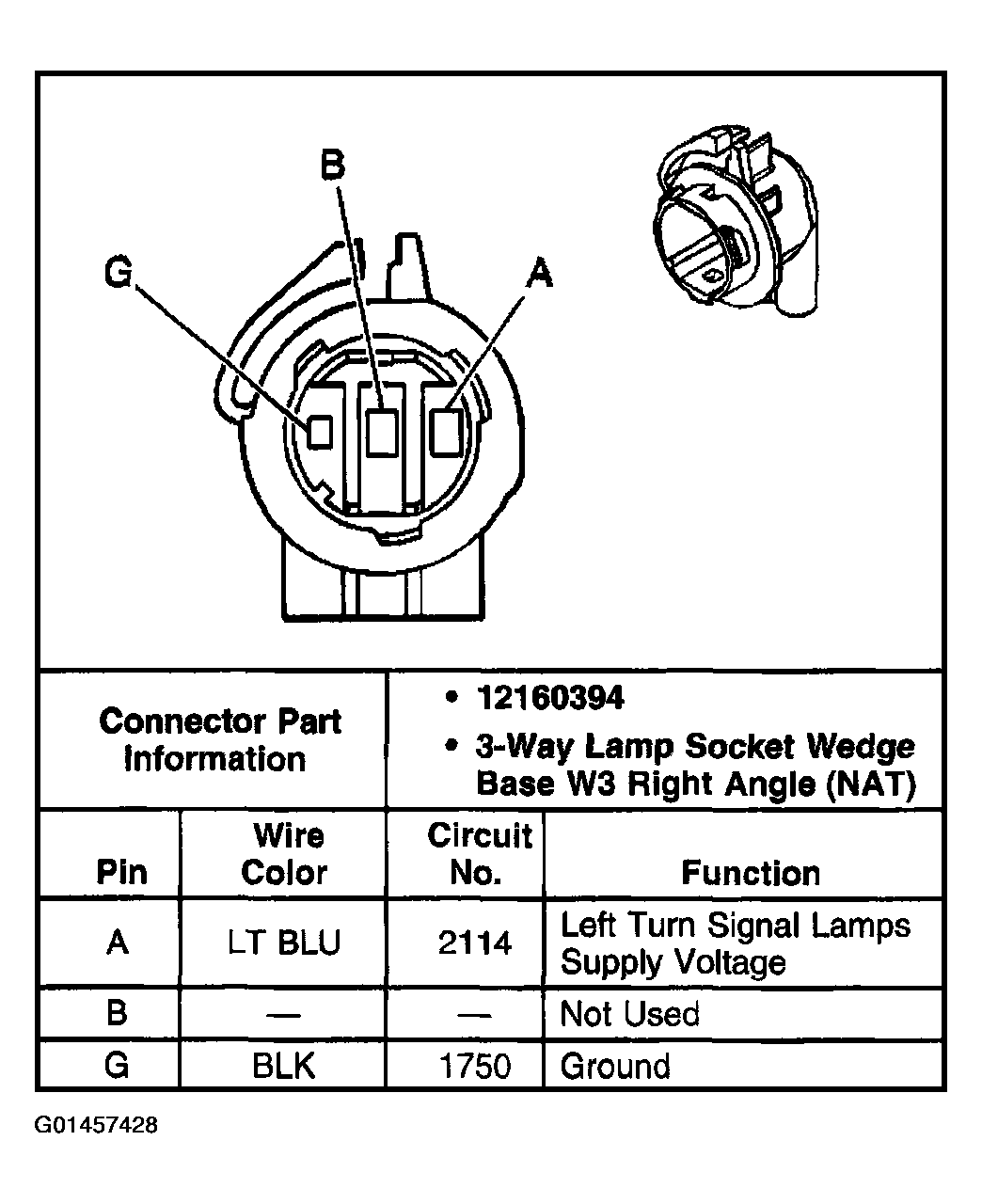

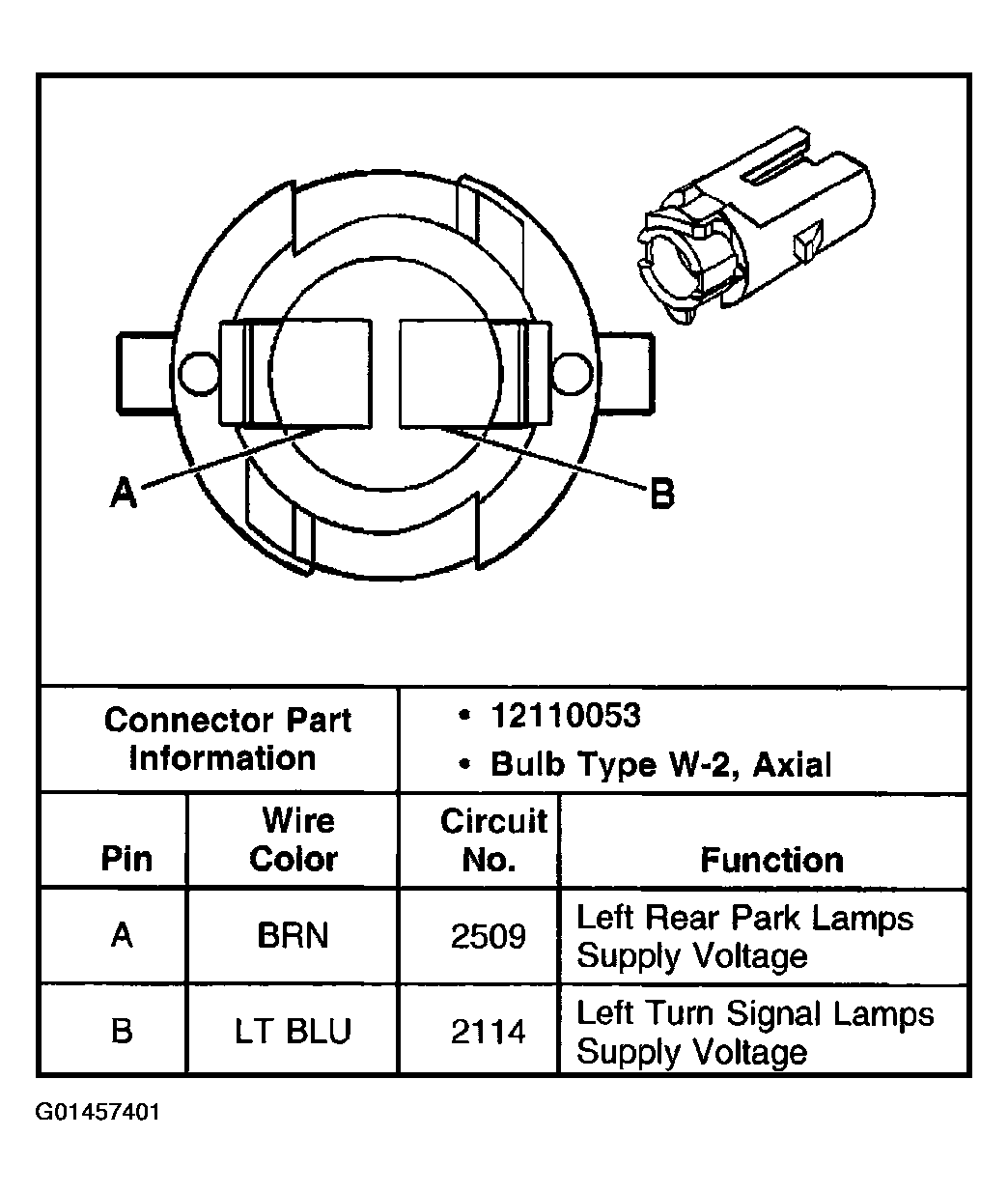

Fig 79: Identifying Turn Signal - LR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

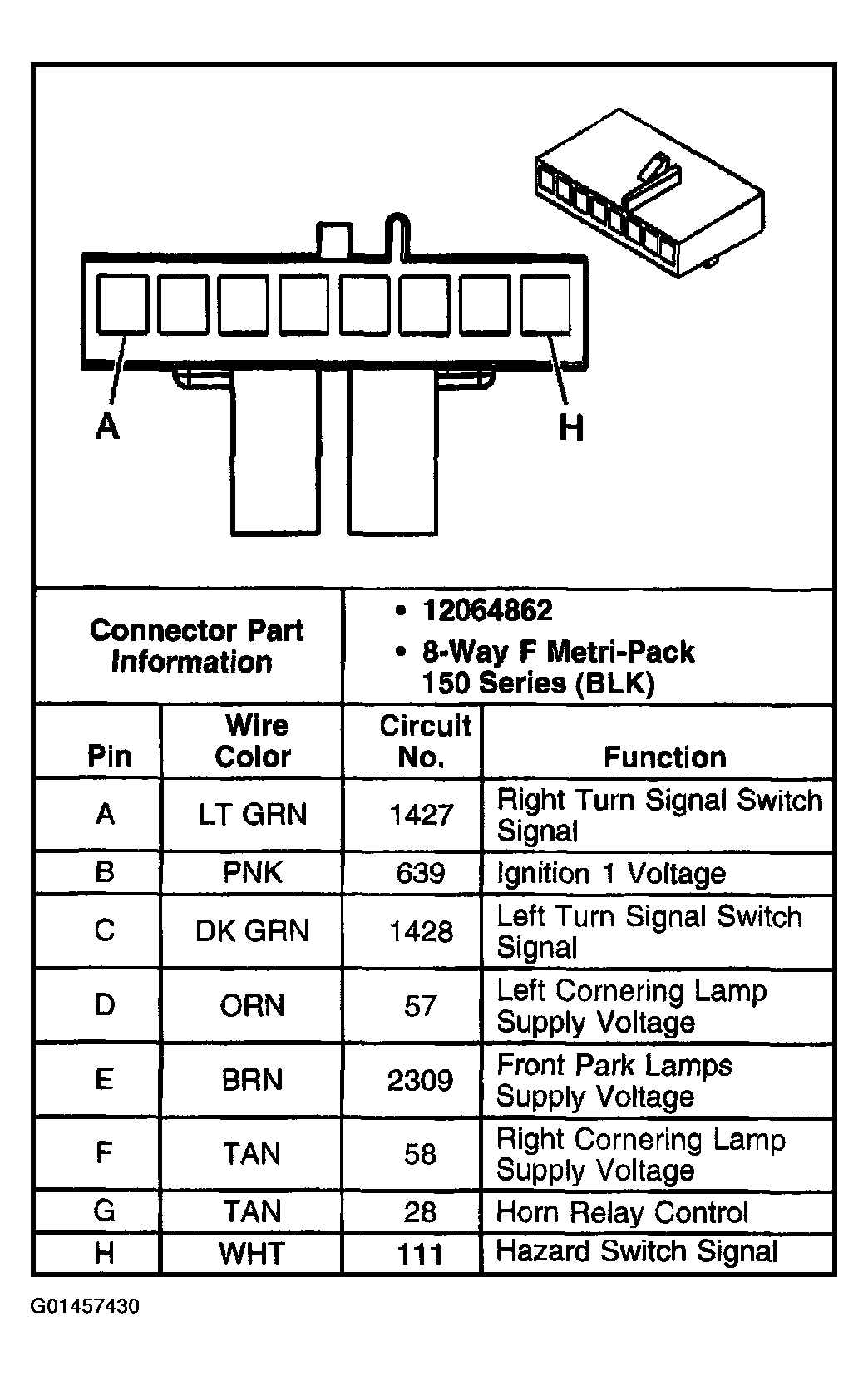

Fig 80: Identifying Turn Signal - RR Connector Terminal

Courtesy of GENERAL MOTORS CORP.

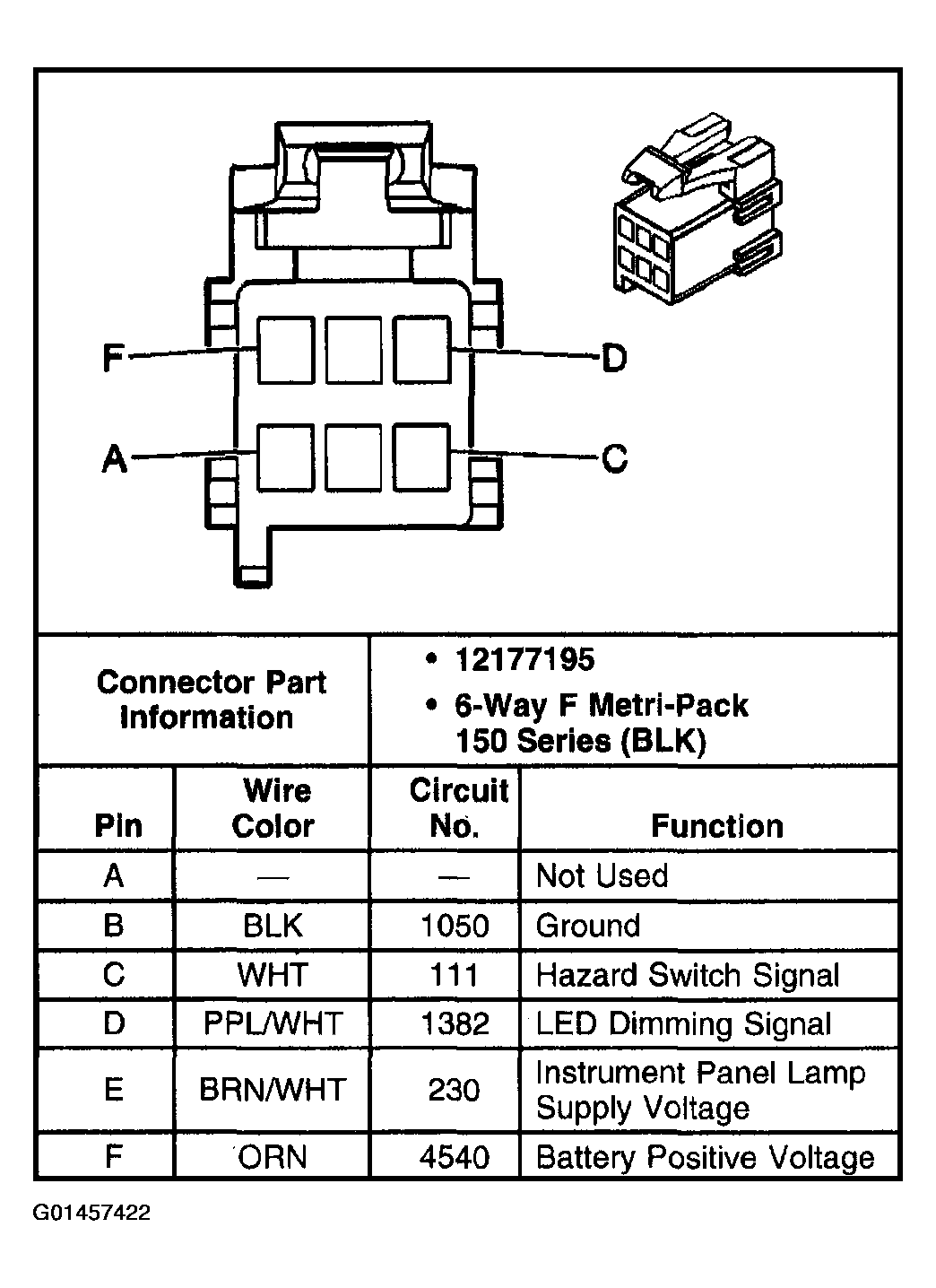

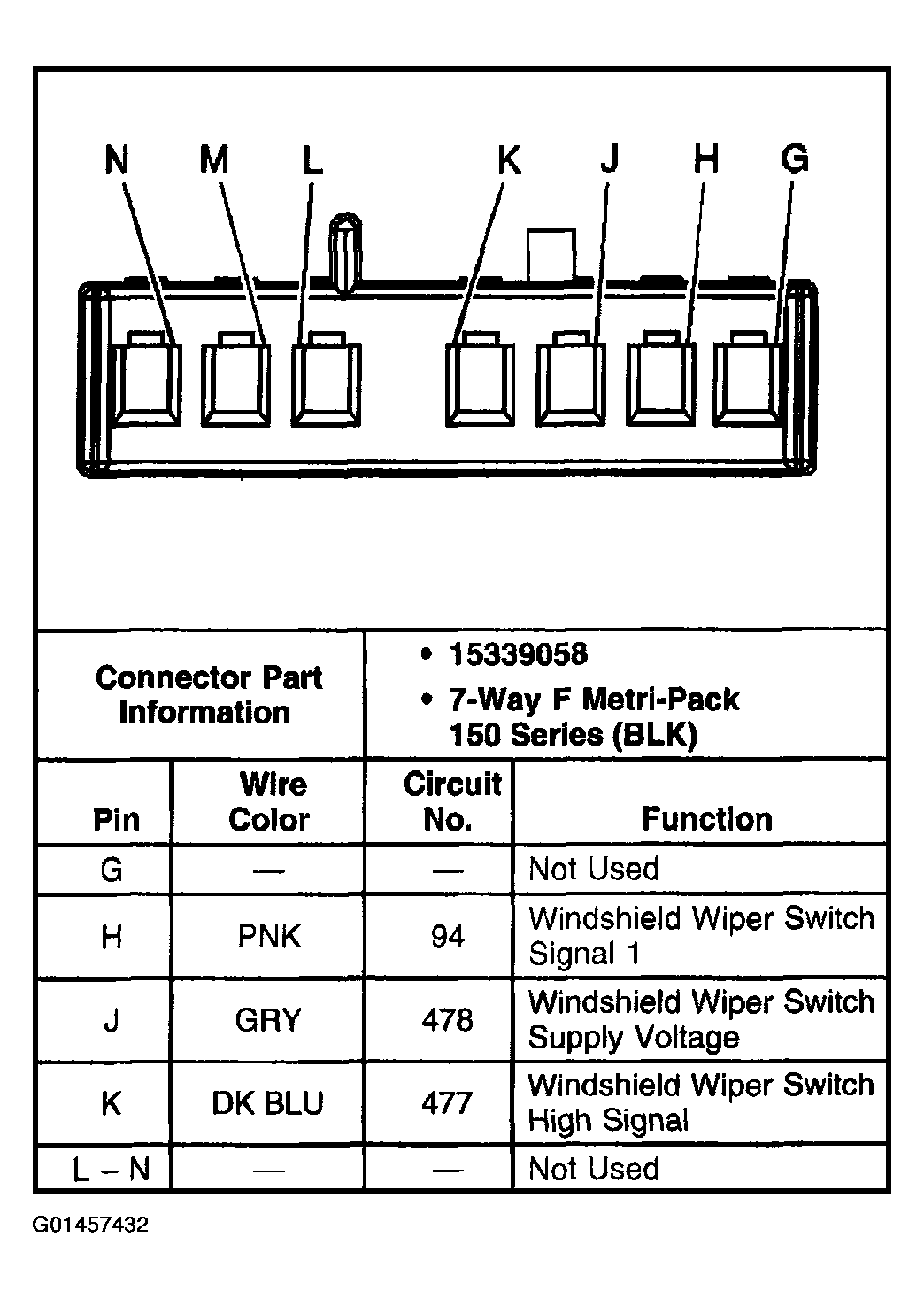

Fig 81: Identifying Turn Signal Multifunction Switch - C1 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 82: Identifying Turn Signal Multifunction Switch - C2 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 83: Identifying Turn Signal Multifunction Switch - C3 Connector Terminal

Courtesy of GENERAL MOTORS CORP.

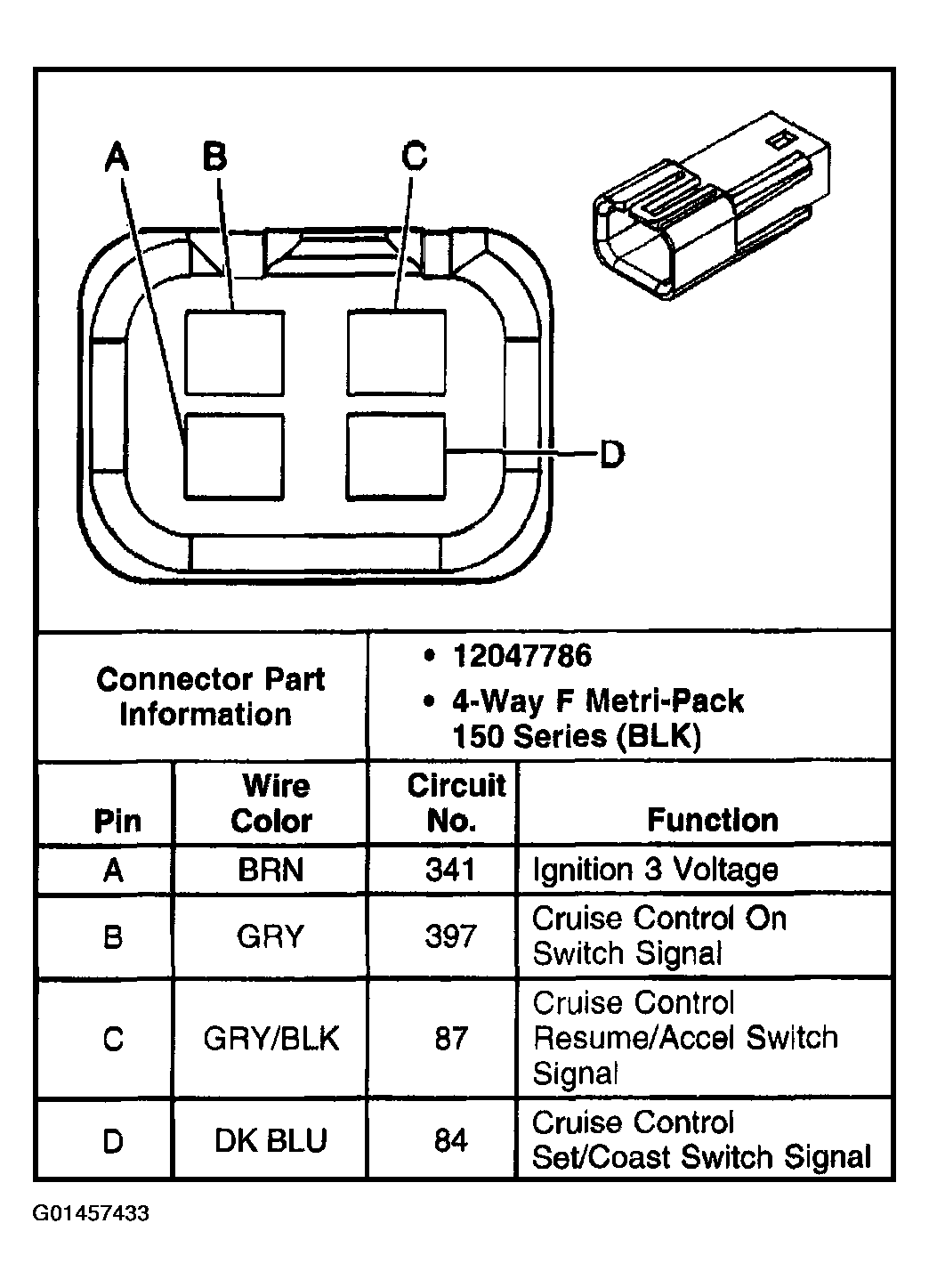

Fig 84: Identifying Turn Signal Multifunction Switch - C4 (W/K34) Connector Terminal

Courtesy of GENERAL MOTORS CORP.

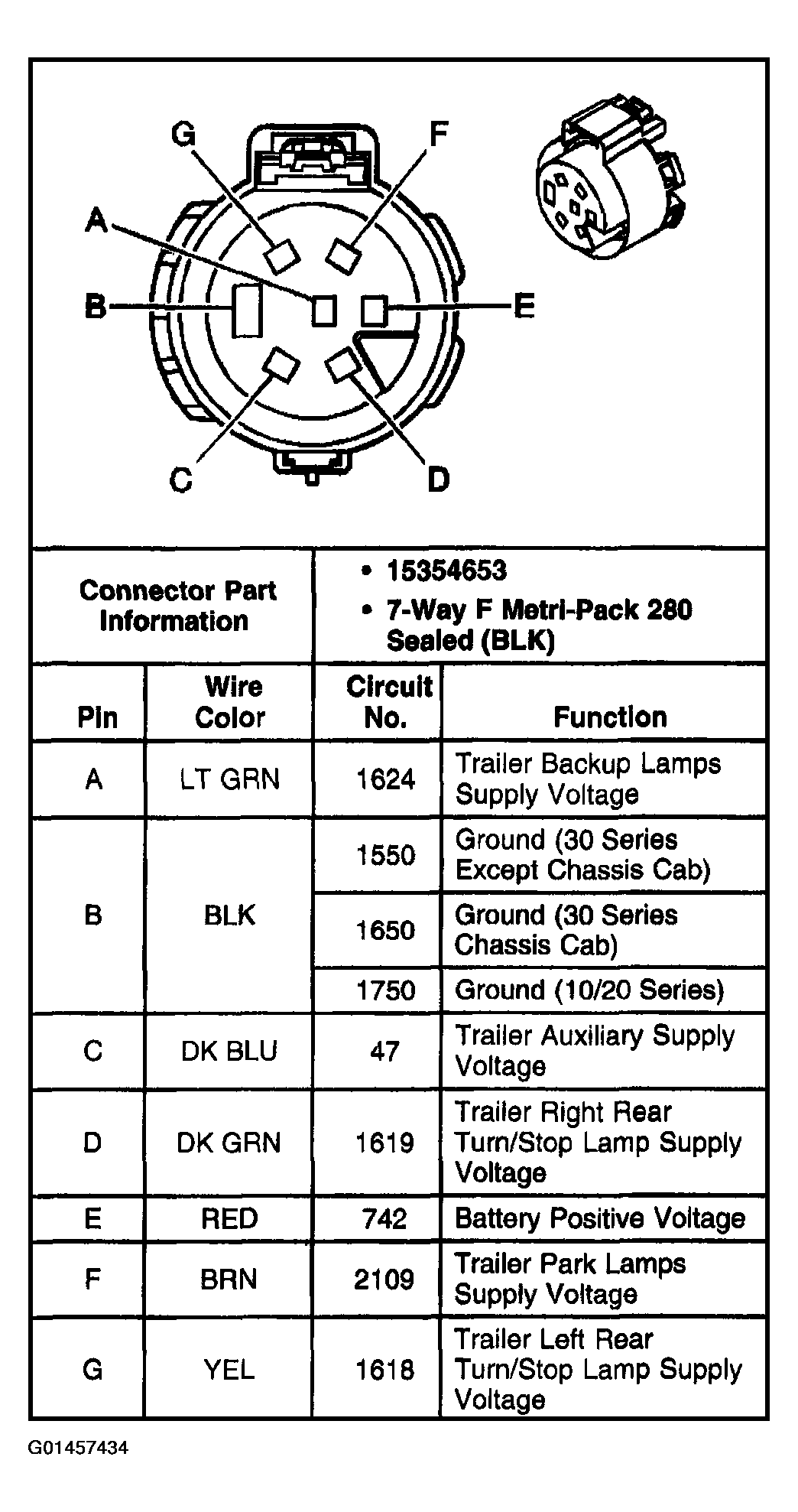

Fig 85: Identifying Trailer Connector - Heavy Duty Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 86: Identifying Vanity Mirror Lamp - Left Connector Terminal

Courtesy of GENERAL MOTORS CORP.

Fig 87: Identifying Vanity Mirror Lamp - Right Connector Terminal

Courtesy of GENERAL MOTORS CORP.
