Memory Seats Wiring Schematics (Power, Ground, Class 2, and Memory Set Controls)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

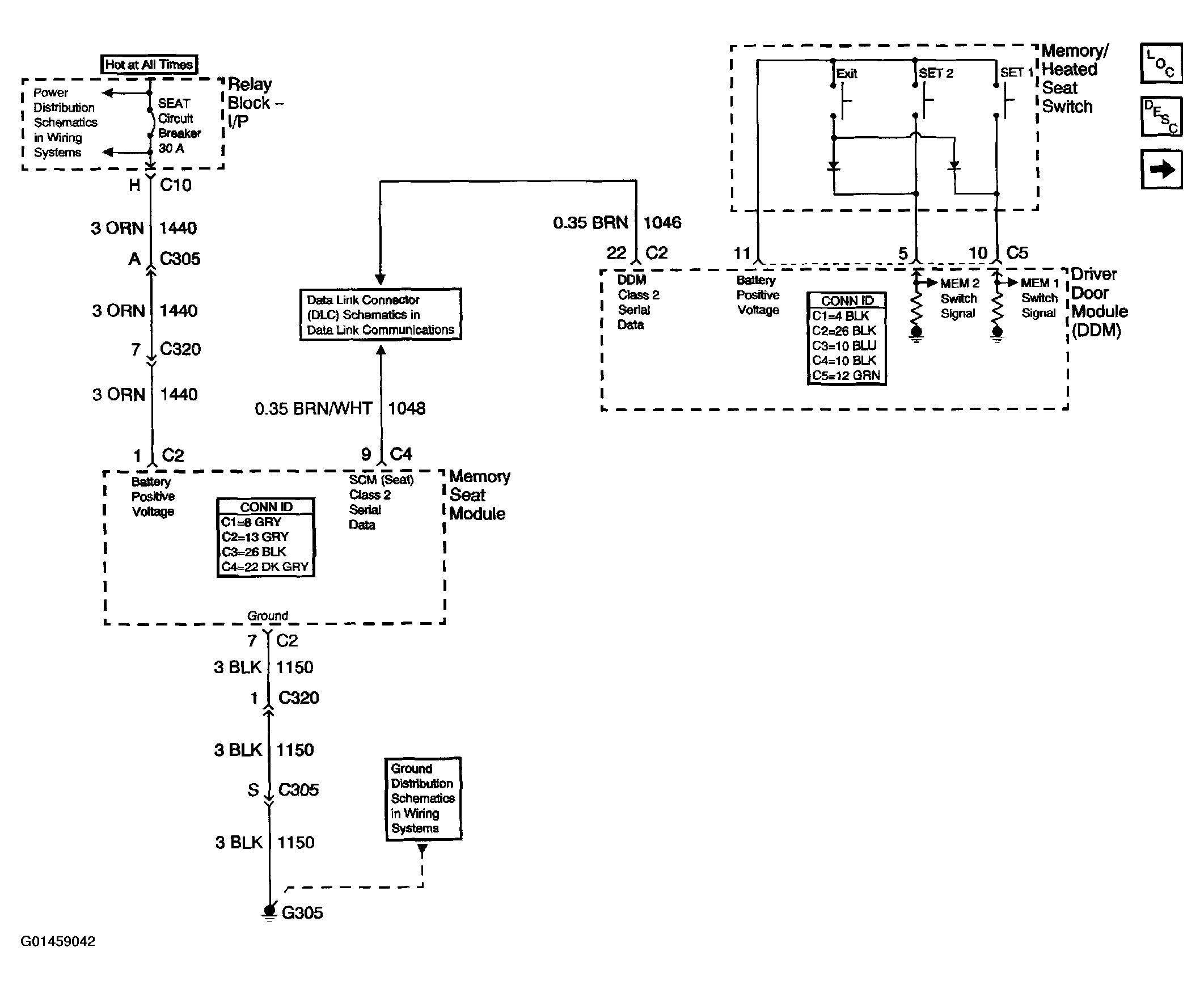

Fig 1: Memory Seats Schematics (Power, Ground, Class 2, And Memory Set Controls)

G01459042

Courtesy of GENERAL MOTORS CORP.

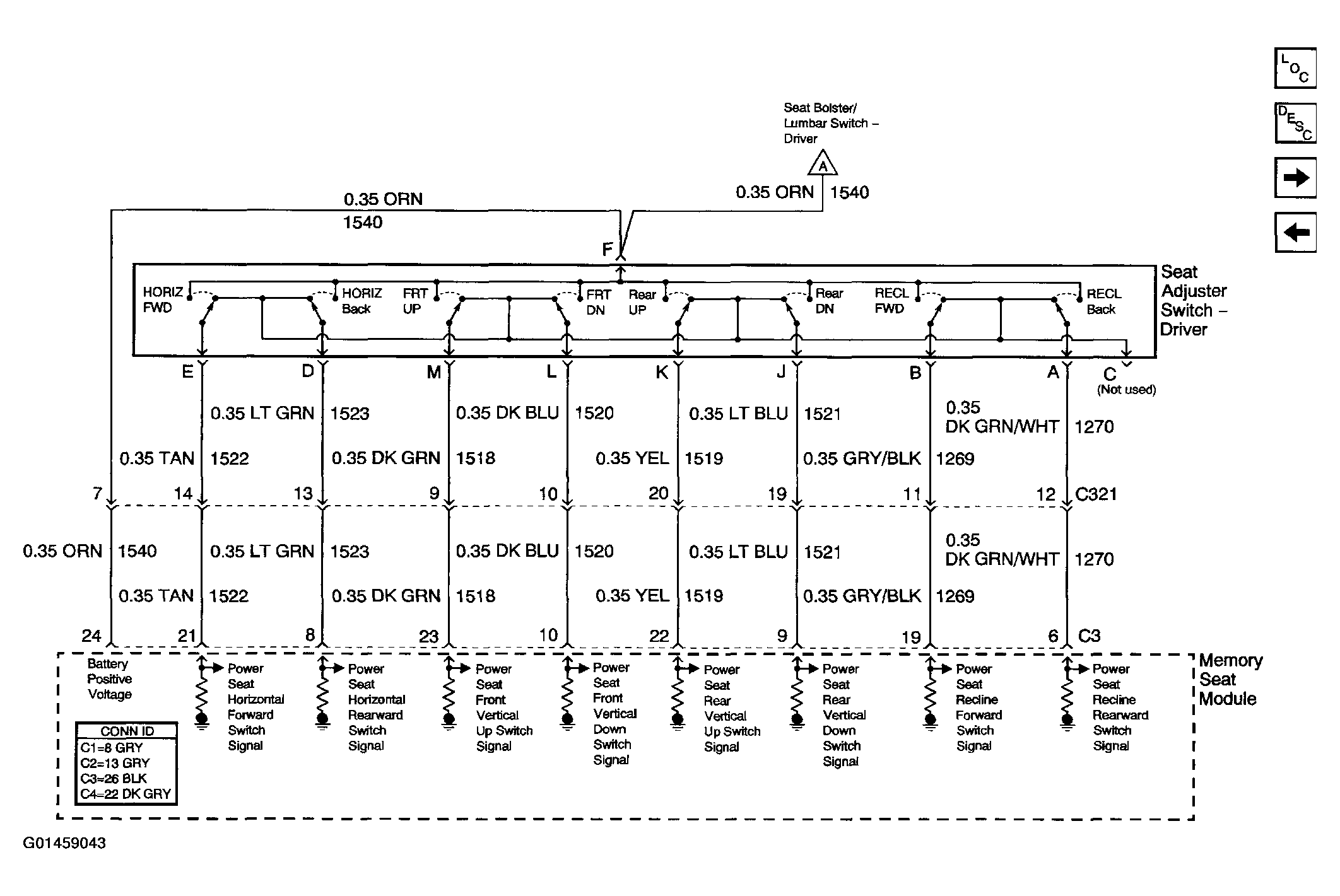

Fig 2: Memory Seats Schematics (Seat Adjuster Switch)

G01459043

Courtesy of GENERAL MOTORS CORP.

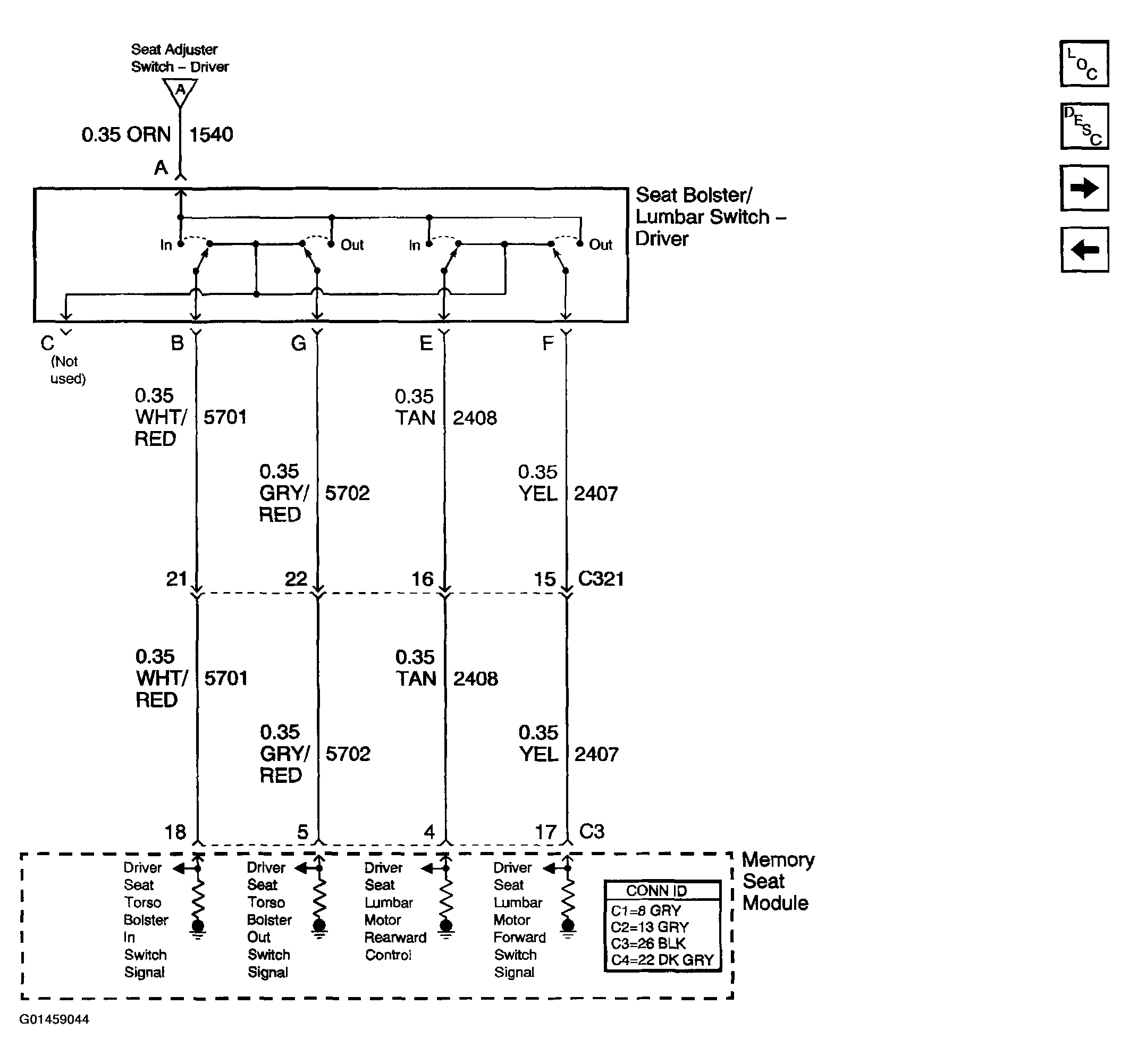

Fig 3: Memory Seats Schematics (Lumbar/Bolster Switch)

G01459044

Courtesy of GENERAL MOTORS CORP.

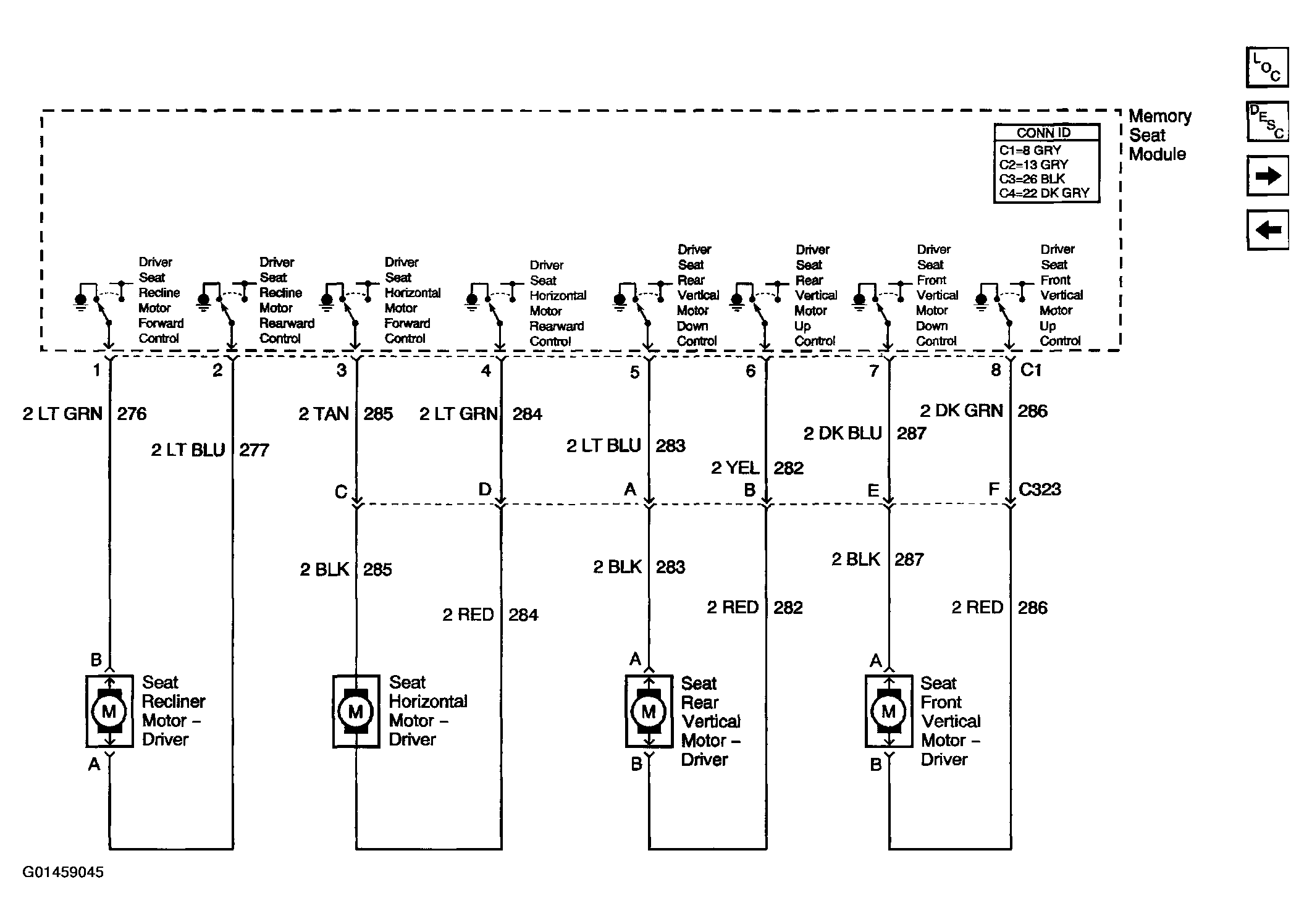

Fig 4: Memory Seats Schematics - Seat Motor (1 Of 2))

G01459045

Courtesy of GENERAL MOTORS CORP.

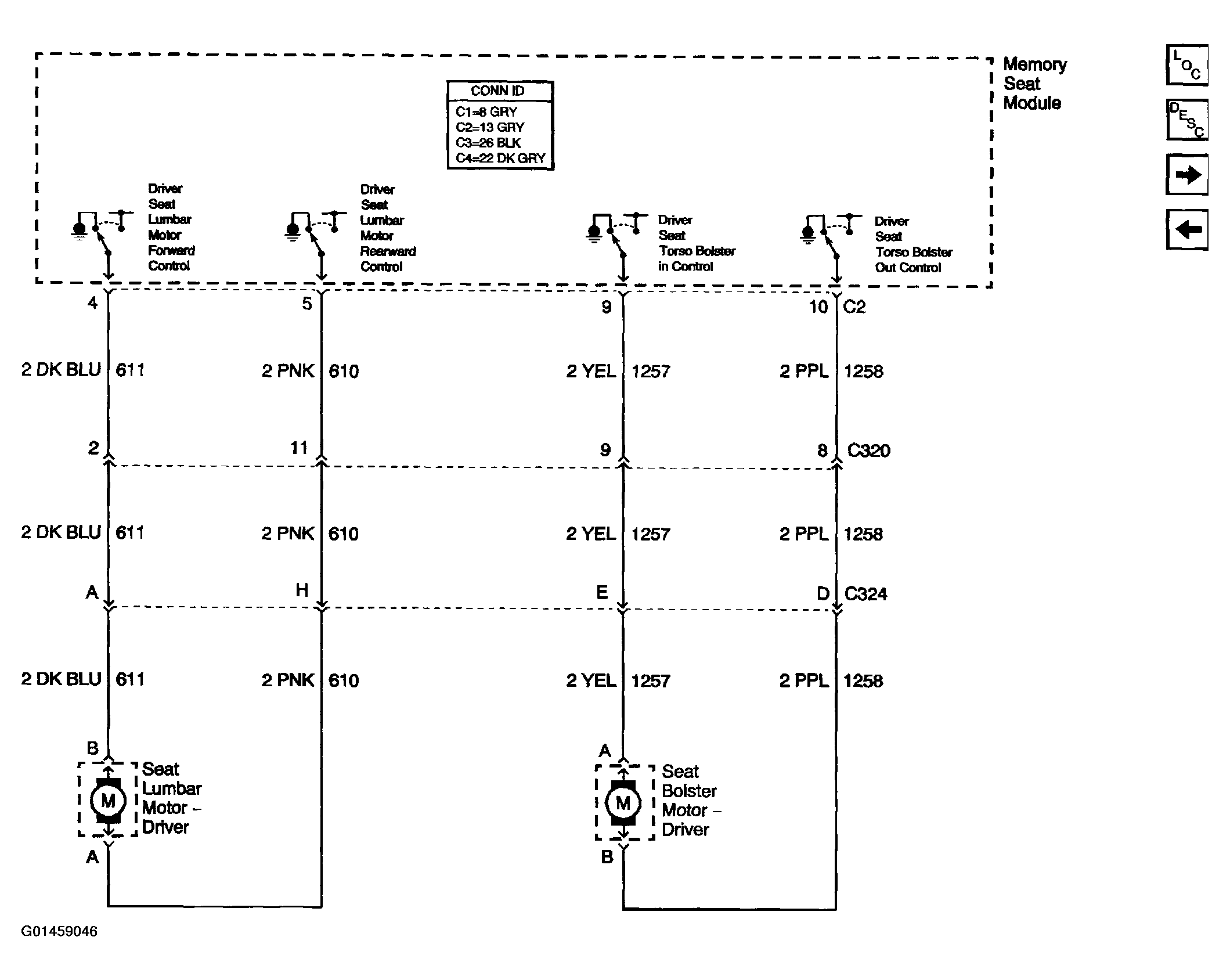

Fig 5: Memory Seats Schematics - Seat Motor (2 Of 2))

G01459046

Courtesy of GENERAL MOTORS CORP.

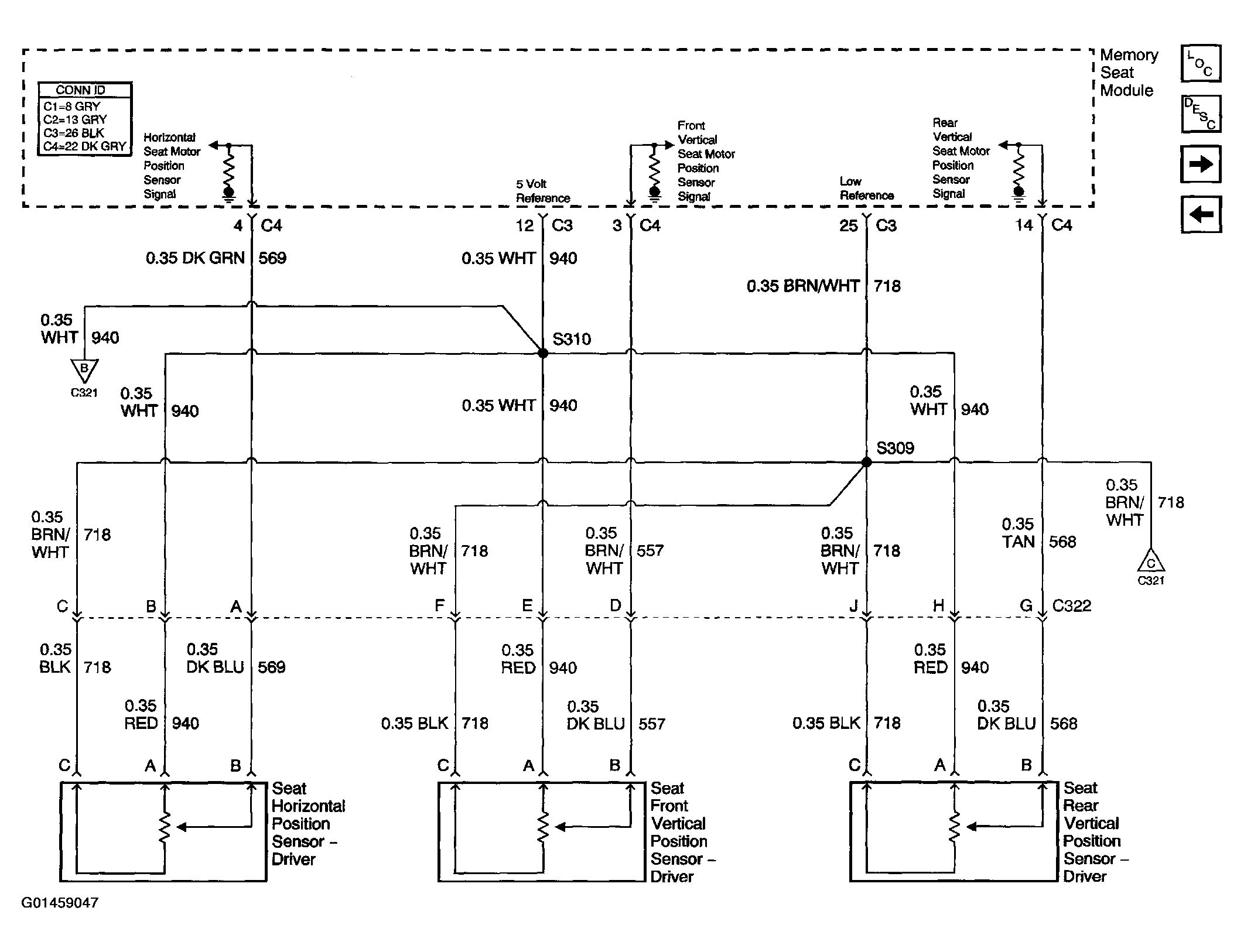

Fig 6: Memory Seats Schematics - Seat Position Sensors (1 Of 2))

G01459047

Courtesy of GENERAL MOTORS CORP.

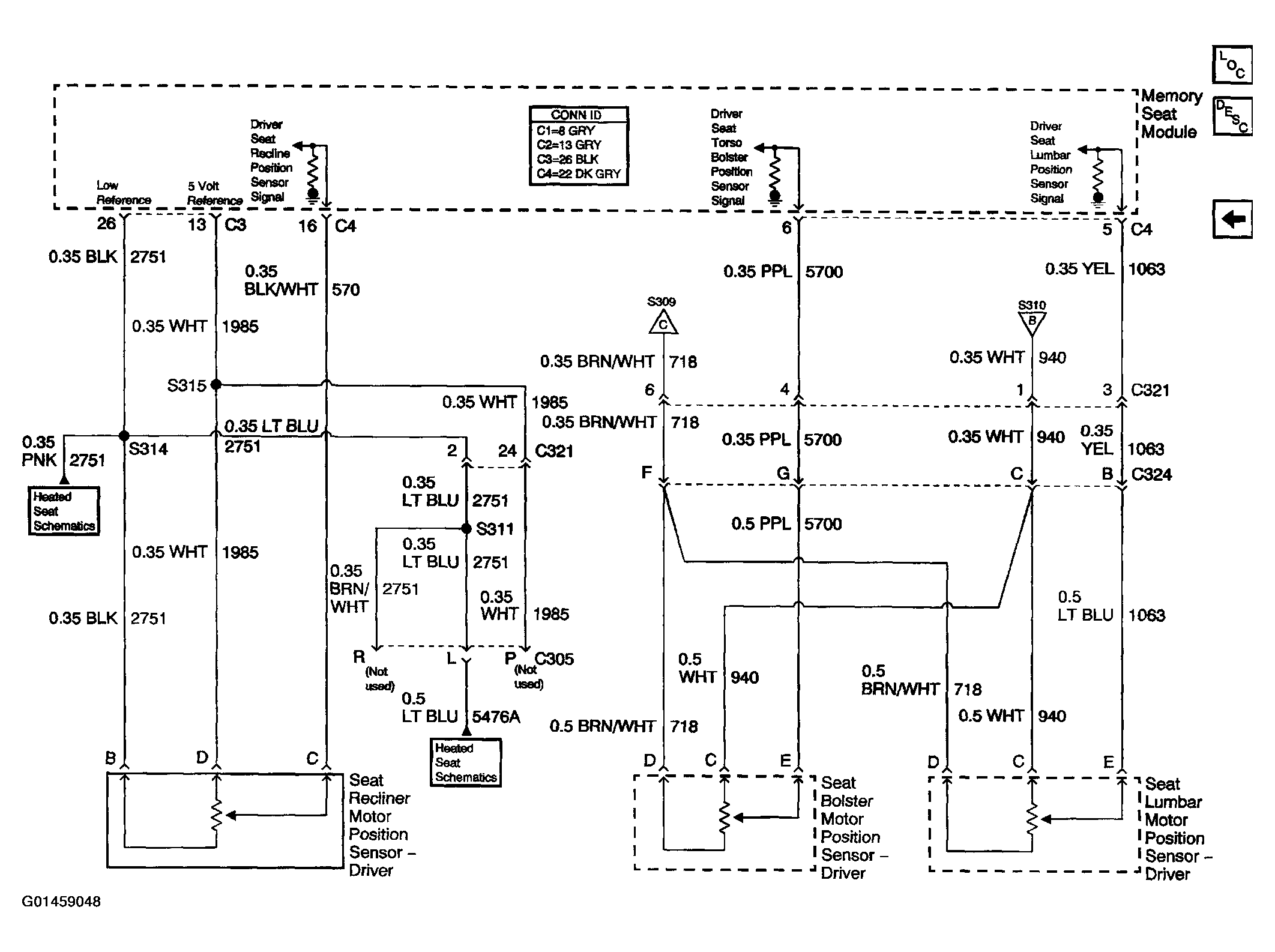

Fig 7: Memory Seats Schematics - Seat Position Sensors (2 Of 2))

G01459048

Courtesy of GENERAL MOTORS CORP.
