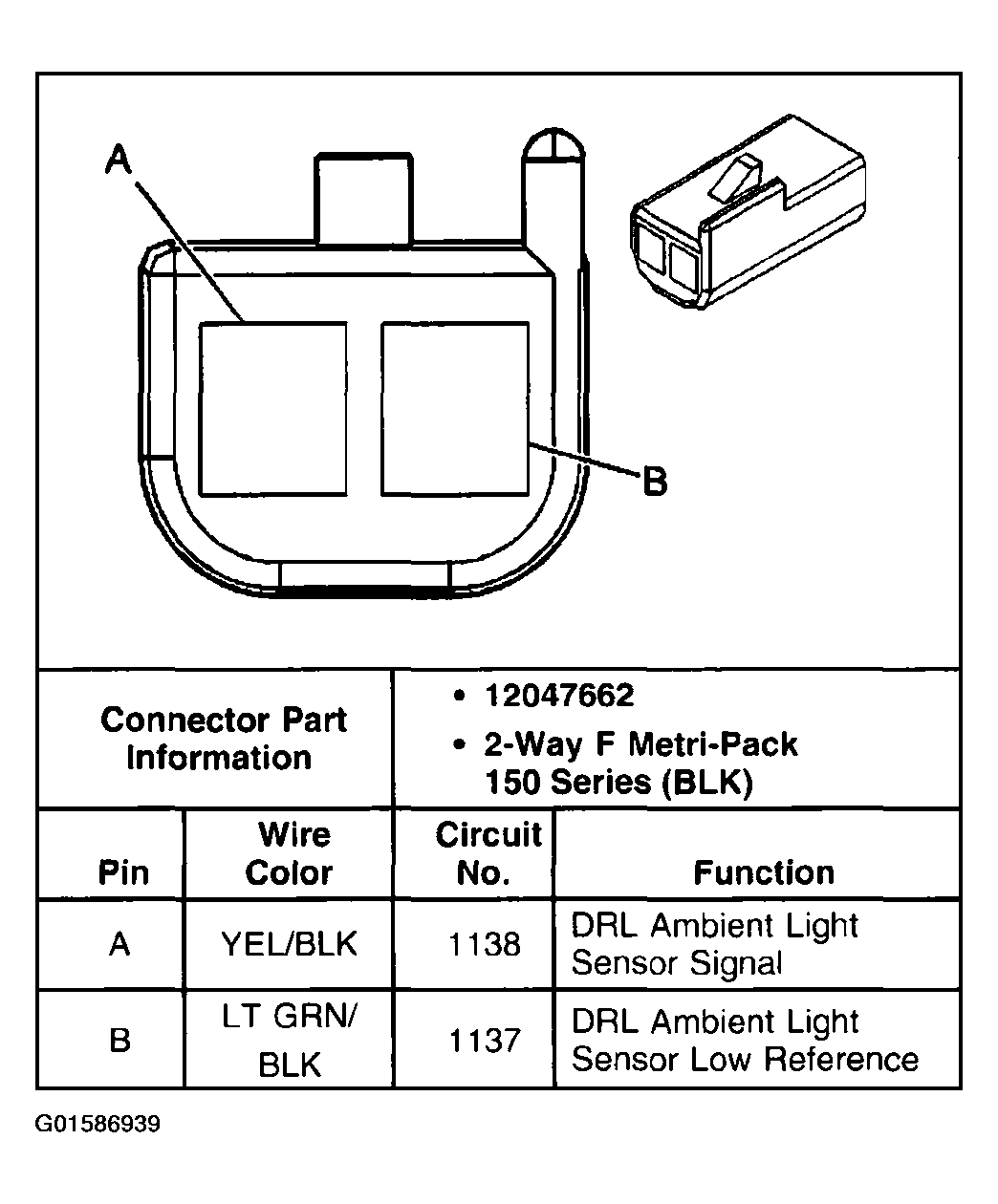

Fig 1: Ambient Light Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

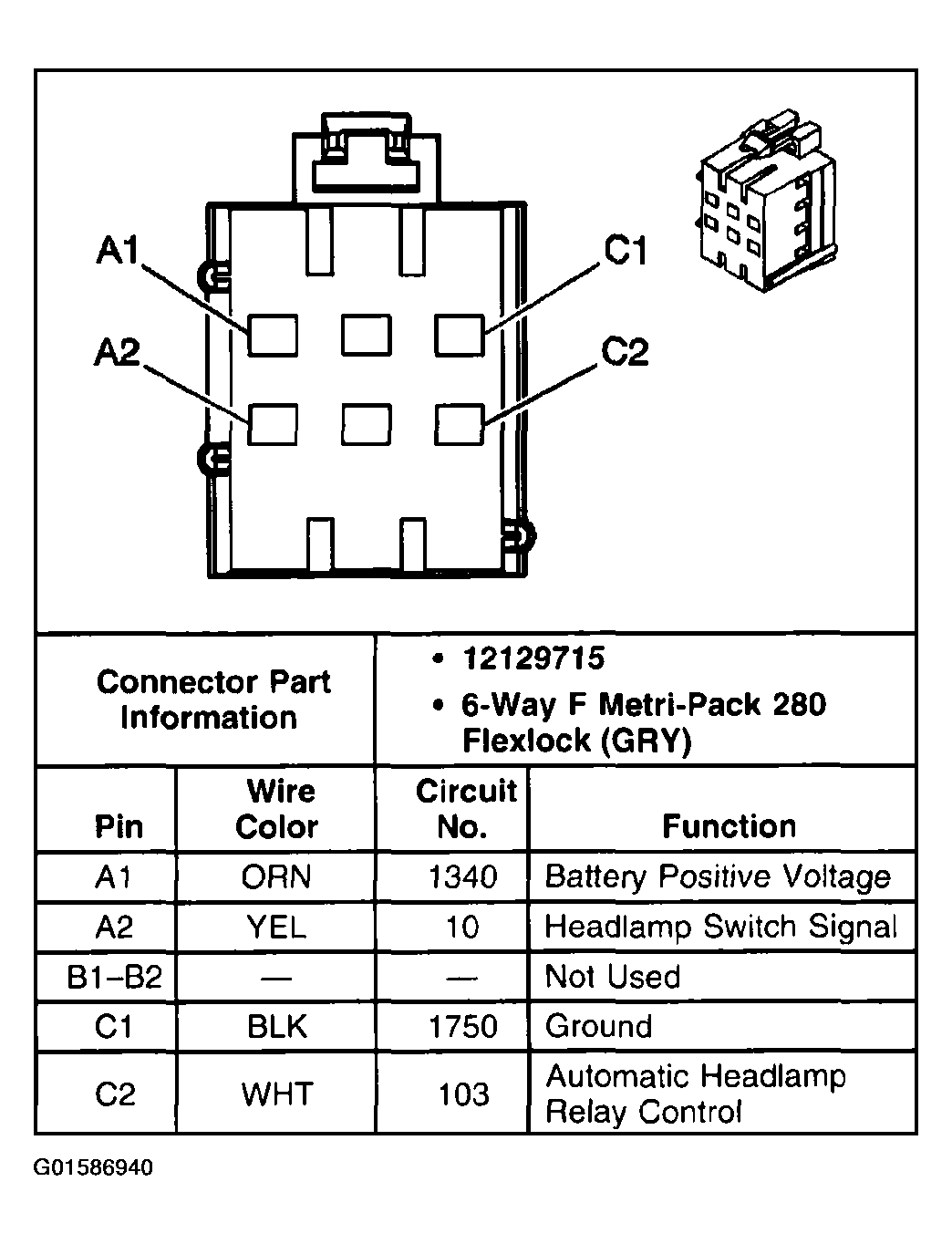

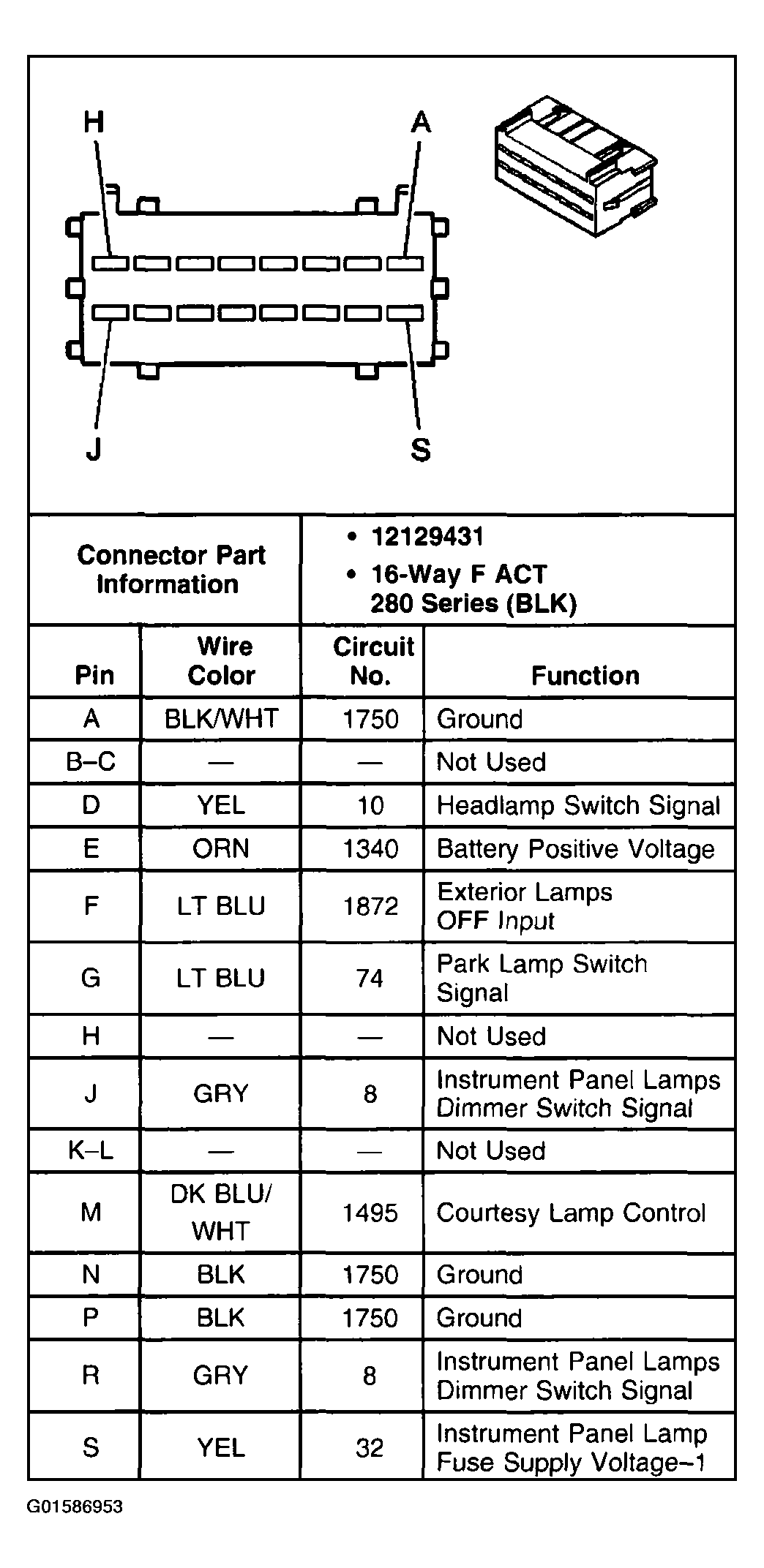

Fig 2: Automatic Headlamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Backup Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.

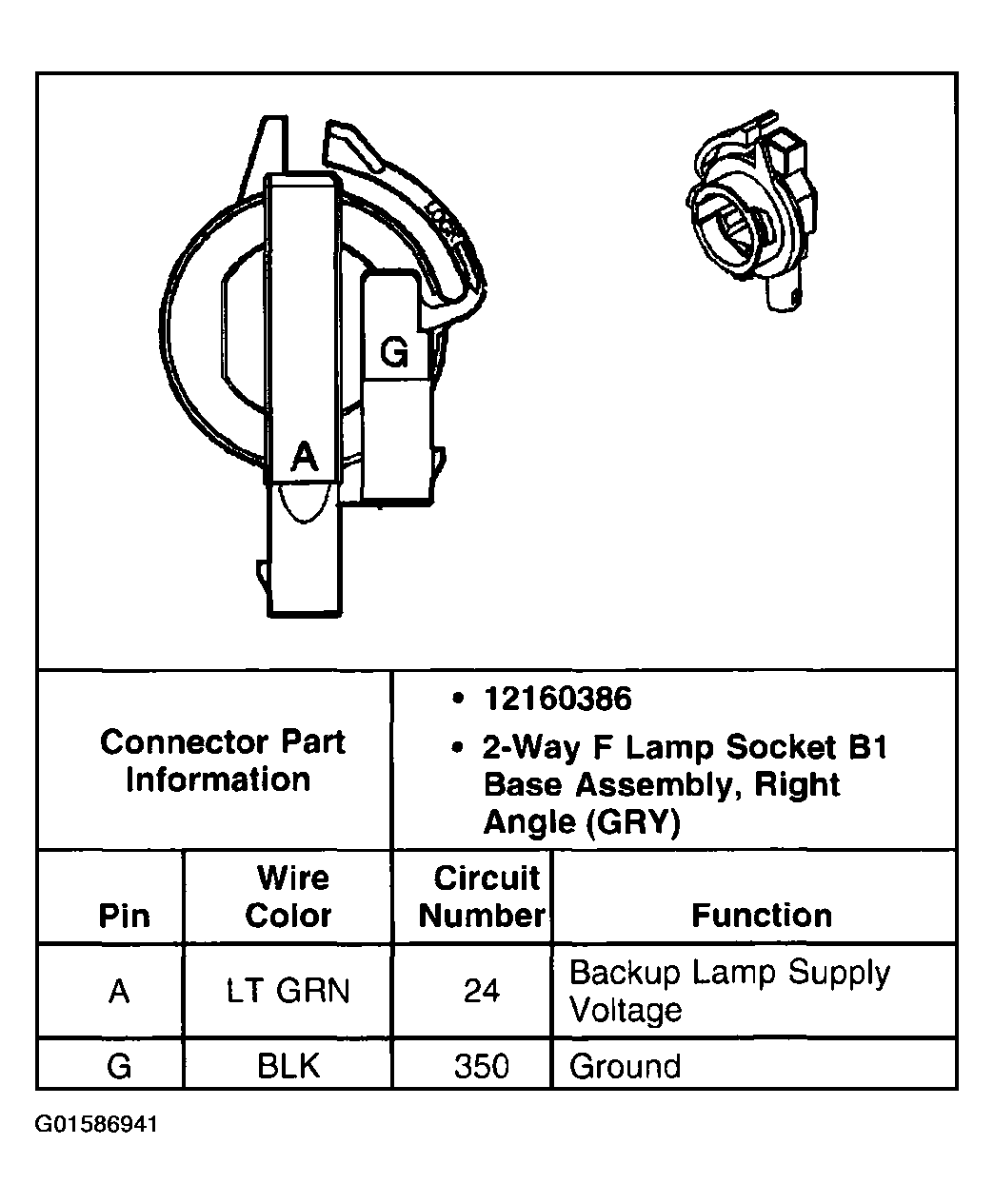

Fig 4: Backup Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

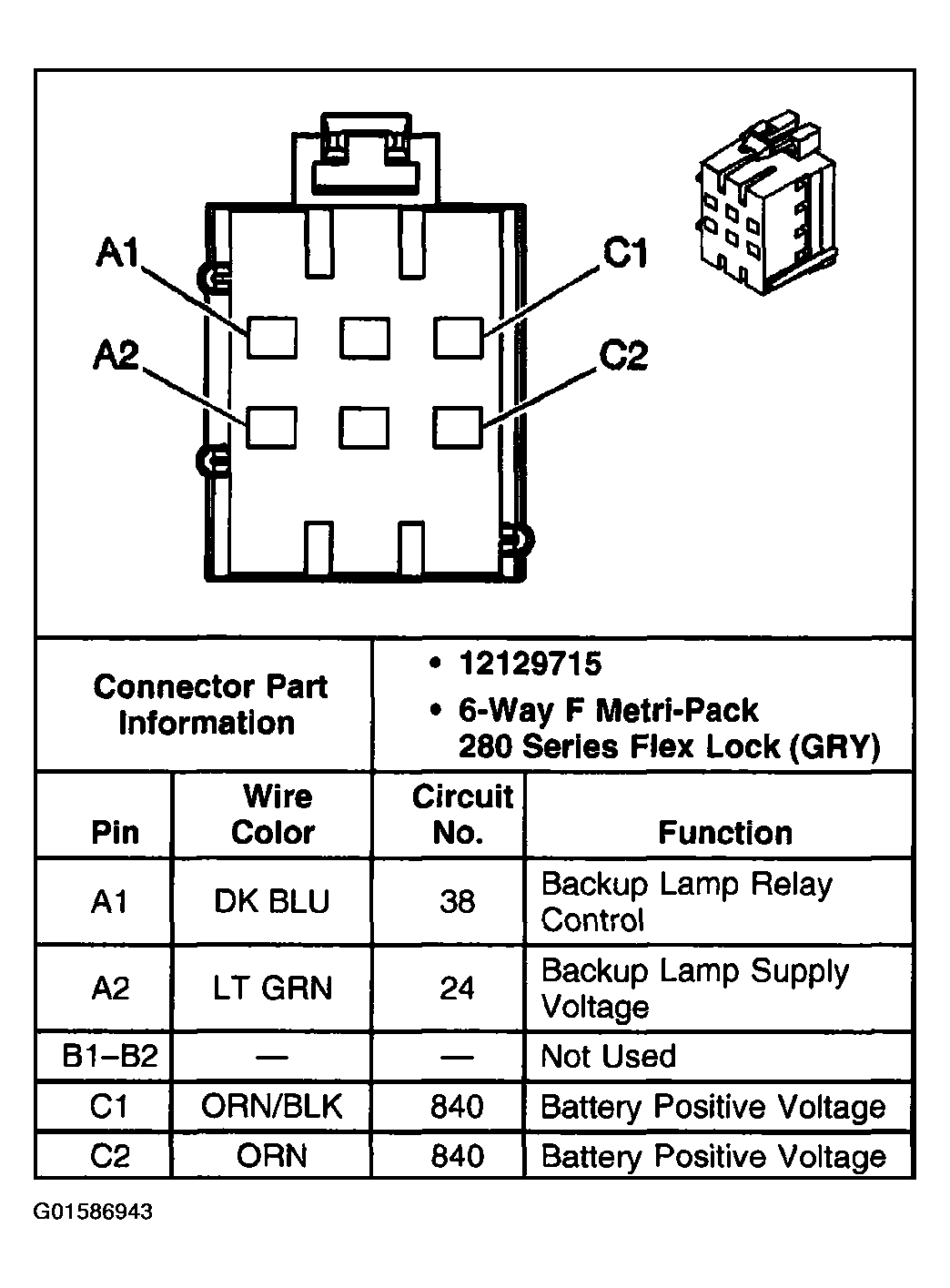

Fig 5: Backup Lamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

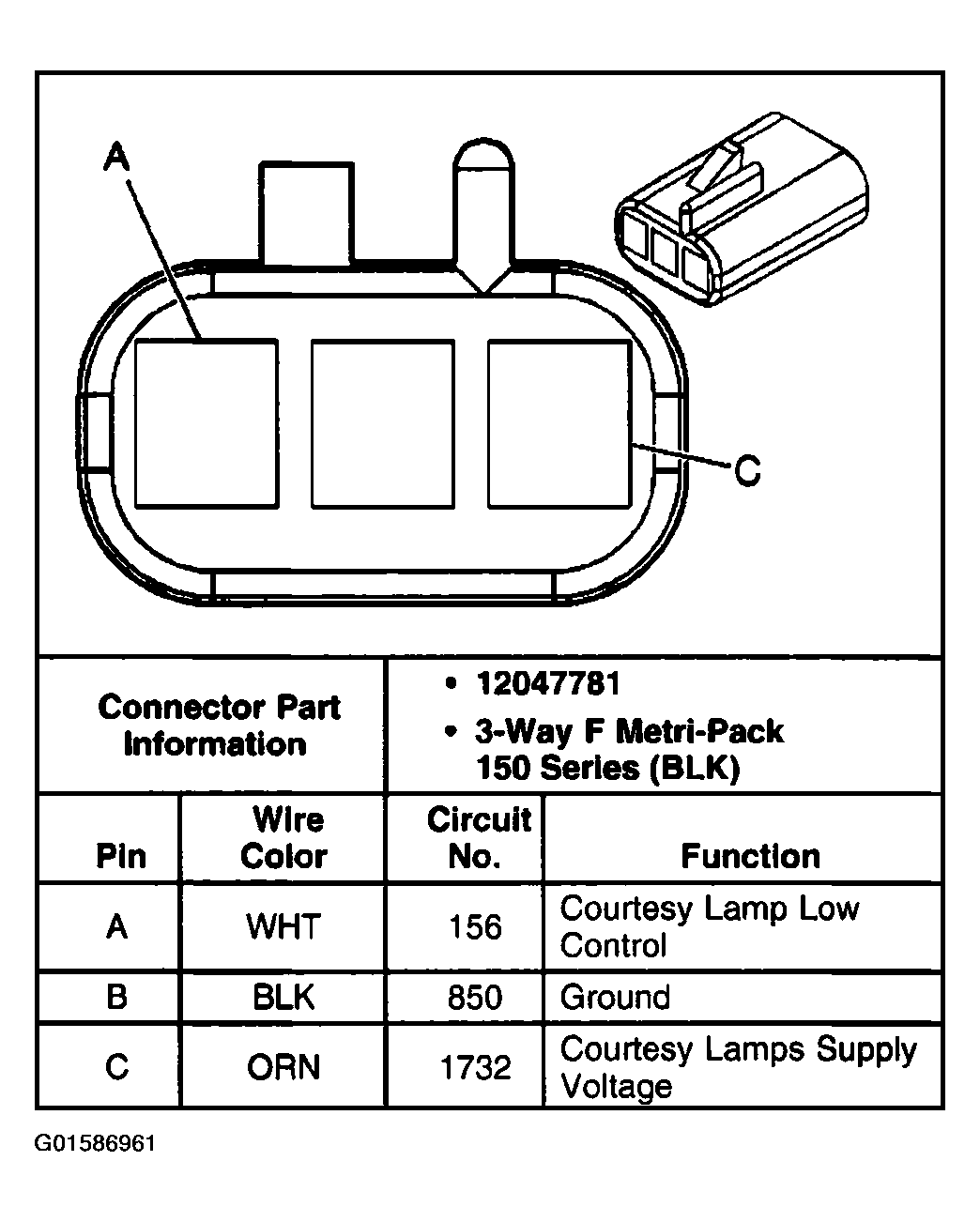

Fig 6: Center High Mounted Stop Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

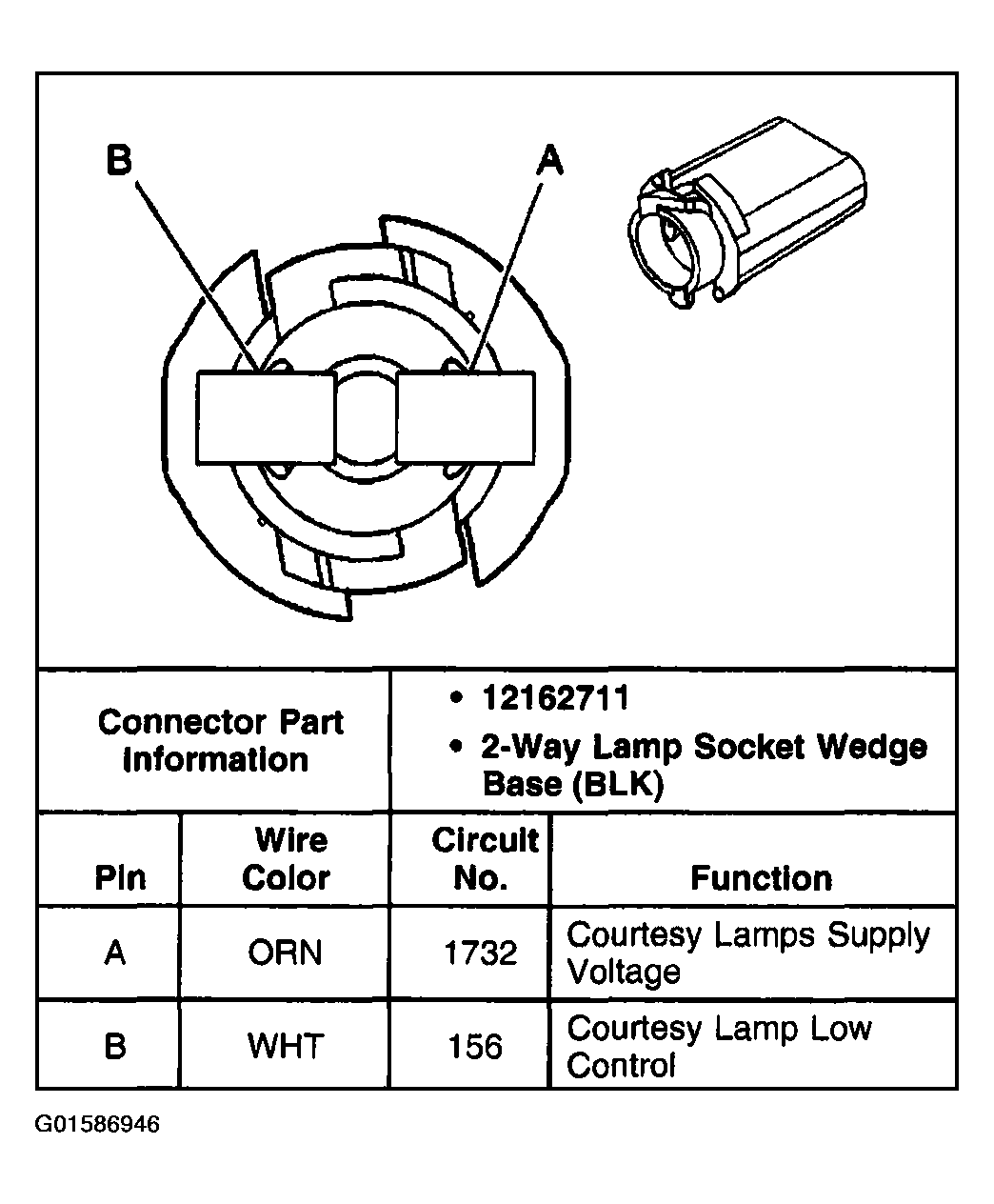

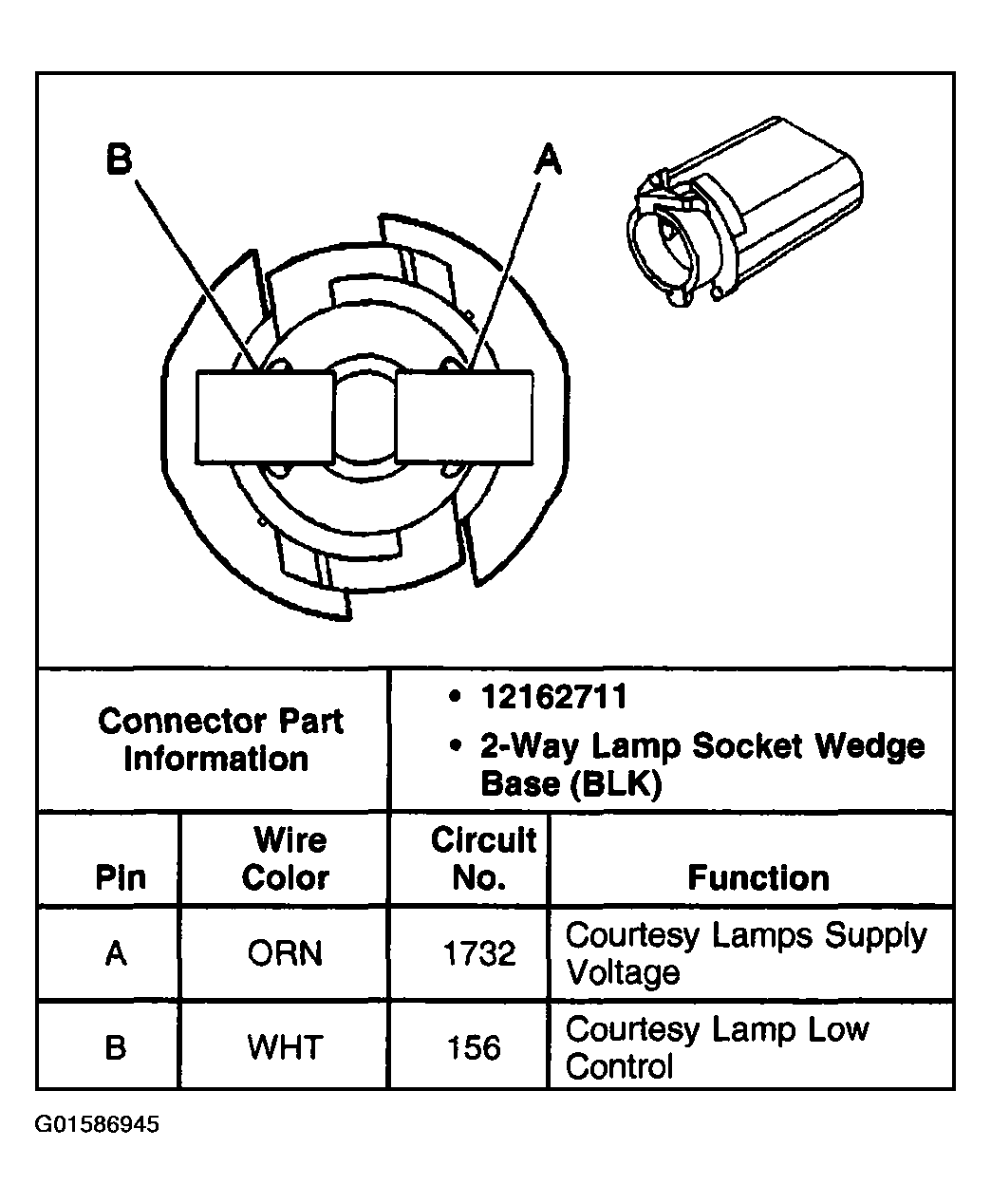

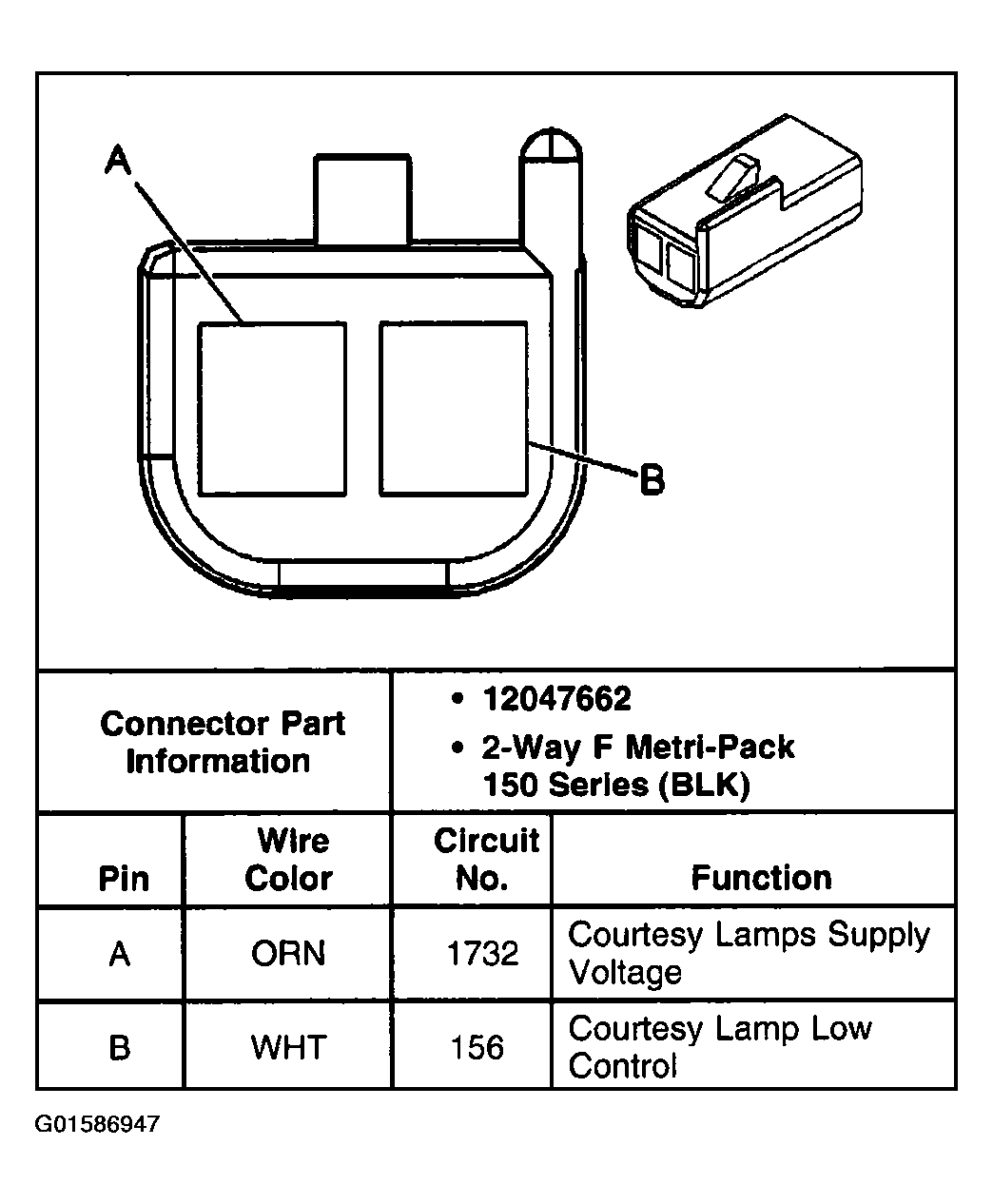

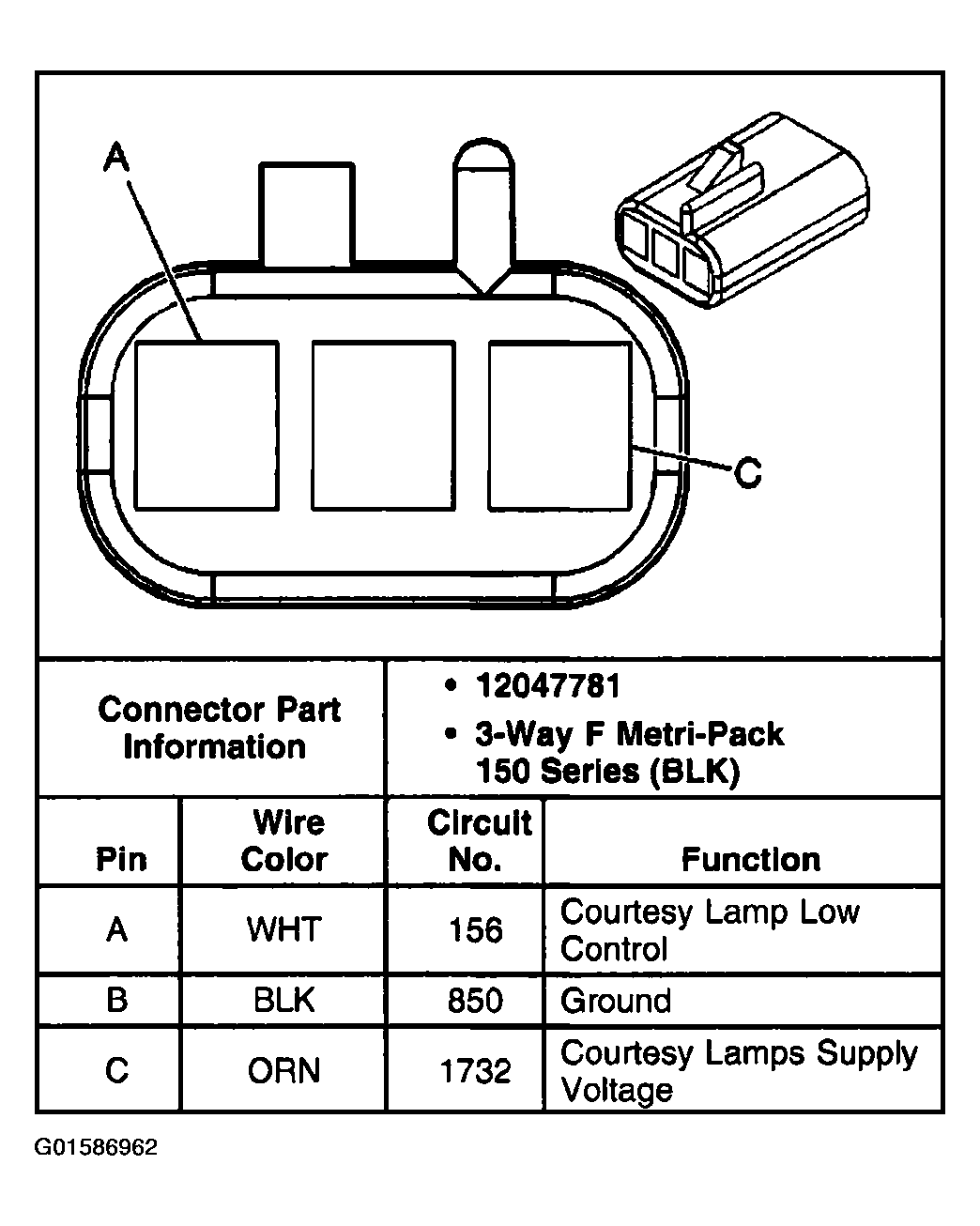

Fig 7: Courtesy Lamp-Left Connector End View
Courtesy of GENERAL MOTORS CORP.

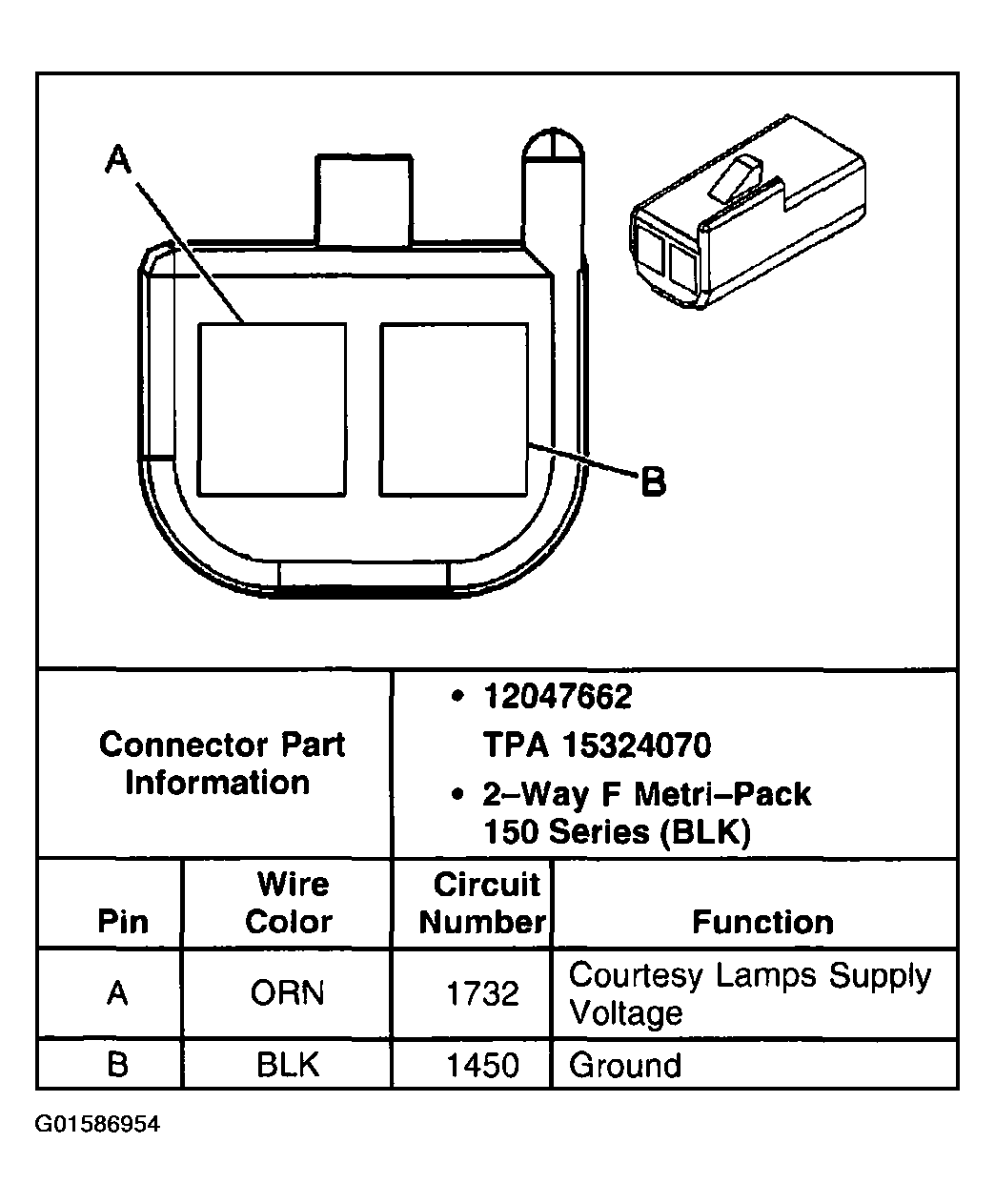

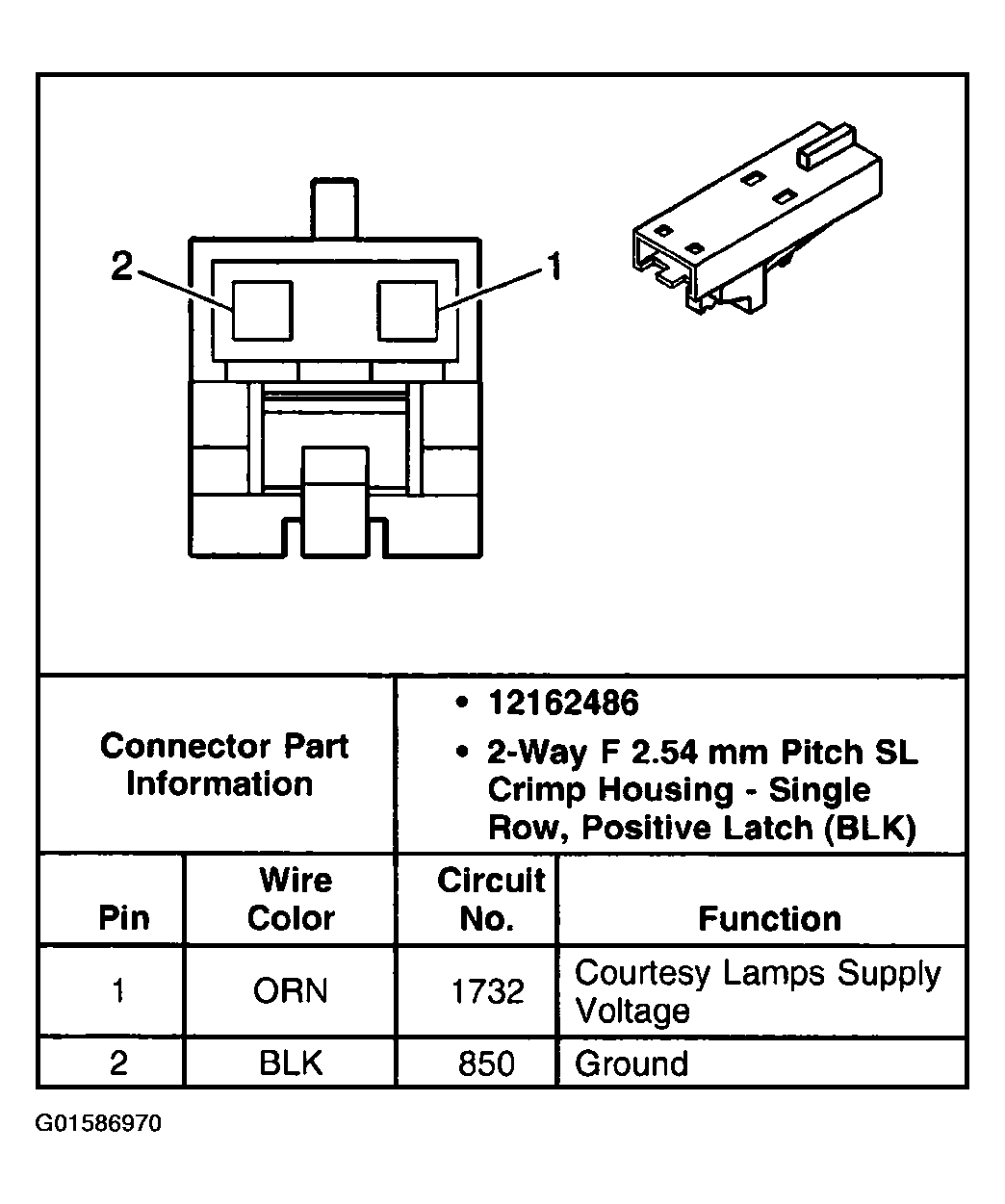

Fig 8: Courtesy Lamp-Right Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 9: Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

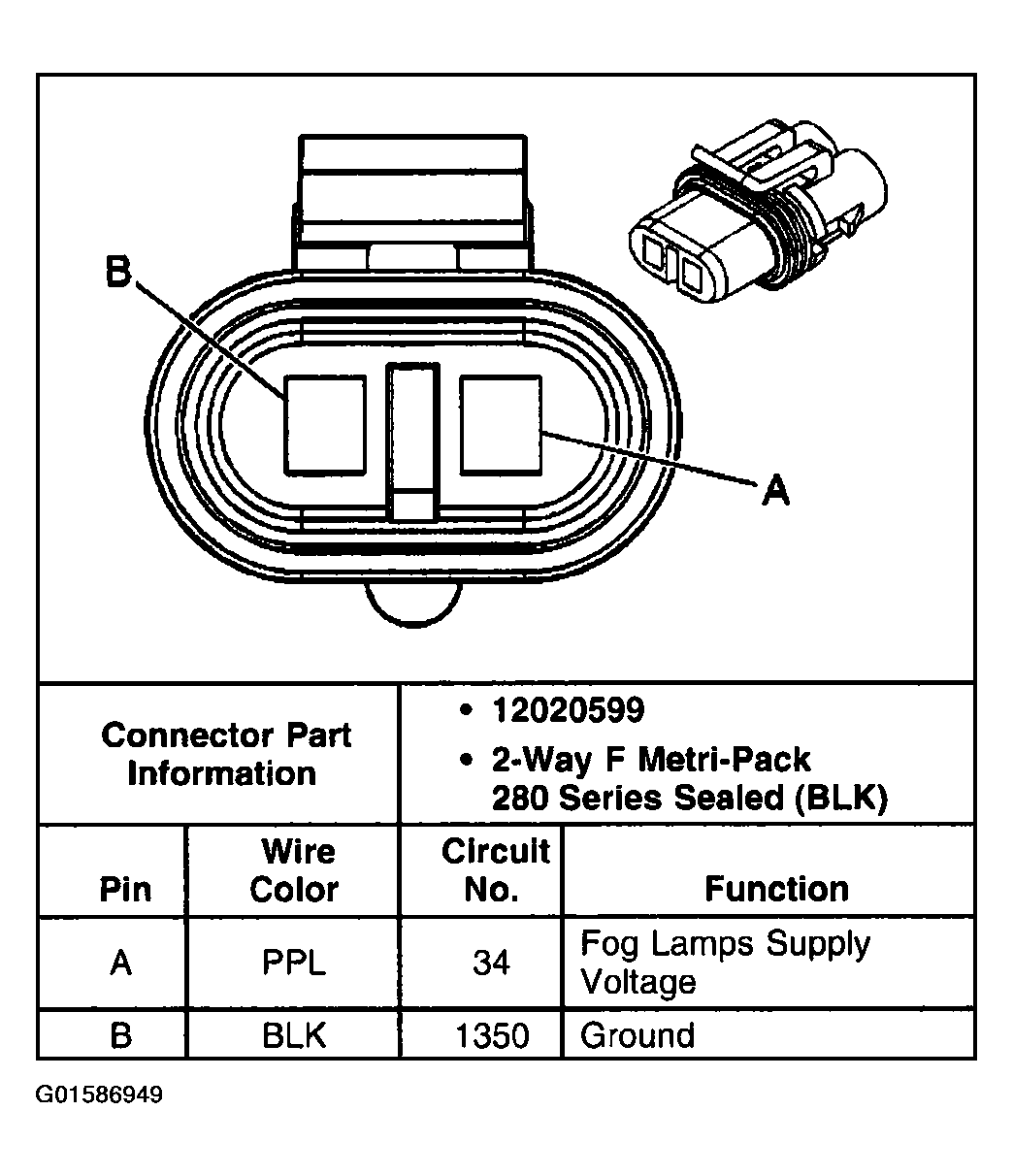

Fig 10: Fog Lamp-LF (Regal) Connector End View
Courtesy of GENERAL MOTORS CORP.

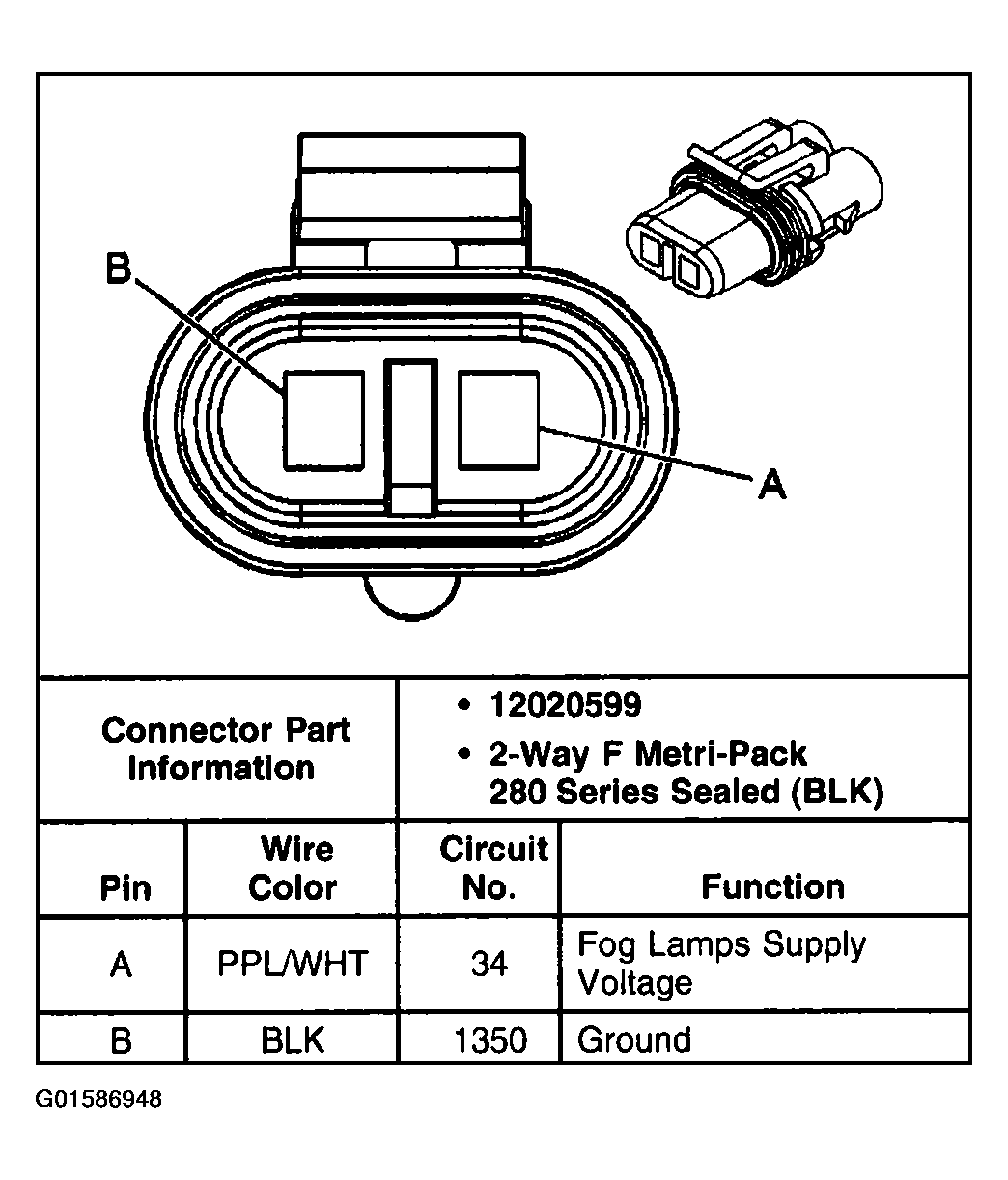

Fig 11: Fog Lamp-RF (Regal) Connector End View
Courtesy of GENERAL MOTORS CORP.

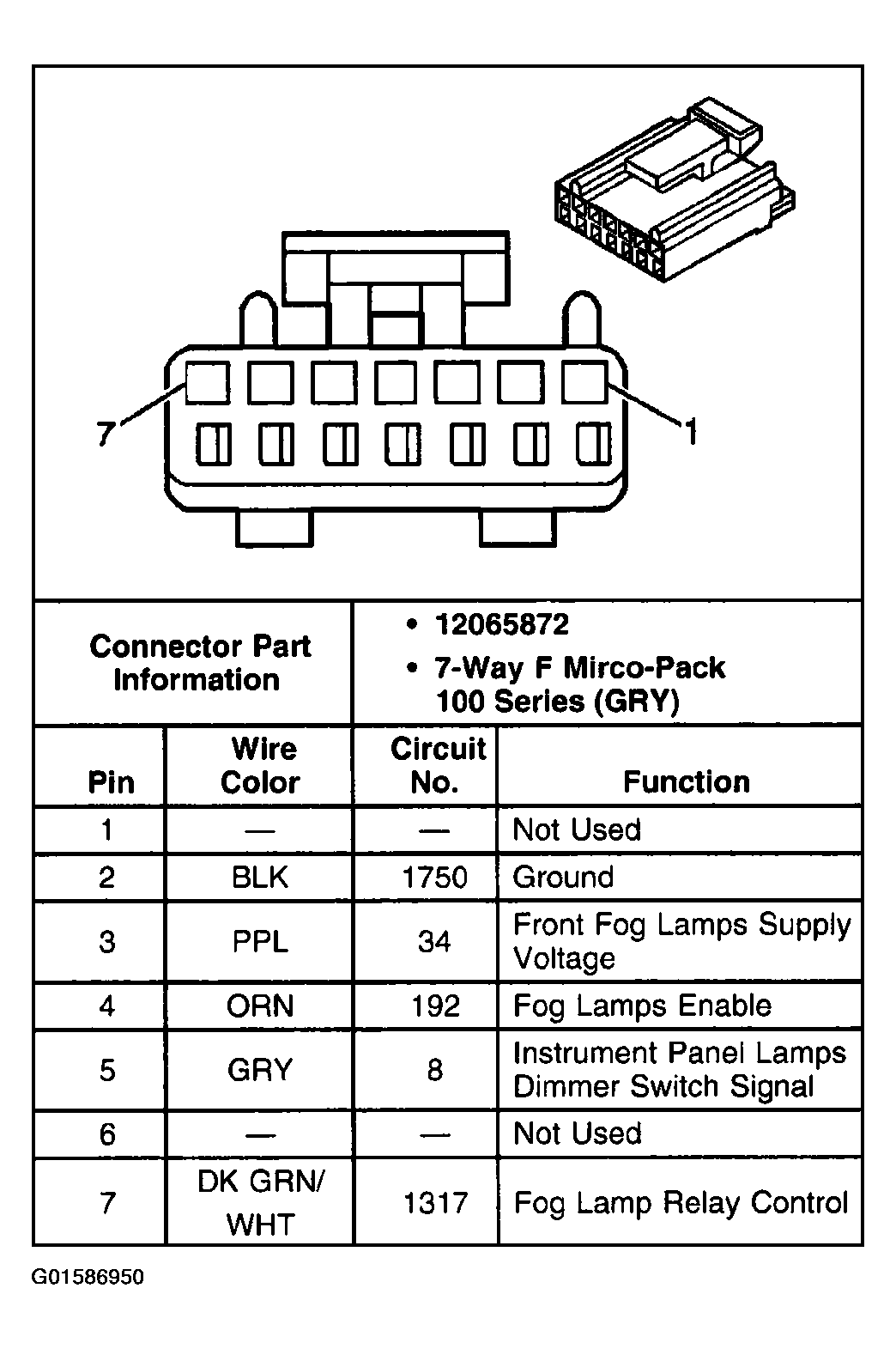

Fig 12: Fog Lamp Switch (Regal) Connector End View
Courtesy of GENERAL MOTORS CORP.

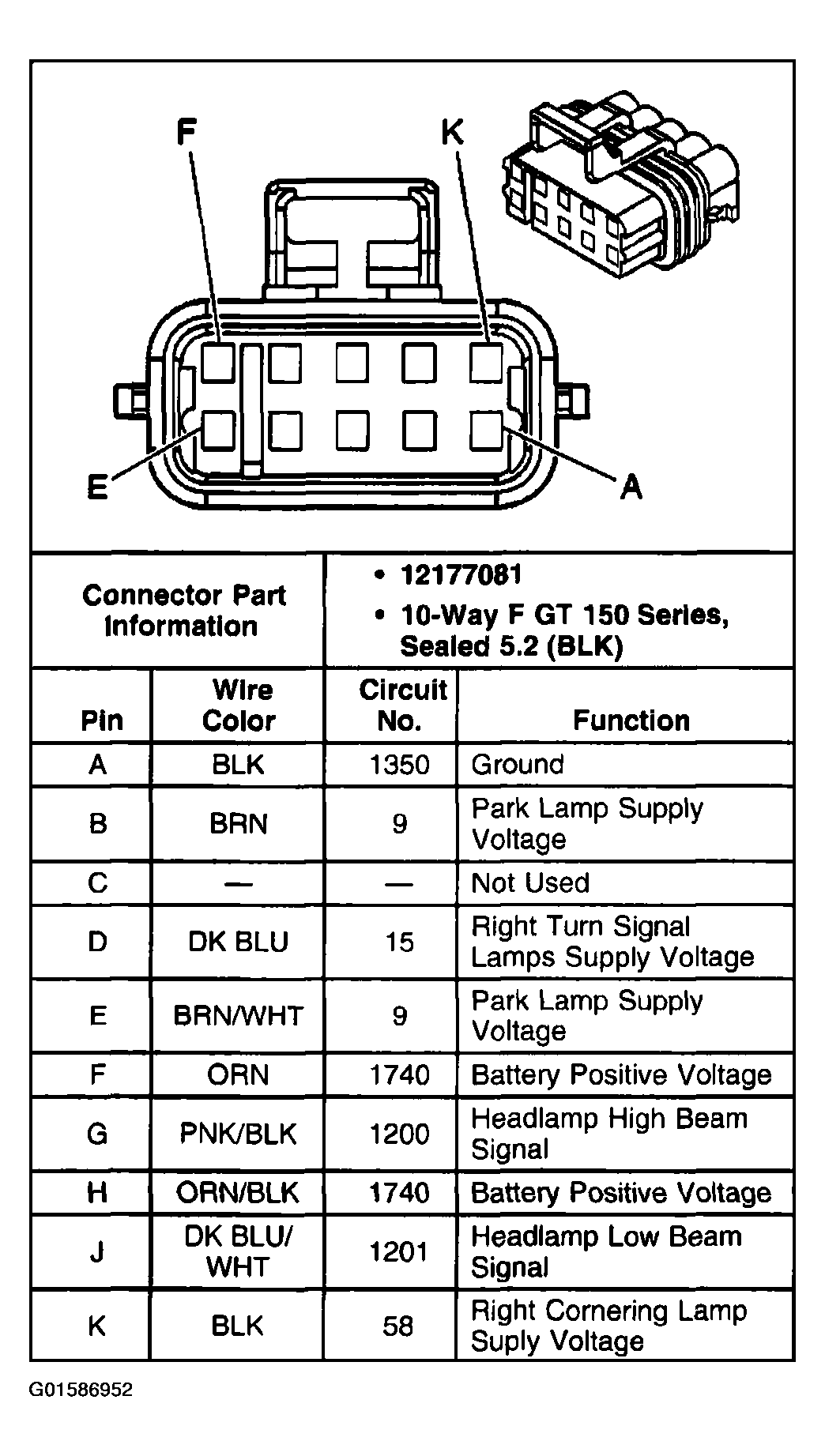

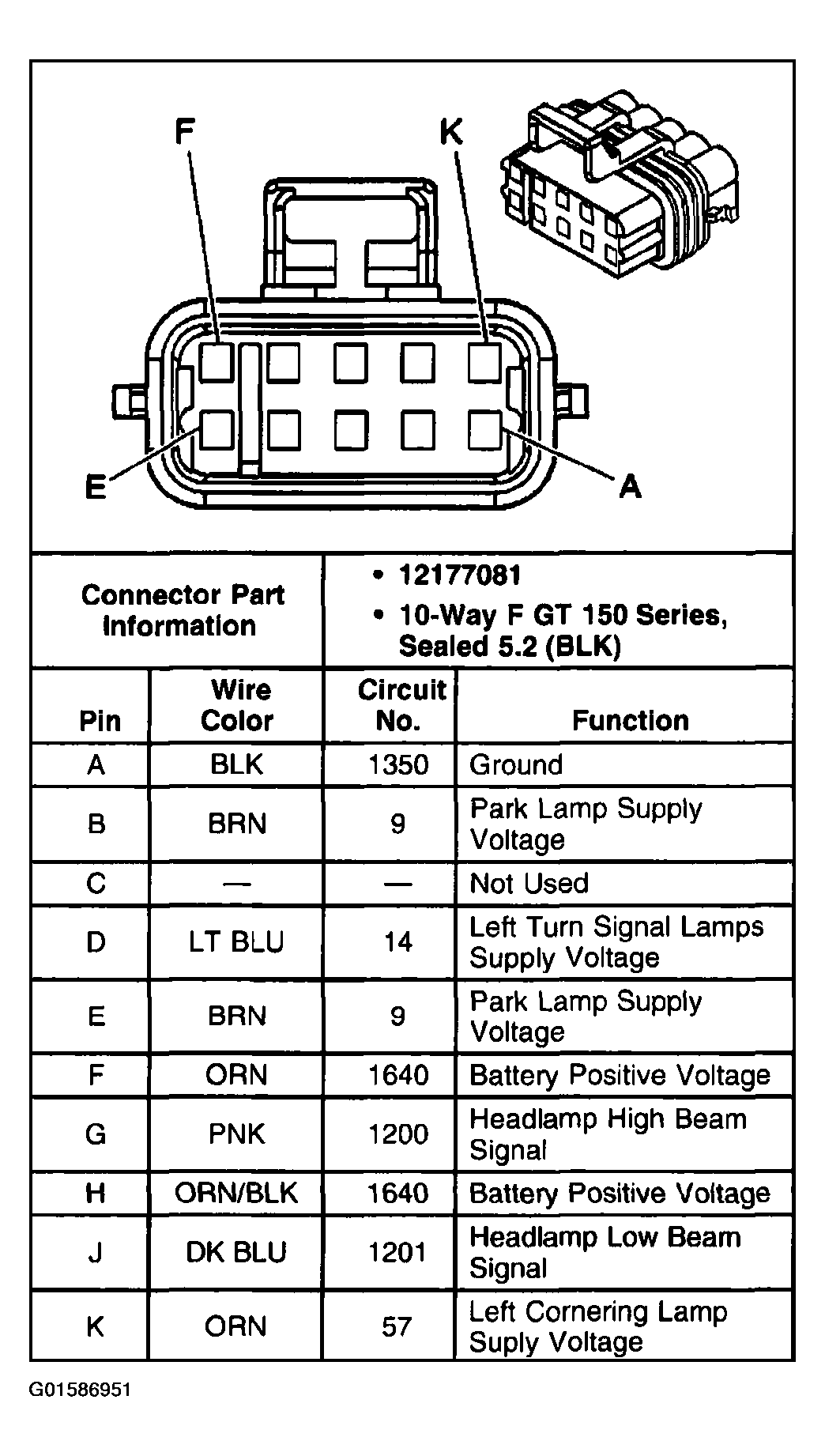

Fig 13: Headlamp Assembly - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 14: Headlamp Assembly - Right Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 15: Headlamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 16: I/P Compartment Lamp/Switch (Regal, Century Custom) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 17: License Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 18: License Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

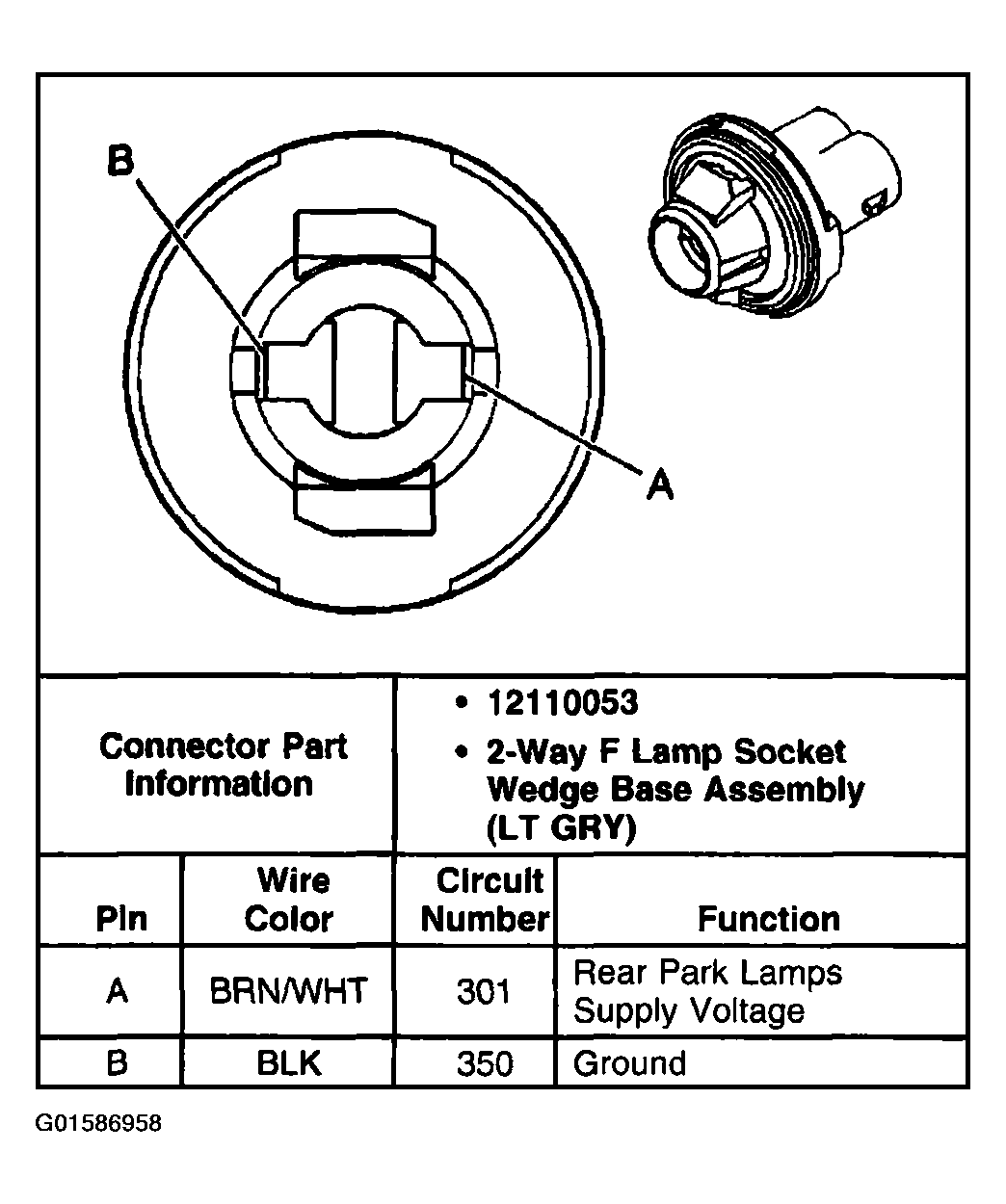

Fig 19: Marker Lamp - LR Connector End View
Courtesy of GENERAL MOTORS CORP.

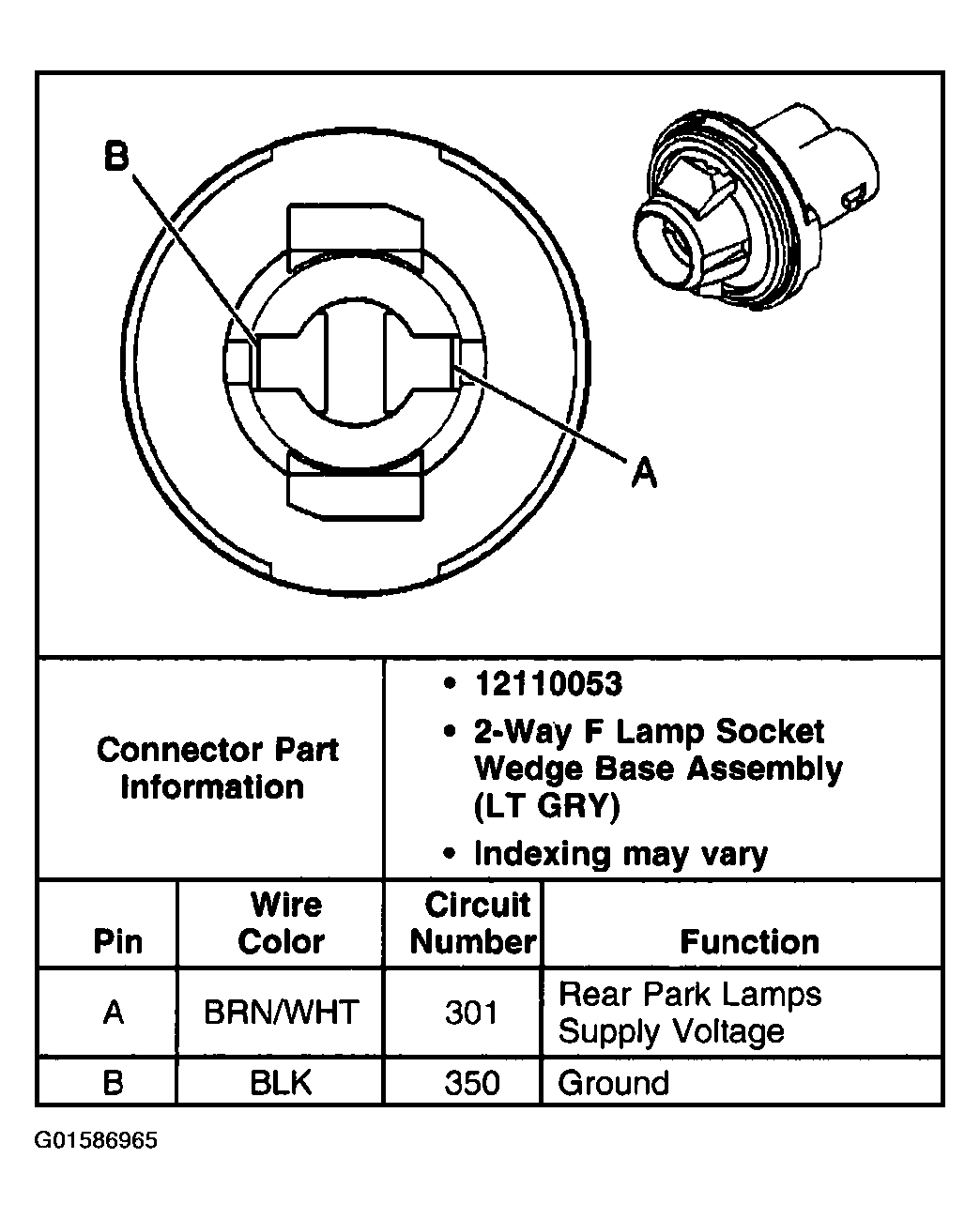

Fig 20: Marker Lamp - RR Connector End View
Courtesy of GENERAL MOTORS CORP.

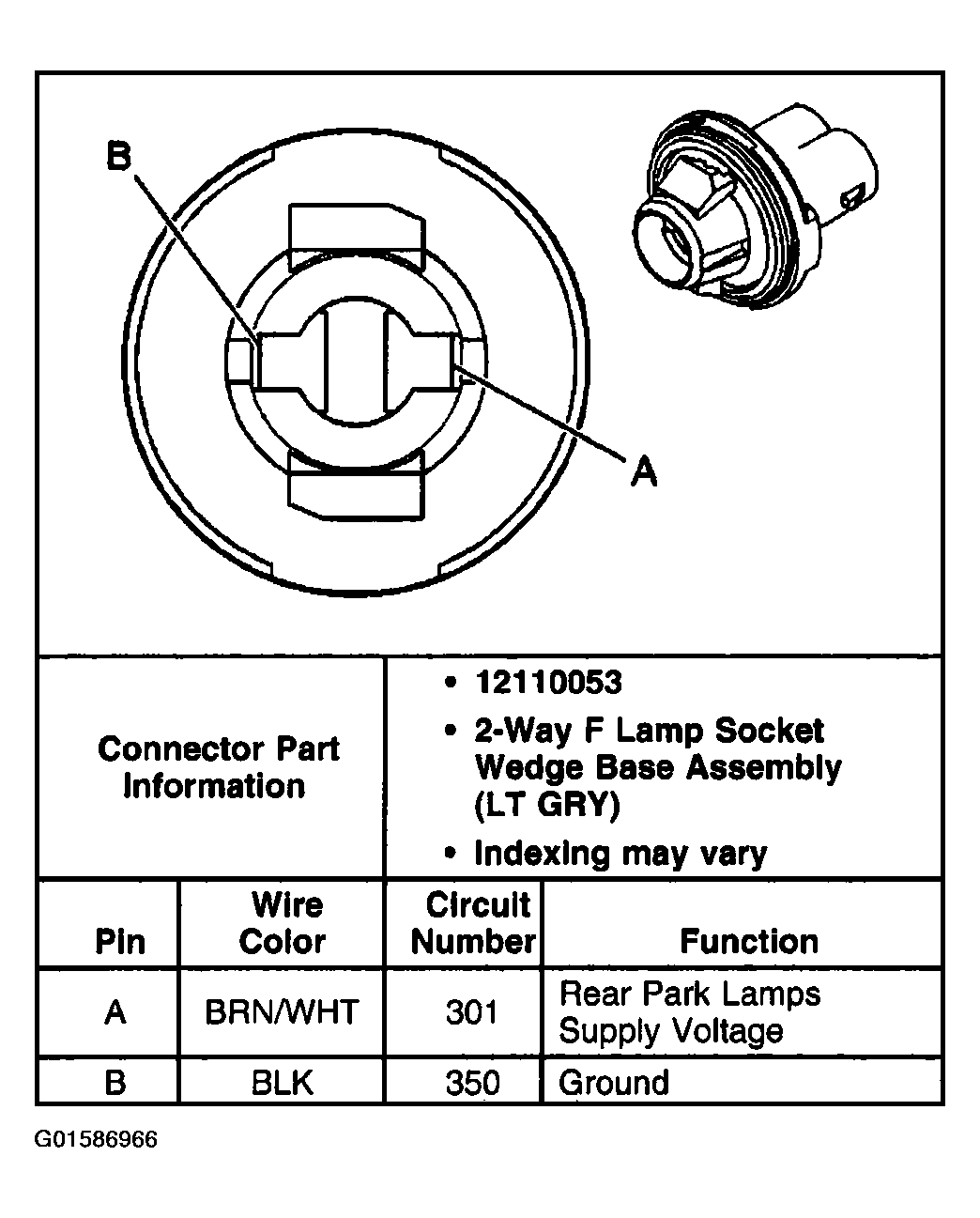

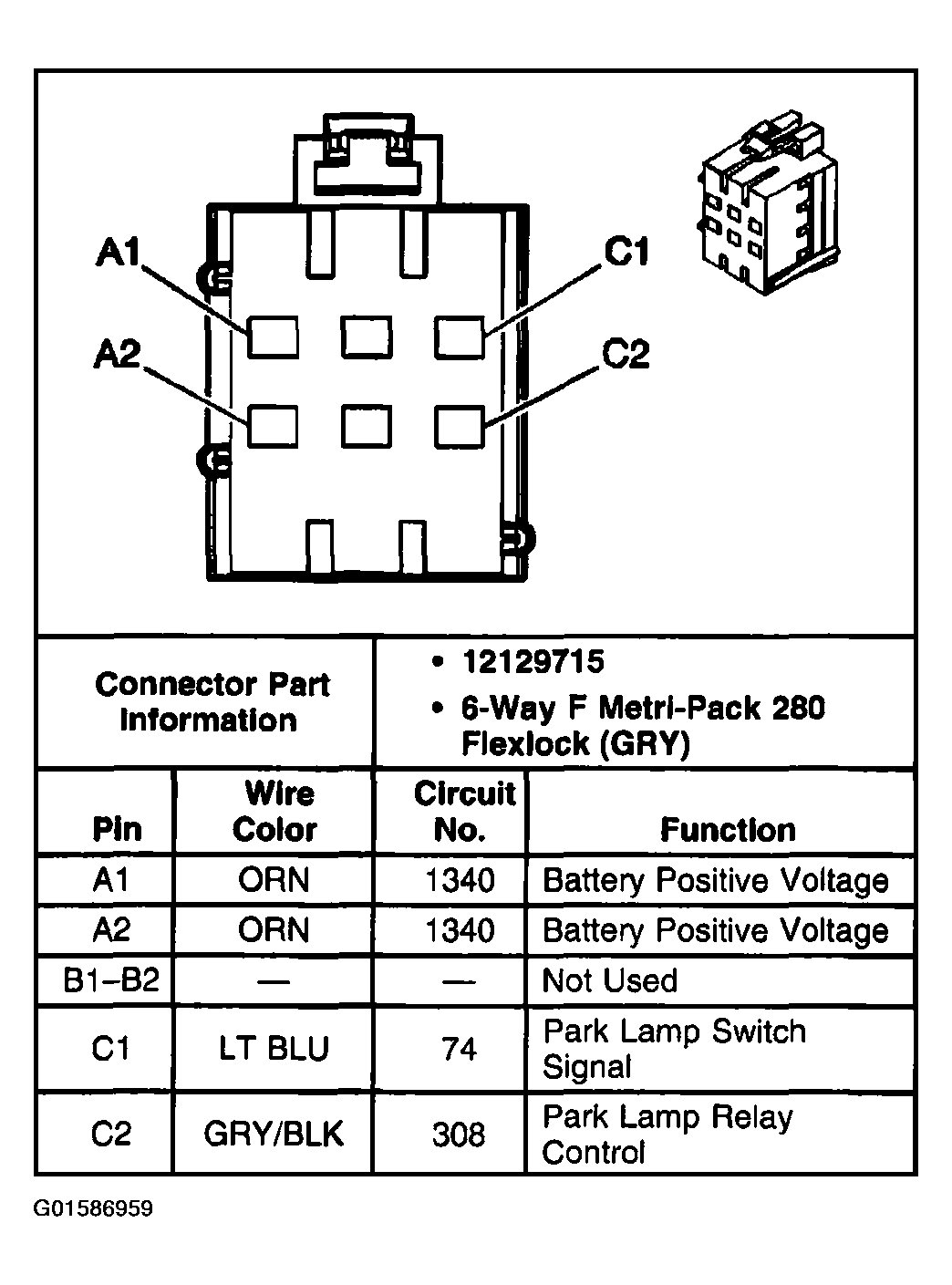

Fig 21: Park Lamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.

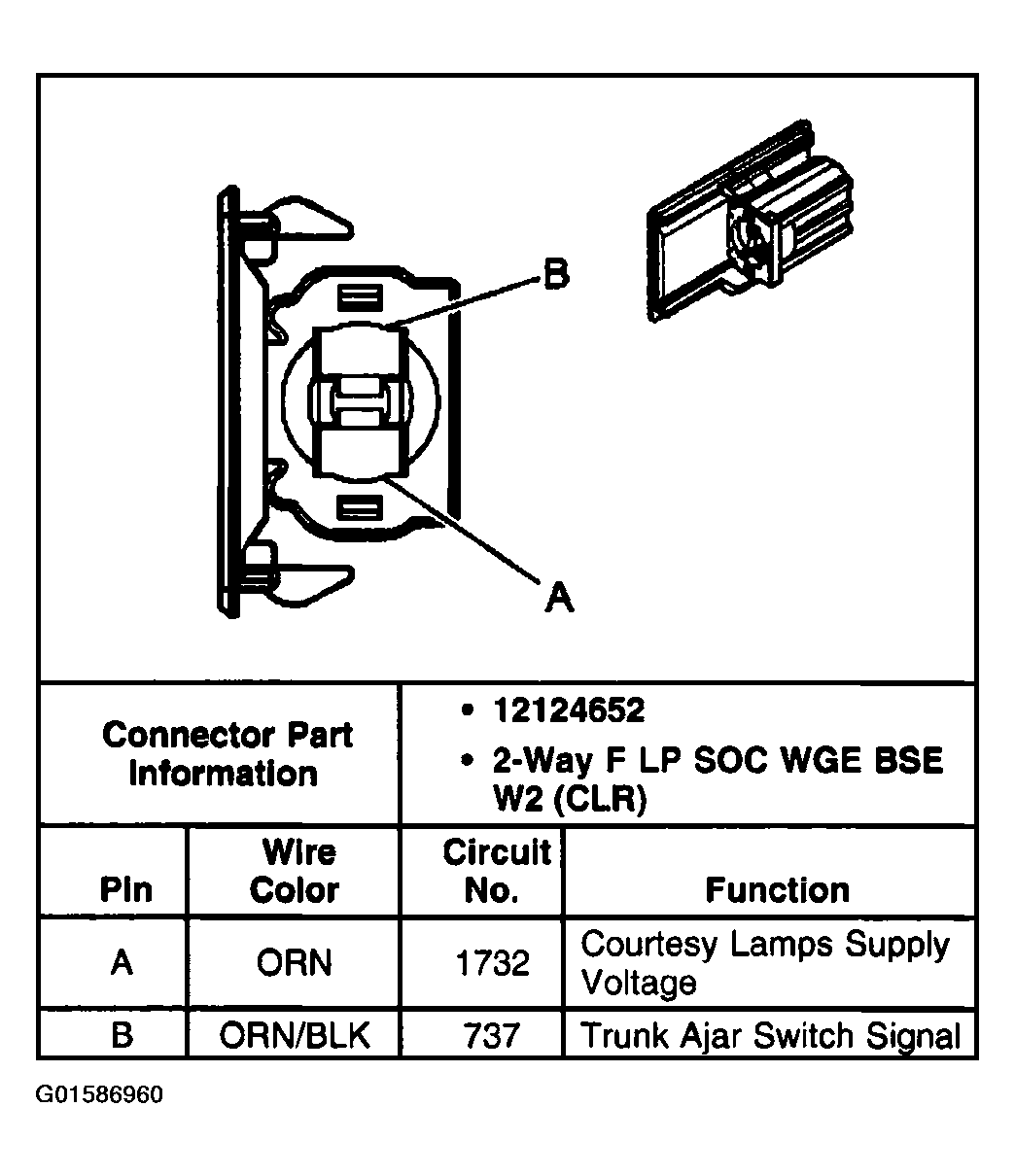

Fig 22: Rear Compartment Courtesy Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 23: Roof Rail Courtesy/Reading Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 24: Roof Rail Courtesy/Reading Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

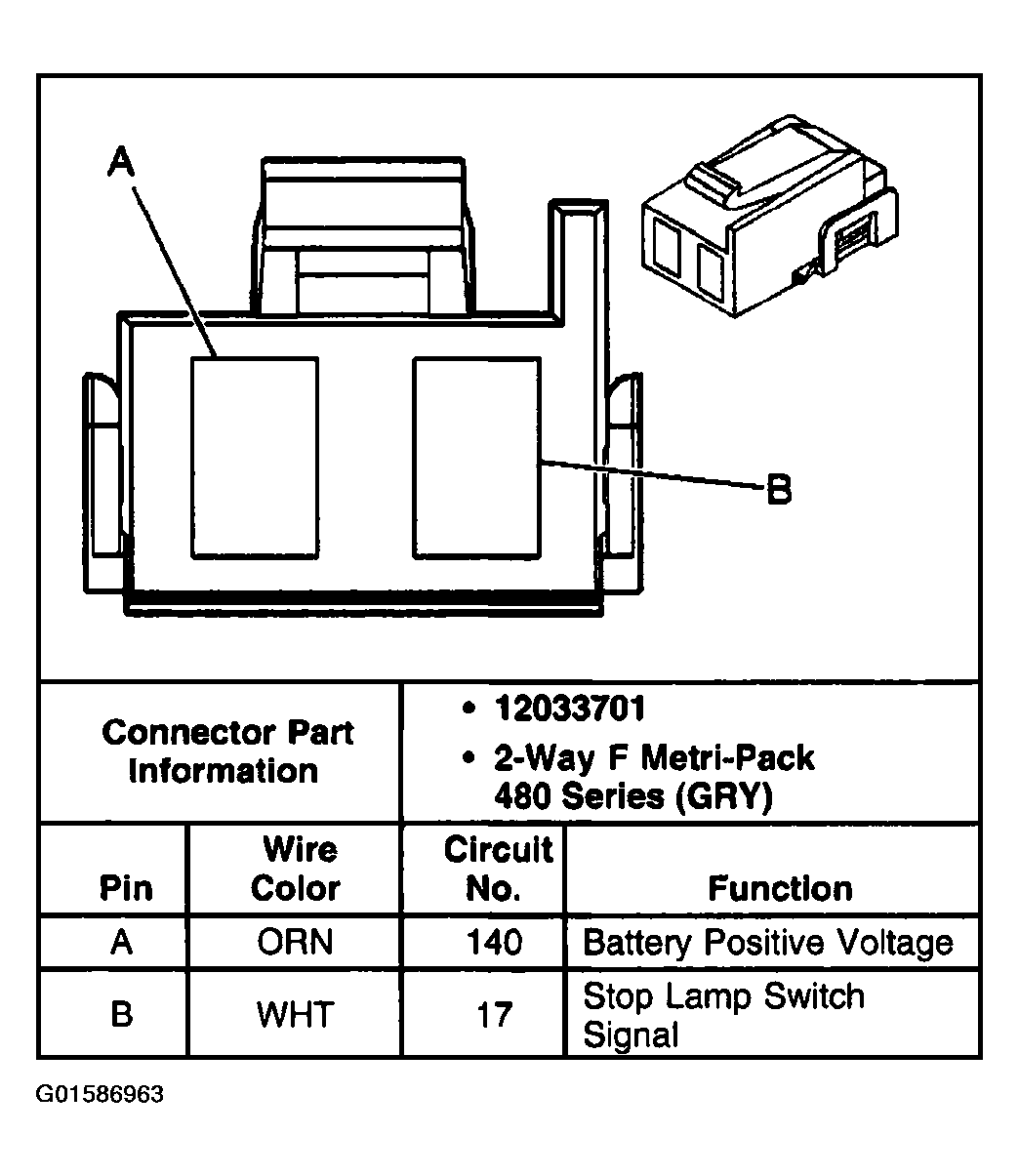

Fig 25: Stop Lamp Switch, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 26: Stop Lamp Switch, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

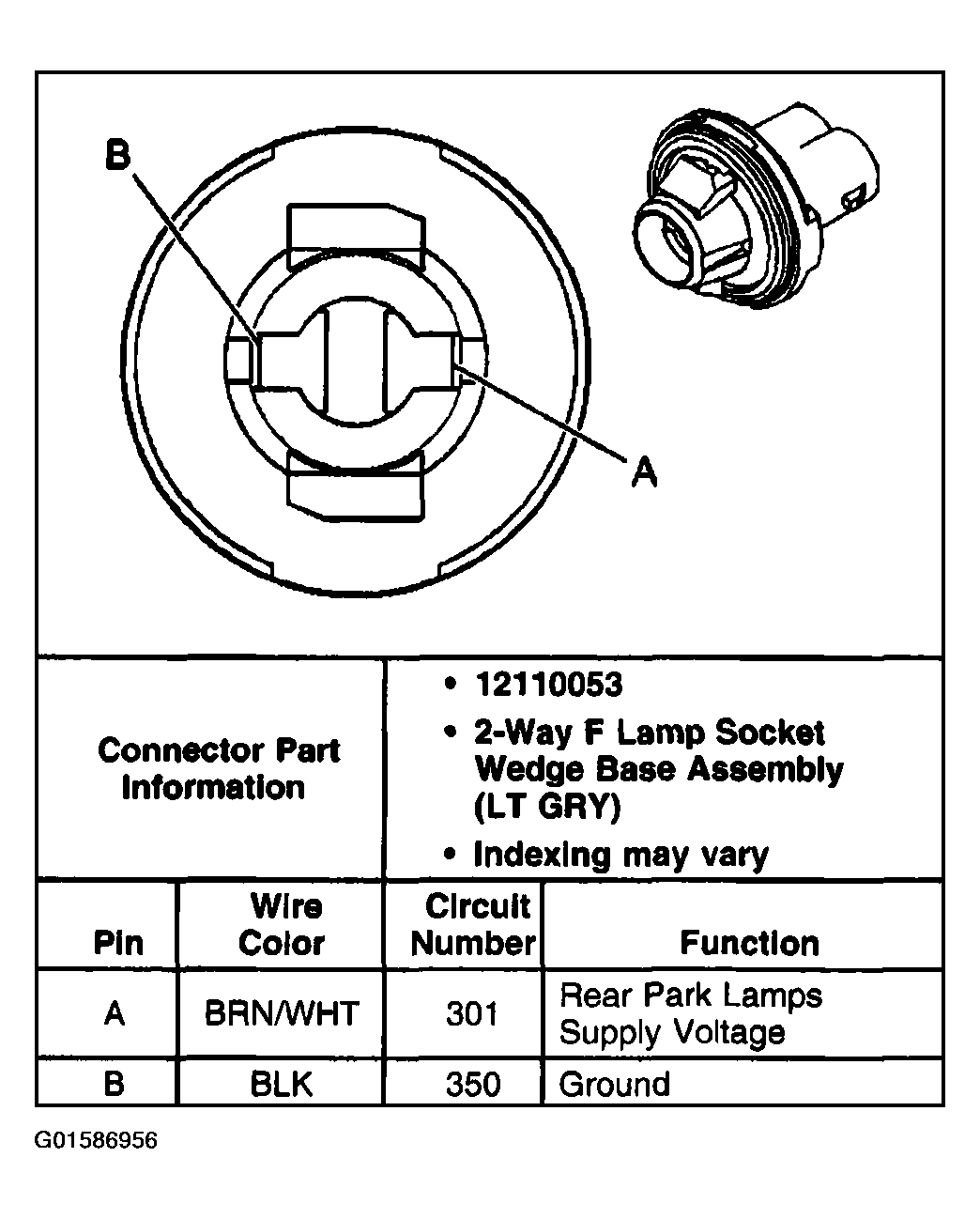

Fig 27: Tail Lamp - LR Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 28: Tail Lamp - RR Connector
Courtesy of GENERAL MOTORS CORP.
Fig 29: Tail/Stop and Turn Signal Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 30: Tail/Stop and Turn Signal Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

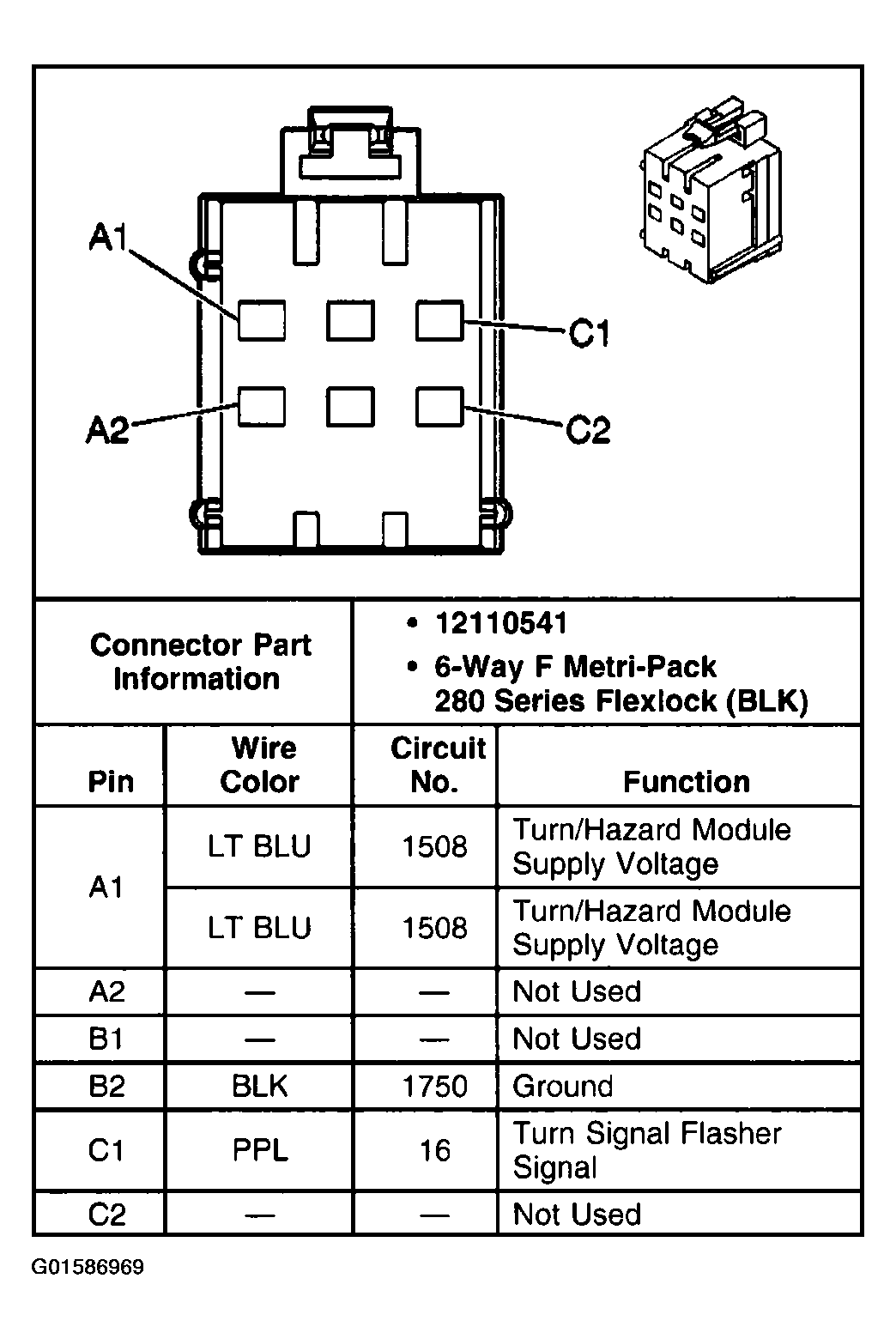

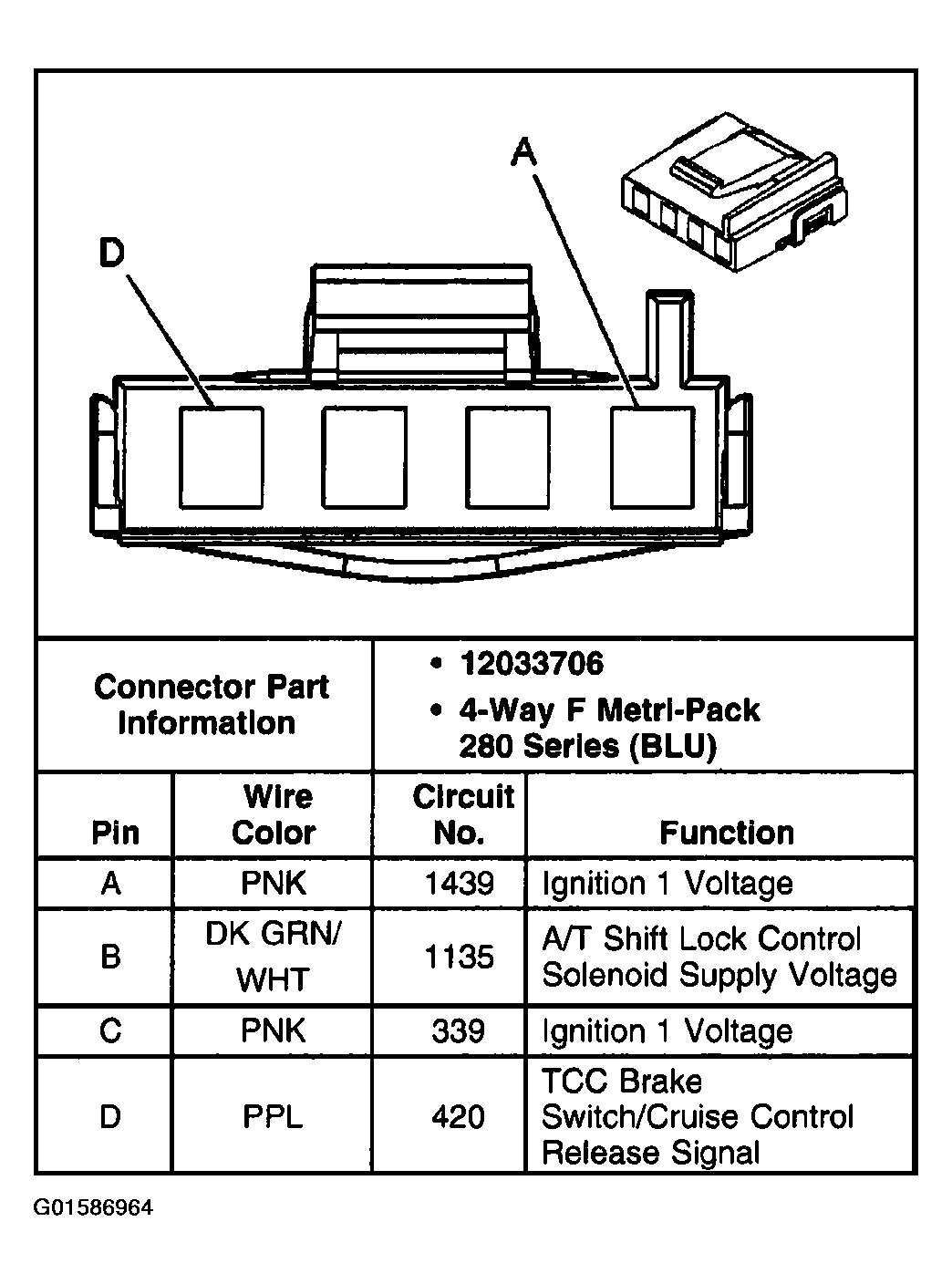

Fig 31: Turn Signal/Hazard Flasher Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 32: Vanity Mirror Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 33: Vanity Mirror Lamp - Right Connector End View
