Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the illuminated entry module to the vehicle.
  2. Install the plastic fasteners that retain the illuminated entry module to the sound insulation.
  3. Connect the electrical connector to the illuminated entry module.
  4. Install the engine cover. Refer to ENGINE COVER REPLACEMENT .

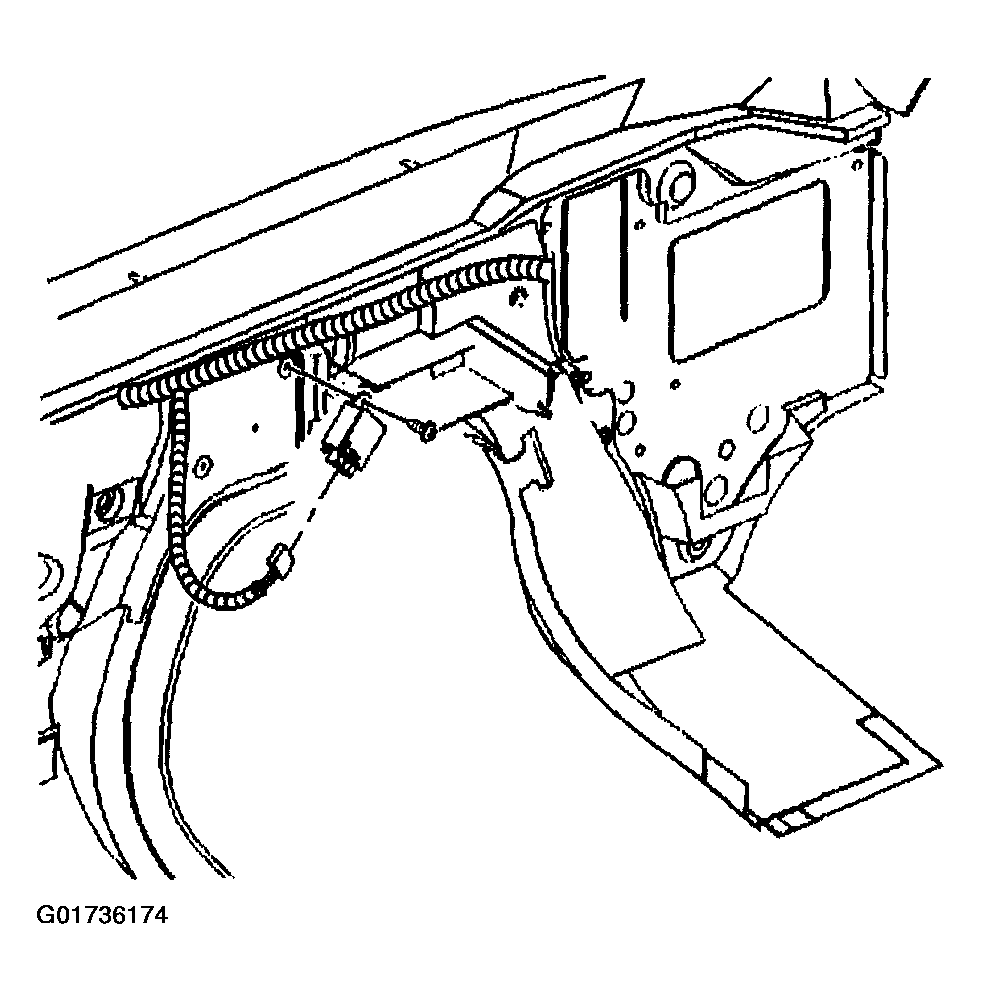

    Fig 1: Installing Illuminated Entry Module Components
    G01736174Courtesy of GENERAL MOTORS CORP.
