Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2) - Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
4) - This step is checking for DTCs in the BCM.
5) - This step is checking for a malfunctioning BCM.
6) - This step is checking for RAP specific DTCs.

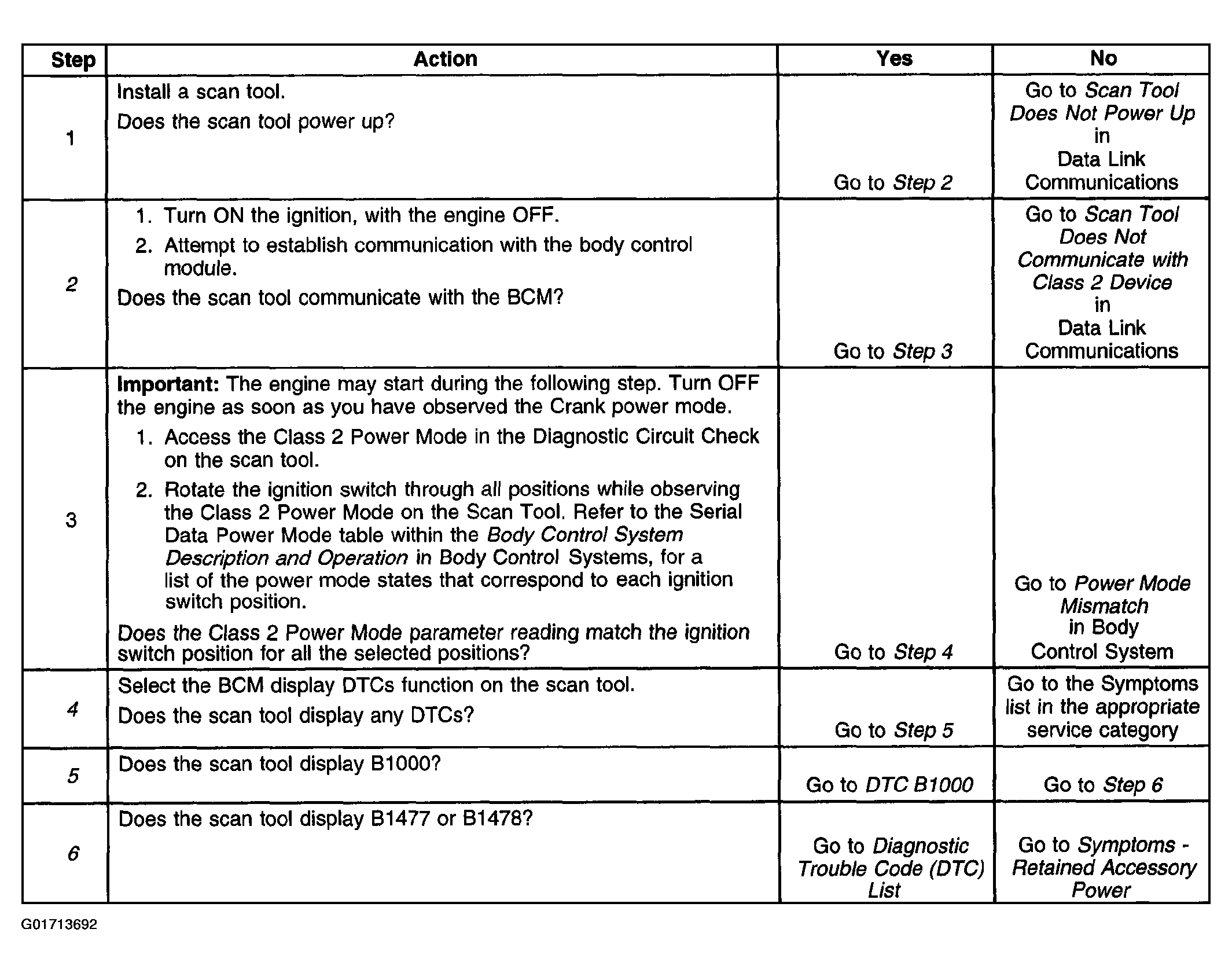

Fig 1: Diagnostic System Check - Retained Accessory Power

Courtesy of GENERAL MOTORS CORP.
