Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

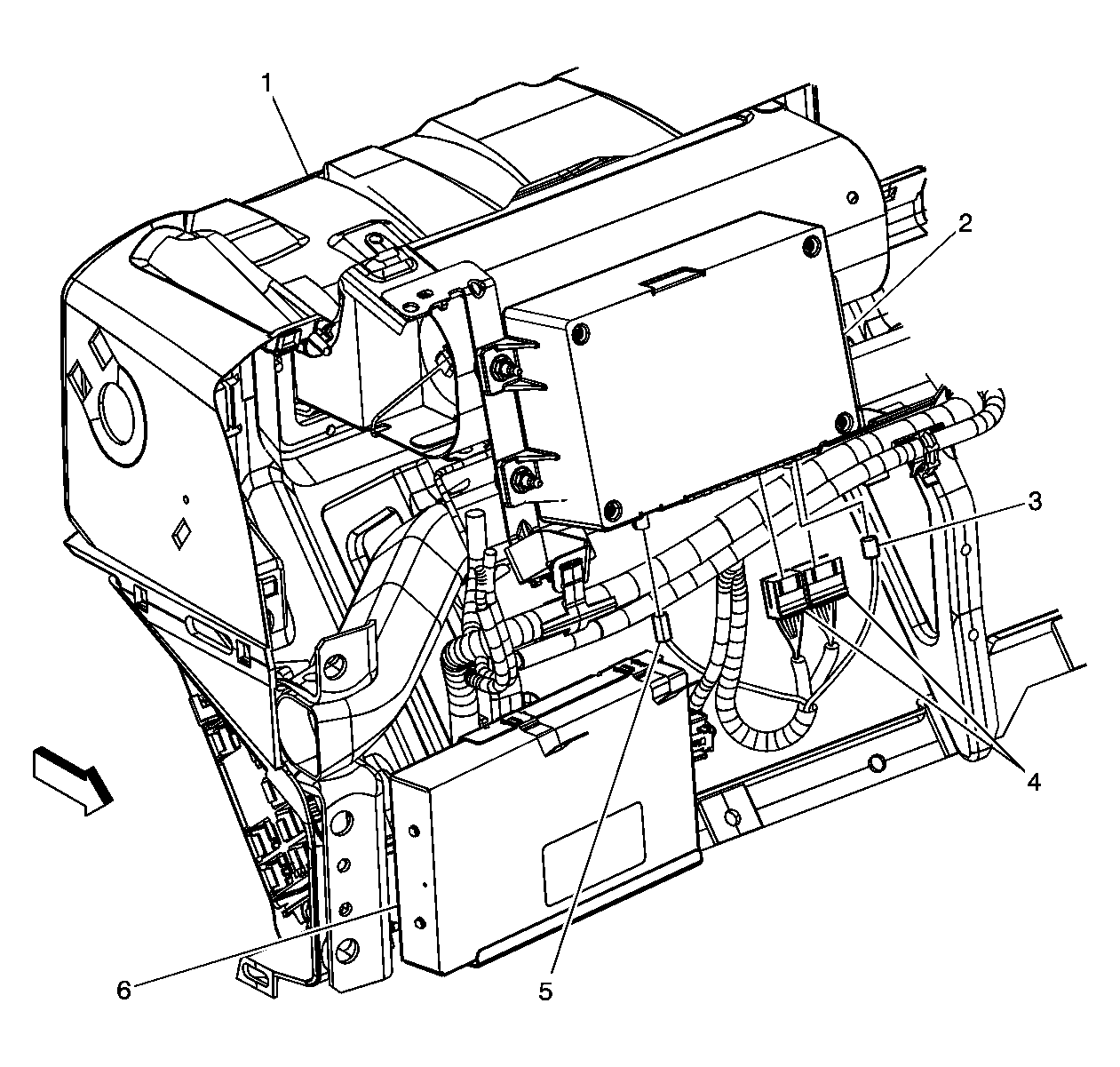

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) |
| 2 | Vehicle Communication Interface Module (VCIM) |
| 3 | Cellular Antenna Coax |
| 4 | VCIM Connectors |
| 5 | Navigation Antenna Coax |
| 6 | Digital Radio Receiver (U2K/U2L) |
| Callout | Component Name |
|---|---|
| 1 | Cellular and Navigation Antenna |
| 2 | Cellular Antenna |
| 3 | Navigation Antenna |
| 4 | Front Roof Panel |

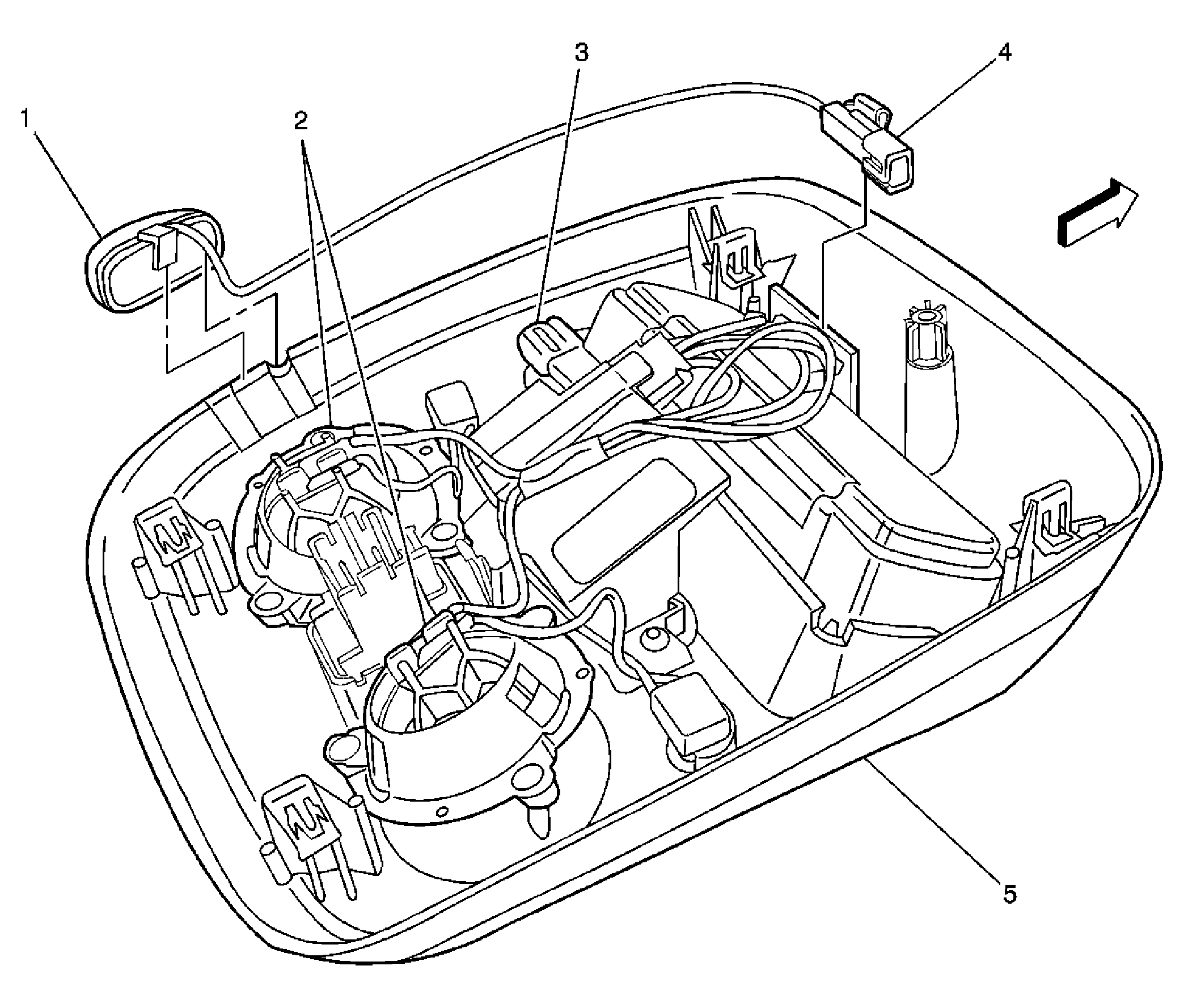

| Callout | Component Name |
|---|---|
| 1 | Cellular Microphone |
| 2 | Courtesy/Reading Lamps - Front |
| 3 | C355 |
| 4 | Cellular Microphone Connector |
| 5 | Overhead Console |
