Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Make sure that the transfer case control switch is seated properly in the instrument panel before installing the instrument panel trim bezel.
  1. Install the transfer case driver control switch into the instrument panel.

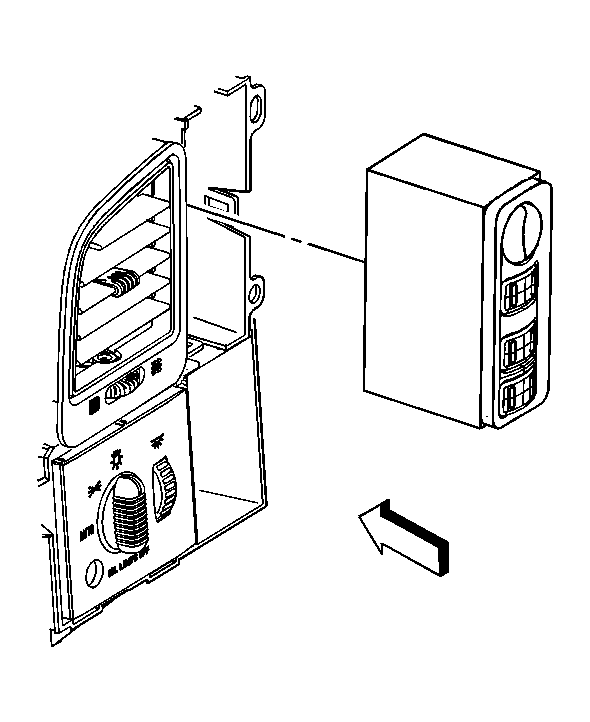

    2. Fig 1: Installing Transfer Case Driver Control Switch
    GM396838Courtesy of GENERAL MOTORS CORP.
  2. Install the IP cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.
