Wiper Motor Module Assembly: Installation

  1. Position wiper system drive module to cowl.
  2. Install wiper system drive module bolts. Tighten bolts to 80 INCH lbs. (9 N.m).
  3. Connect wiper motor cover harness connector.
  4. Install cruise control module and bracket.
  5. Install underhood electrical center.
  6. Install air inlet grille panel.
  7. Install wiper arms.

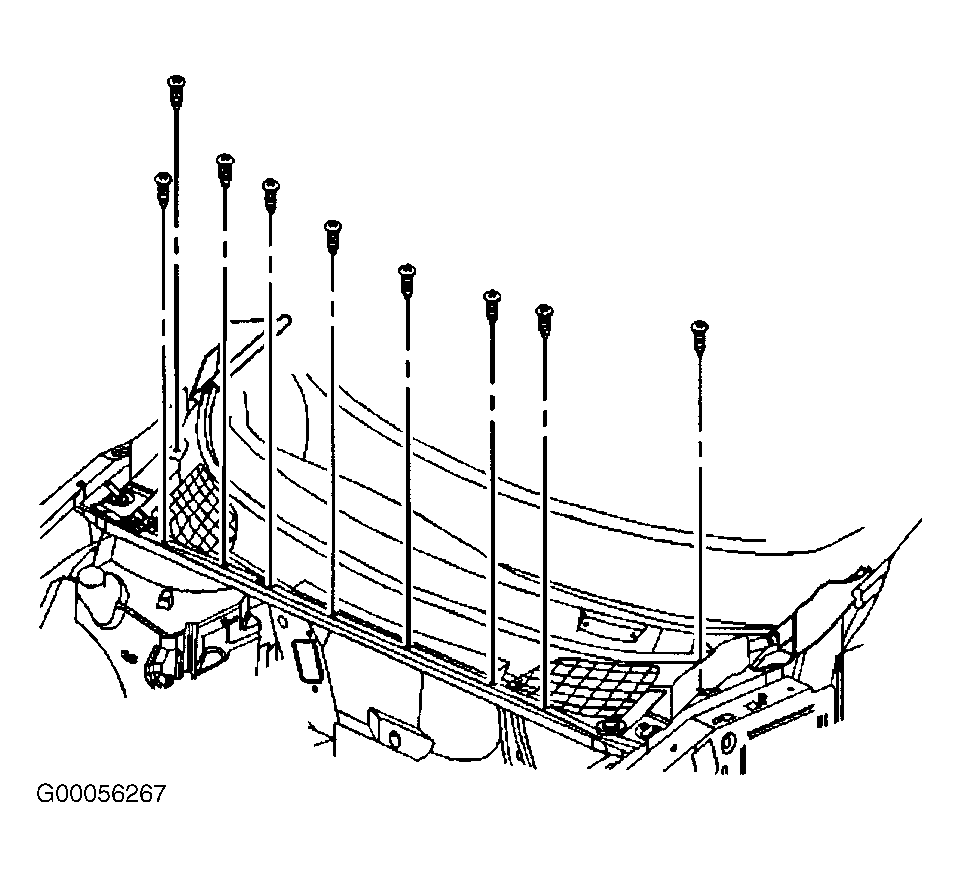

Fig 1: Removing & Installing Air Inlet Grill Panel
G00056267Courtesy of GENERAL MOTORS CORP.

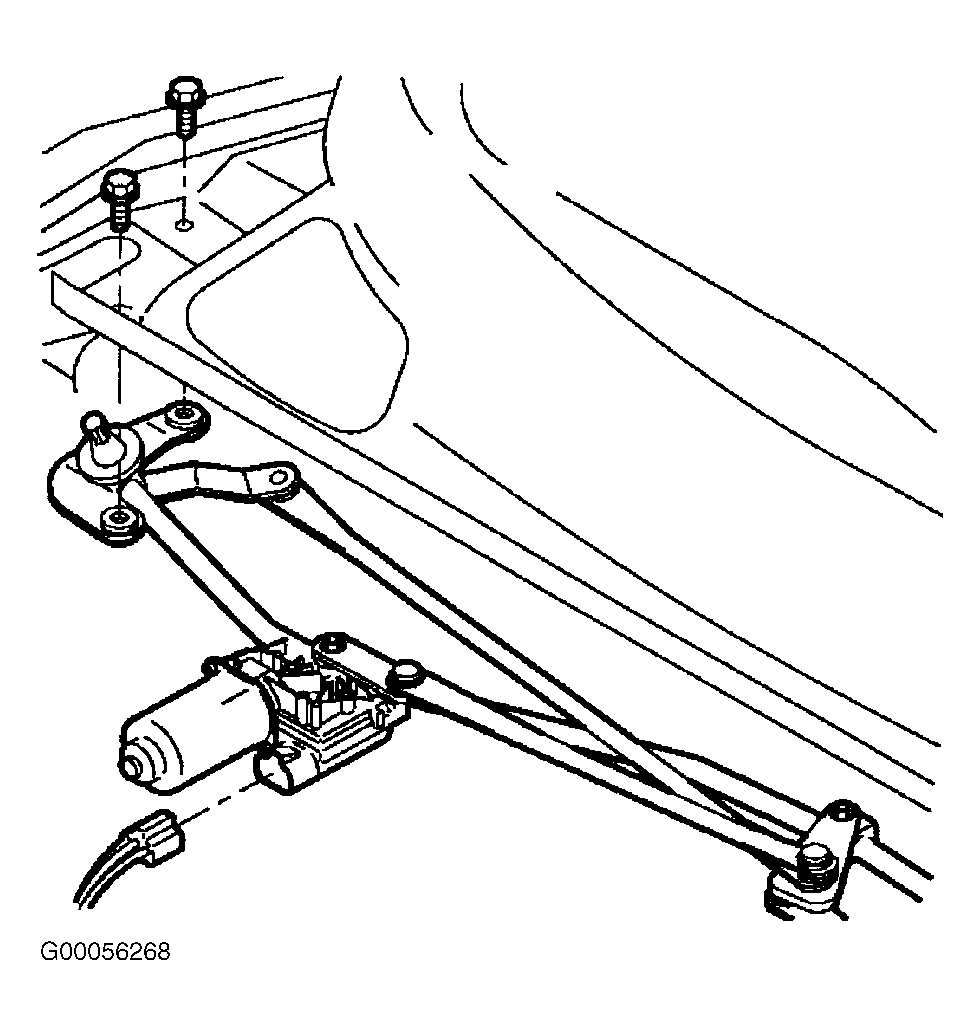

Fig 2: Removing & Installing Wiper Motor Module Assembly
G00056268Courtesy of GENERAL MOTORS CORP.
