Fuse Block Center Console-C2

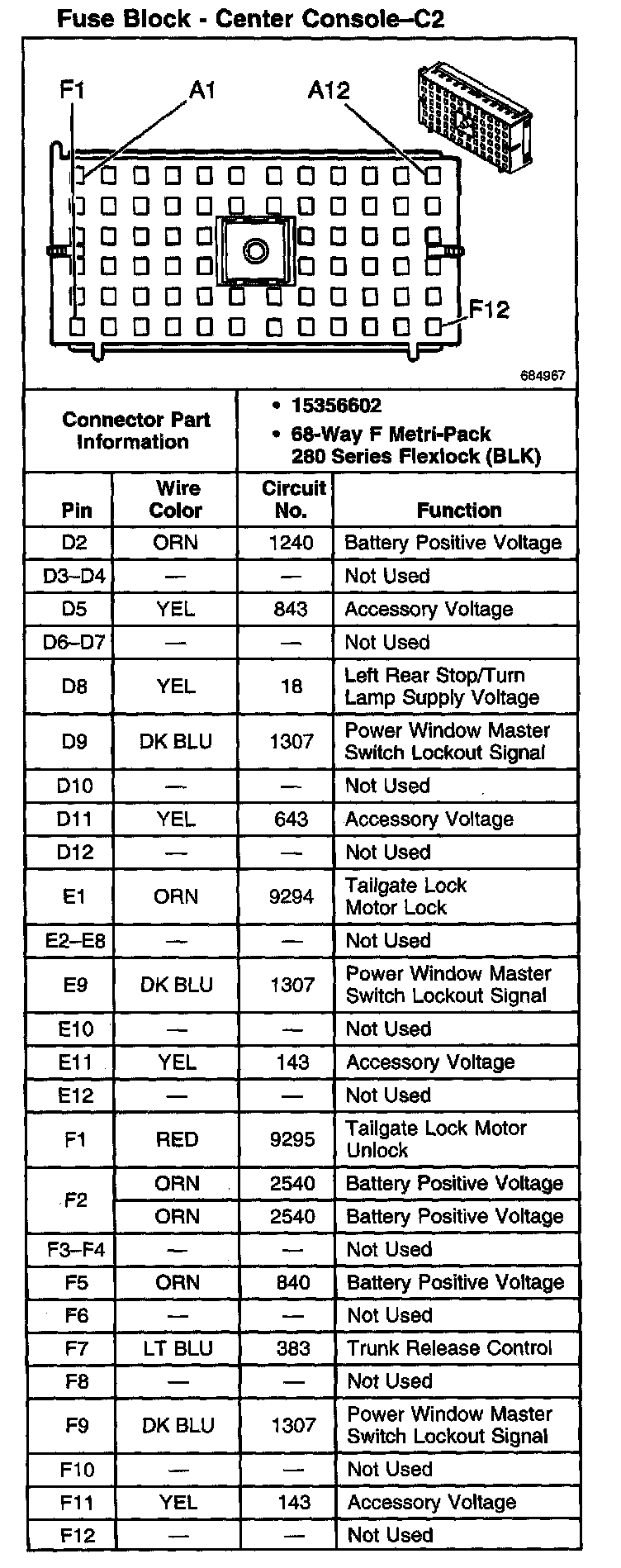

Fuse Block - Center Console-C2 (Part 1 Of 2):

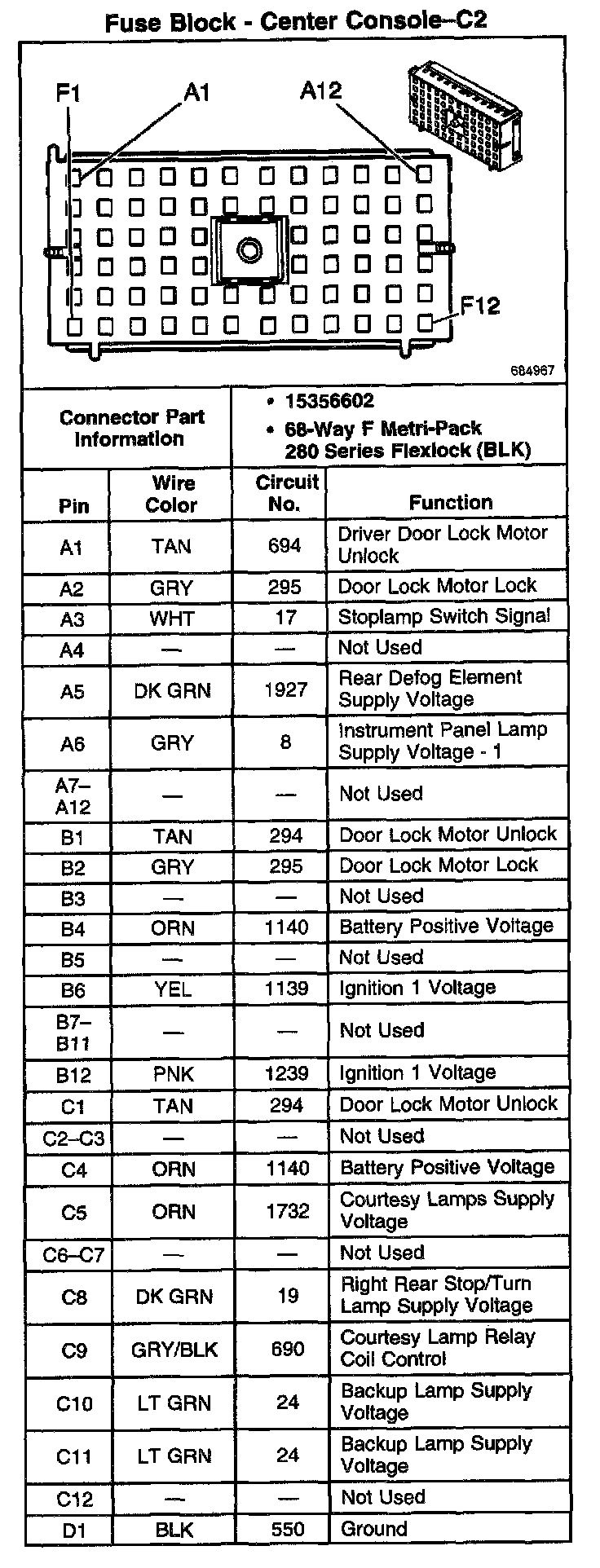

Fuse Block - Center Console-C2 (Part 2 Of 2):
