Home >> Pontiac >> 2001 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifolds and Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

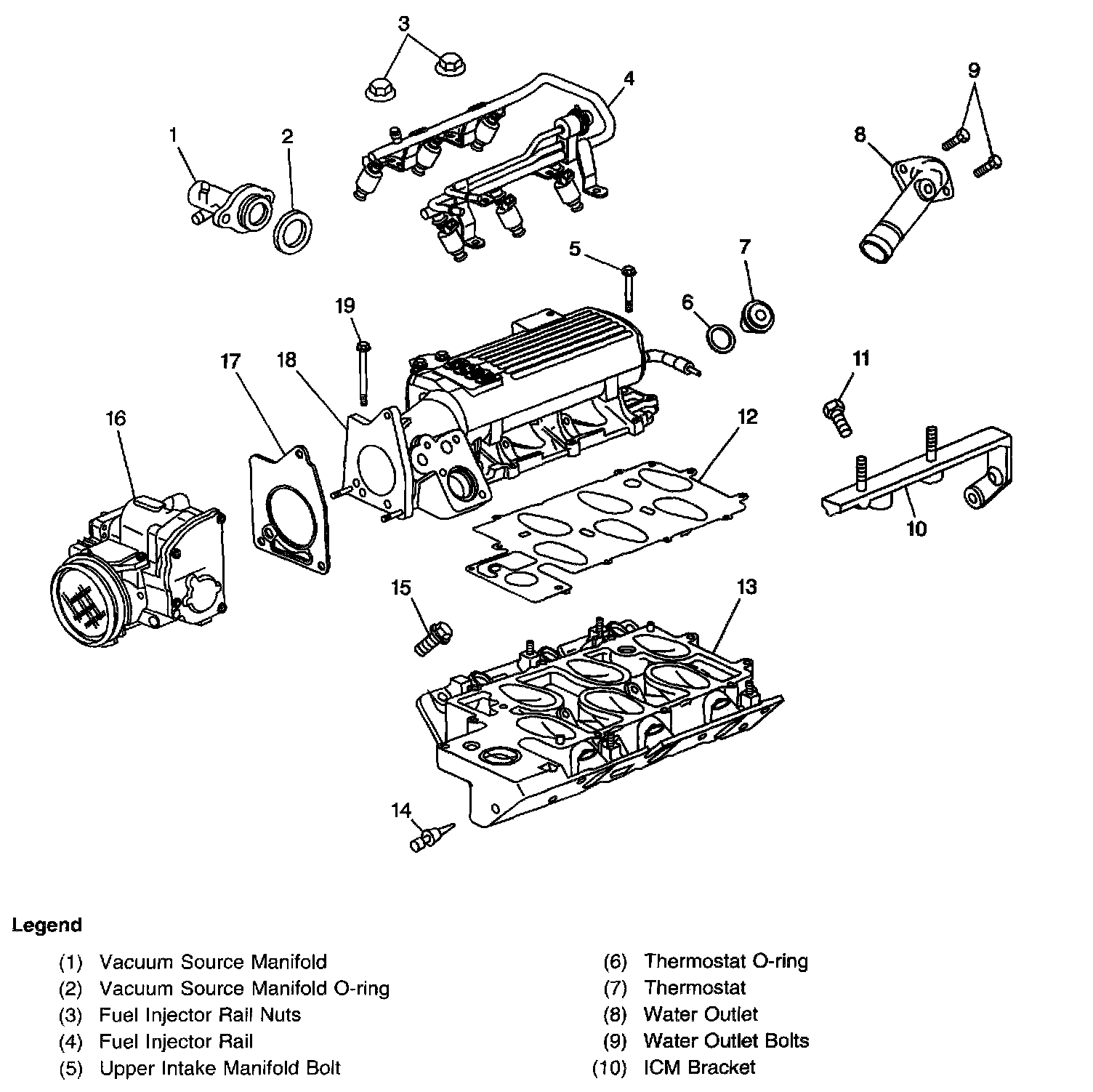

Intake Manifolds and Components

Intake Manifolds and Components





Part 1 of 2





Part 2 of 2
