AF Engine Control Unit Connector C001 Blue
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
AF Engine Control Unit Connector C001 Blue

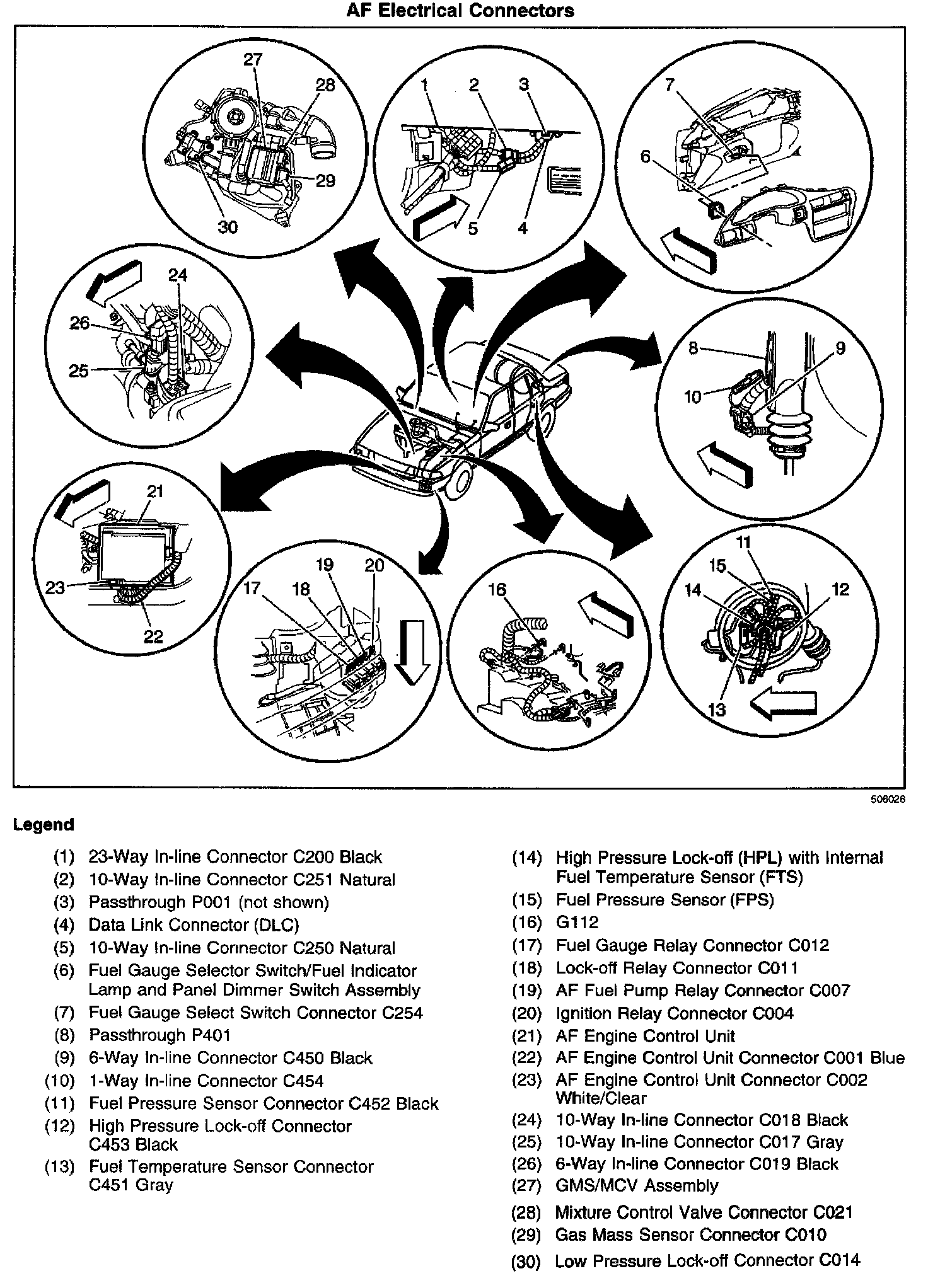

AF Alternative Fuel Connectors:
