Liftgate Lock Actuator (Buick) Connector End View

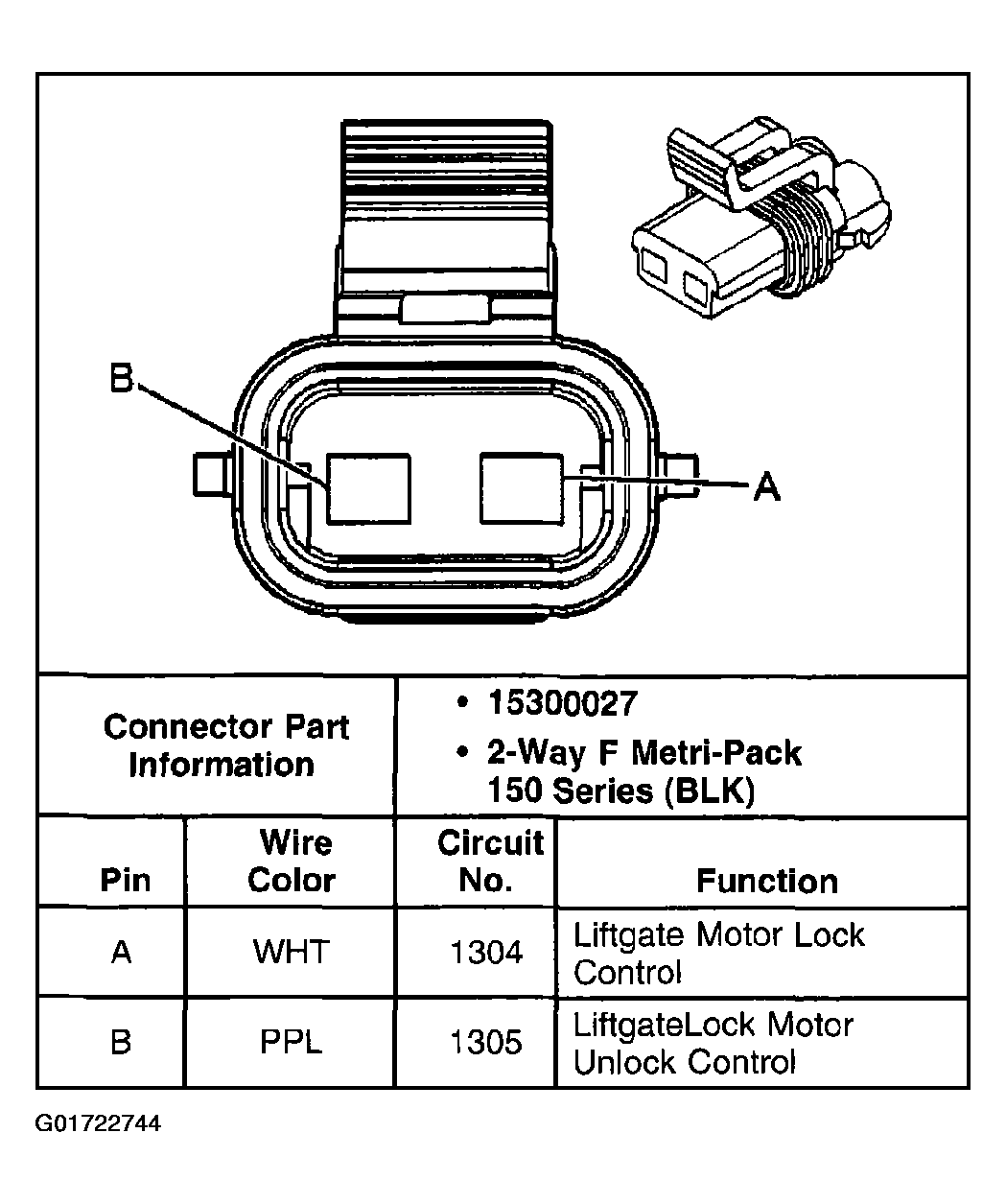

Fig 1: Liftgate Lock Actuator (Buick) Connector End View
G01722744Courtesy of GENERAL MOTORS CORP.
