Automatic Level Control (ALC) Compressor Connector End View

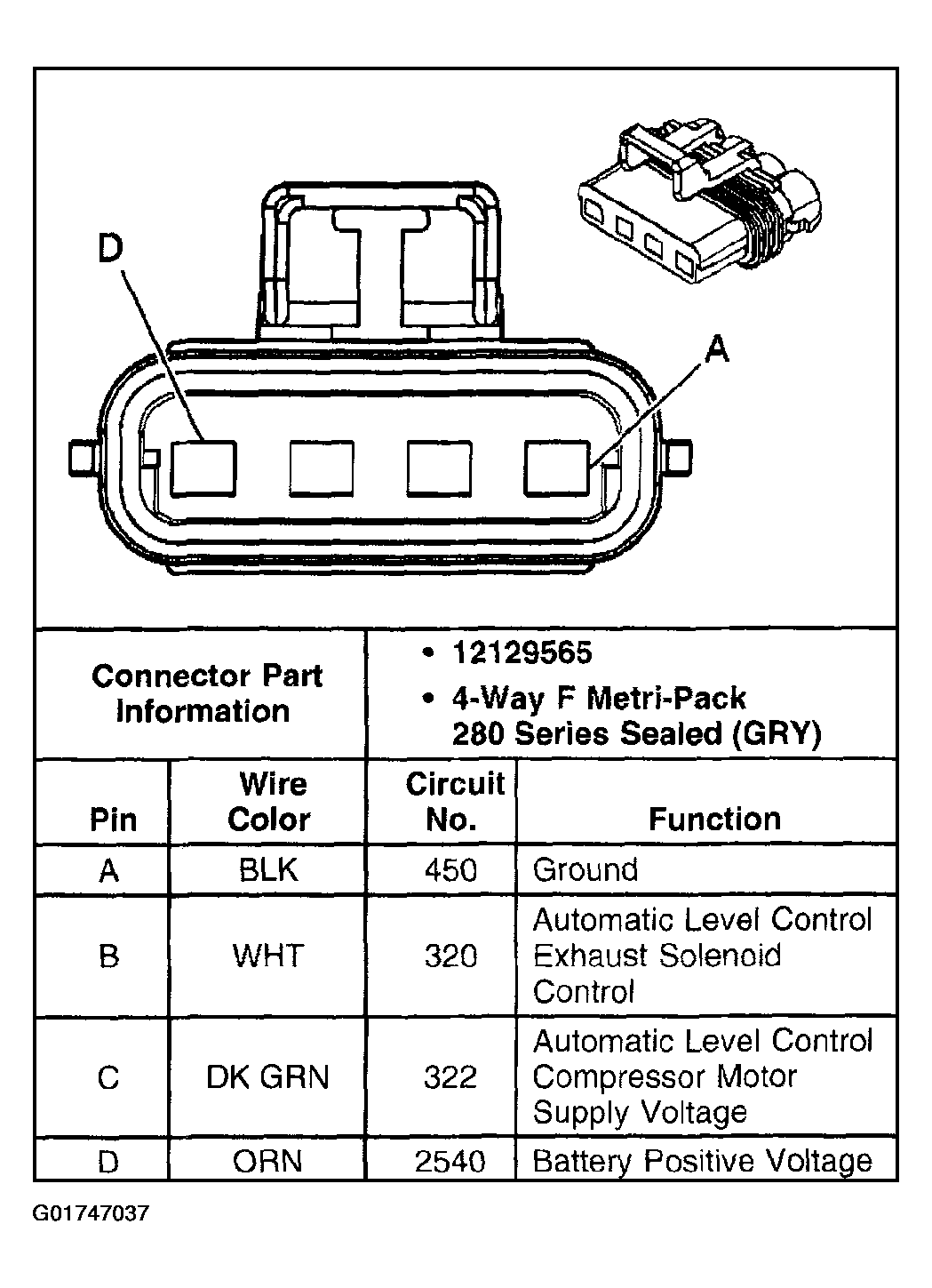

Fig 1: Automatic Level Control (ALC) Compressor
G01747037Courtesy of GENERAL MOTORS CORP.
