Cooling System Component Views

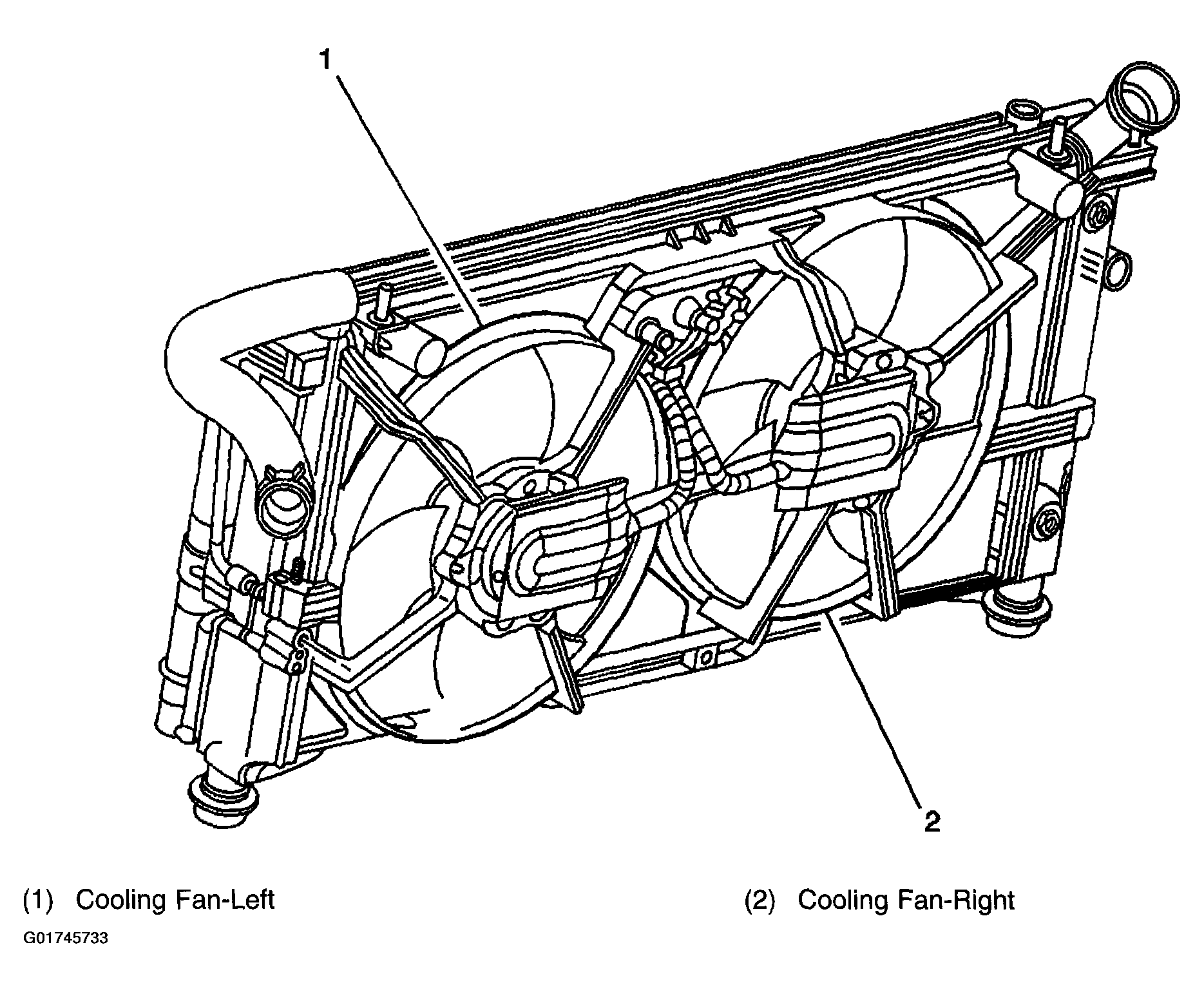

Fig 1: Identifying Cooling System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
