Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

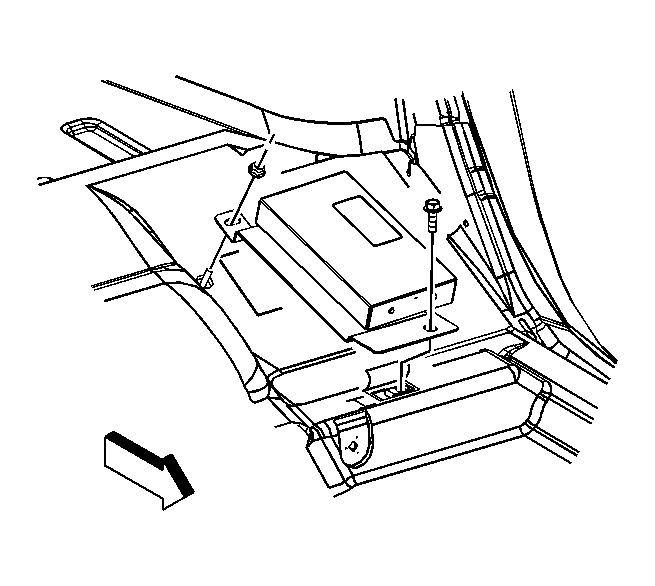

Fig 1: View of Amplifier & Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the amplifier in the vehicle
Install the electrical connectors to the amplifier.

NOTE: Refer to Fastener Notice .

Install the fasteners to the amplifier.
Tighten: Tighten the fasteners to 3 N.m (26 lb in).
Install the rear seat. Refer to Rear Seat Replacement .
Refer to Control Module References for programming and setup information.
