Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

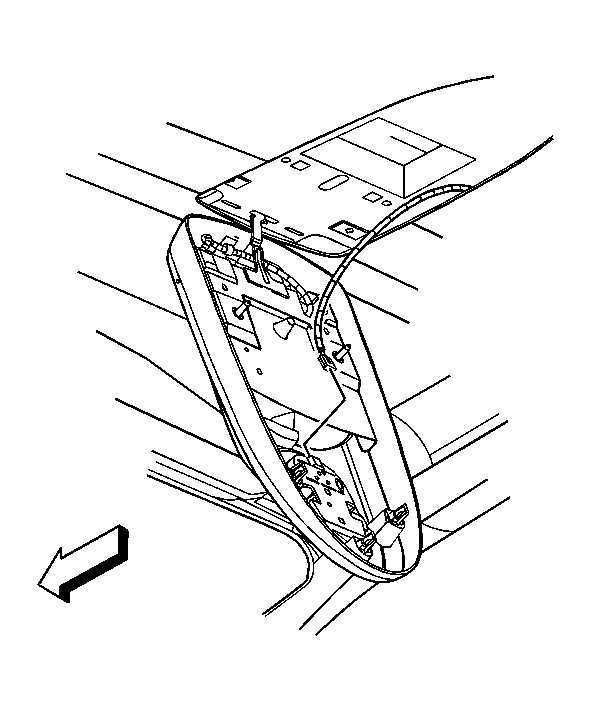

Fig 1: View of Overhead Console

Courtesy of GENERAL MOTORS CORP.

Install the console and slide the retaining tab into the slot.

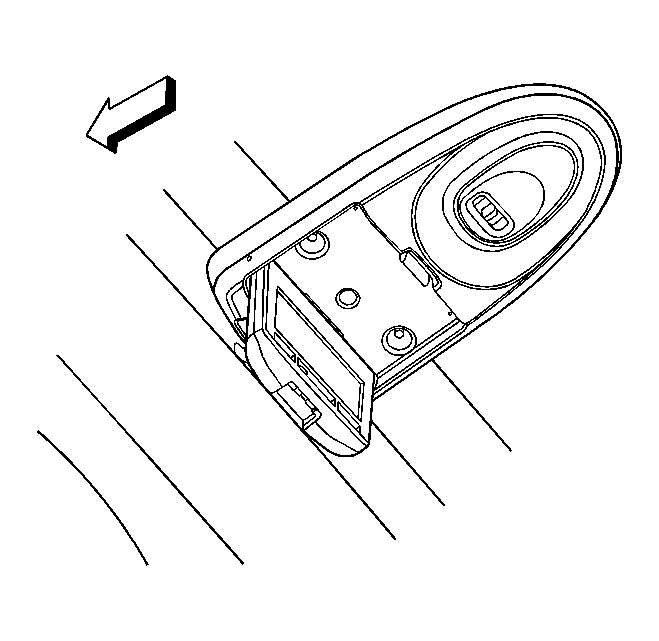

Fig 2: View of Electrical Connections

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors.

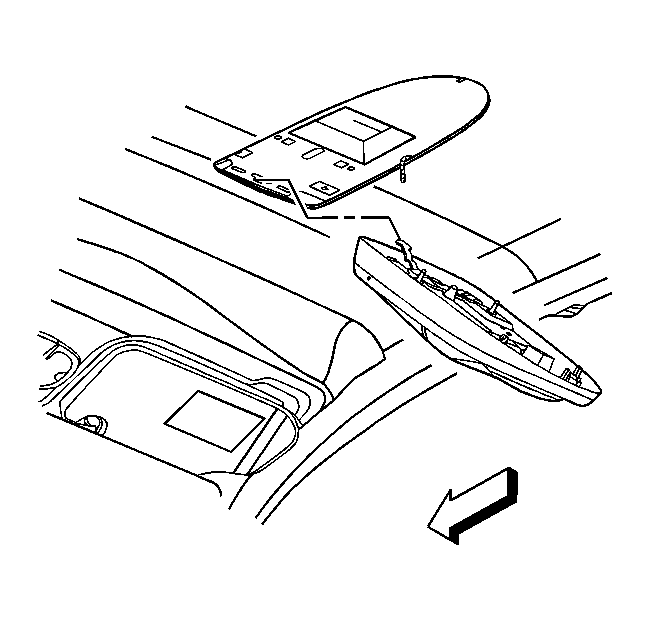

Fig 3: View of Overhead Console Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Push up on the rear of the console to engage the retaining clips.

Fig 4: View of Display Screen

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the fasteners and fold up the display screen.
Tighten: Tighten the fasteners to 2 N.m (18 lb in).
