Component Locations
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

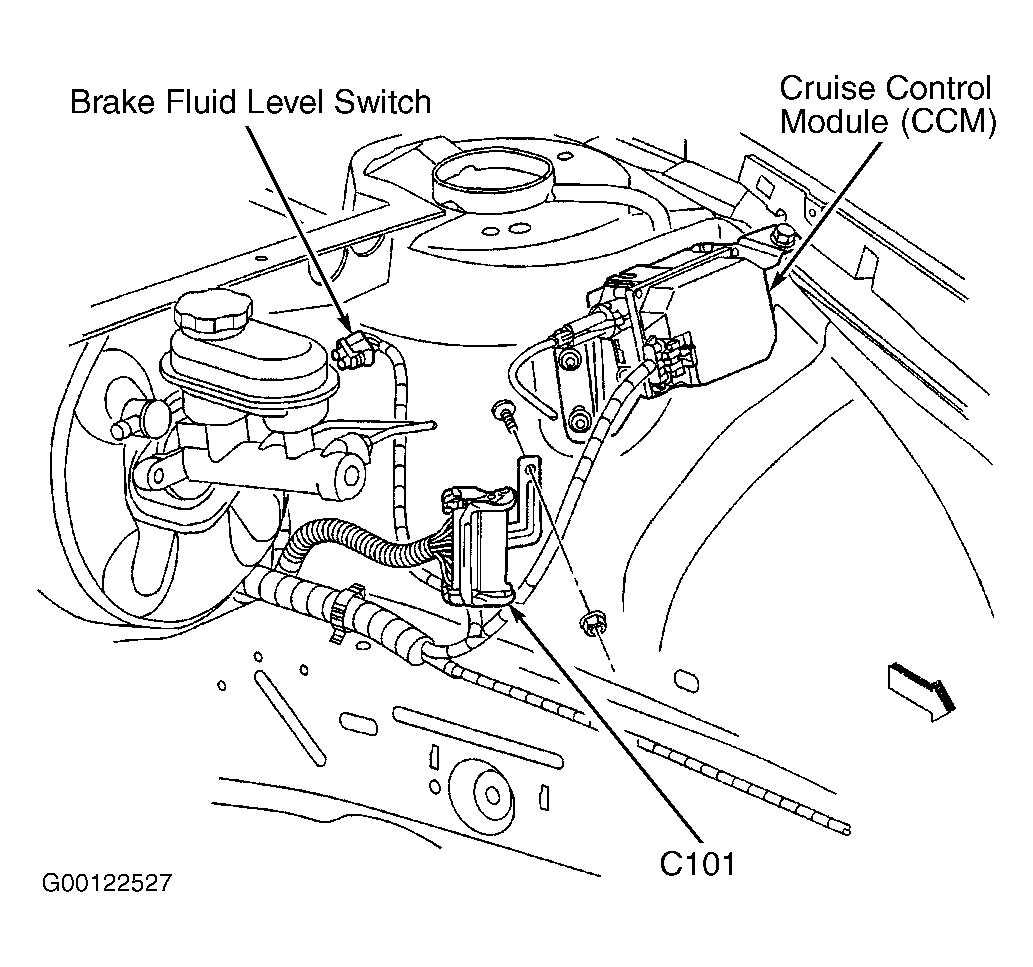

| Cruise Control Module | At Left Side Of Engine Compartment, On Strut Tower. See Fig 1. |
| Cruise Control Release Switch | On Brake Pedal Bracket. |
| Data Link Connector (DLC) | Under Lower Left Side Of Instrument Panel. |
| Powertrain Control Module (PCM) | At Left Side Of Engine Compartment, Under Air Cleaner. |

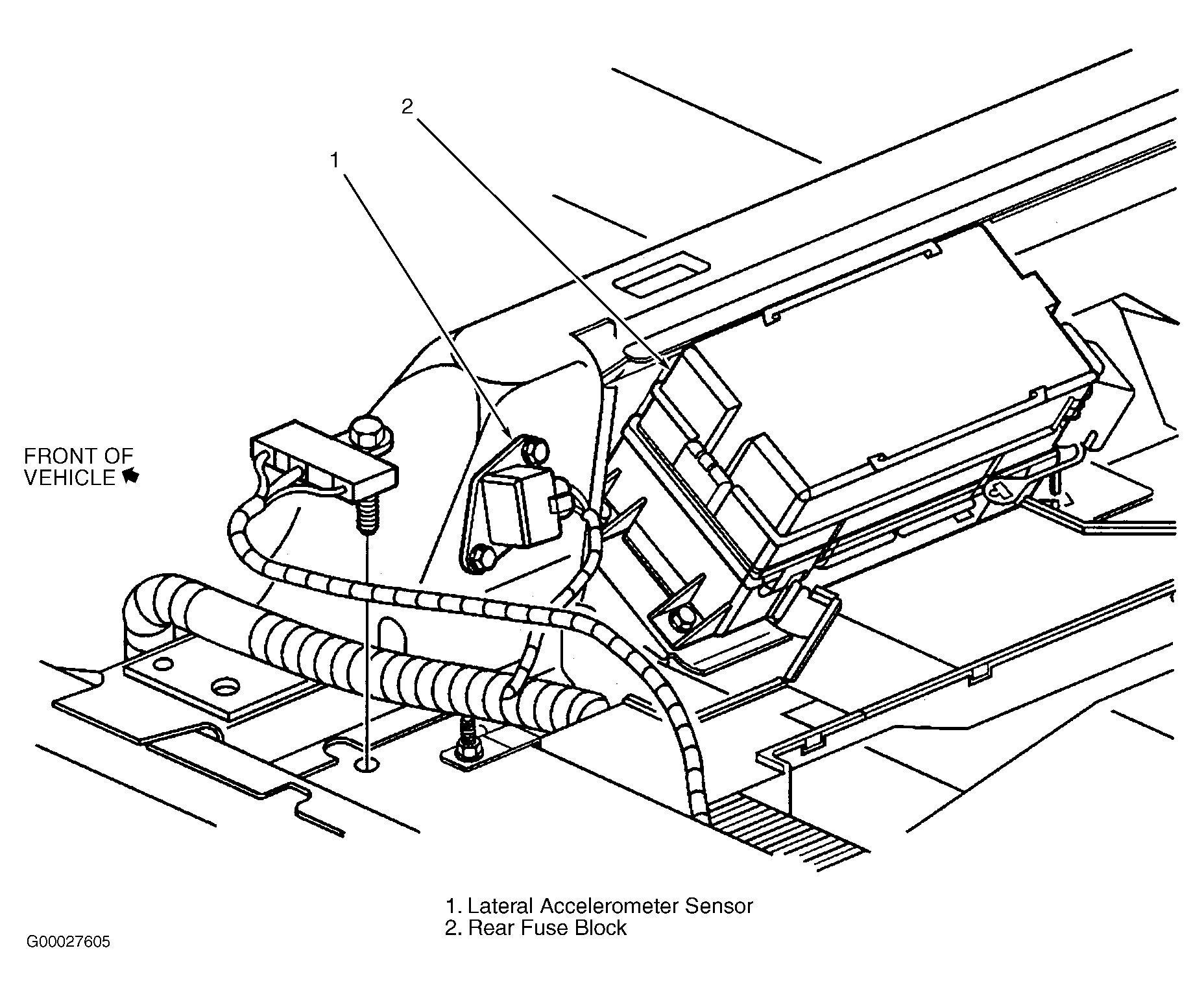

| Rear Fuse Block | Under Left Rear Seat. See Fig 2. |
| Brakelight Switch | On Brake Pedal Bracket. |

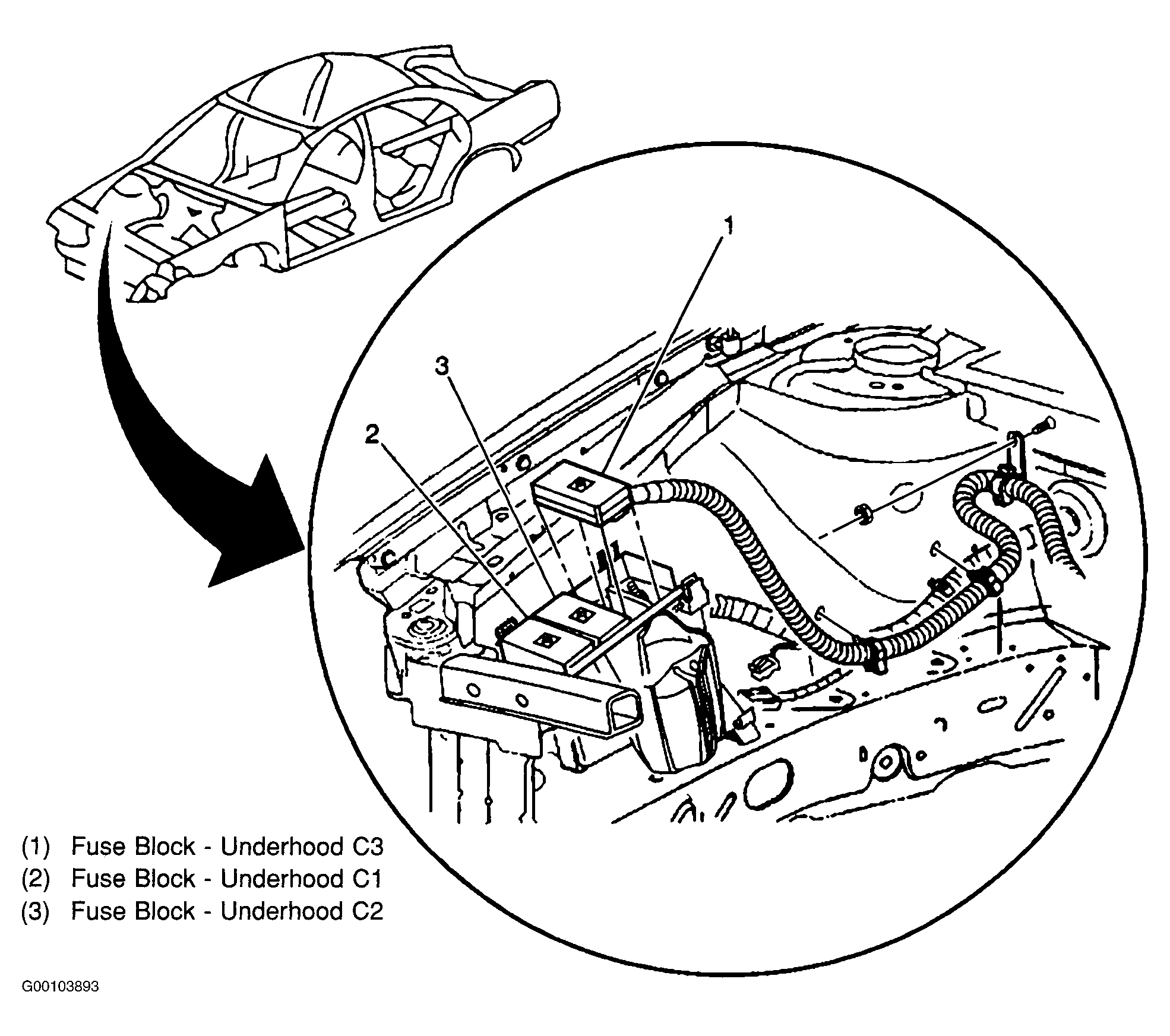

| Underhood Fuse Block | On Right Side Of Engine Compartment. See Fig 3. |
| Vehicle Speed Sensor (VSS) (4.0L VIN C) | On Top Of Right Side Transmission Output Housing. |

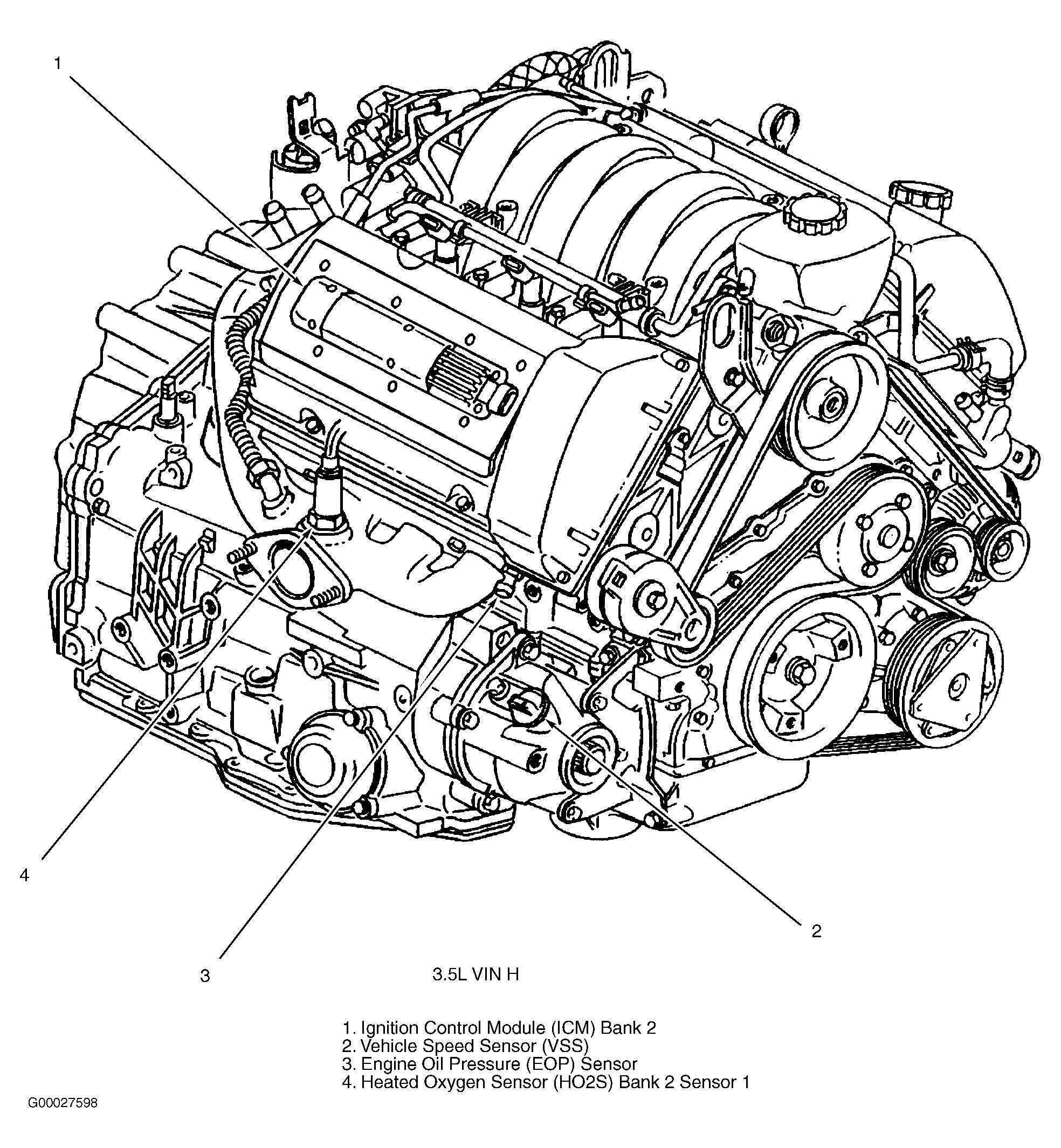

| Vehicle Speed Sensor (VSS) (3.5L VIN H) | On Top Of Right Side Transmission Output Housing. See Fig 6. |

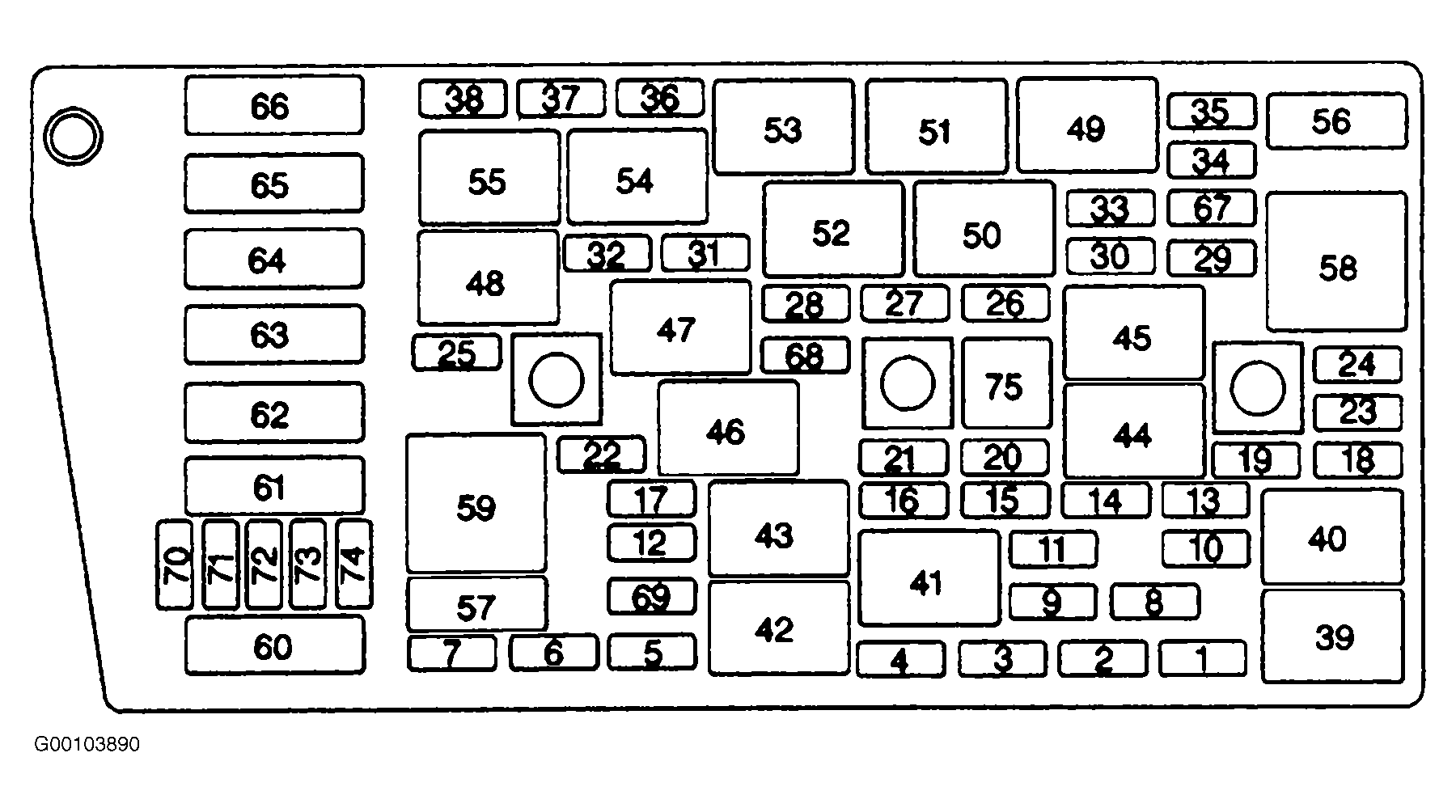

REAR FUSE BLOCK LEGEND
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | F/PMP Fuse | 20A | F/PMP Relay |
| 2 | HVAC BLO Fuse | 30A | Blower Motor Control Processor |
| 3 | MEM Fuse | 10A | Memory Seat Module - Driver, Power Seat Lumbar Switch - LF, and Power Seat Switch - LF (w/A45) |
| 4 | ALDL Fuse | 10A | Data Link Connector (DLC) and Valet Switch |
| 5 | RR FOG Fuse | 10A | RR FOG LP Relay |
| 6 | CD Fuse | 10A | Remote Playback Device (CD Changer) |
| 7 | DRV MDL Fuse | 10A | Driver Door Module (DDM) |
| 8 | SIR Fuse | 15A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 9 | - | - | Not Used |
| 10 | LP PK R Fuse | 10A | Tail/Stoplamp - Right, Side Marker Lamp - Right, and Park/Stoplamp - Right |
| 11 | VENT SOL Fuse | 10A | Evaporative Emissions (EVAP) Canister Purge Vent Valve |
| 12 | IGN 1 Fuse | 10A | Rear Integration Module (RIM), Turn Signal/Multifunction Switch, TCC/Cruise Release Switch, and Instrument Panel Cluster (IPC) |
| 13 | LP PK L Fuse | 10A | Tail/Stoplamp - Left, Side Marker Lamp - Left, and Park/Stoplamp - Left |
| 14 | DIMR Fuse | 10A | Dash Integration Module (DIM) and License Plate Lamps |
| 15 | - | - | Not Used |
| 16 | HTDST LF Fuse | 10A | Heated Seat Module - Left |
| 17 | - | - | Not Used |
| 18 | RRDR MDL Fuse | 10A | Rear Door Modules |
| 19 | STOP LP Fuse | 15A | Stoplamp Switch |
| 20 | PRK/REV Fuse | 10A | PARK and REVERSE Relays |
| 21 | AUDIO Fuse | 10A | Radio |
| 22 | RAP Fuse | 20A | RAP Relay |
| 23-24 | - | - | Not Used |
| 25 | PASSMDL Fuse | 10A | Front Passenger Door Module (FPDM) |
| 26 | BODY Fuse | 15A | F/TNKDR REL and TRK REL Relays |
| 27 | INT LP Fuse | 10A | INT LP Relay |
| 28 | - | - | Not Used |
| 29 | IGN SW Fuse | 15A | Ignition Switch, Dash Integration Module (DIM), Rear Integration Module (RIM), and Remote Control Door Lock Receiver |
| 30 | IP Fuse | 10A | Instrument Panel Cluster (IPC) and Ignition Switch Lamp |
| 31 | HTDST RF Fuse | 10A | Heated Seat Module - Right |
| 32 | - | - | Not Used |
| 33 | HVAC Fuse | 10A | Instrument Panel Integration Module (IPM), Recirculation Actuator, Mode Actuator, Air Temperature Actuator - Left, Air Temperature Actuator - Right, and Body Control Module (BCM) |
| 34 | IGN 3 RR | 10A | Inside Rearview Mirror, HVAC Control Module (w/CJ2) or Instrument Panel Integration Module (IPM) (w/C67), Shift Control Assembly |
| 35 | ABS Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 36 | TSIG/HAZ Fuse | 15A | Turn Signal/Hazard Lamp Control Module |
| 37 | HVAC BATT Fuse | 10A | Instrument Panel Integration Module (IPM) |
| 38 | DIM Fuse | 10A | Generator and Dash Integration Module (DIM) |
| 39 | F/PMP Relay | - | Fuel Pump and Sender Assembly and PCM |
| 40 | PRK LP Relay | - | DIMR, LP PK L, LP PK R Fuses, and Dash Integration Module (DIM) |
| 41 | IGN Relay | - | IGN 1, Vent Sol, SIR Fuses, Ignition Switch, and Dash Integration Module (DIM) |
| 42 | RR FOG LP Relay | - | Ignition Switch, Rear Fog Lamps, Dash Integration Module (DIM), and Rear Integration Module (RIM) |
| 43 | - | - | Not Used |
| 44 | PARK Relay | - | Stoplamp Switch, Ignition Switch, and Rear Integration Module (RIM) |
| 45 | REVERSE Relay | - | Backup Lamps and Rear Integration Module (RIM) |
| 46 | RAP Relay | - | Rear Integration Module (RIM) and Power Sunroof Module |
| 47 | F/TNKDRLOCK Relay | - | Fuel Door Release Solenoid |
| 48 | - | - | Not Used |
| 49 | IGN 3 Relay | - | Ignition Switch |
| 50 | F/TNKDR REL Relay | - | Fuel Filler Door Release Solenoid and Rear Integration Module (RIM) |
| 51 | INT LP Relay | - | Front Door Courtesy Lamps, Rear Door Courtesy Lamps, Footwell Courtesy Lamps, IP Compartment Lamp and Switch, Overhead Console Reading/Courtesy Lamp, Rear Compartment Courtesy Lamps, Rear Reading Courtesy Lamp, and Vanity Lamps |
| 52 | TRK REL Relay | - | Rear Compartment Lid Release Actuator and Rear Integration Module (RIM) |
| 53 | FRT CTSY Relay | - | Rear Integration Module (RIM) |
| 54 | - | - | Not Used |
| 55 | ELC (ALC) Relay | - | Automatic Level Control (ALC) Compressor, Ignition Switch, and Rear Integration Module (RIM) |
| 56 | PWR SEAT Circuit Breaker | 30A | Memory Seat Module - Driver (w/A45), Power Seat Switch - LF (w/o A45), Power Seat Lumbar Switch - LF (w/o A45), Power Seat Recline Switch - RF (w/o AG2), Power Seat Switch - RF (w/AG2), and Power Seat Lumbar Switch - RF (w/AG2) |
| 57 | PWR WDO Circuit Breaker | 30A | Door Modules |
| 58 | CIGAR Relay | - | AUX PWR and C/LTR Fuses in the Underhood Fuse Block |
| 59 | RR DEFOG Relay | - | Ignition Switch and Rear Window Defogger |
| 60 | - | - | Not Used |
| 61 | RR DEFOG Fuse | 40A | RR DEFOG Relay |
| 62 | - | - | Not Used |
| 63 | AUDIO AMP Fuse | 20A | Audio Amplifier |
| 64 | ELC (ALC) Fuse | 30A | ELC Relay and Automatic Level Control (ALC) Compressor |
| 65 | CIGAR Fuse | 40A | CIGAR Relay |
| 66-69 | - | - | Not Used |
| 70-74 | Spare Fuses | - | - |
| 75 | Fuse Puller | - | - |

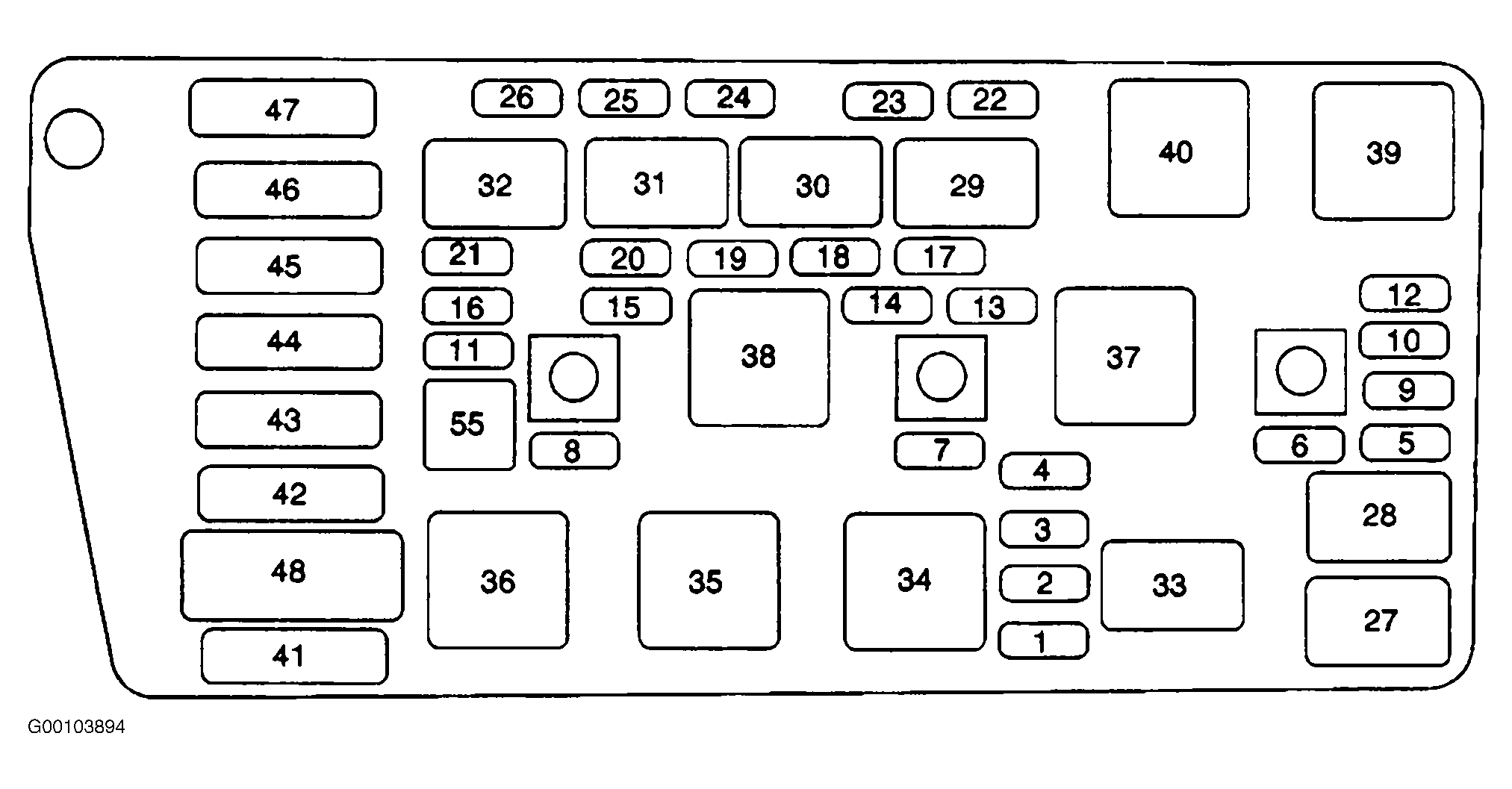

UNDERHOOD FUSE BLOCK LEGEND
| No. | Fuse/Circuit Breaker | Rating | Description |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | ACCY Fuse | 15A | Outside Moisture Sensor, Windshield Wiper Switch, Ignition Switch, and Dash Integration Module (DIM) |
| 3 | WSW Fuse | 30A | Windshield Wiper Motor |
| 4 | - | - | Not Used |
| 5 | HDLOBML Fuse | 10A | Low Beam Headlamp - Left |
| 6 | HDLOBMR Fuse | 10A | Low Beam Headlamp - Right |
| 7 | Spare | 10A | - |
| 8 | PCM BATT Fuse | 10A | Powertrain Control Module (PCM) and Theft Deterrent Control Module |
| 9 | HDHIBMR Fuse | 10A | High Beam Headlamp - Right |
| 10 | HDHIBML Fuse | 10A | High Beam Headlamp - Left |
| 11 | IGN 1 Fuse | 10A | Mass Air Flow (MAF) Sensor, EVAP Canister Purge Valve, AIR Pump Relay(s), Secondary Air Injection Bypass Valve Solenoid, and TCC/Cruise Release Switch |
| 12 | - | - | Not Used |
| 13 | TRANS Fuse | 10A | Automatic Transaxle |
| 14 | CR CONT Fuse | 10A | Cruise Control Module and HVAC Sol Relay |
| 15 | DIS Fuse | 20A | Ignition Control Modules |
| 16 | INJR 2 Fuse | 10A | Fuel Injectors 1, 3, and 5 (3.5L V6) Fuel Injectors 2, 3, 5 and 8 (4.0L V8) |
| 17-18 | - | - | Not Used |
| 19 | PCM IGN Fuse | 10A | START 1 Relay and Powertrain Control Module (PCM) |
| 20 | OXY SEN Fuse | 10A | Heated Oxygen Sensors |
| 21 | INJR 1 Fuse | 10A | Fuel Injectors 2, 4 and 6 (3.5L V6) Fuel Injectors 1, 4, 6 and 7 (4.0L V8) |
| 22 | AUX PWR Fuse | 20A | Accessory Power Outlet |
| 23 | C/LTR Fuse | 20A | Cigar Lighter |
| 24 | FOG/DRL Fuse | 15A | DRL and FOG LP Relays |
| 25 | HORN Fuse | 15A | HORN Relay |
| 26 | AC CLU Fuse | 15A | A/C Clutch Relay |
| 27 | HDLP HI BM Relay | - | HDHIBML and HDHIBMR Fuses, Headlamp Switch, and Dash Integration Module (DIM) |
| 28 | HDLP LO BM Relay | - | HDLOBML and HDLOBMR Fuses, Headlamp Switch, and Dash Integration Module (DIM) |
| 29 | FOG LP Relay | - | Front Fog Lamps, Dash integration Module (DIM), and Ignition Switch |
| 30 | DRL Relay | - | High Beam Headlamp - Left and Dash Integration Module (DIM) |
| 31 | HORN Relay | - | Horn, Dash Integration Module (DIM), and Turn Signal/Multifunction Switch |
| 32 | A/C CLU Relay | - | A/C Compressor Clutch, Dash Integration Module (DIM), Ignition Switch, and PCM |
| 33 | HVAC SOL Relay | - | Dash Integration Module (DIM) and A/C Orifice Solenoid |
| 34 | ACCY Relay | - | WSW and ACCY Fuses |
| 35 | AIR PUMP Relay (Buick/Pontiac Only) | - | - |
| 36 | START 1 Relay | - | Starter Solenoid and PCM |
| 37 | COOLFAN 1 Relay | - | Cooling Fan - Right and PCM |
| 38 | IGN 1 Relay | - | DIS, OXY SEN, IGN 1, INJ 1, INJ 2, TRANS, PCM IGN, and CR CONT Fuses, Ignition Switch, and Dash Integration Module (DIM) |
| 39 | COOLFAN S/P Relay | - | Cooling Fans and PCM |
| 40 | COOLFAN 2 Relay | - | Cooling Fan - Left |
| 41 | START Circuit Breaker | 30A | START 1 Relay |
| 42 | AIR Fuse (Buick/Pontiac Only) | 30A | - |
| 43 | Not Used (w/1 AIR Pump System) | - | - |
| 43 | ABS Fuse (w/2 AIR Pump System) | 50A | Electronic Brake Control Module (EBCM) |
| 44 | ABS Fuse (w/1 AIR Pump System) | 50A | Electronic Brake Control Module (EBCM) |
| 44 | AIR PUMP B Fuse (Oldsmobile w/2 AIR Pump System Only) | 50A | AIR Pump Relay B |
| 45 | AIR PUMP A Fuse (Oldsmobile w/2 AIR Pump System Only) | 50A | AIR Pump Relay A |
| 45 | AIR PUMP Fuse (Oldsmobile w/1 AIR Pump System Only) | 50A | AIR Pump Relay |
| 46 | COOL FAN 1 Fuse | 30A | COOLFAN 1 Relay |
| 47 | COOL FAN 2 Fuse | 30A | COOLFAN 2 Relay and COOLFAN S/P Relay |
| 48-52 | Spare Fuses | - | - |
| 53 | Fuse Puller | - | - |
