Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel compartment door.
  2. Using a small flat-bladed tool depress retainers on instrument panel compartment lamp switch.

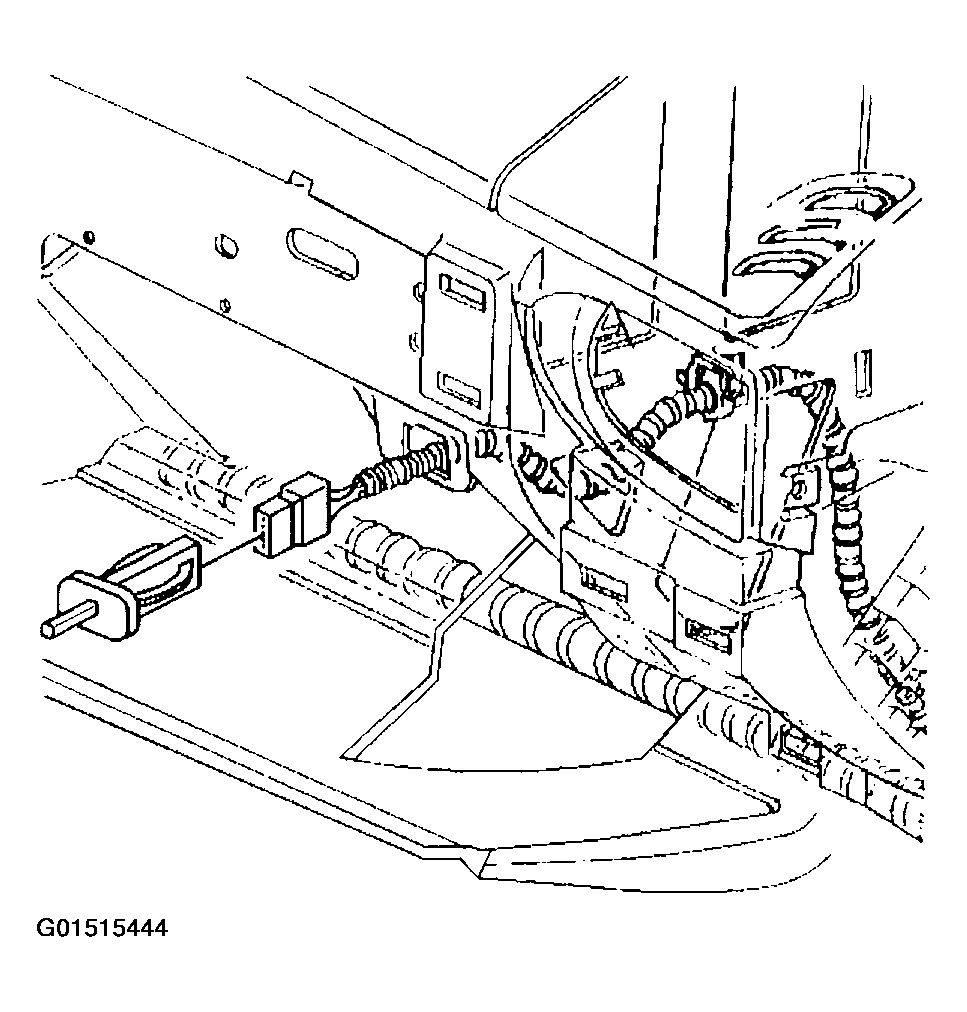

    Fig 1: Instrument Panel (I/P) Compartment Lamp Switch Removal (1 Of 2)
    G01515444Courtesy of GENERAL MOTORS CORP.
  3. Remove the instrument panel compartment lamp switch from the instrument panel compartment.
  4. Disconnect the electrical connector from the instrument panel compartment lamp switch.
  5. Pull the bulb from the instrument panel compartment lamp switch socket.

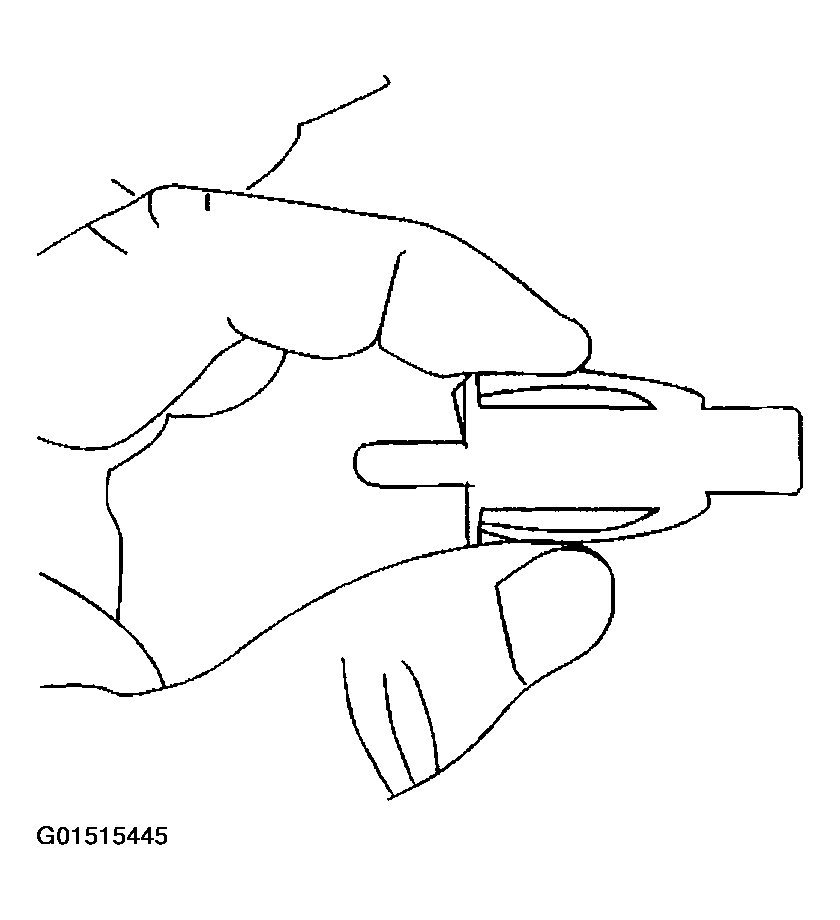

    Fig 2: Instrument Panel (I/P) Compartment Lamp Switch Removal (2 Of 2)
    G01515445Courtesy of GENERAL MOTORS CORP.
