Combination Switch

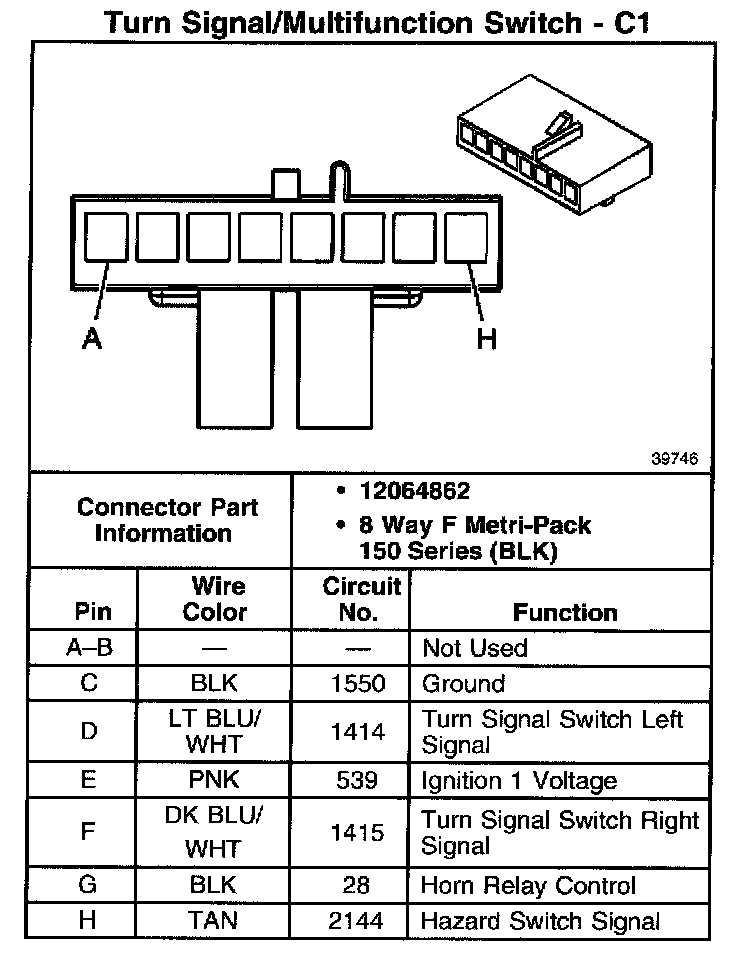

Turn Signal/Multifunction Switch - C1:

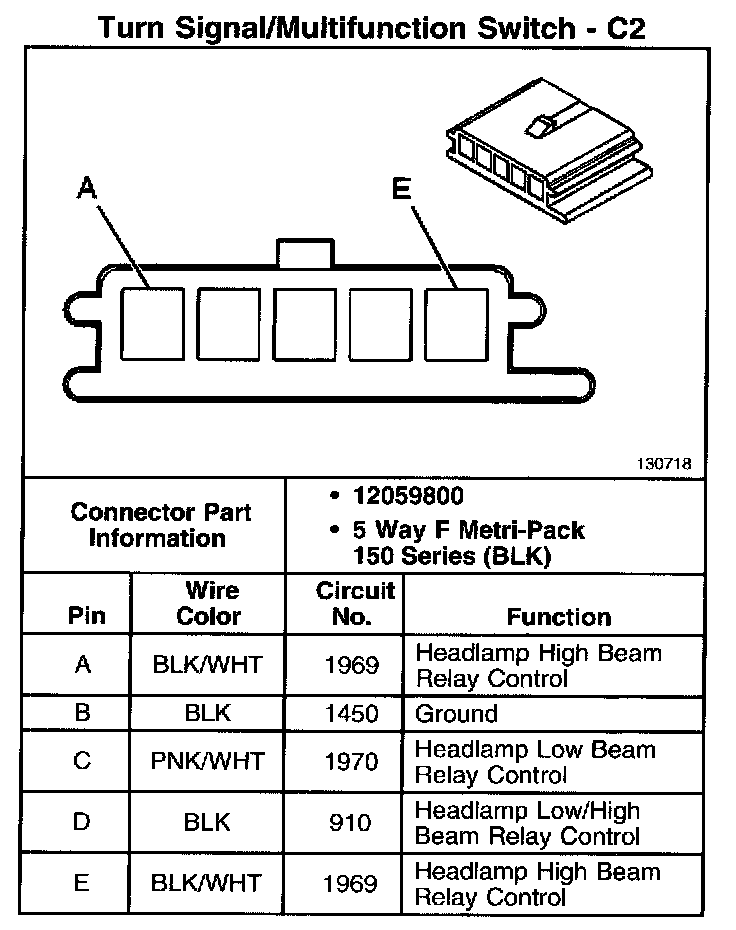

Turn Signal/Multifunction Switch - C2:

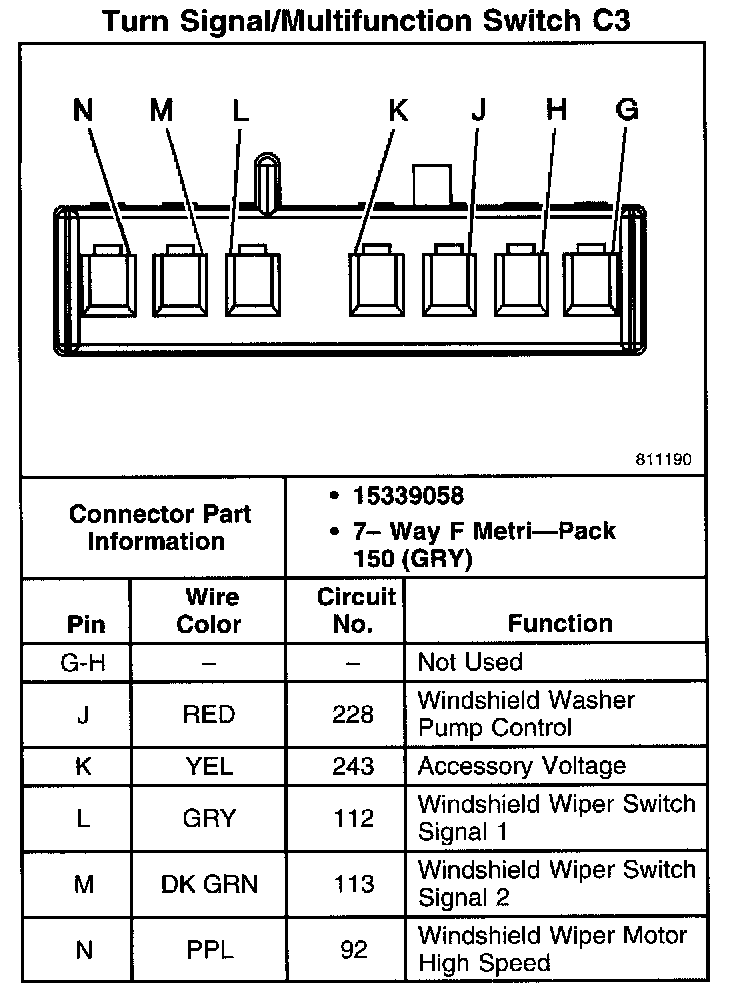

Turn Signal/Multifunction Switch C3:

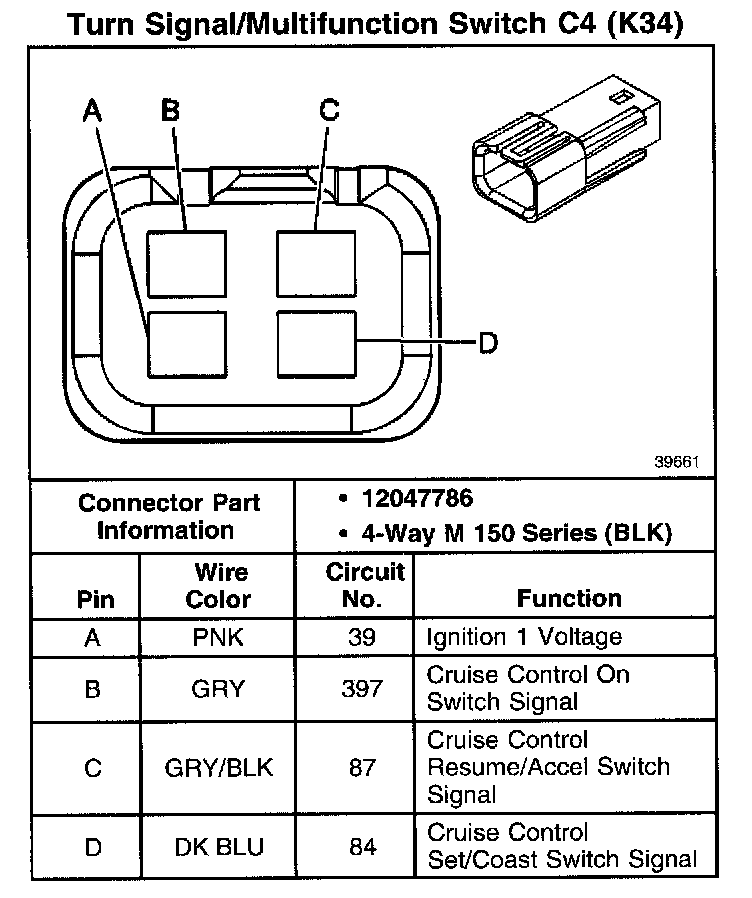

Turn Signal/Multifunction Switch C4 (K34):





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
