Ignition Control Module

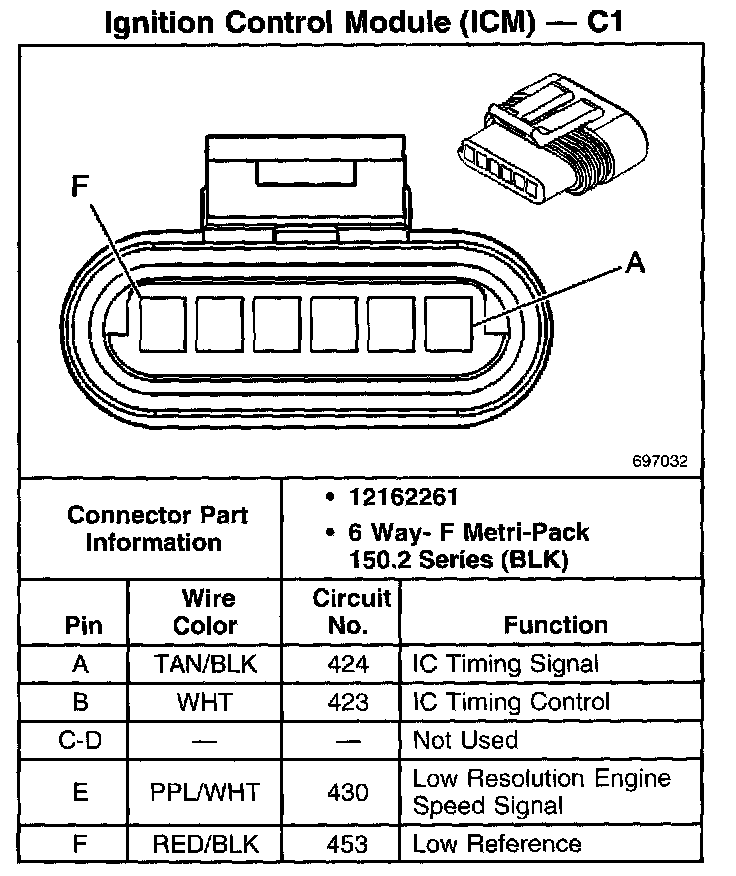

Ignition Control Module (ICM) - C1:

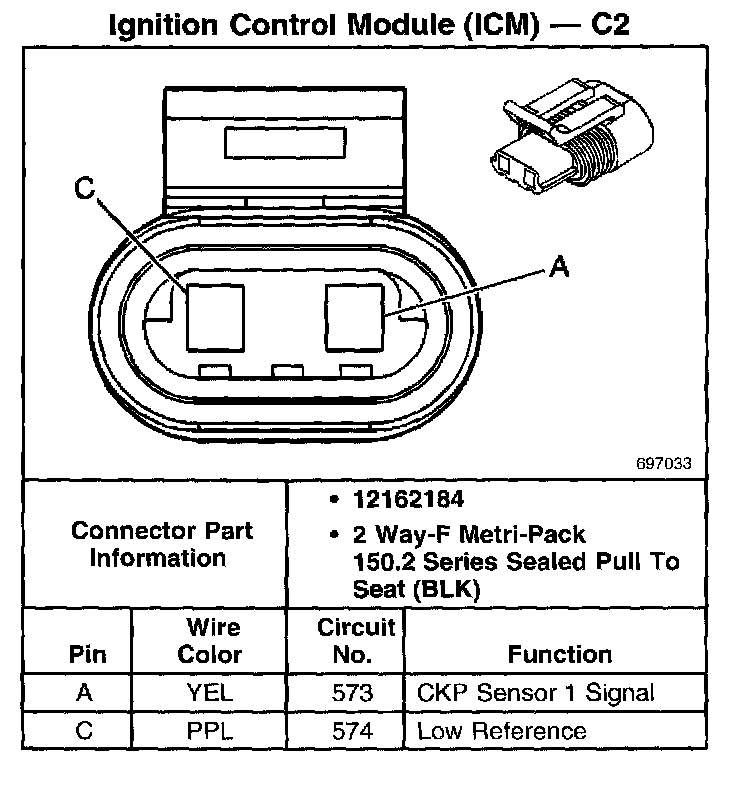

Idle Air Control (ICM) - C2:

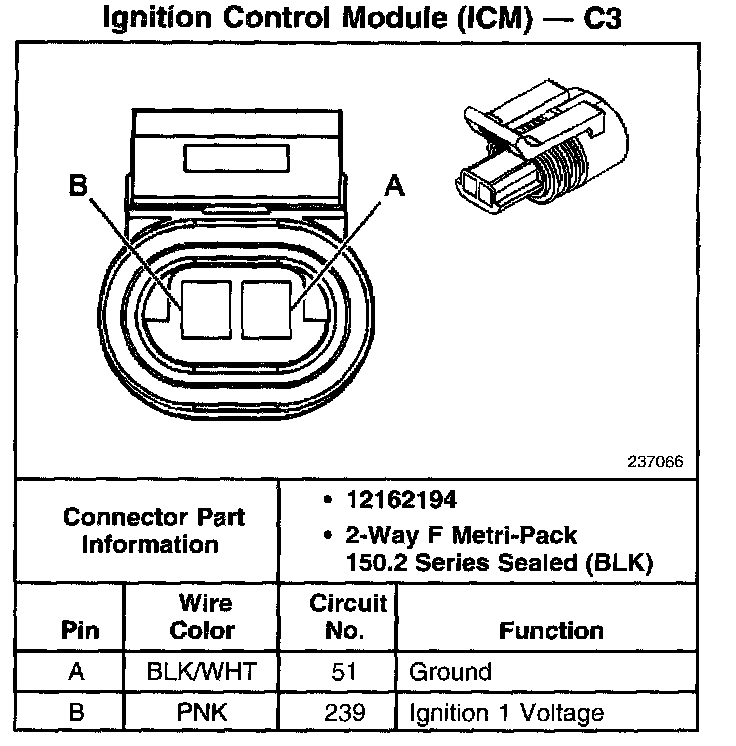

Ignition Control Module (ICM) - C3:
