Steering Mounted Controls Transmitter

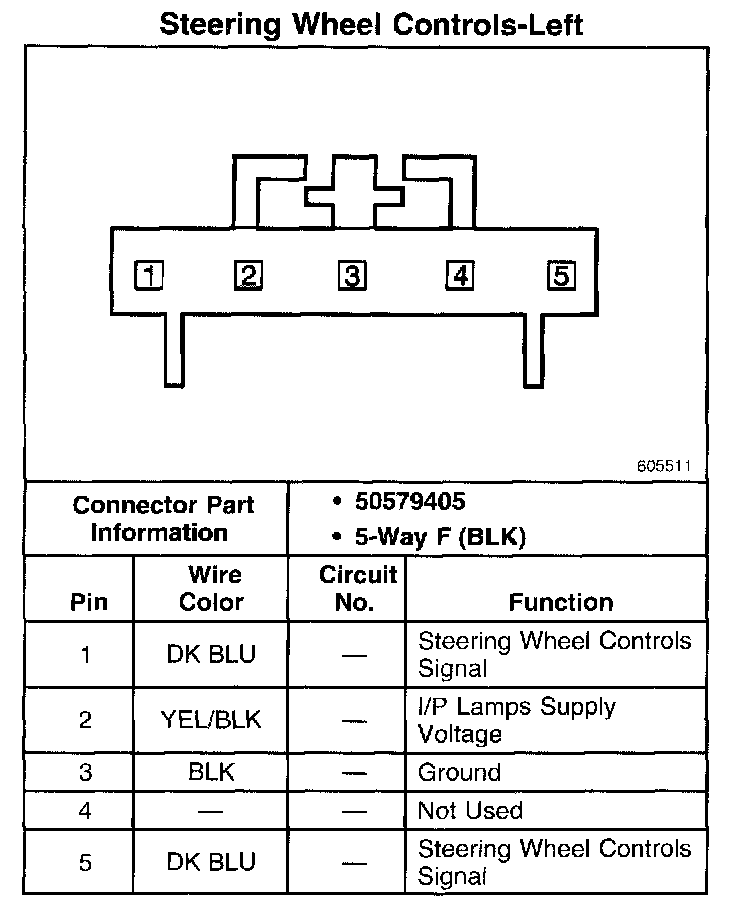

Steering Wheel Controls - Left:

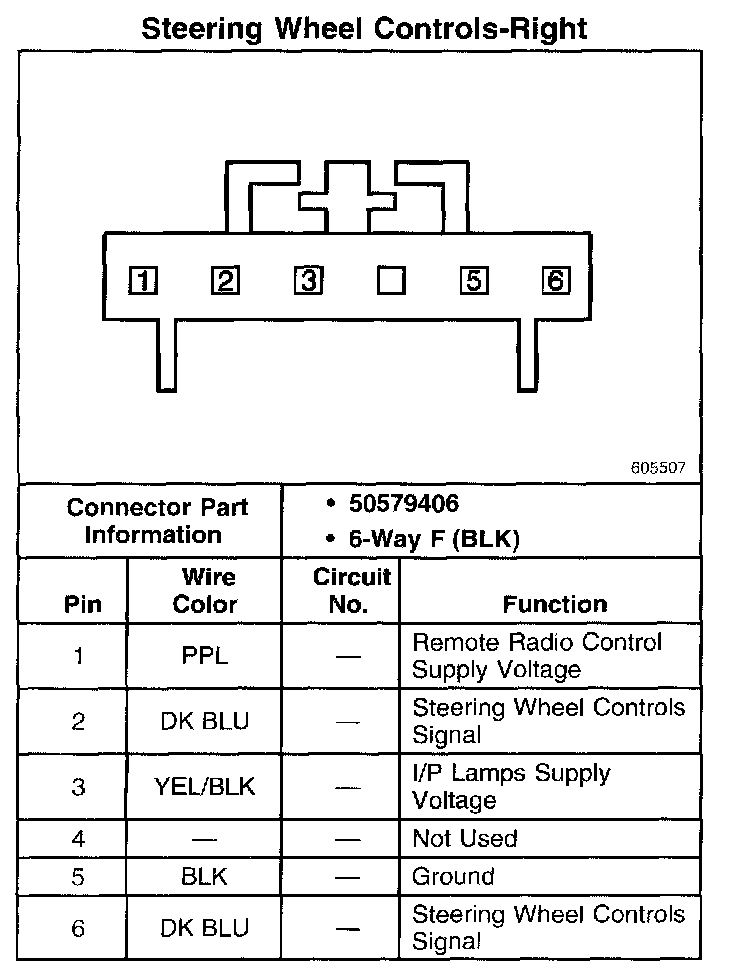

Steering Wheel Controls - Right:
