Accessory Delay Module

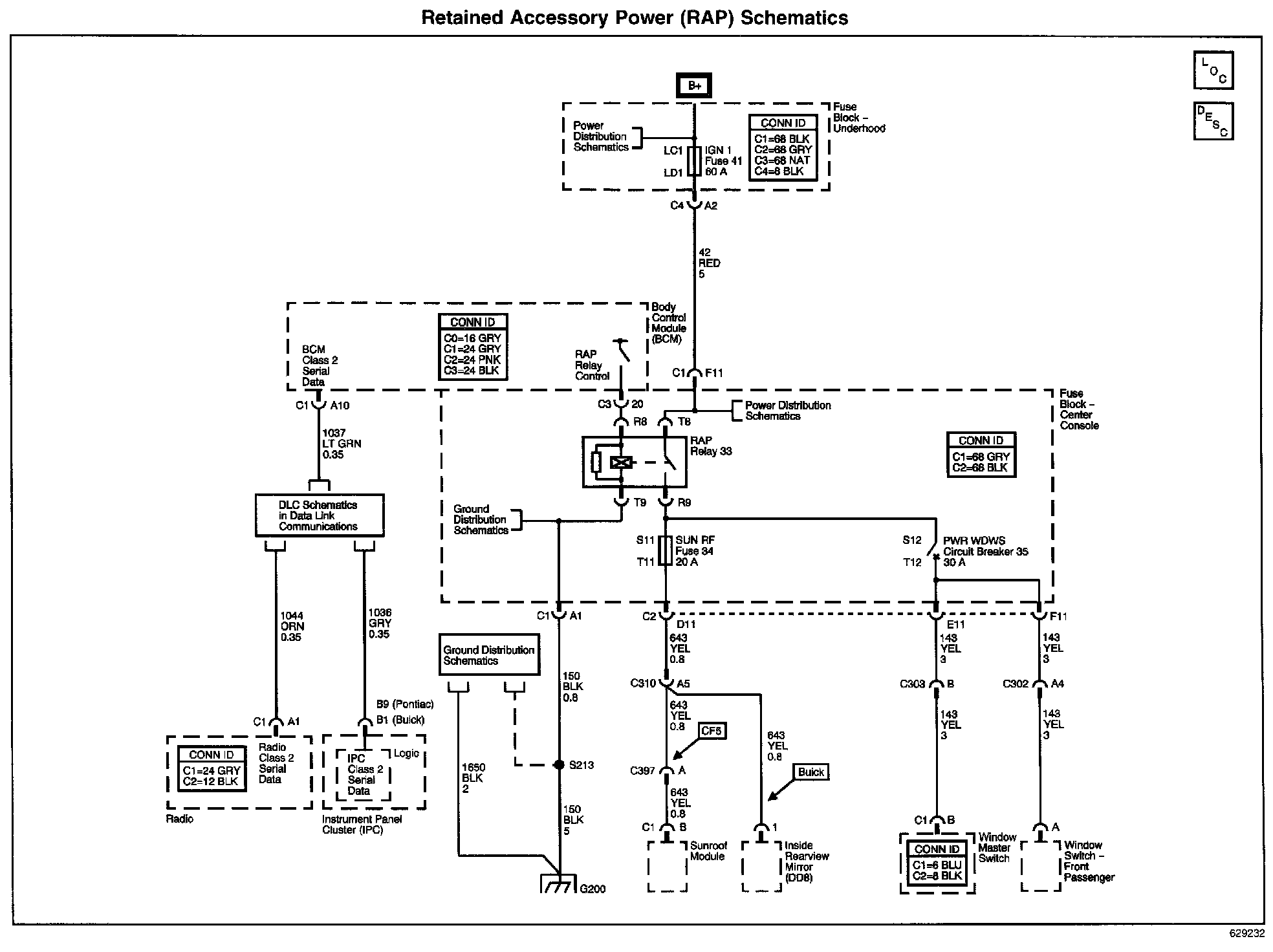

Retained Accessory Power (RAP) Schematics:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
