Body Control Module: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: You must perform the new body control module (BCM) setup when replacing the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration.




1. Disconnect the negative battery cable.
2. Remove the console accessory wiring junction block.

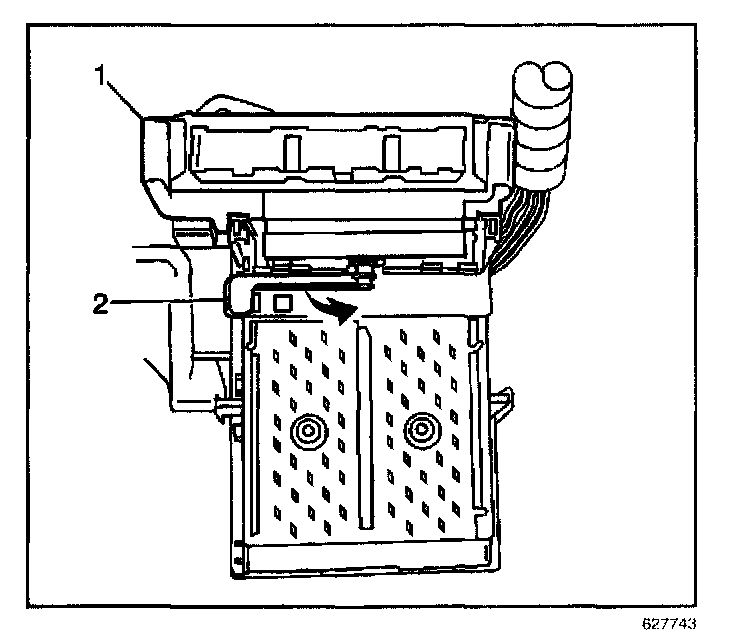

3. Rotate the BCM retaining lever (1) to release the BCM from the console accessory wiring junction block.
4. Remove the BCM (2) from the console accessory wiring junction block.

INSTALLATION PROCEDURE

IMPORTANT: Align the BCM to the console accessory wiring junction block.

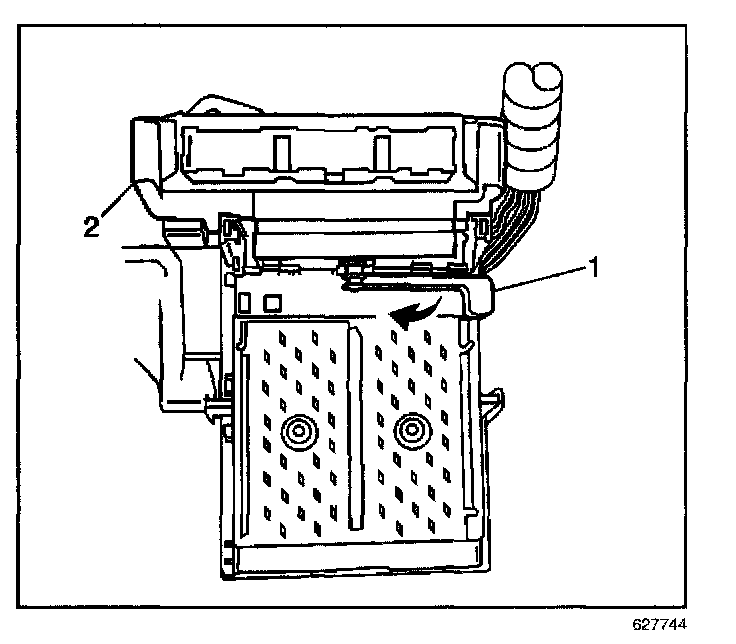

1. Install the BCM (1) onto the console accessory wiring junction block.
2. Rotate the BCM retaining lever (2) to secure the BCM to the console accessory wiring junction block.
3. Install the console accessory wiring junction block.
4. Connect the negative battery cable.
5. Perform the new BCM setup. Refer to Body Control Module (BCM) Programming/RPO Configuration. Programming and Relearning
