Connector Views

Automatic Transmission Inline Harness Connector End View

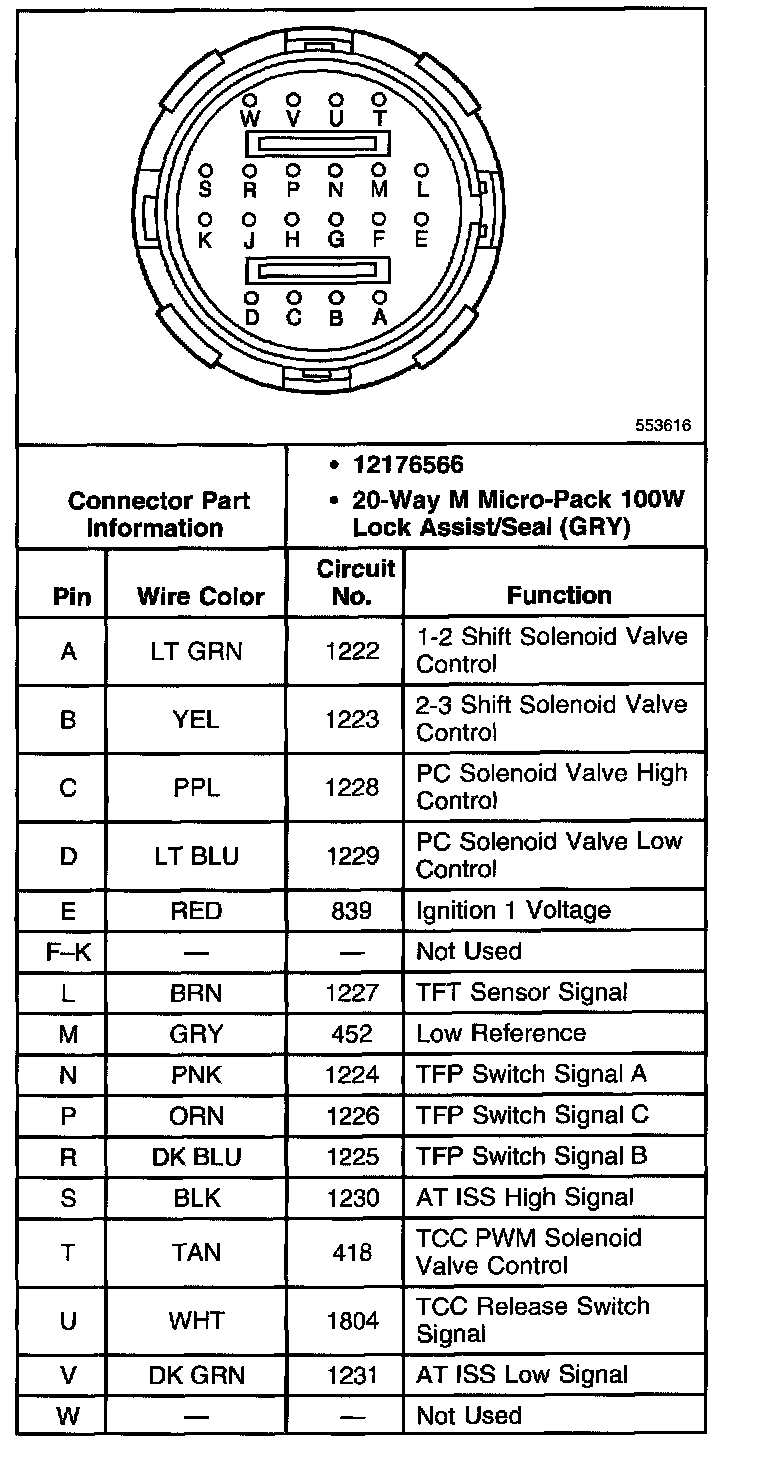

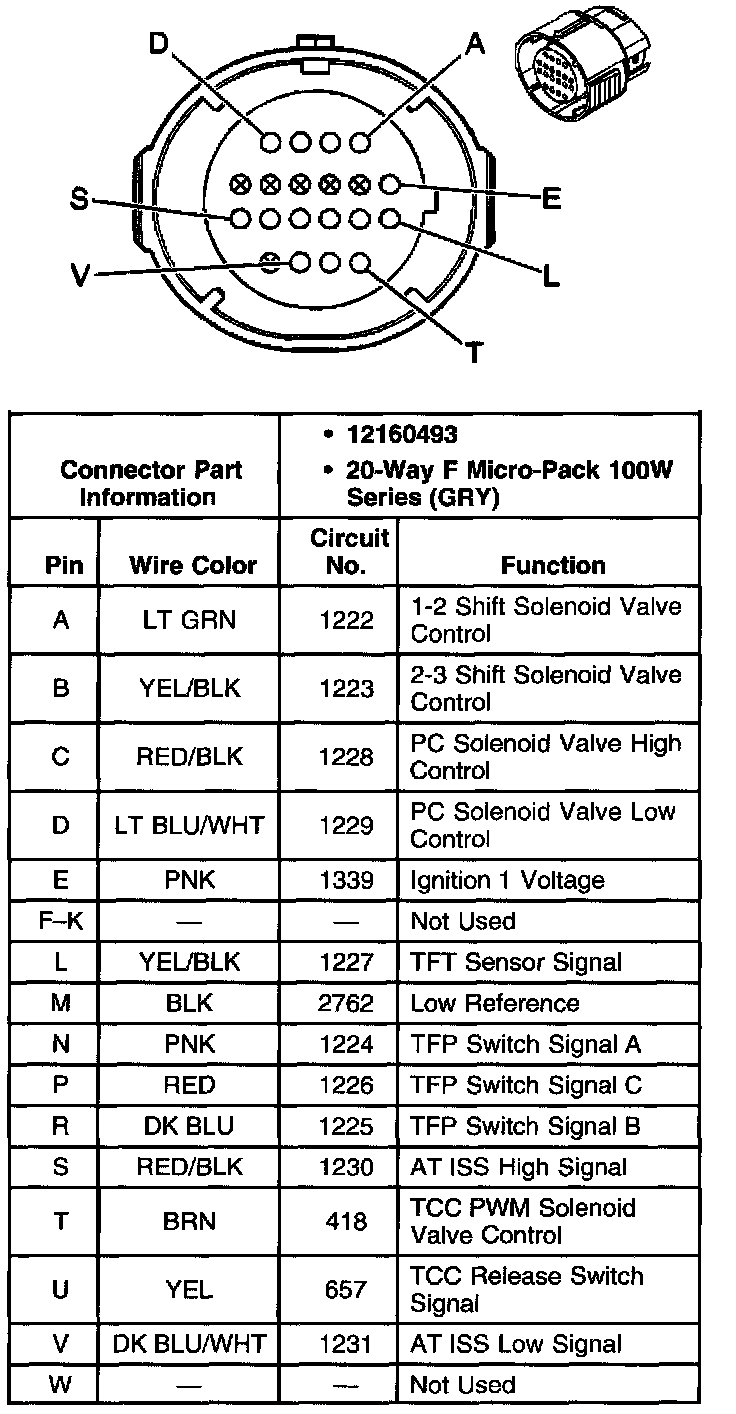

AT Inline Harness 20-way Connector, Engine Side





AT Inline Harness 20-way Connector, Transmission Side

Automatic Transmission Internal Connector End Views

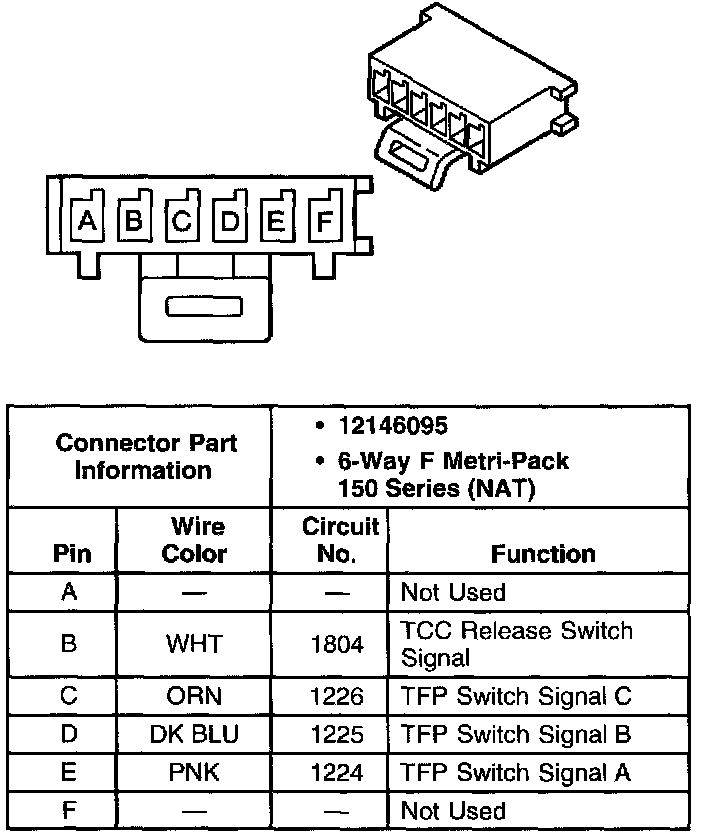

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side

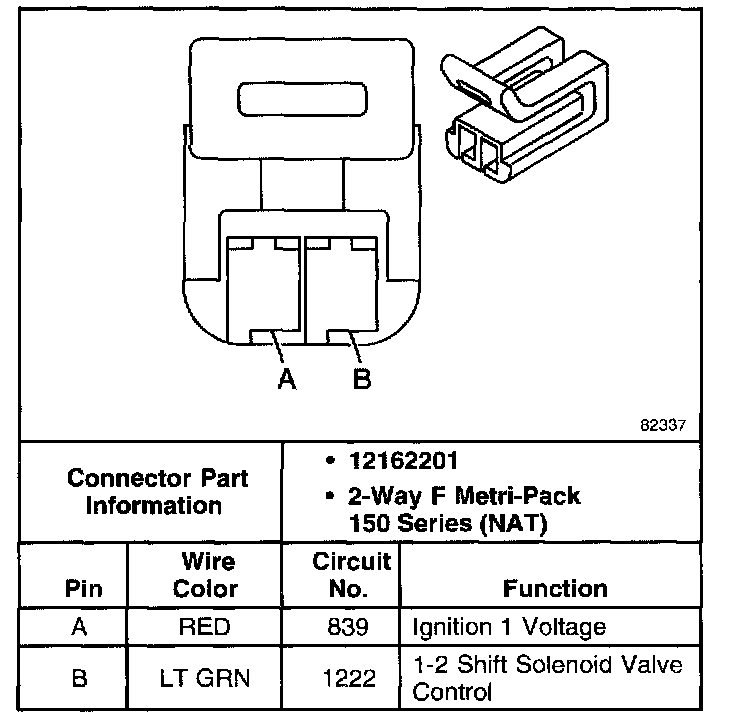

1-2 Shift Solenoid Valve Connector, Wiring Harness Side

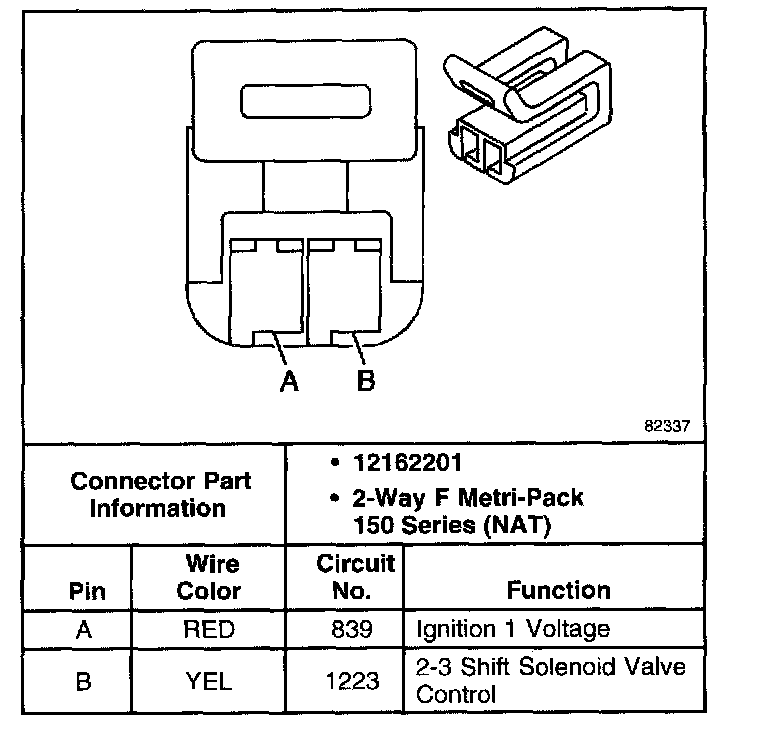

2-3 Shift Solenoid Valve Connector, Wiring Harness Side

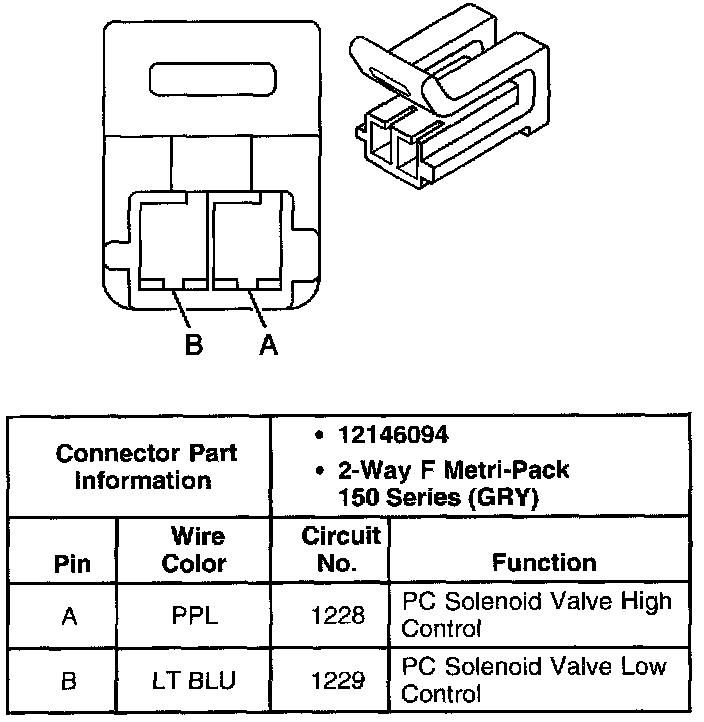

Pressure Control Solenoid Valve Connector, Wiring Harness Side

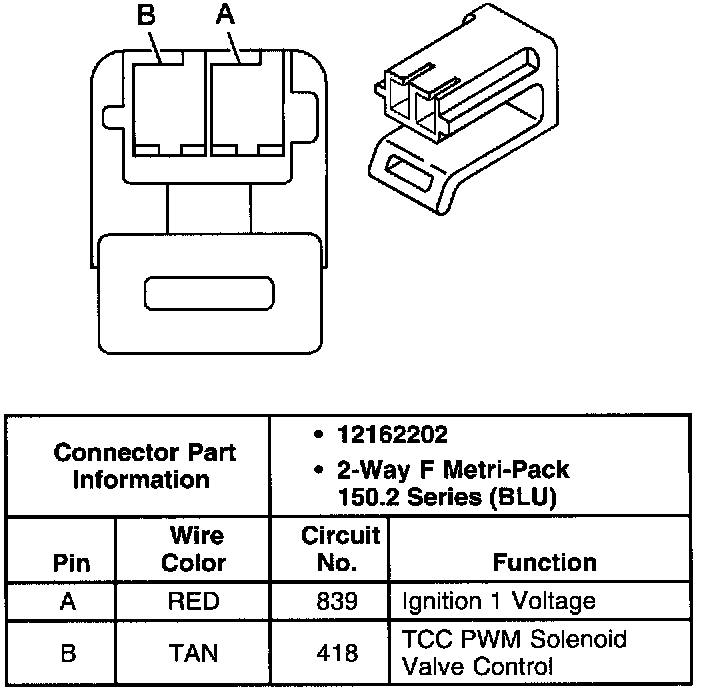

Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector, Wiring Harness Side

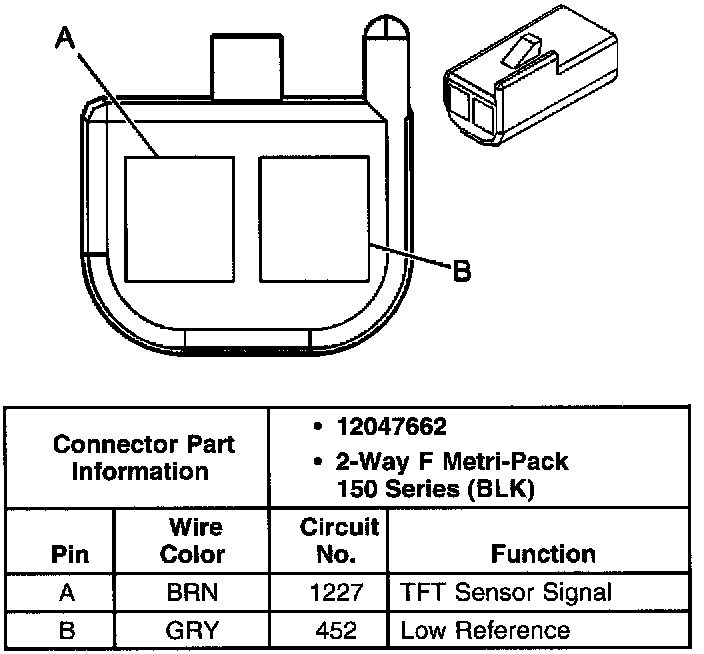

Transmission Fluid Temperature Sensor Connector, Wiring Harness Side

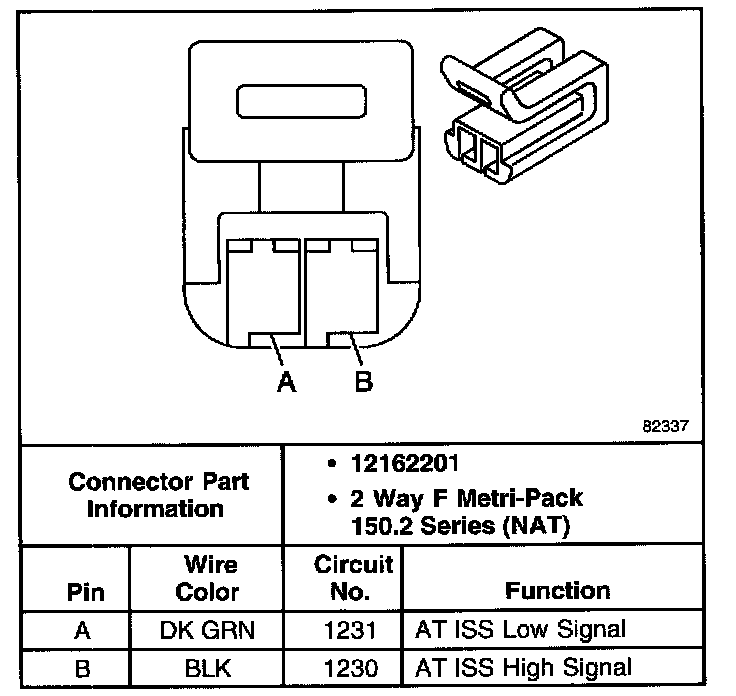

Input Speed Sensor Connector, Wiring Harness Side

Automatic Transmission Related Connector End Views

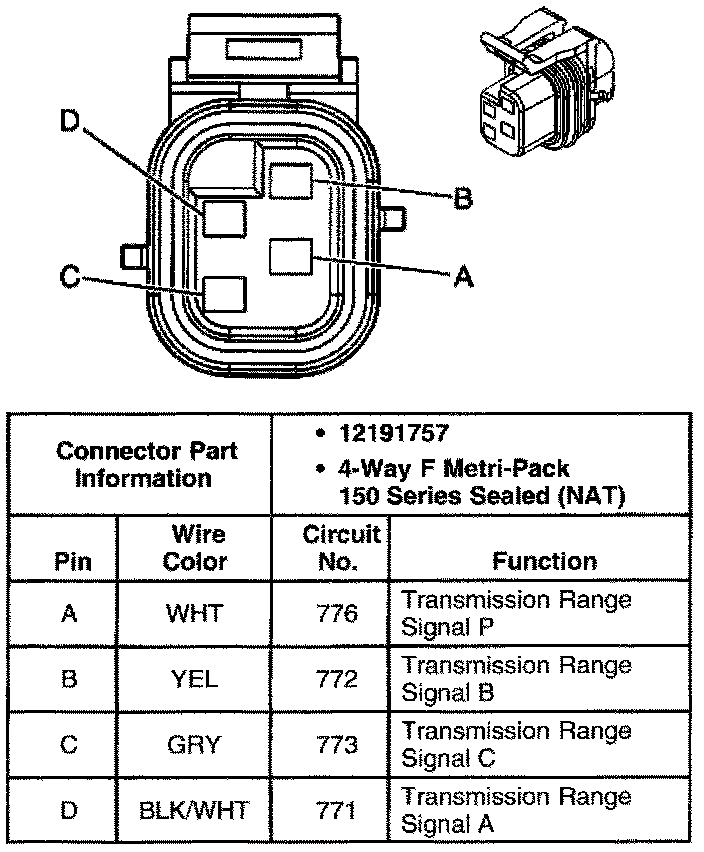

Transmission Range Switch C1 Connector, Wiring Harness Side





Transmission Range Switch C2 Connector, Wiring Harness Side

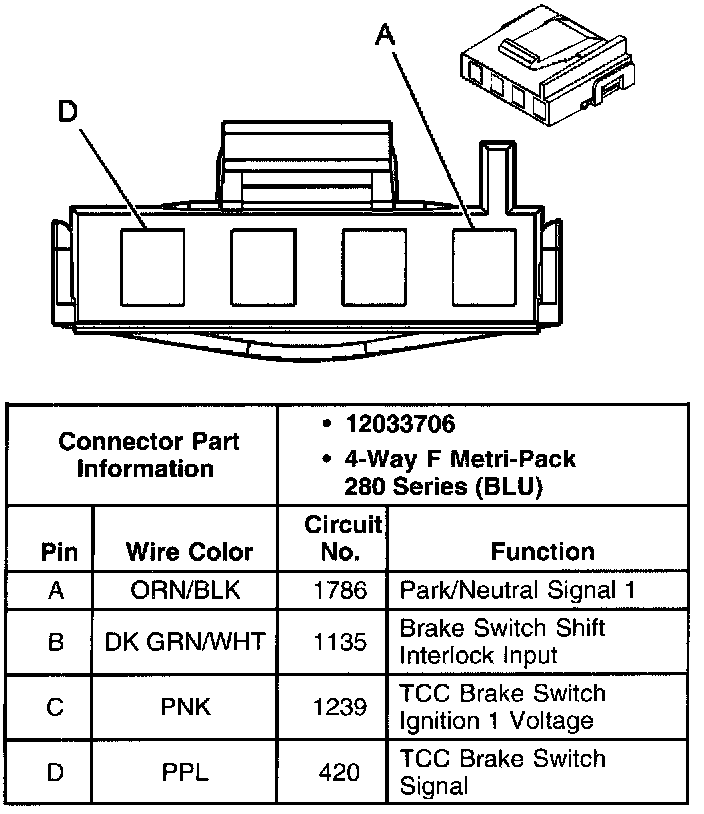

Transmission Shift Interlock/TCC Brake Switch Connector, Wiring Harness Side

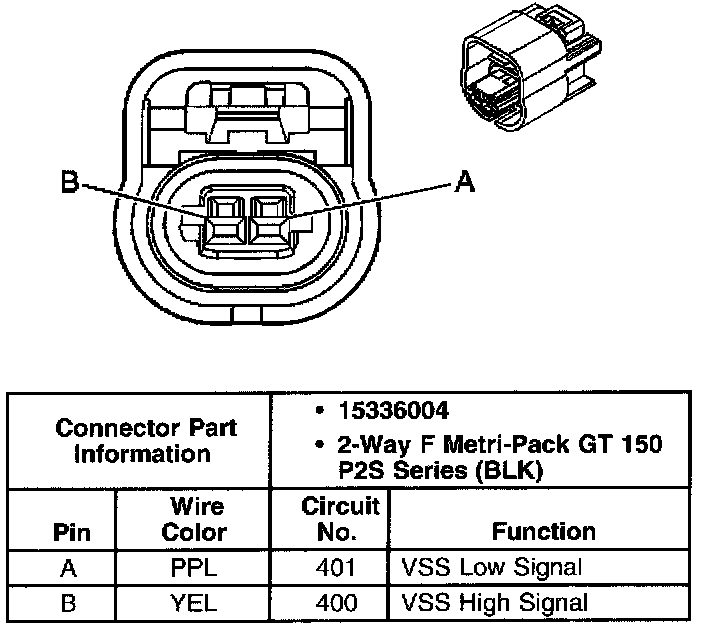

Vehicle Speed Sensor Connector, Wiring Harness Side
