Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna extension cable (1) to the radio antenna housing (2).

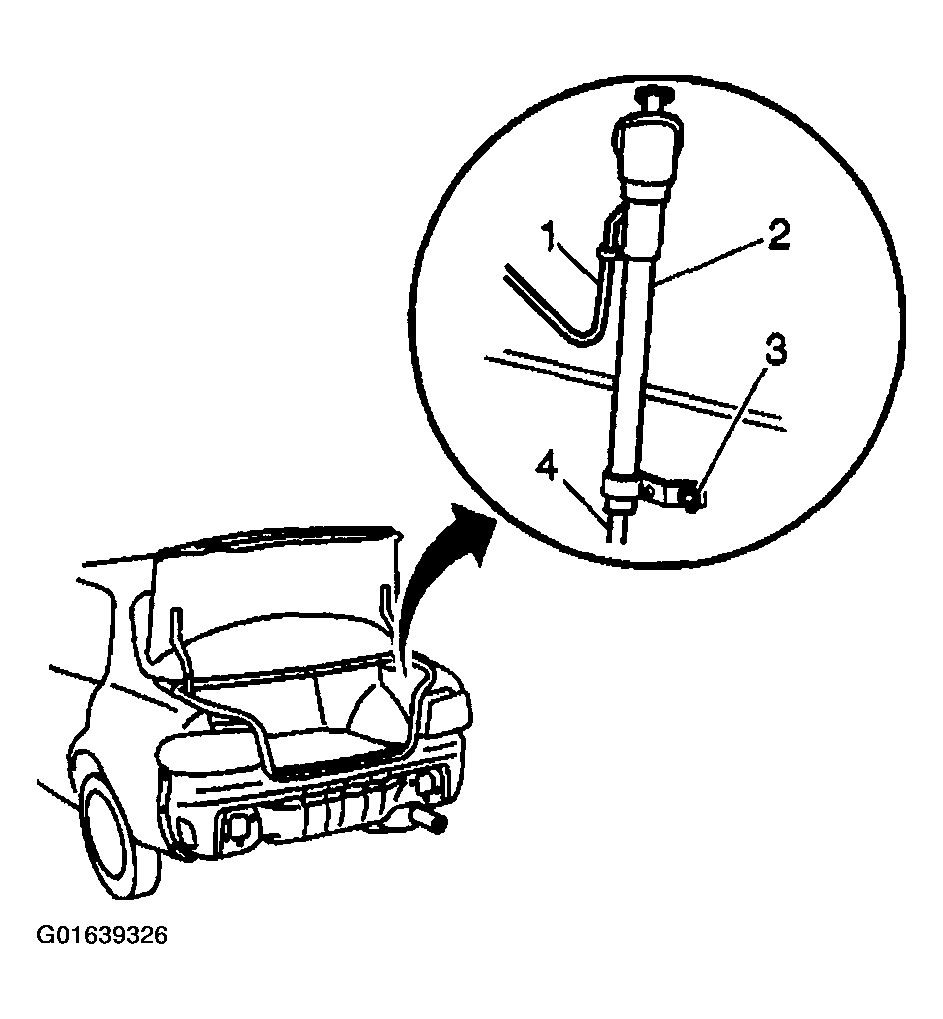

    Fig 1: Installing Antenna Extension Cable
    G01639326Courtesy of GENERAL MOTORS CORP.
  2. Insert the antenna cable (1) through the opening (2) in the quarter inner upper panel, into the interior of the vehicle.

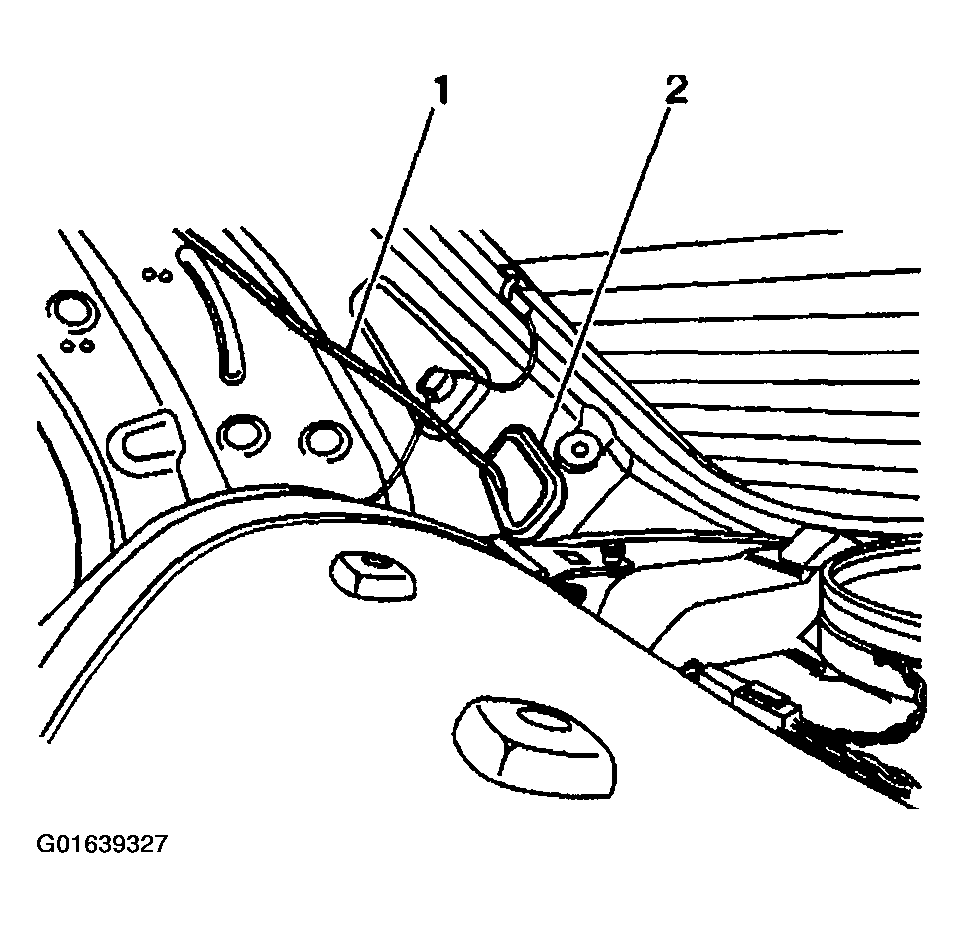

    Fig 2: Inserting Antenna Cable Through Opening
    G01639327Courtesy of GENERAL MOTORS CORP.
  3. Route the antenna cable:
    1. 3.1 Along the roof
    2. 3.2 Behind the instrument panel

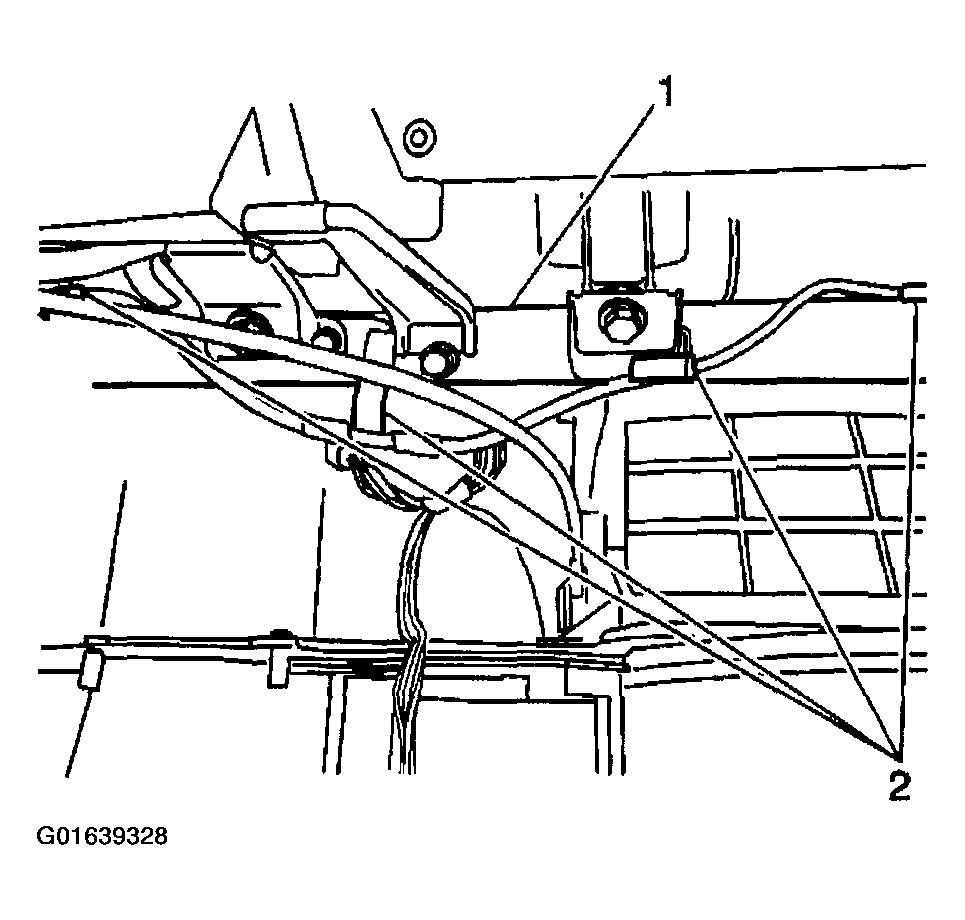

      Fig 3: Routing Antenna Cable
      G01639328Courtesy of GENERAL MOTORS CORP.
  4. Secure the antenna cable to the roof with the 10 plastic retainers.
  5. Secure the antenna cable to the IP reinforcement (1) with the 4 plastic retainers (2).
  6. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- IP .
  7. Install the radio. Refer to Radio Replacement .
  8. Install the headlining trim finish panel. Refer to HEADLINER REPLACEMENT .
