Removal Procedure

  1. Remove the accessory switch panel.
  2. Remove the inside handle bezel. Refer to HANDLE BEZEL REPLACEMENT - Inside .
  3. Remove the window regulator handle and spacer, if equipped.
  4. Remove the outside rearview mirror bezel. Refer to Mirror Replacement .
  5. Remove the side door armrest bolts (2).

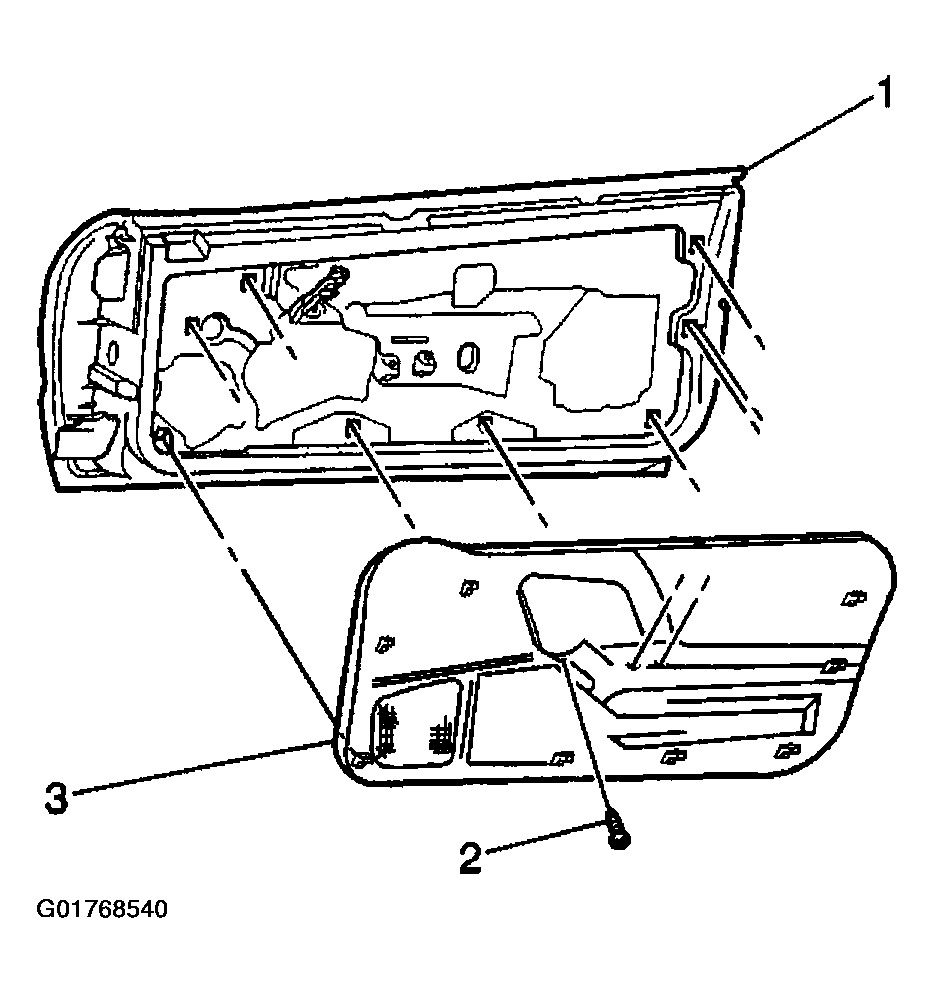

    Fig 1: Removing Side Door Armrest Bolts
    G01768540Courtesy of GENERAL MOTORS CORP.
  6. Pull the side door trim upward from the door, making sure the hooks release from the holes in the door.
  7. Remove the front side door trim from the door.
  8. Remove the courtesy lamp socket from the door trim.
