Door Lock Connector End View - Left

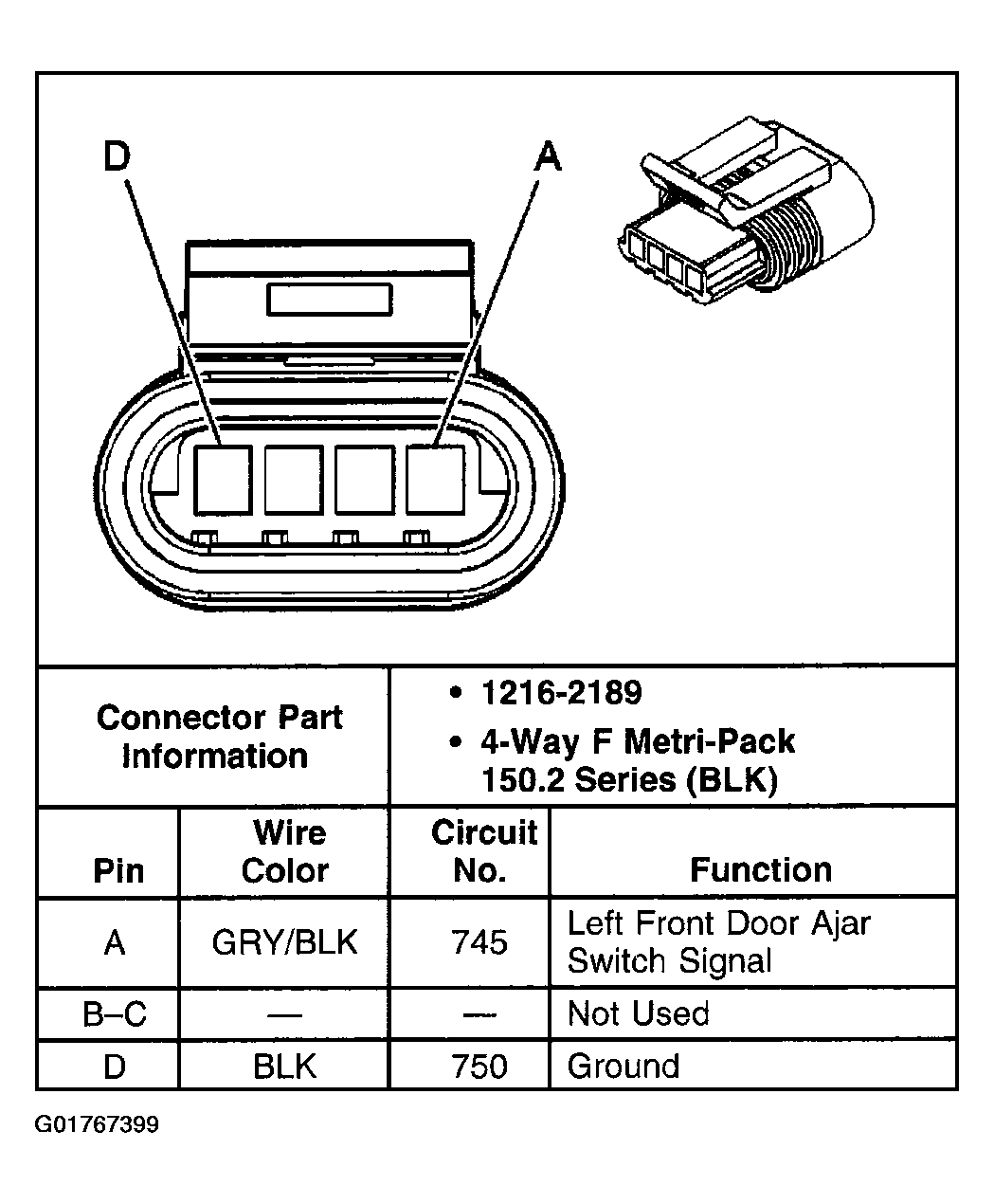

Fig 1: Door Lock Connector End View - Left
Courtesy of GENERAL MOTORS CORP.
