Lock System Does Not Unlock
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Lock System Does Not Unlock

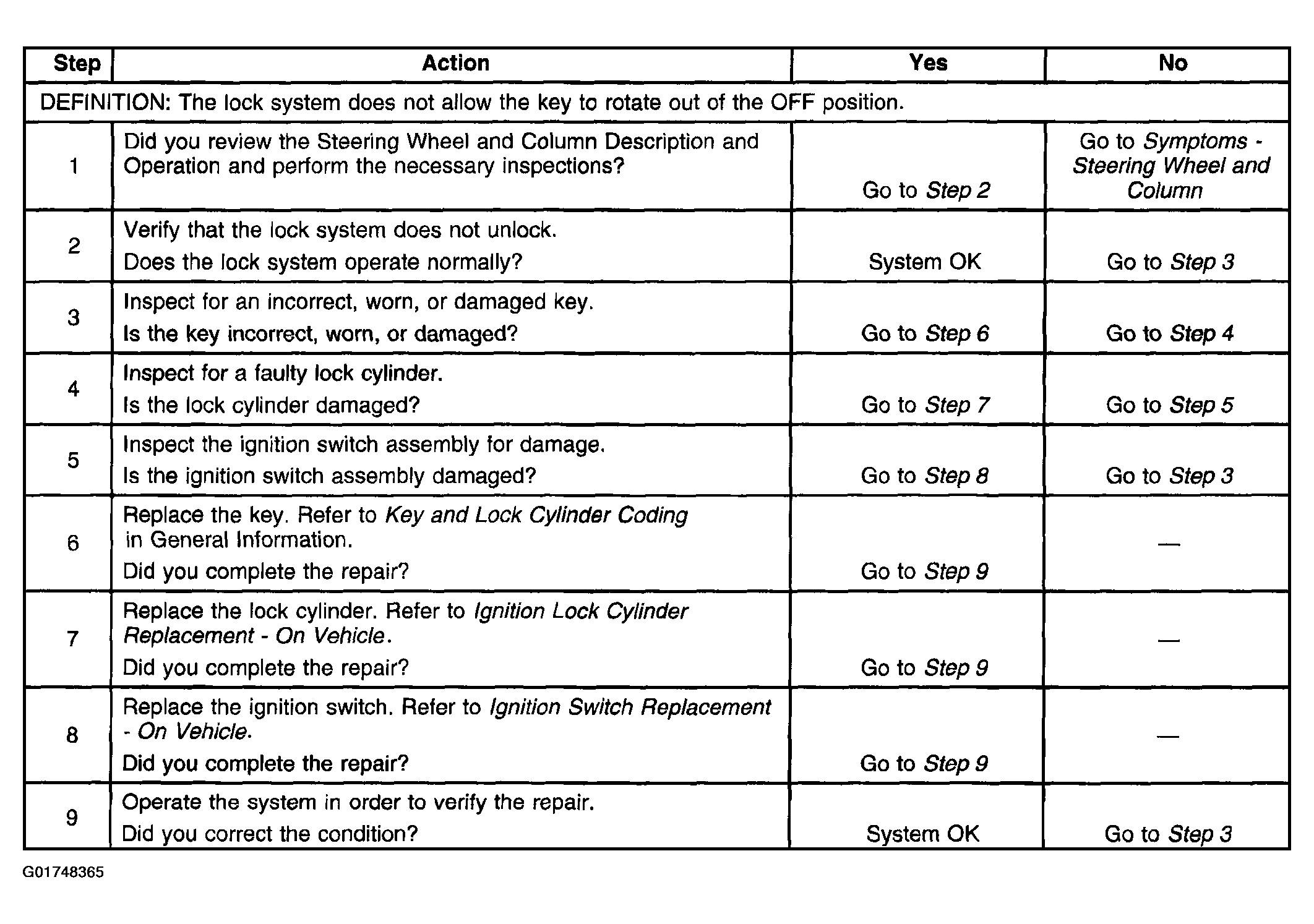

Fig 1: Lock System Does Not Unlock
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
