Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

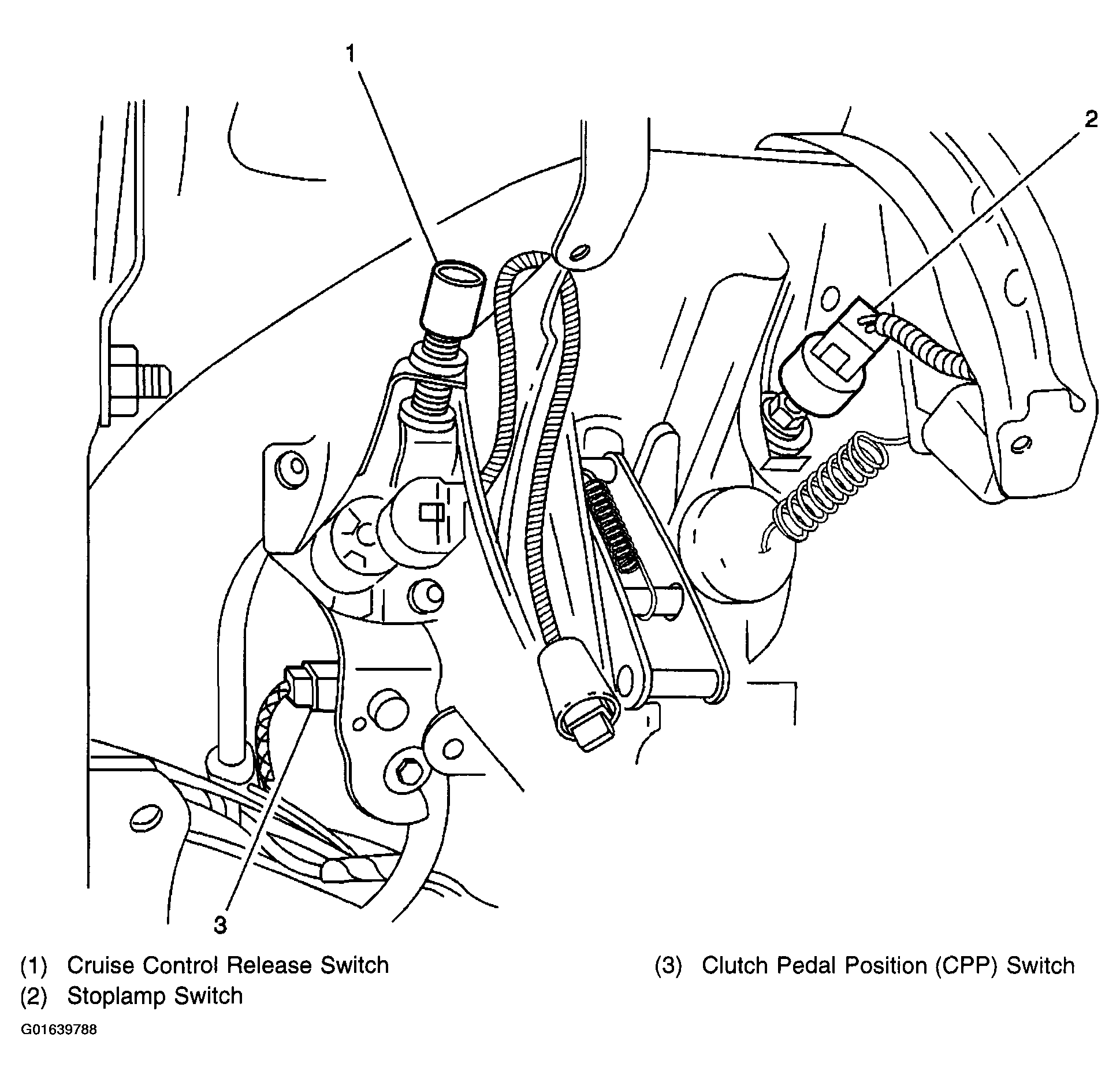

Fig 1: LH Cowl Wiring (Manual Transmission)

Courtesy of GENERAL MOTORS CORP.

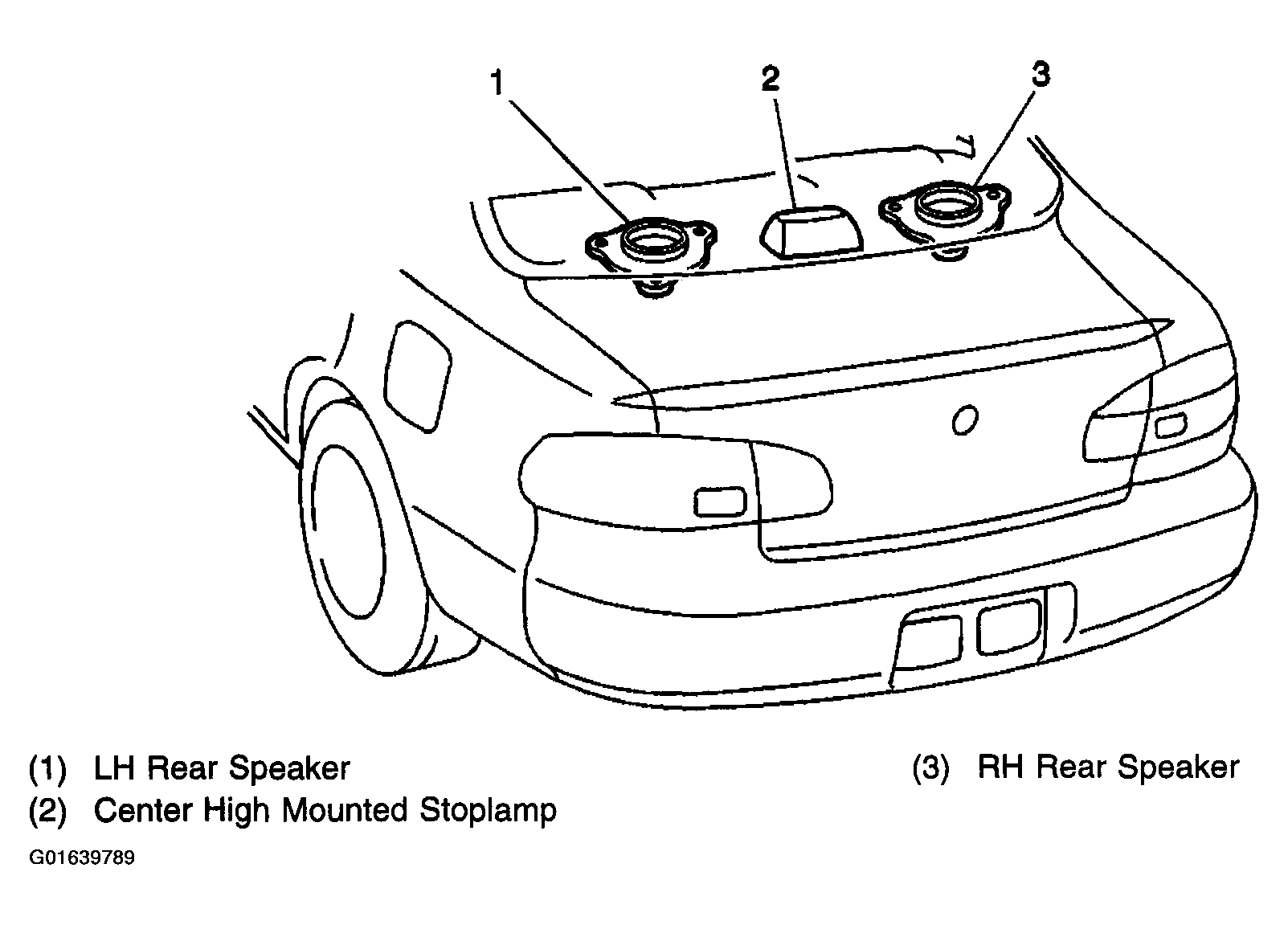

Fig 2: Rear Speakers and Center High Mounted Stop Light

Courtesy of GENERAL MOTORS CORP.

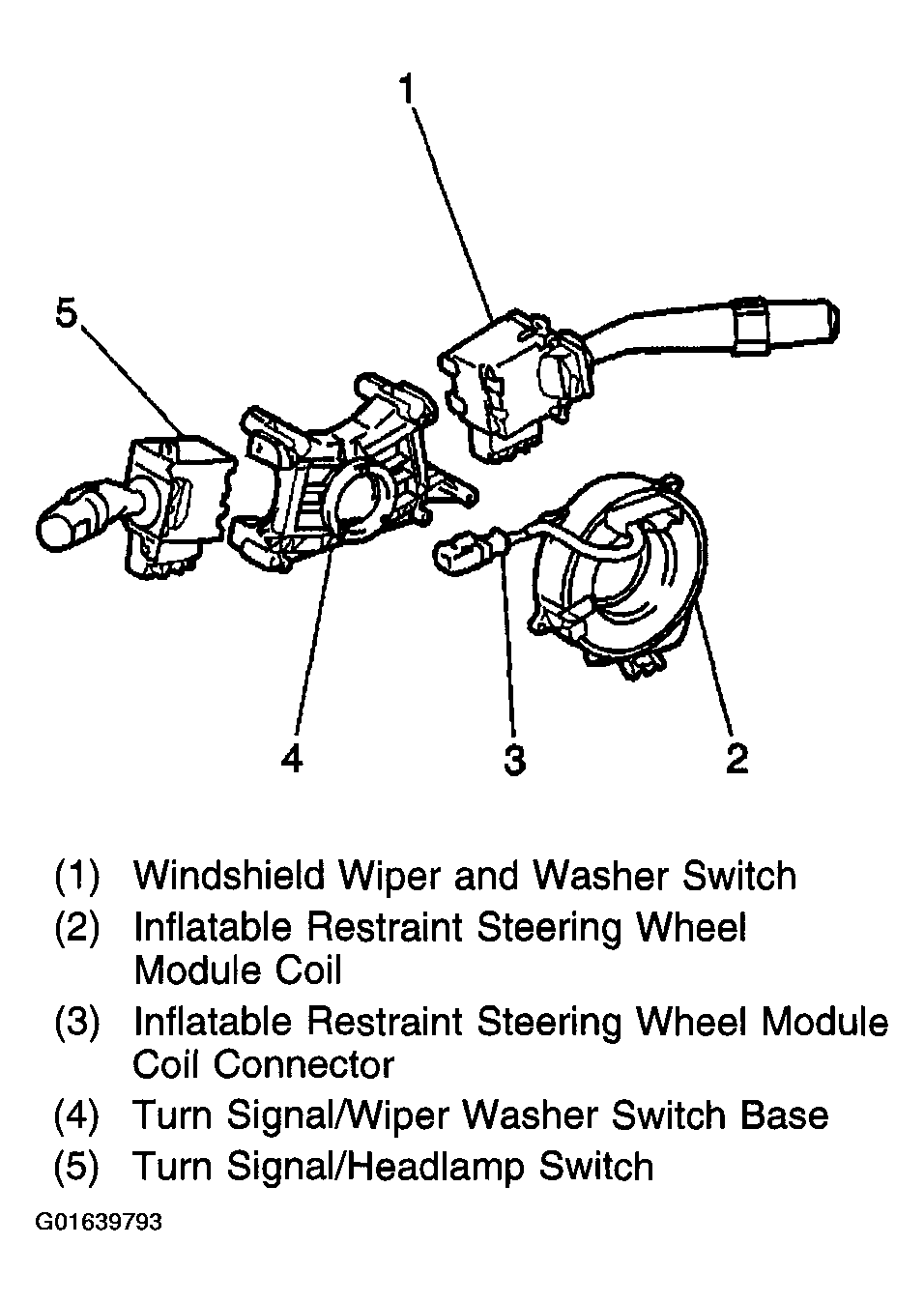

Fig 3: Identifying Steering Column Switches

Courtesy of GENERAL MOTORS CORP.

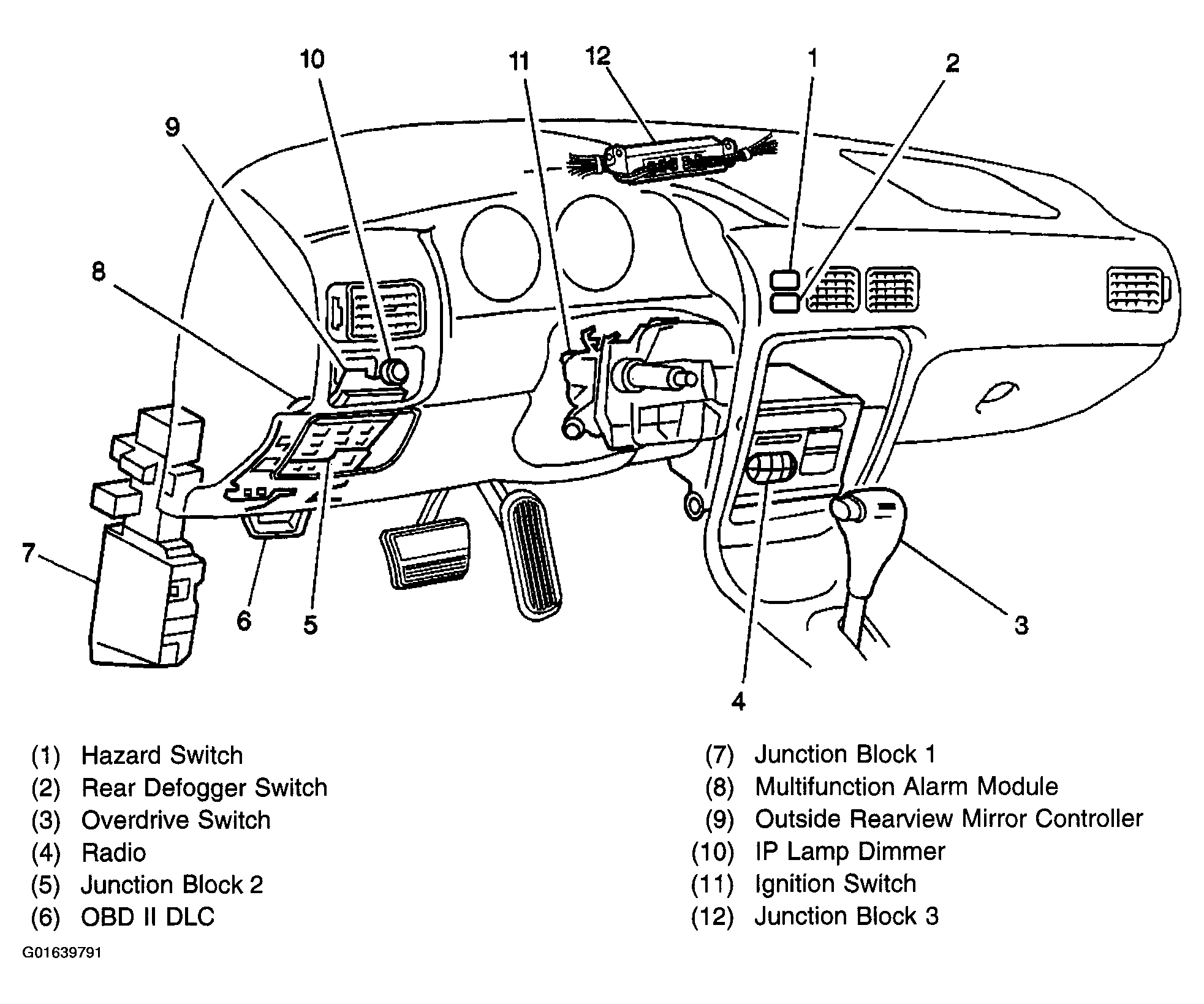

Fig 4: Identifying Instrument Panel Assembly Components (Left Side)

Courtesy of GENERAL MOTORS CORP.

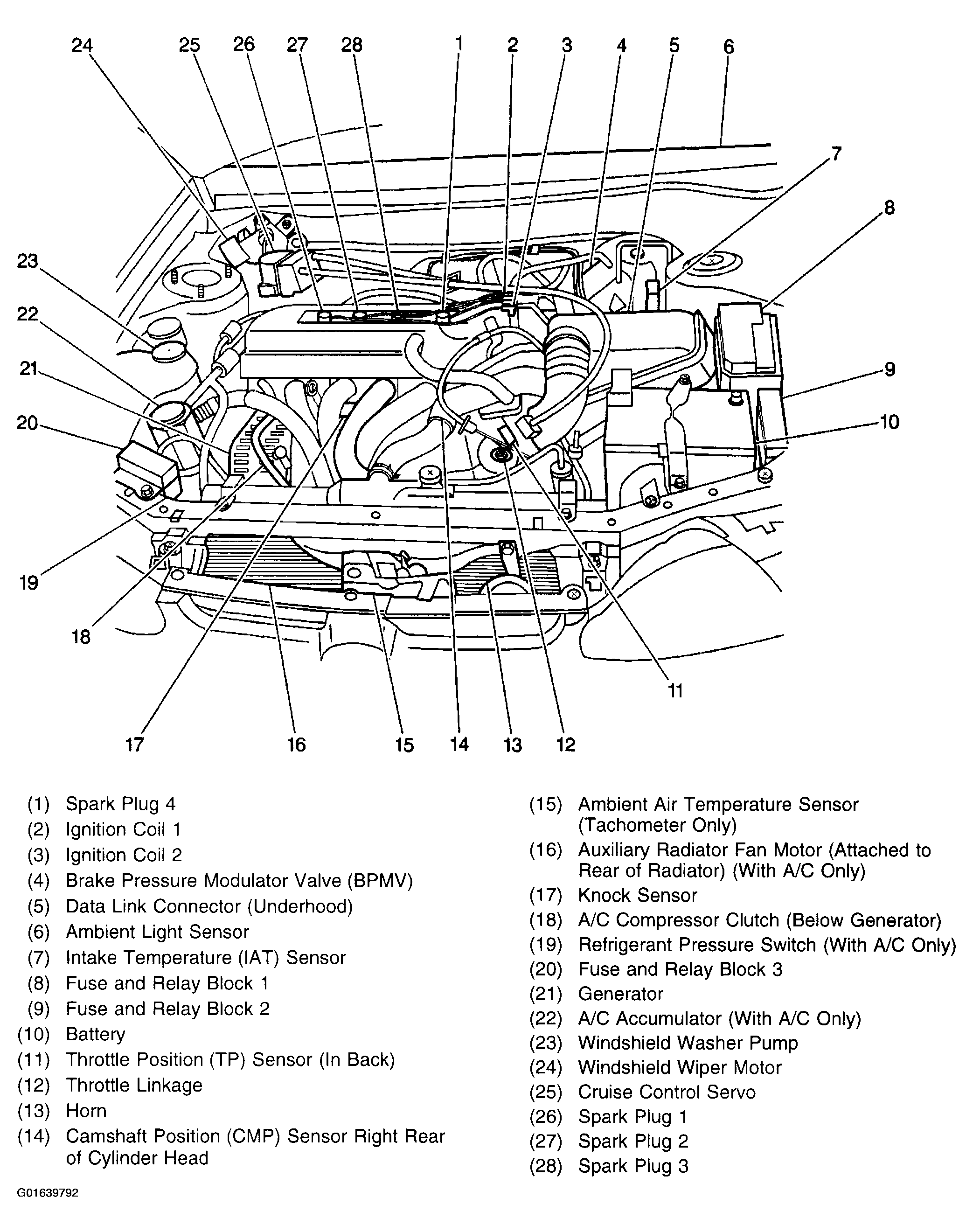

Fig 5: Identifying Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

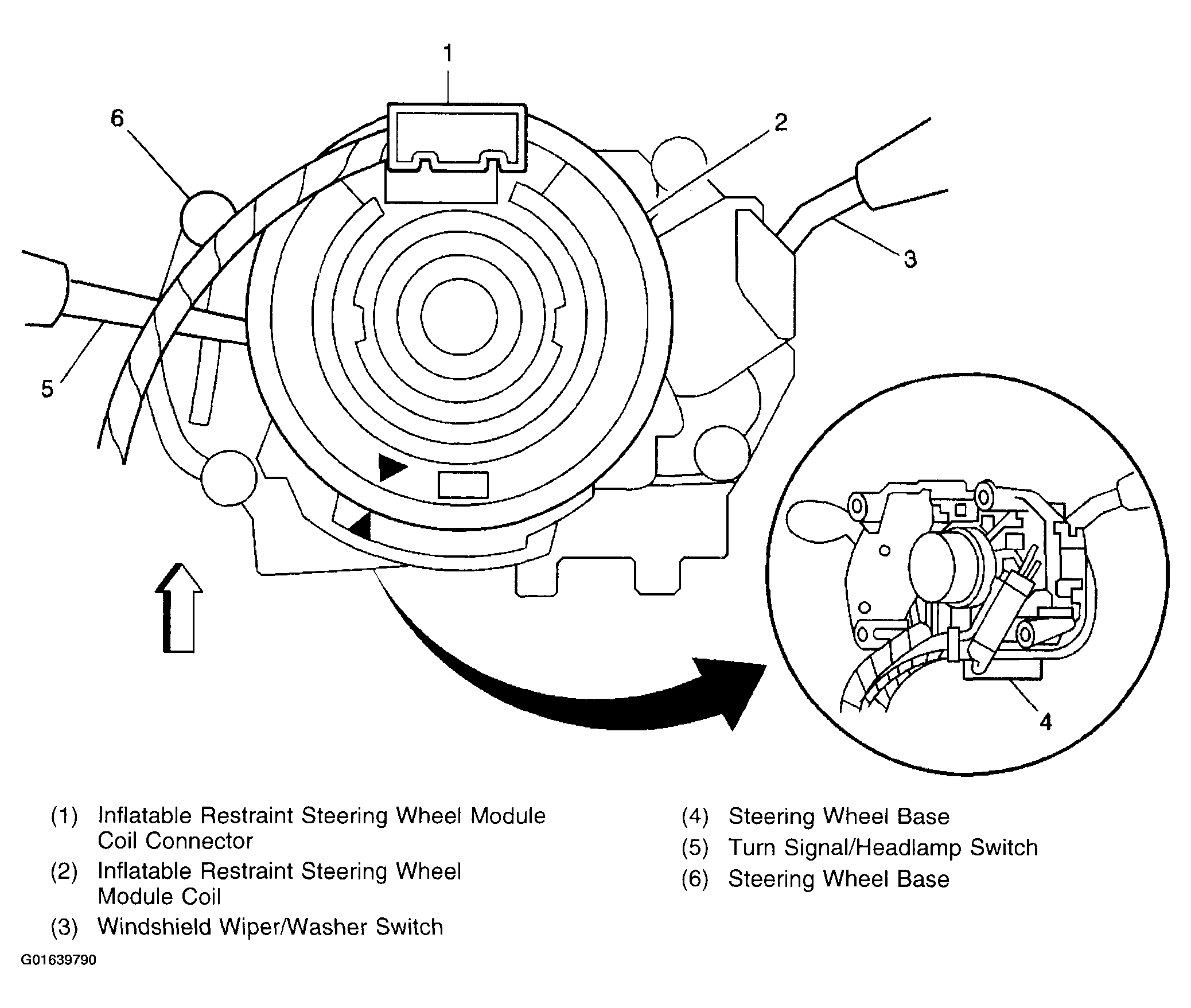

Fig 6: Identifying Steering Column Switches

Courtesy of GENERAL MOTORS CORP.
