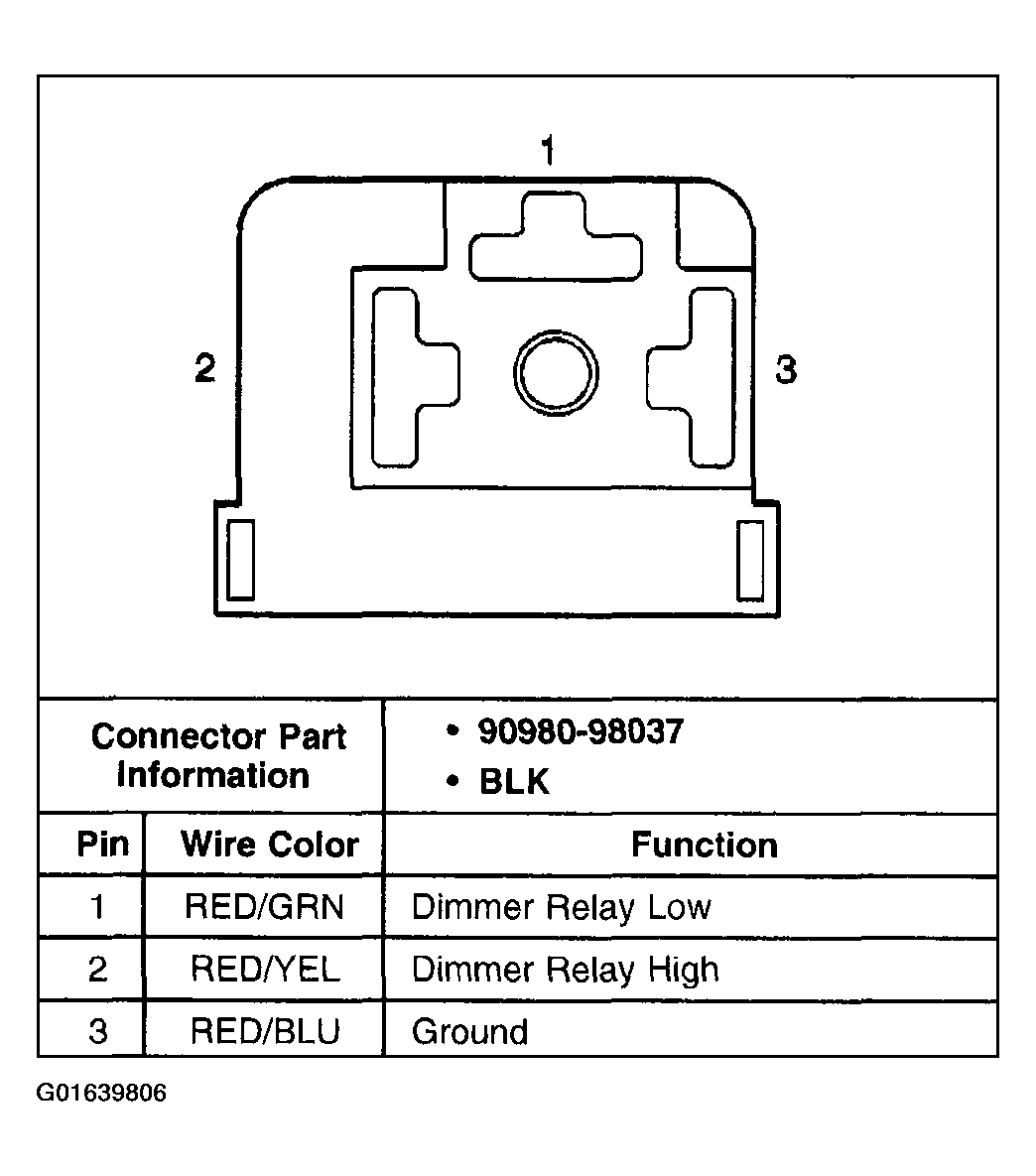

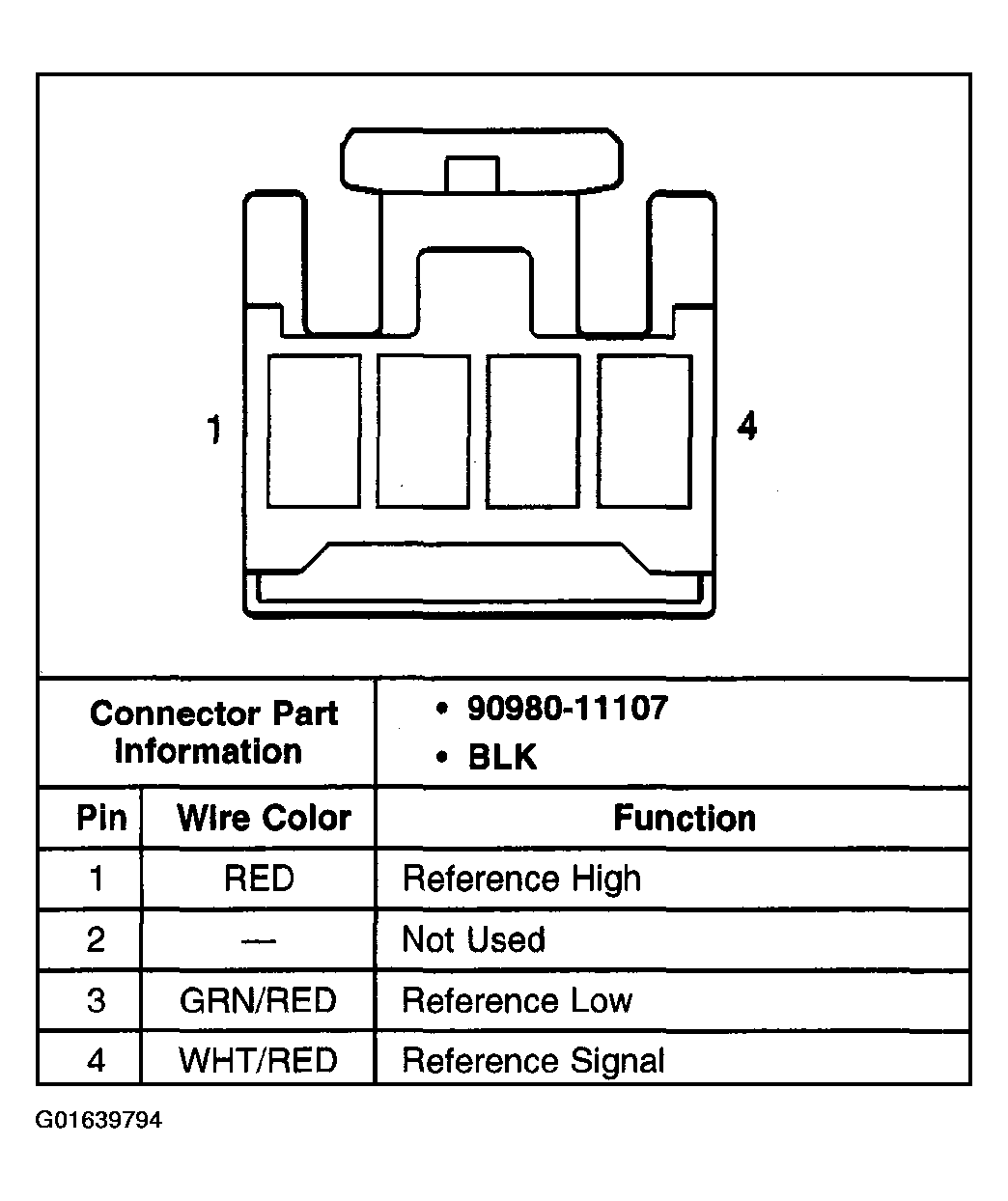

Fig 1: Ambient Light Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

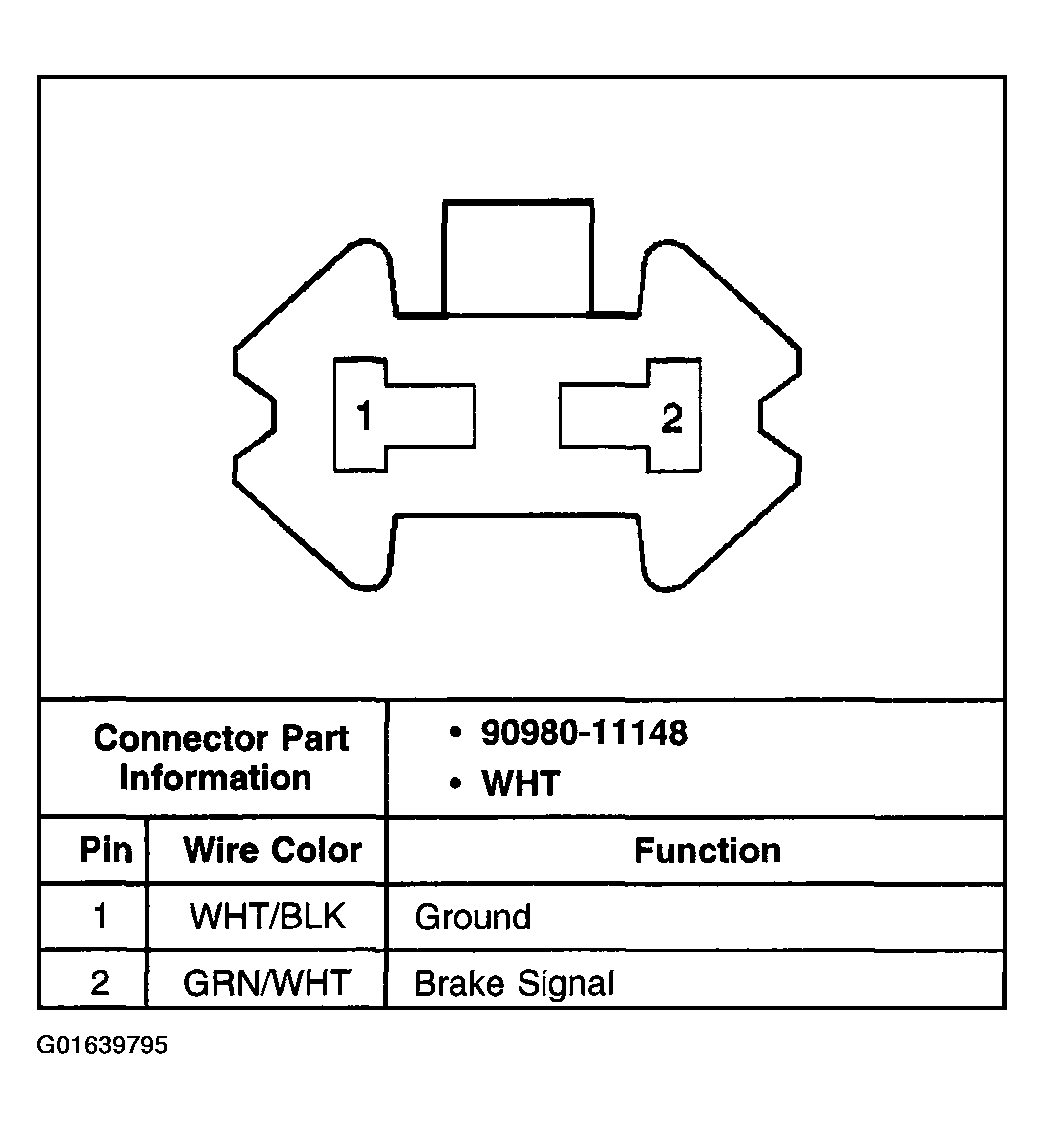

Fig 2: Center High Mounted Stop Lamp (CHMSL) Connector End View
Courtesy of GENERAL MOTORS CORP.

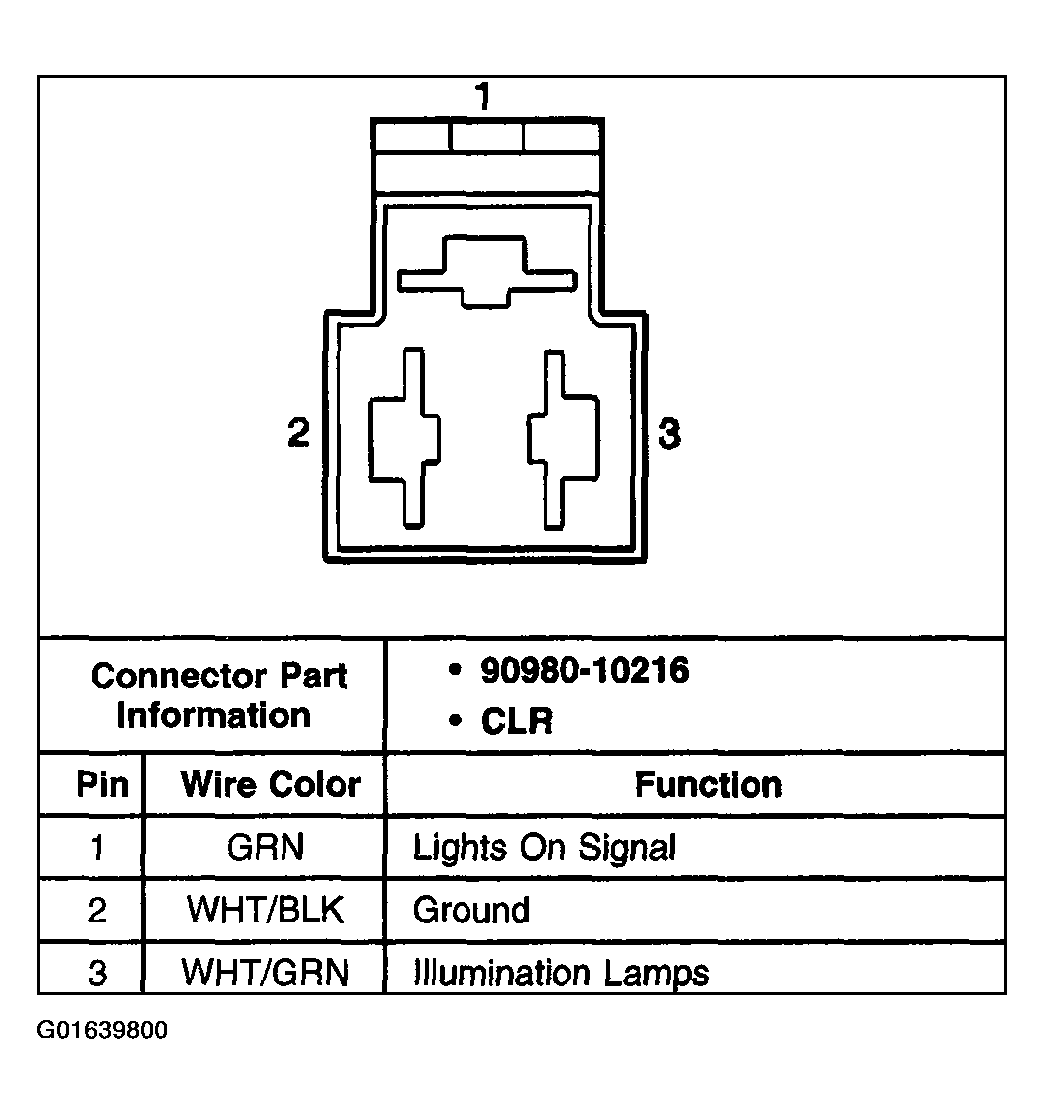

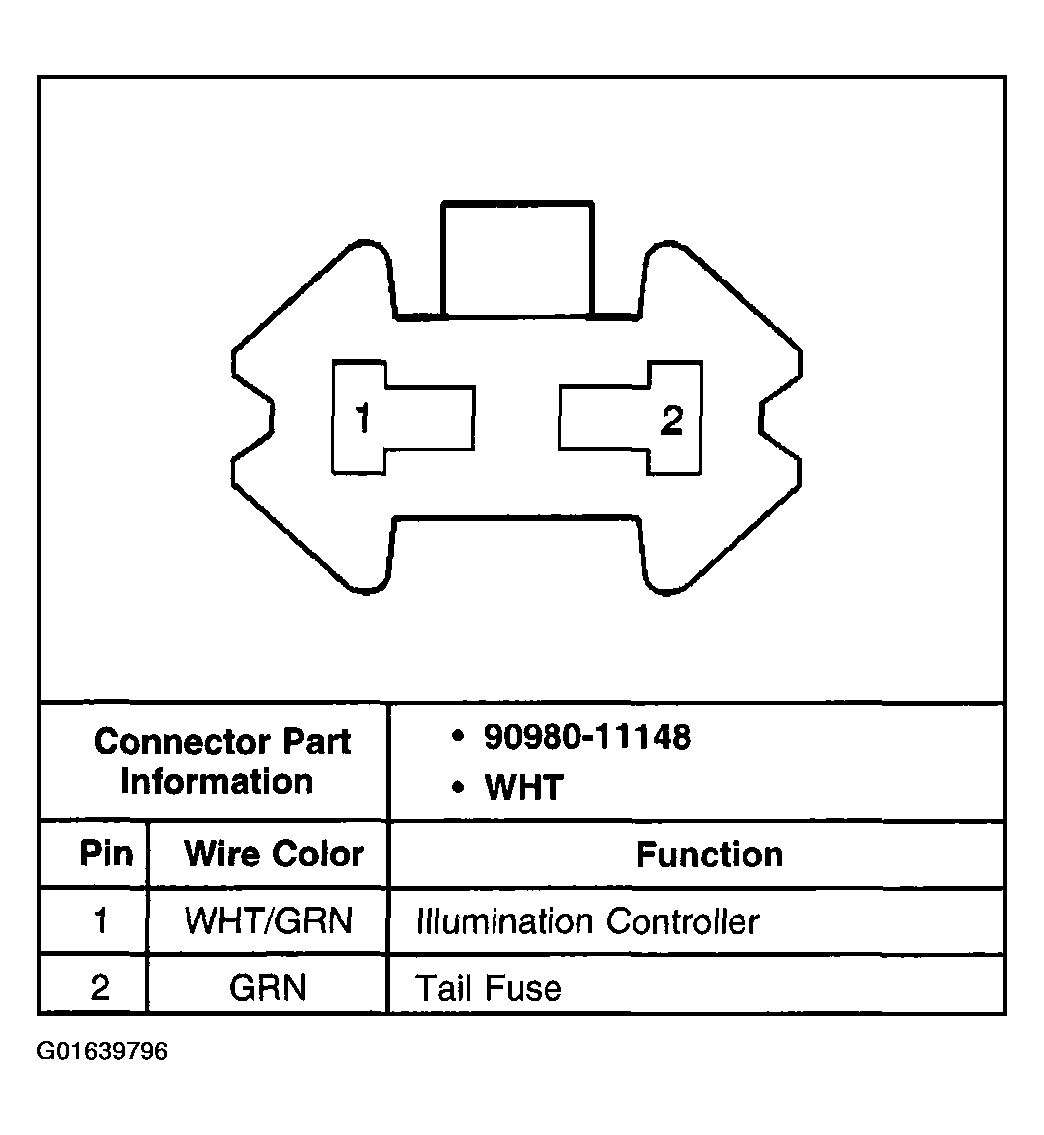

Fig 3: Cigar Lighter Illumination Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

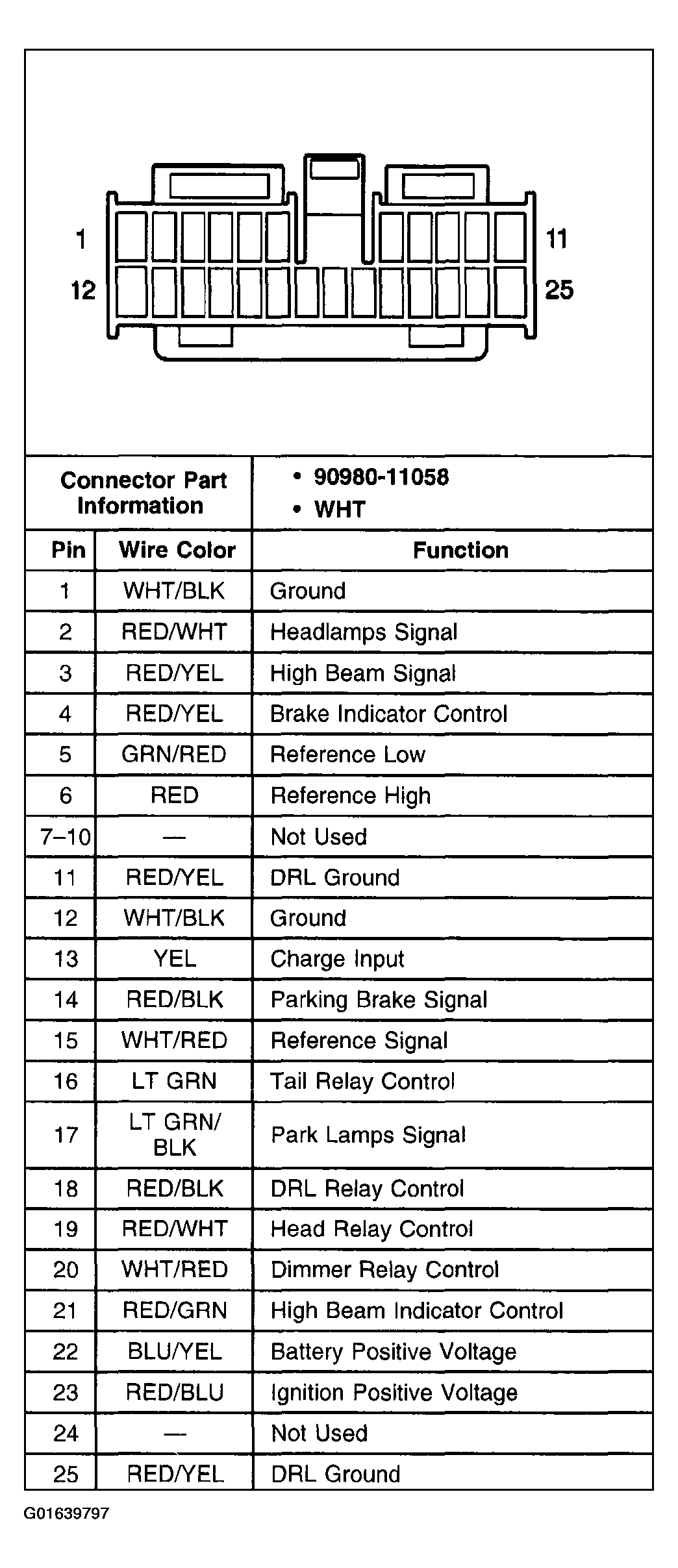

Fig 4: Daytime Running Lamps (DRL) Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.

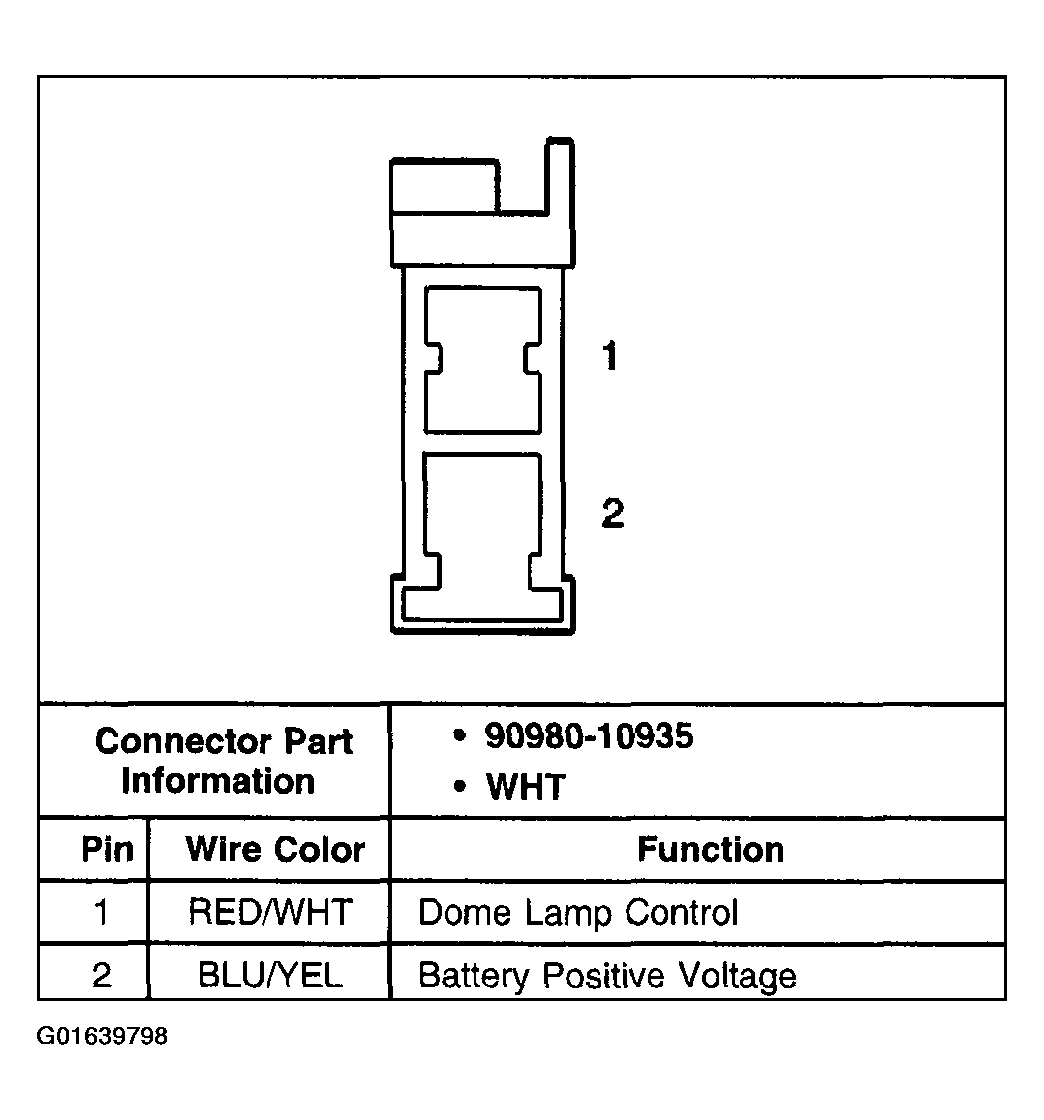

Fig 5: Dome Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

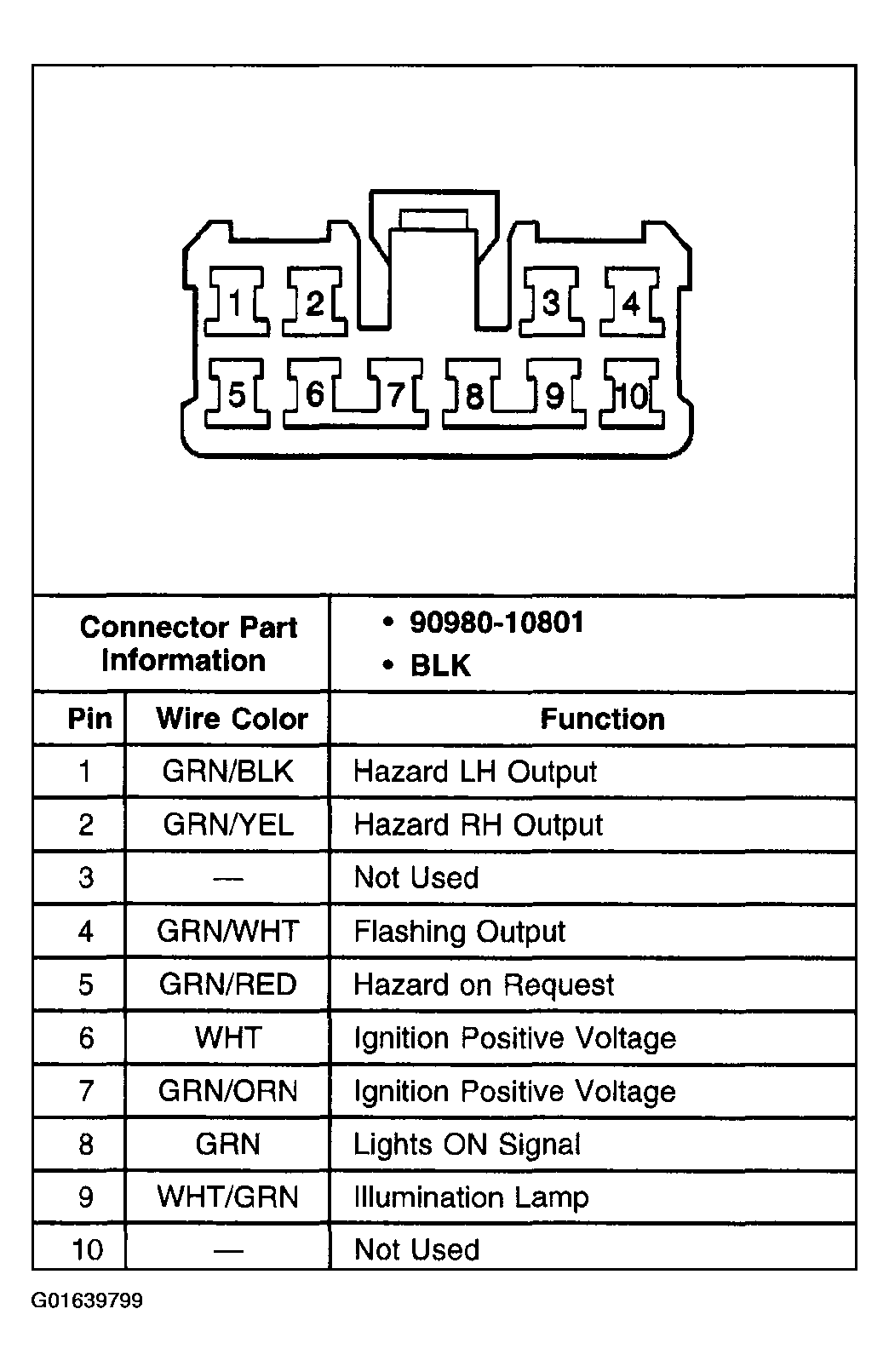

Fig 6: Hazard Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: I/P Lamp Dimmer Connector End View
Courtesy of GENERAL MOTORS CORP.

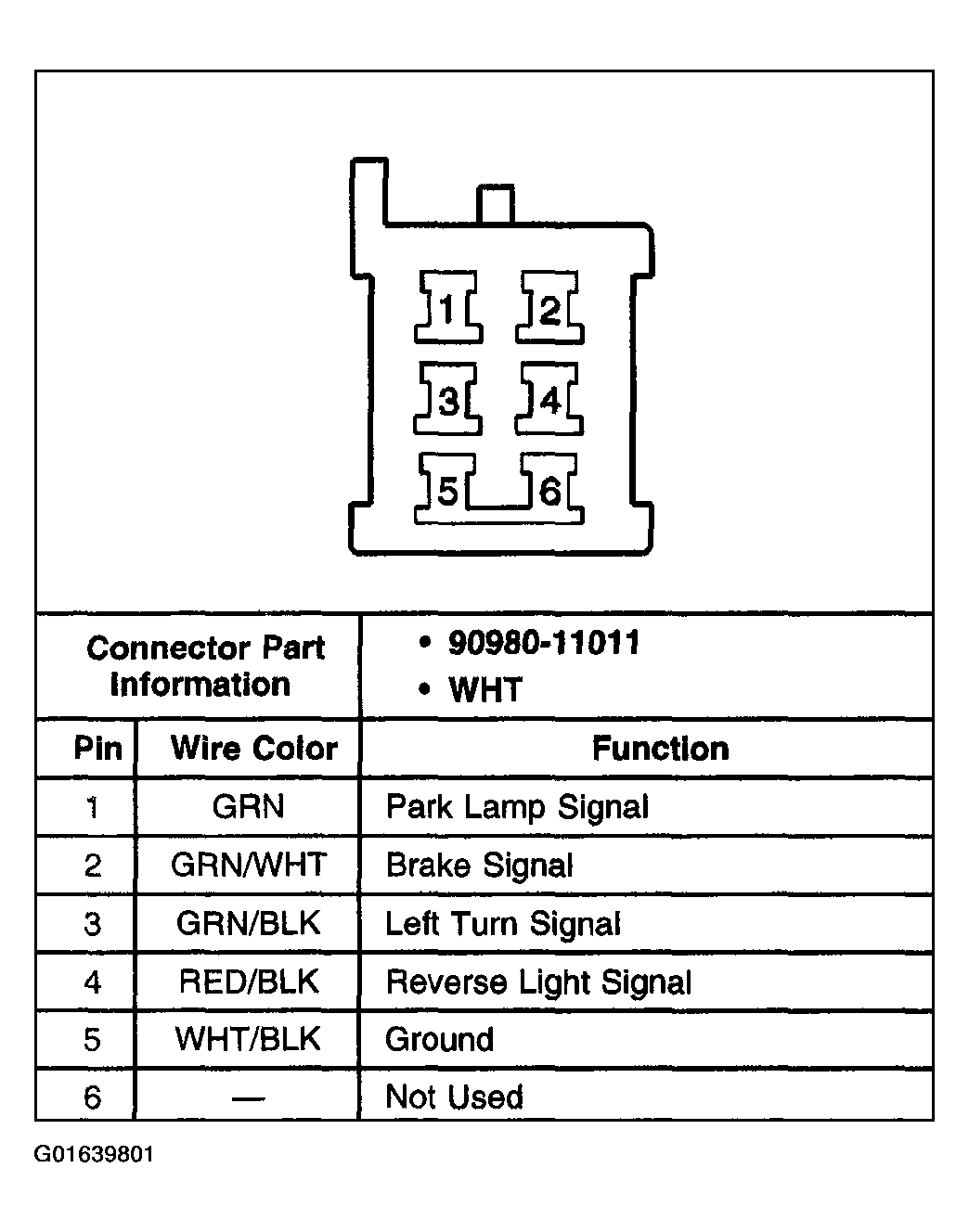

Fig 8: LH Combination Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

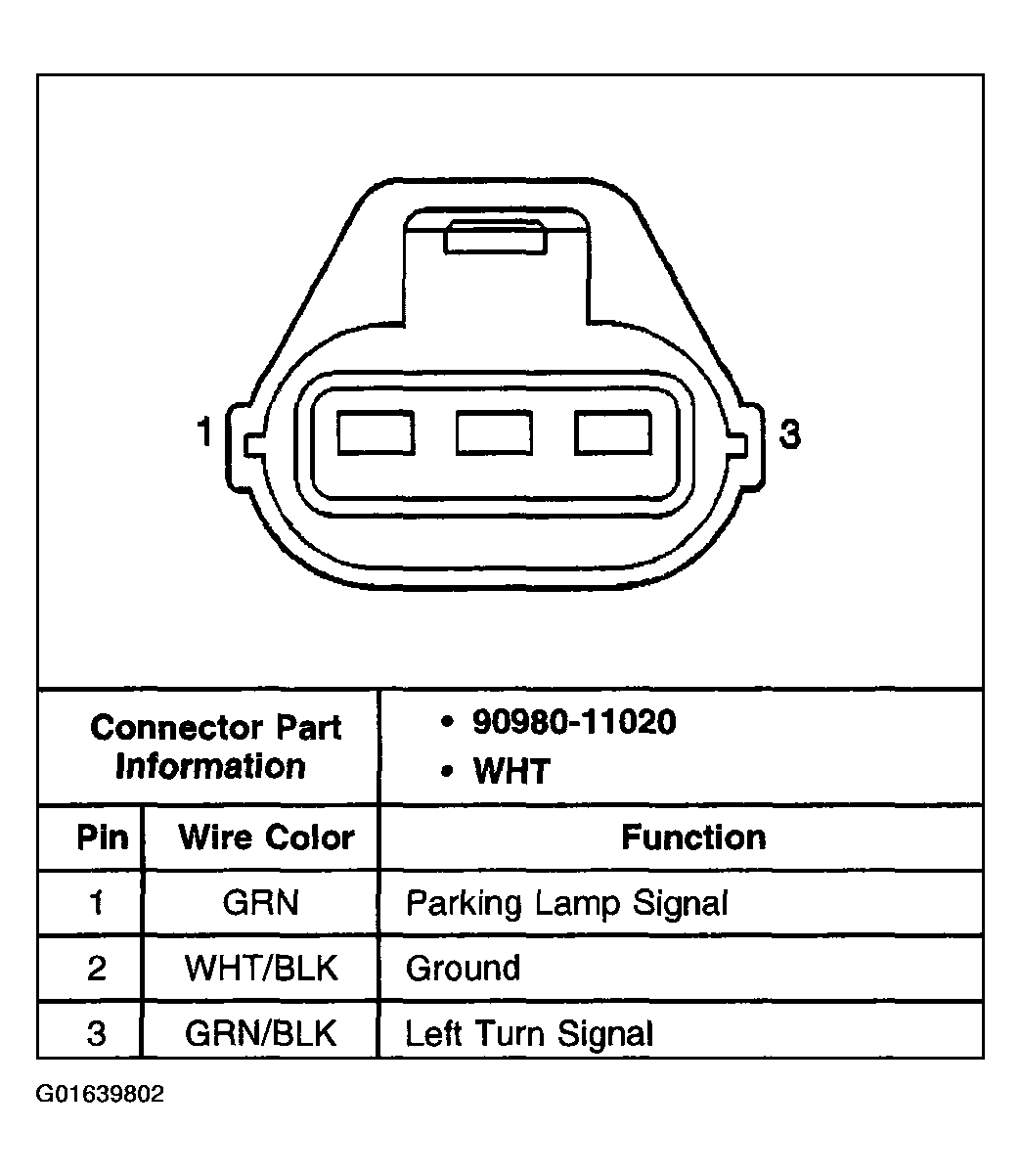

Fig 9: Left Front Park/Turn Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

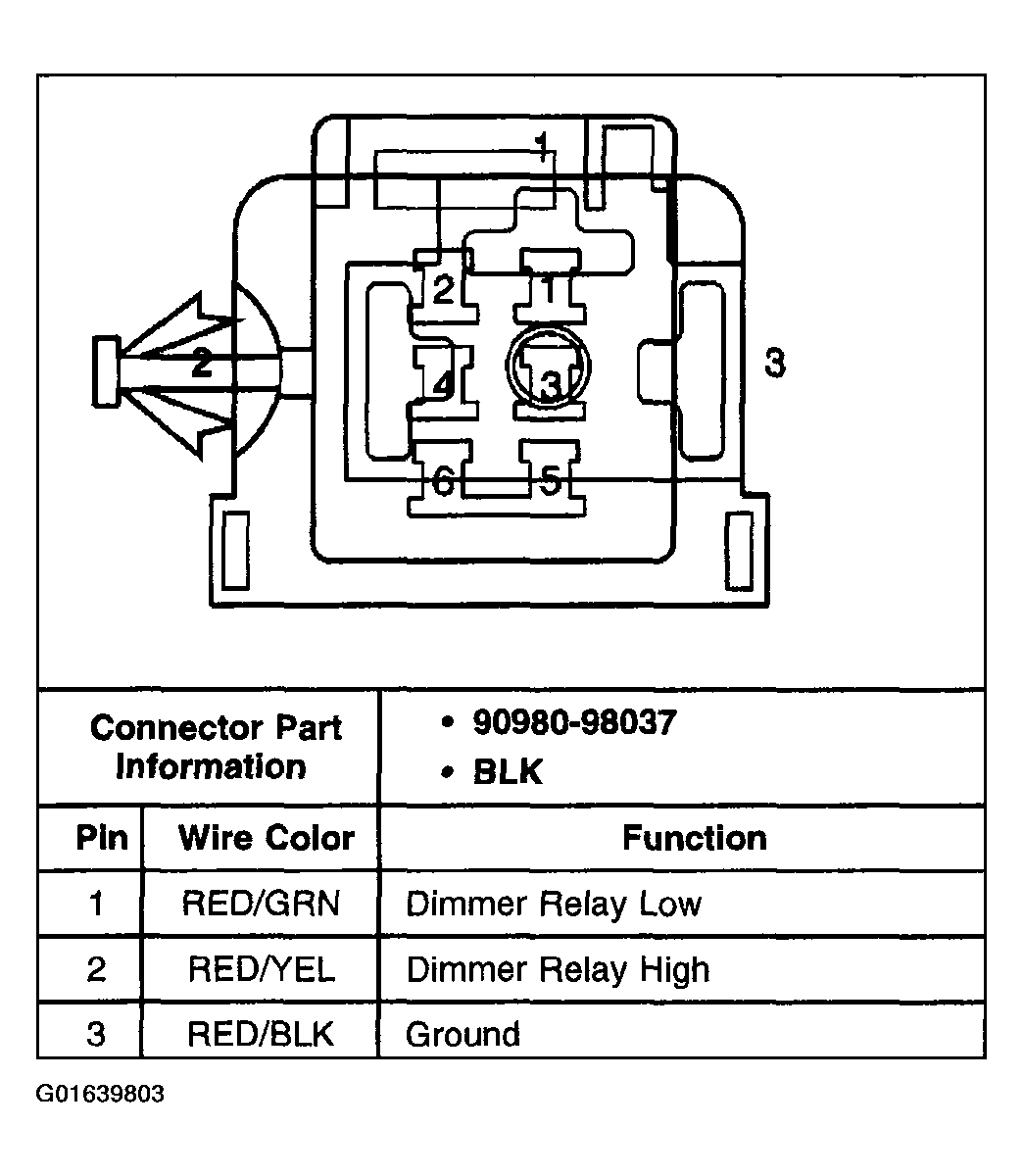

Fig 10: LH Headlamp Connector End View
Courtesy of GENERAL MOTORS CORP.

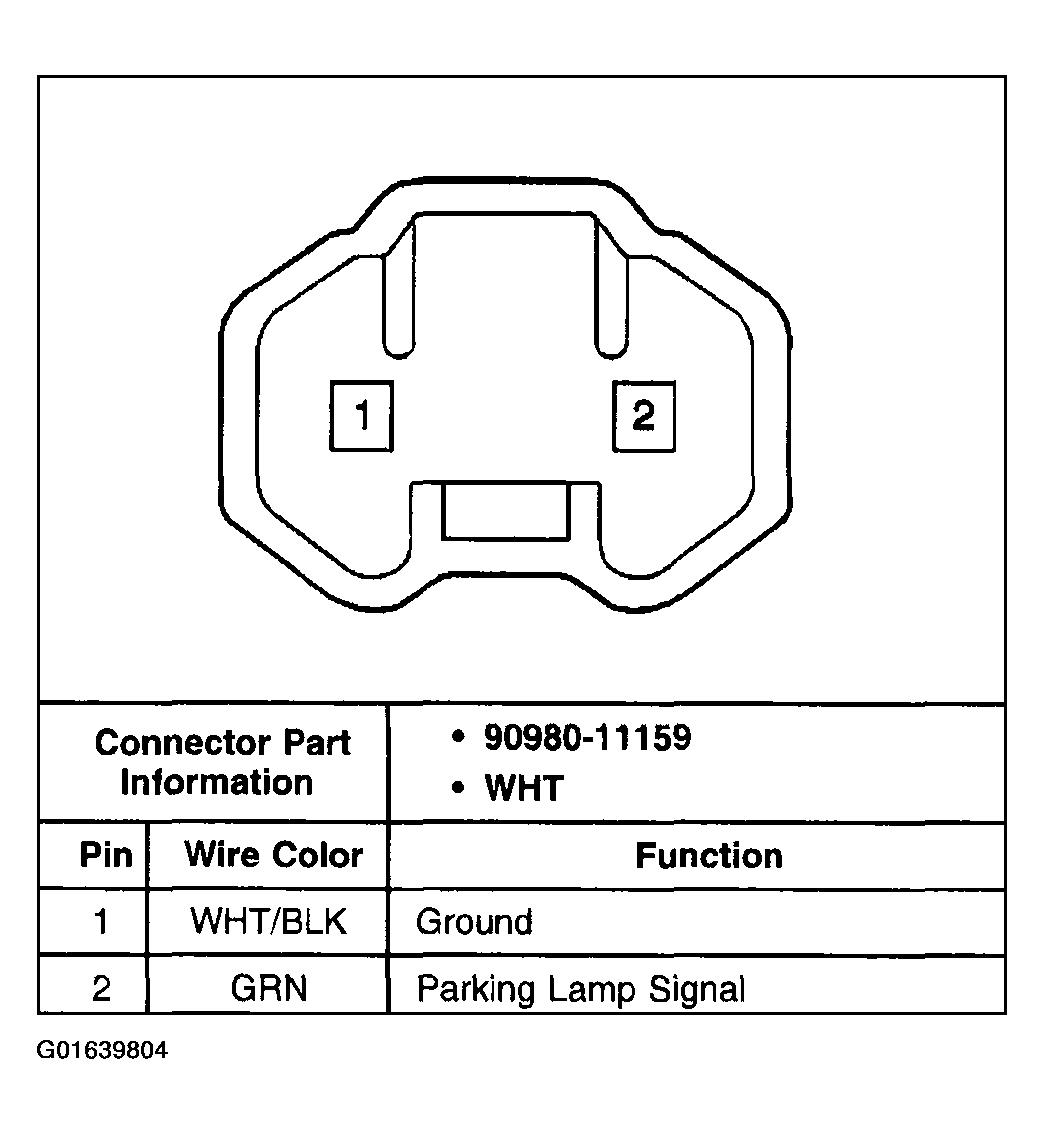

Fig 11: Rear License Plate Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 12: Rear Compartment Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 13: RH Headlamp
Courtesy of GENERAL MOTORS CORP.

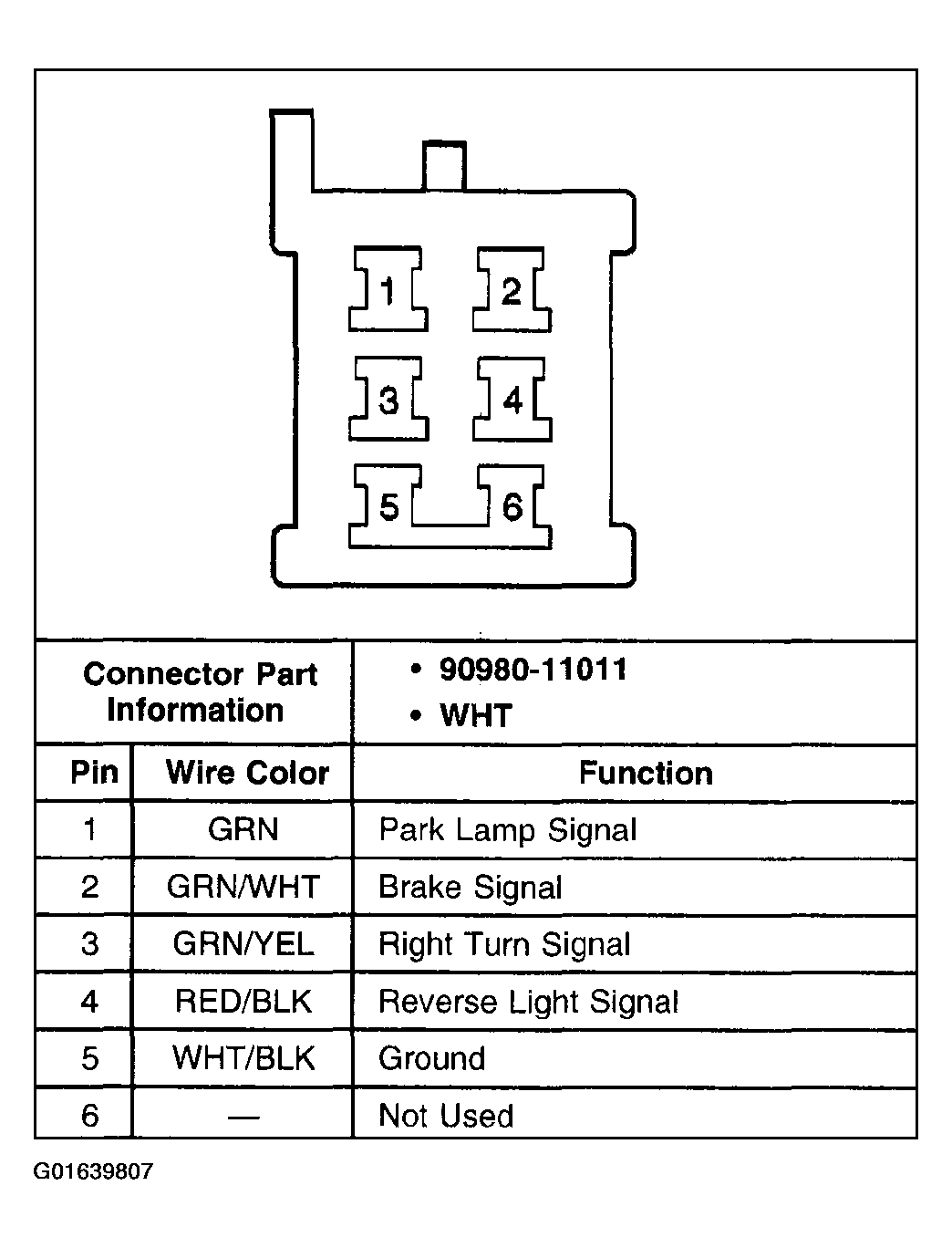

Fig 14: RH Rear Combination Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

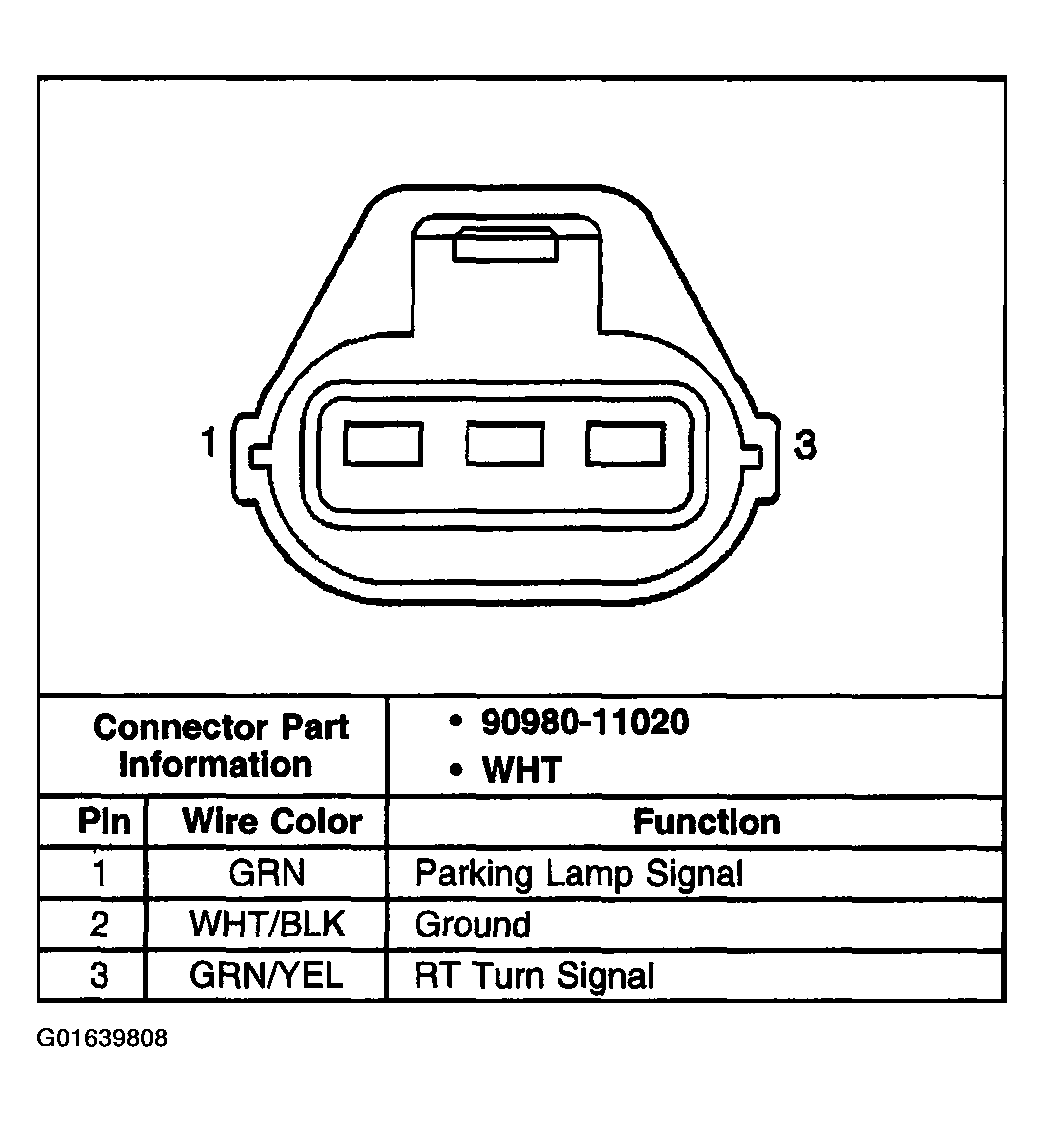

Fig 15: Right Front Park/Turn Lamp Connector End View
