System Description: Notes

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

The following audio systems are available:

Fig 1: Delco® AM/FM Stereo

Courtesy of GENERAL MOTORS CORP.

Radio AM/FM stereo
Seek
Clock
Electronically tuned receiver (ETR)

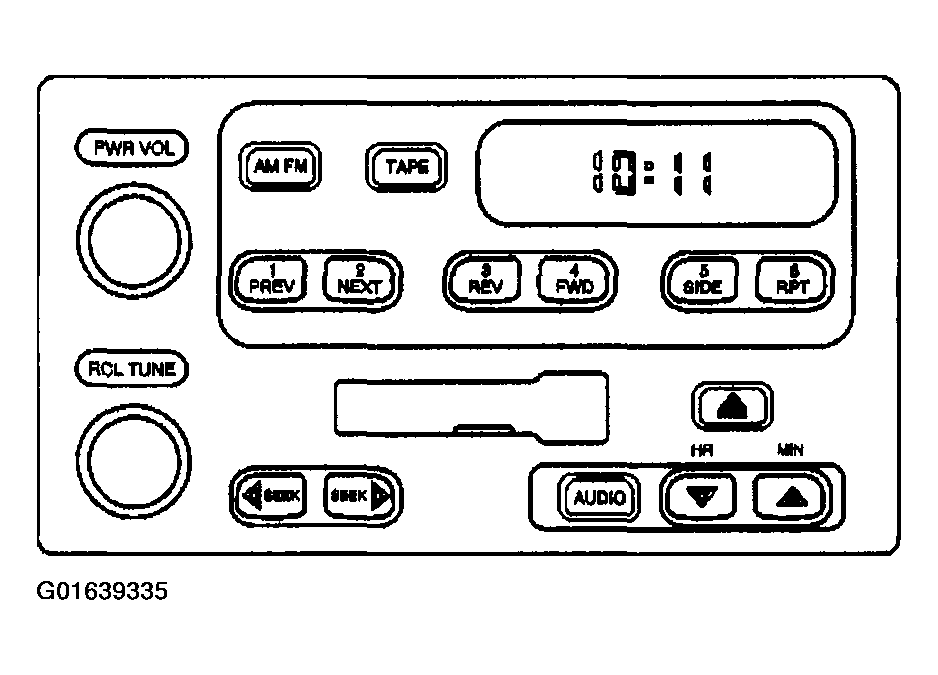

Fig 2: Delco® AM/FM Stereo With A Cassette Player
Courtesy of GENERAL MOTORS CORP.

Radio AM/FM stereo
Seek
Preset tone settings for sound quality
Clock
Electronically tuned receiver (ETR)
Auto Reverse music search cassette

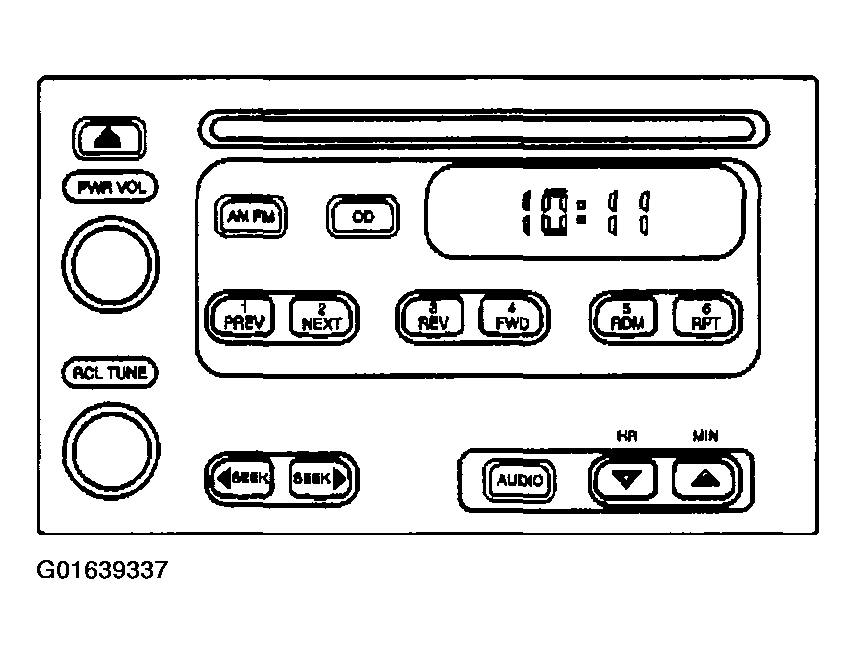

Fig 3: Delco® AM/FM Stereo With A Compact Disc Player
Courtesy of GENERAL MOTORS CORP.

Radio AM/FM stereo
Seek
Preset tone settings for sound quality
Clock
Electronically tuned receiver (ETR)
Compact disc player

The audio system consists of the following components:

The radio
Four speakers
The antenna

The ignition switch must be in the ACC or ON positions in order to operate any of the sound systems. The front speakers are located on the lower part of the front doors. The two rear speakers are located below the rear window to seat back trim panel.

Important:

All GM factory equipped audio systems have ungrounded speakers. Installing after market tape players, citizen band radios or other units that use the factory speakers may damage the audio system or impair the operation of the after market unit.
