Removal Procedure

  1. Pry up the rear of the drivers accessory panel (1), and or the front edge of the passenger accessory panel.
  2. Slide the driver side accessory panel, and or the passenger side accessory panel forward, out of the door trim panel.
  3. Disconnect the power window switch electrical connector (4).
  4. Remove the power window switches (3) from the accessory panel (1).

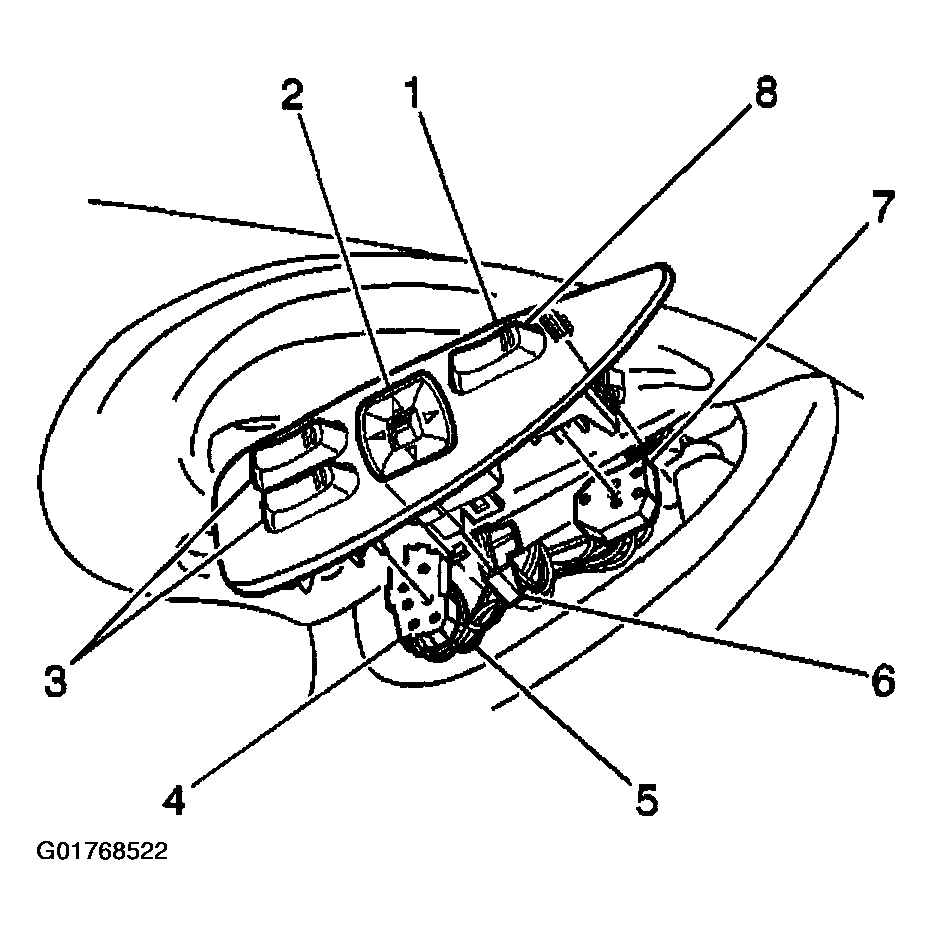

    Fig 1: Removing Power Window Switch (Pontiac)
    G01768522Courtesy of GENERAL MOTORS CORP.
