On-Vehicle Service

Specifications

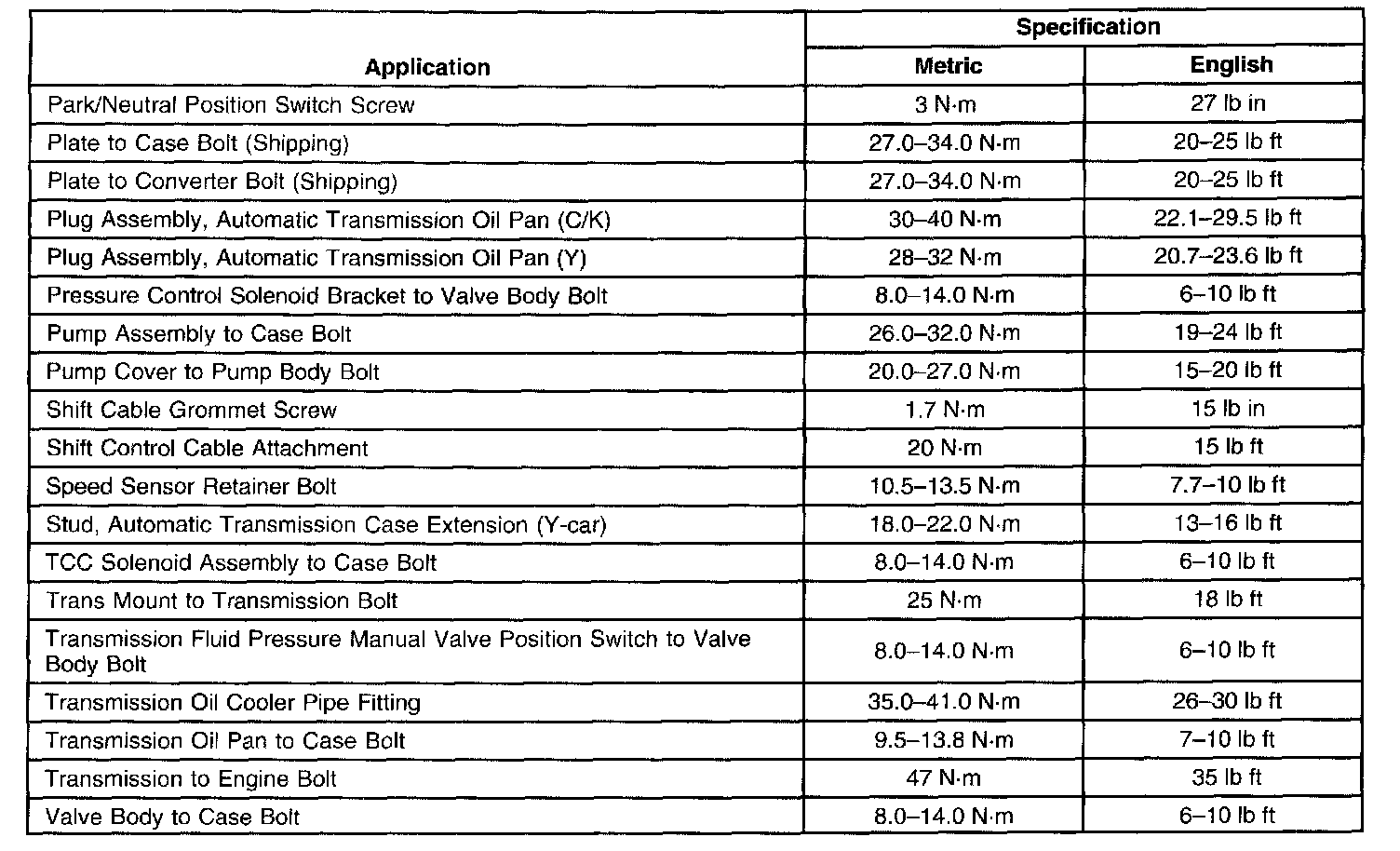

Fastener Tightening Specifications








Transmission General Specifications





Range Reference

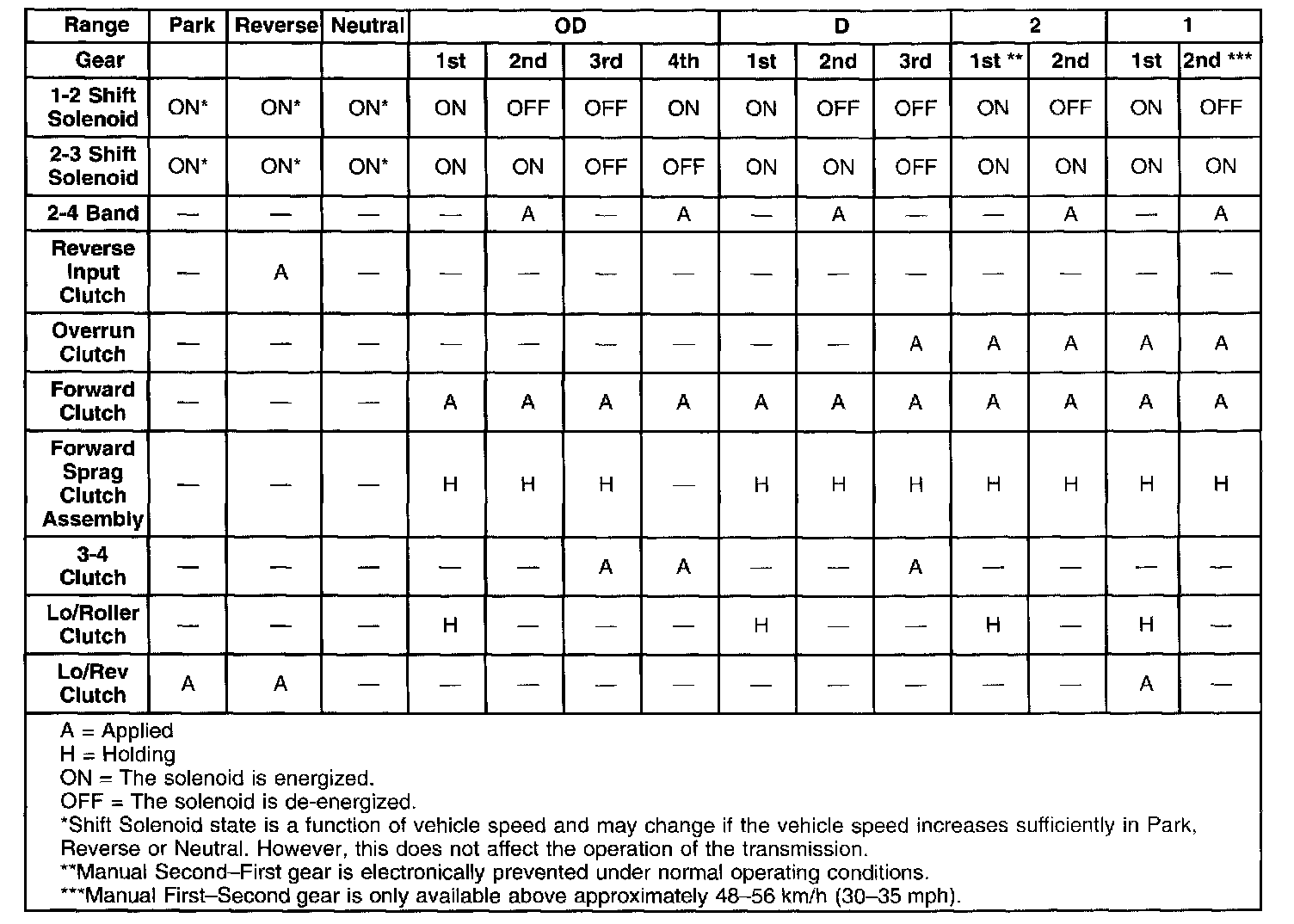

Shift Solenoid Valve State and Gear Ratio





Torque Converter End Play Specifications

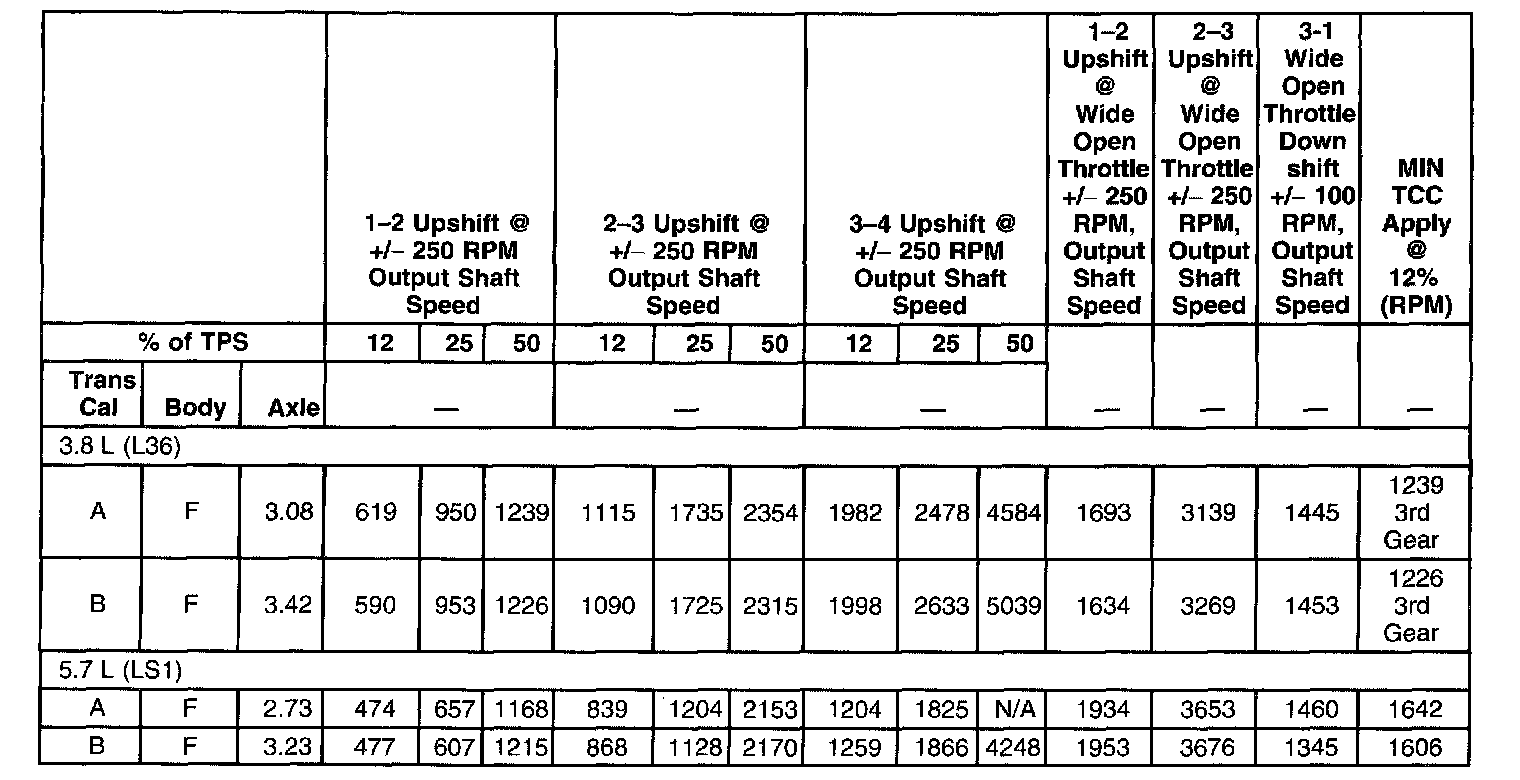

Shift Speed
