Body Control Module: Diagrams

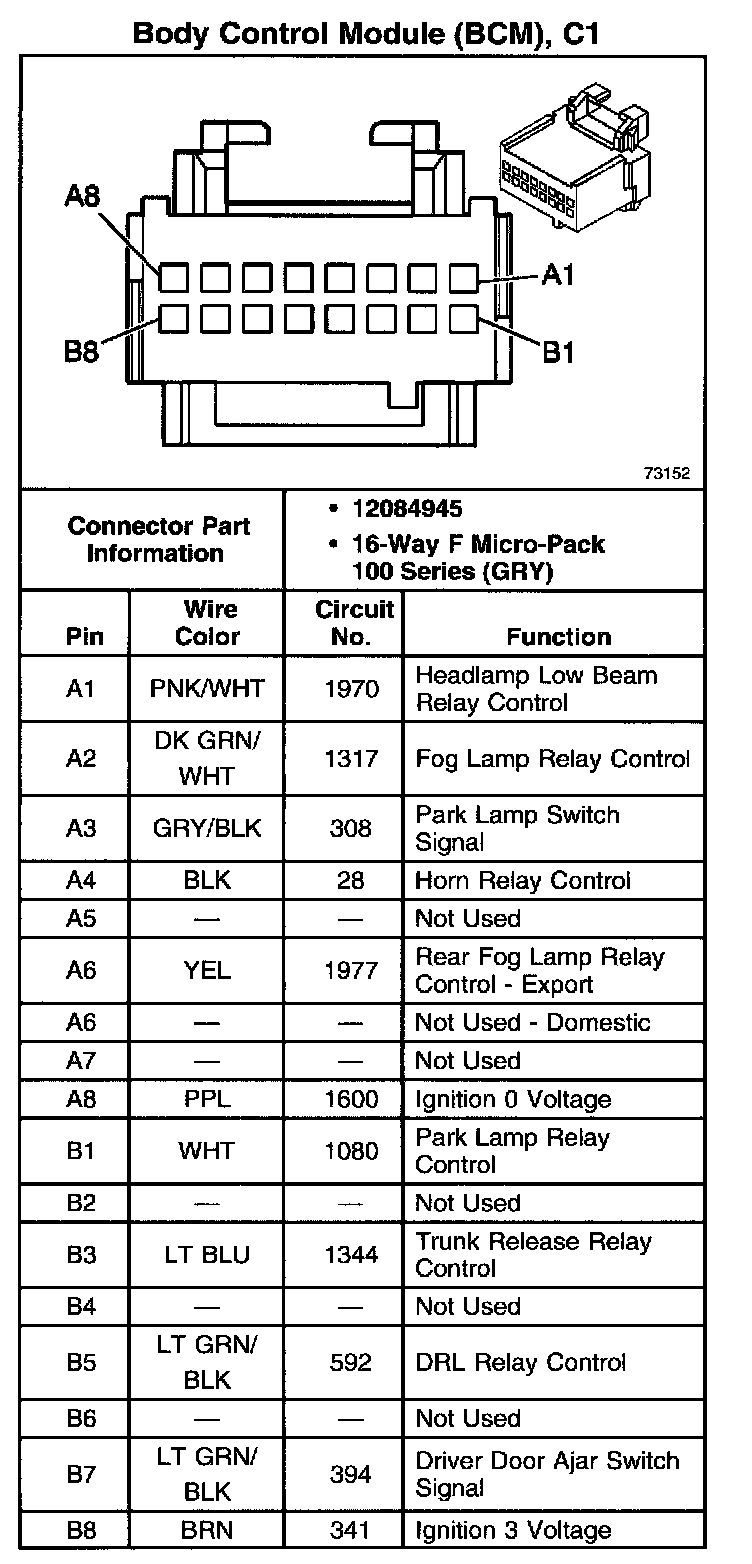

Body Control Module (BCM), C1:

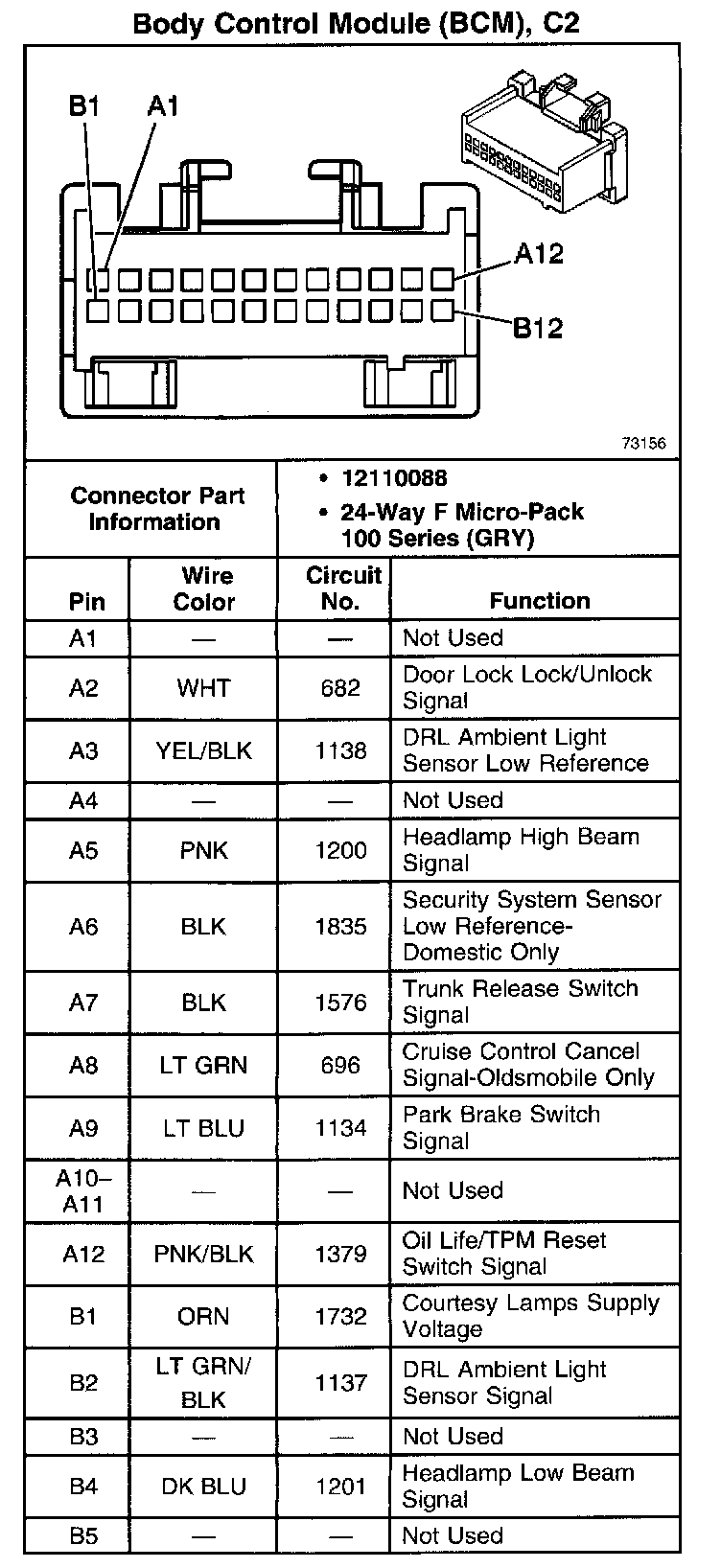

Body Control Module (BCM), C2 Part 1:

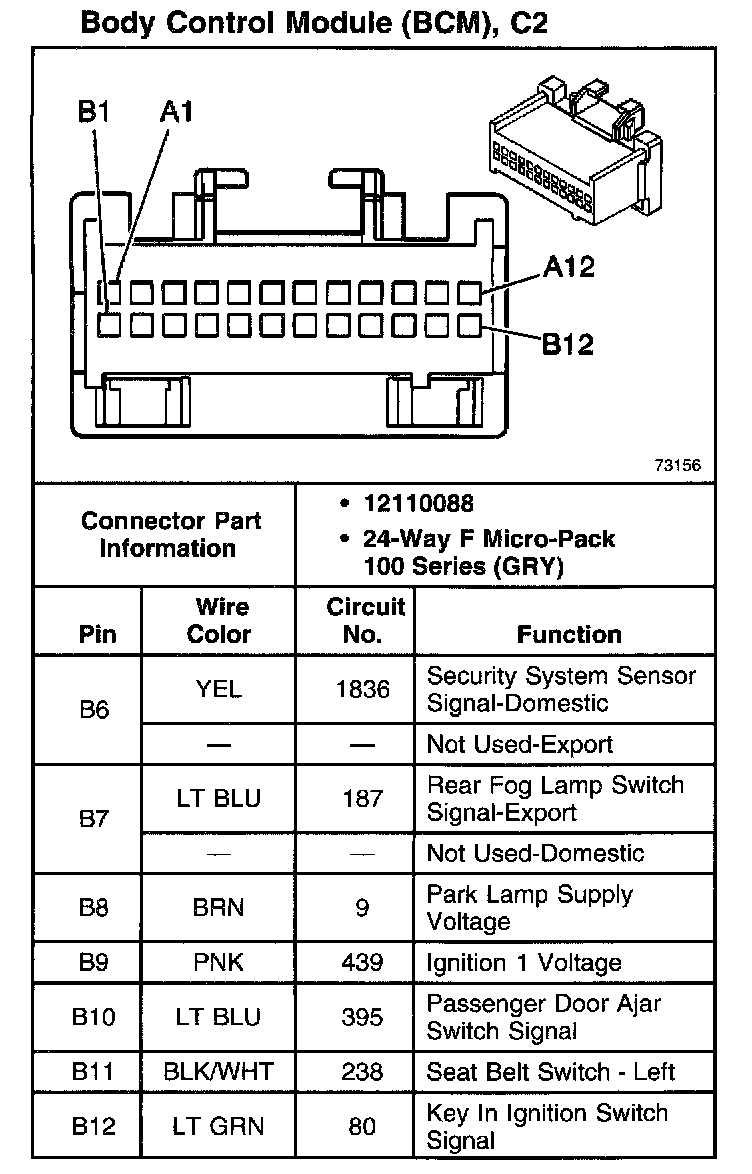

Body Control Module (BCM), C2 Part 2:

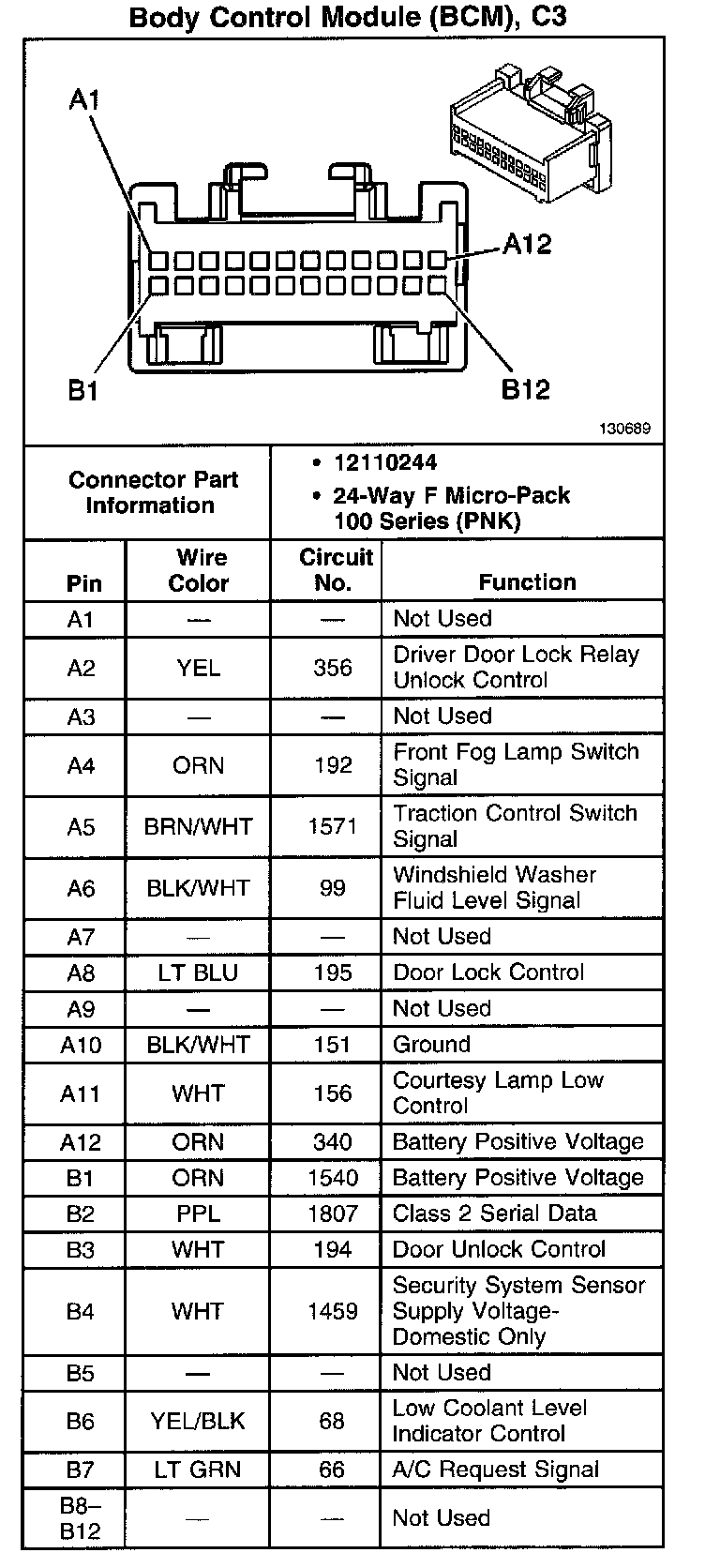

Body Control Module (BCM), C3:
