Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Turn the ignition switch to the OFF position.
  2. Remove the Connector Position Assurance (CPA) (2) from the connector lock tab (1).

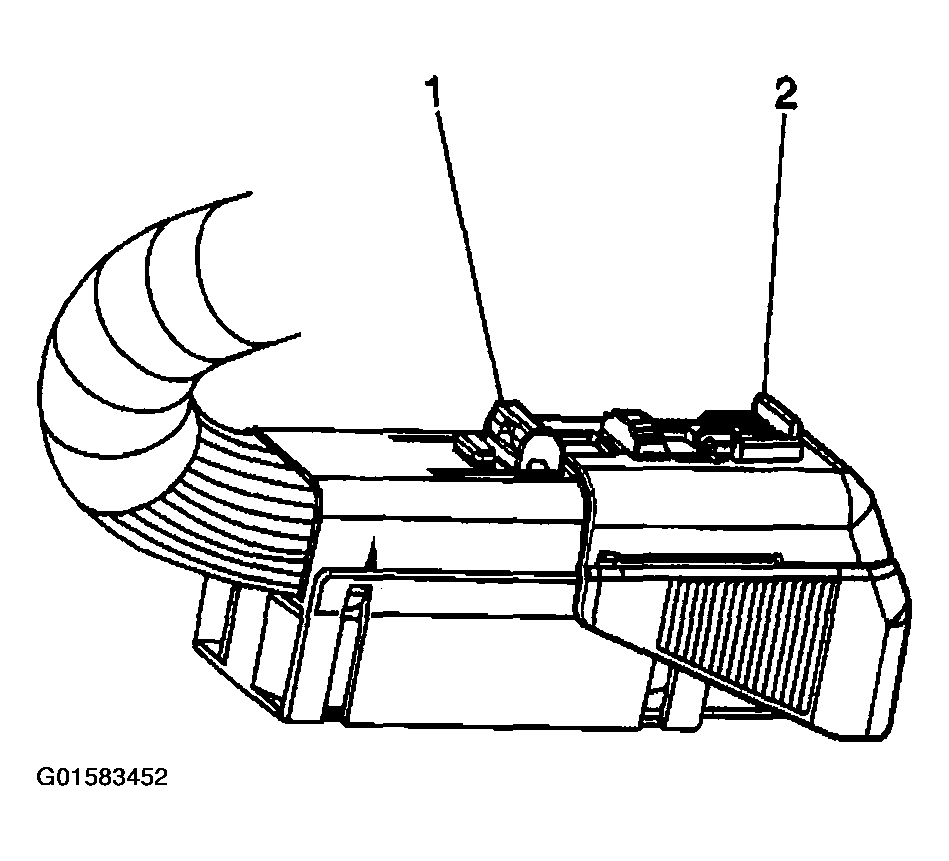

    Fig 1: Electronic Brake Control Module (EBCM) Removal (1 Of 3)
    G01583452Courtesy of GENERAL MOTORS CORP.
  3. Push the lock tab down and then move the sliding connector cover to the open position.
  4. Disconnect the Electronic Brake Control Module (EBCM) harness connector (4).
  5. Brush off any dirt/debris that has accumulated on the assembly.

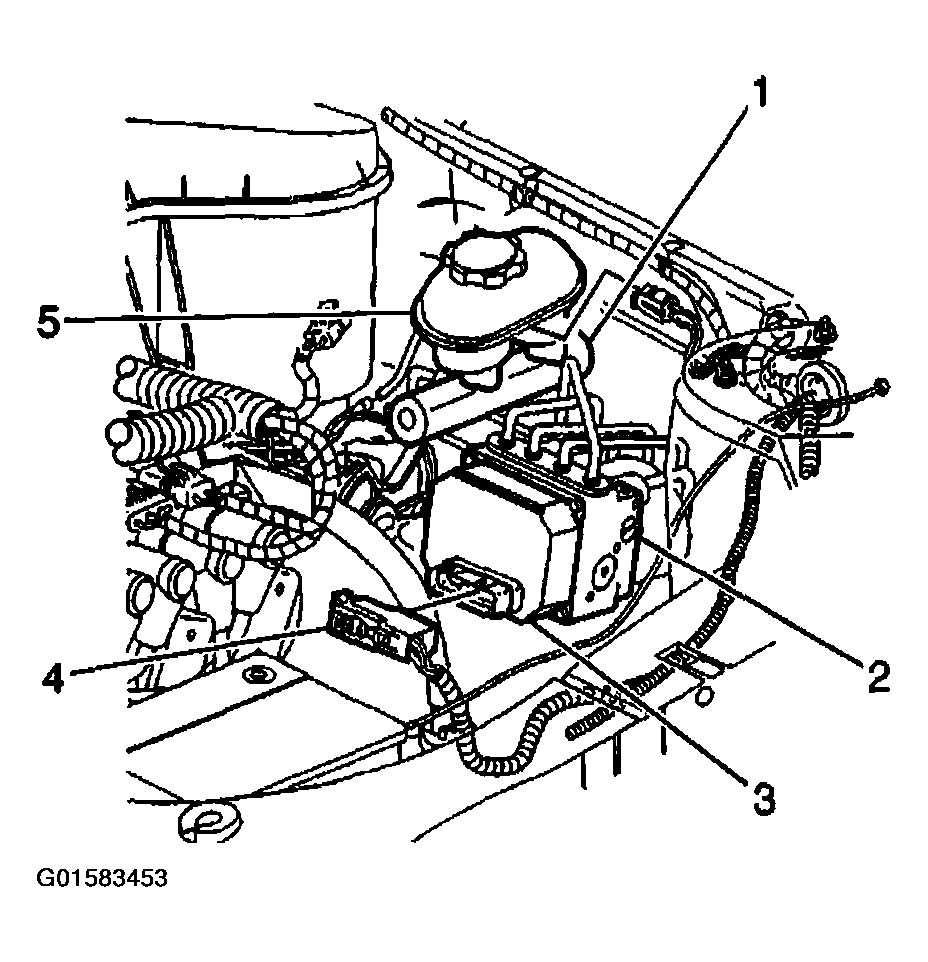

    Fig 2: Electronic Brake Control Module (EBCM) Removal (2 Of 3)
    G01583453Courtesy of GENERAL MOTORS CORP.
  6. Remove the four EBCM to Brake Pressure Modulator Valve (BPMV) screws.

    Important:

    • Do not pry apart using a tool. Be careful not to damage BPMV surface.
    • Care must be taken not to damage the solenoid valves when the EBCM is removed from the BPMV.

  7. Separate the EBCM (1) from the BPMV (2) by gently pulling apart until separated.

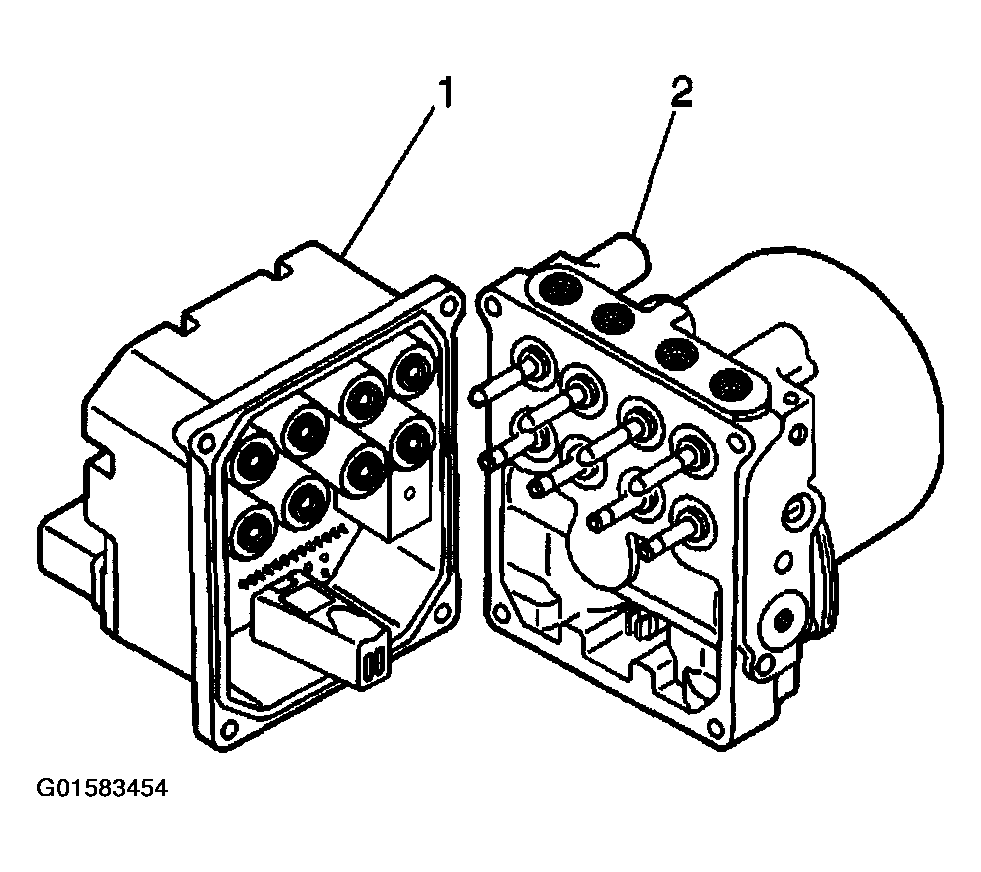

    Fig 3: Electronic Brake Control Module (EBCM) Removal (3 Of 3)
    G01583454Courtesy of GENERAL MOTORS CORP.
