Front Wheel Toe Adjustment

Front Toe Adjustment
1. Ensure that the steering wheel is set in a straight ahead position.

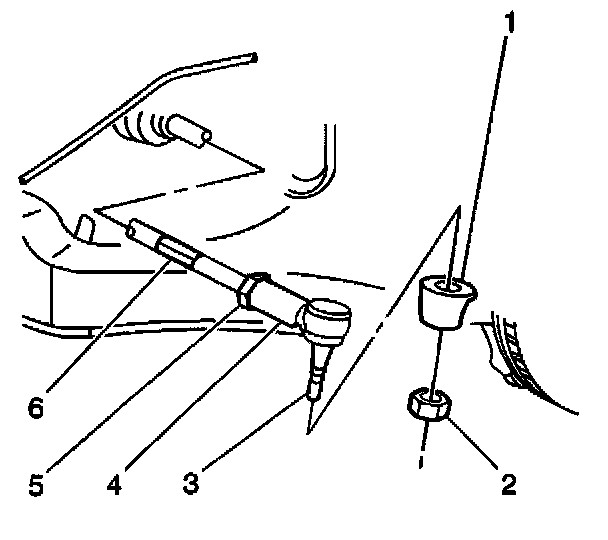

2. Loosen the tie rod jam nut (5).
3. Adjust the toe to specification by turning the adjuster (6).

Notice: Refer to Fastener Notice in Service Precaution.

4. Install the tie rod jam nut (5).
Tighten the tie rod jam nut (5) to 68 Nm (50 ft. lbs.).
