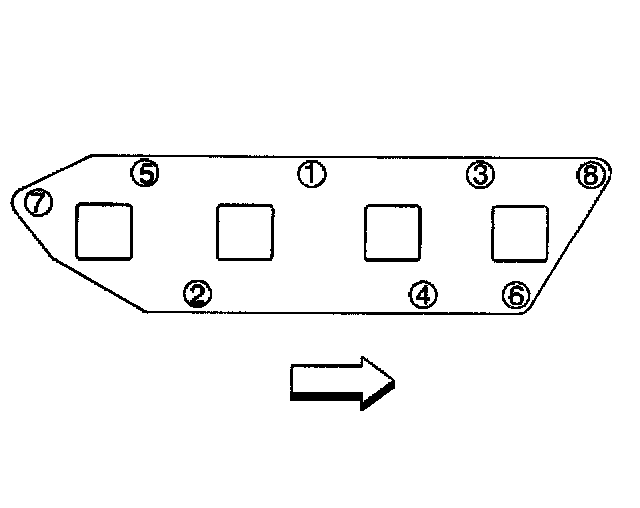

Intake Manifold
Intake Manifold
to Cylinder Head Bolt
10 Nm (89 inch lbs.)
Intake Manifold
to Cylinder Head Nut
10 Nm (89 inch lbs.)
Intake Manifold
to Cylinder Head Stud
6 Nm (53 inch lbs.)
