Removal Procedure
- Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)
or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)
.
- Disconnect the electrical connectors.

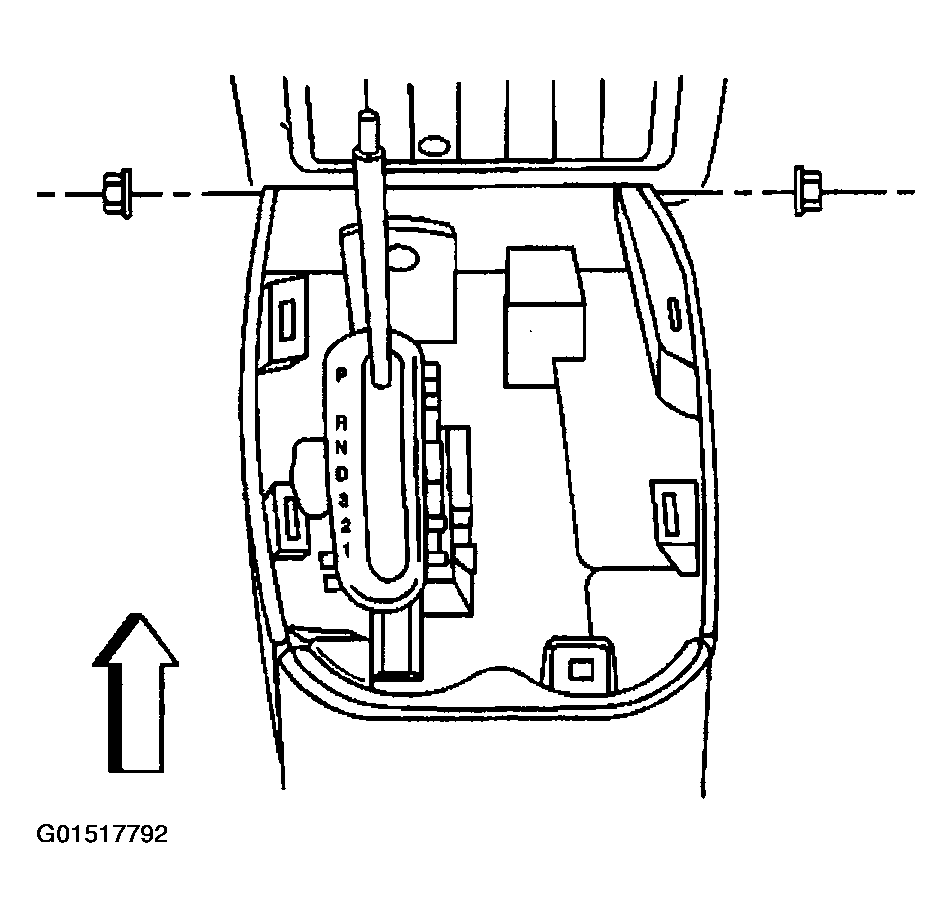

- Remove the nuts from the front of the front floor console.
Courtesy of GENERAL MOTORS CORP.

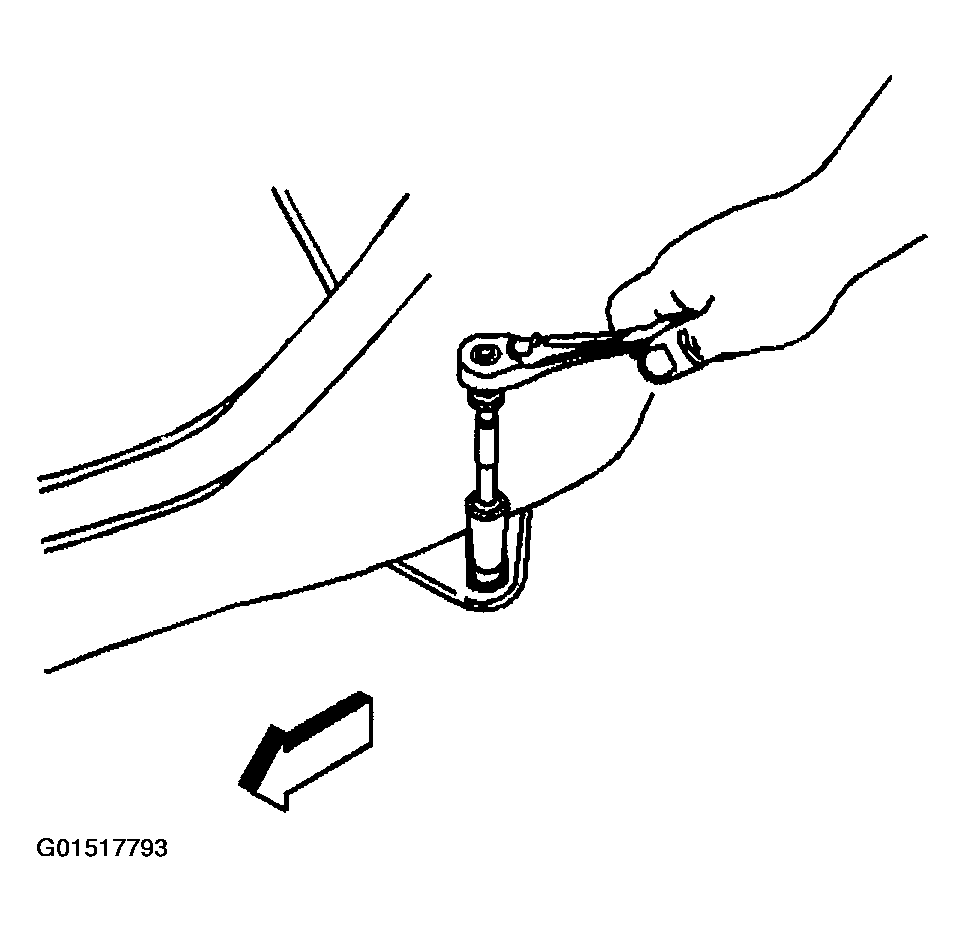

- Remove the nuts from the back of the front floor console.
- Recline the seats to gain clearance.
Courtesy of GENERAL MOTORS CORP.

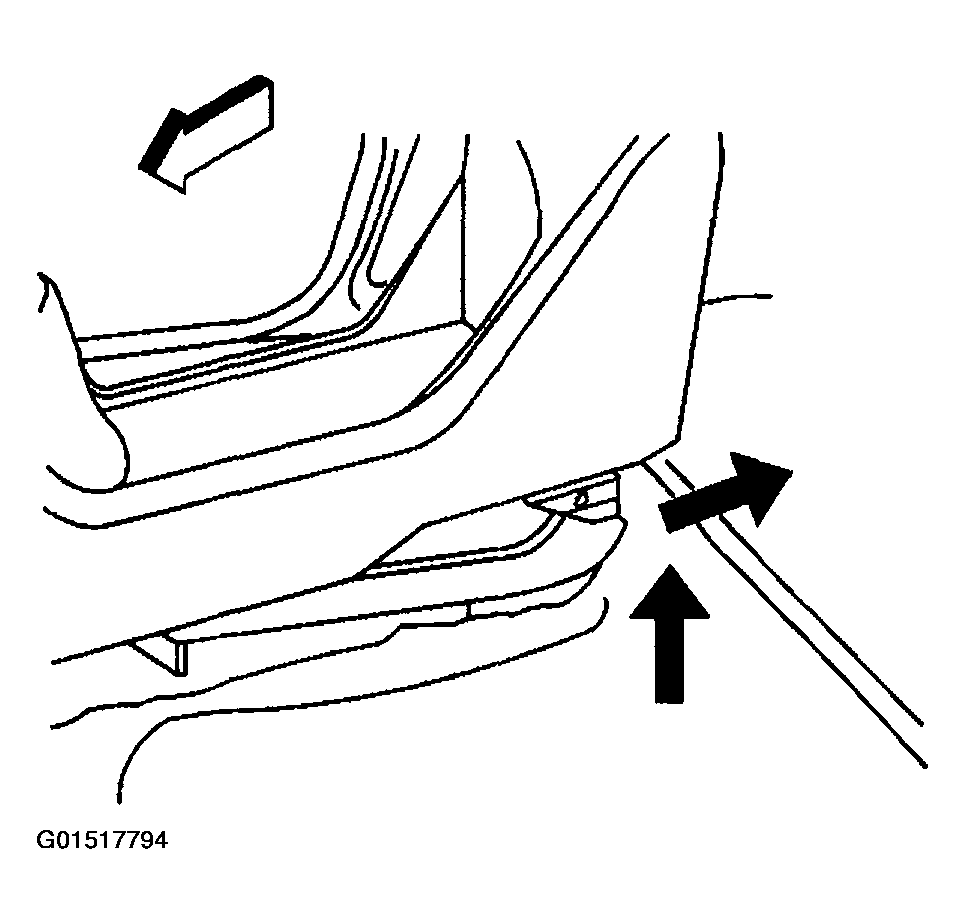

- Lift straight up on the front floor console and pull back in order to remove the console from the vehicle.
Courtesy of GENERAL MOTORS CORP.
