Installation Procedure

  1. Install the power window switch into the power window switch plate. Press the switch into place until fully seated.
  2. Connect the electrical connectors to the power window switch.
  3. Install the power window switch plate to the front door panel. Press the plate into place until fully seated.

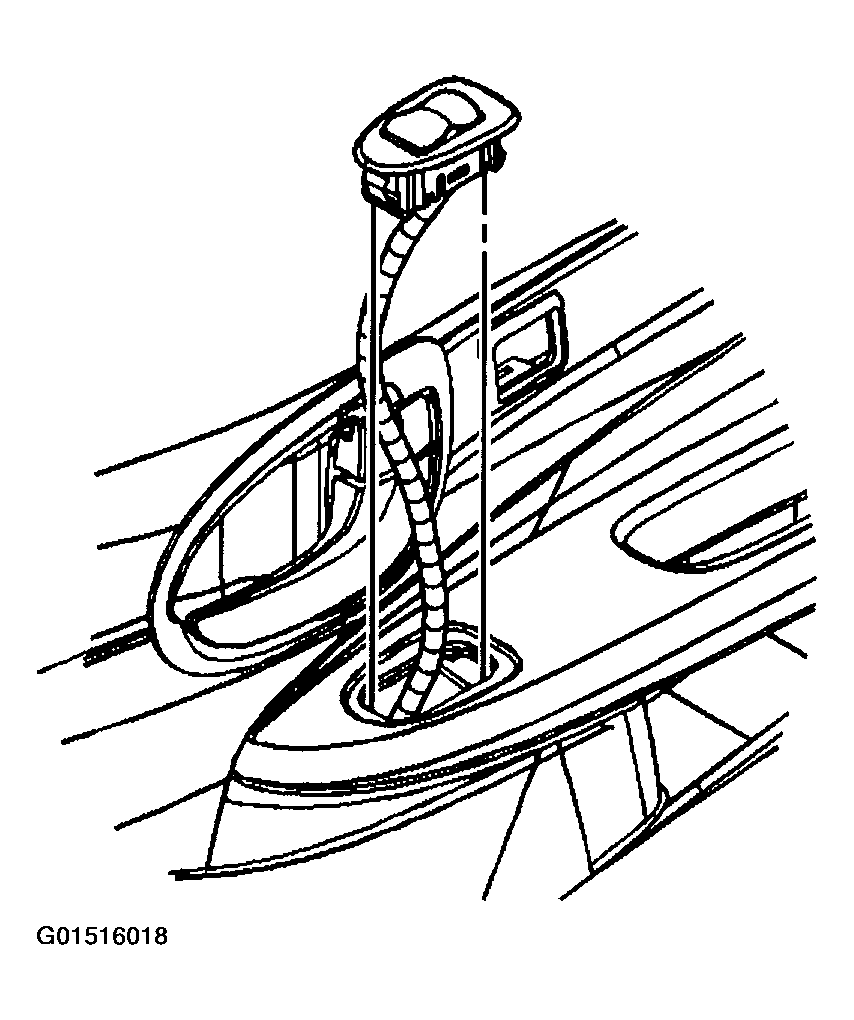

    Fig 1: Installing Right Front Power Window Switch (Rendezvous)
    G01516018Courtesy of GENERAL MOTORS CORP.
