Auto Level Control (ALC) Air Compressor Connector End View

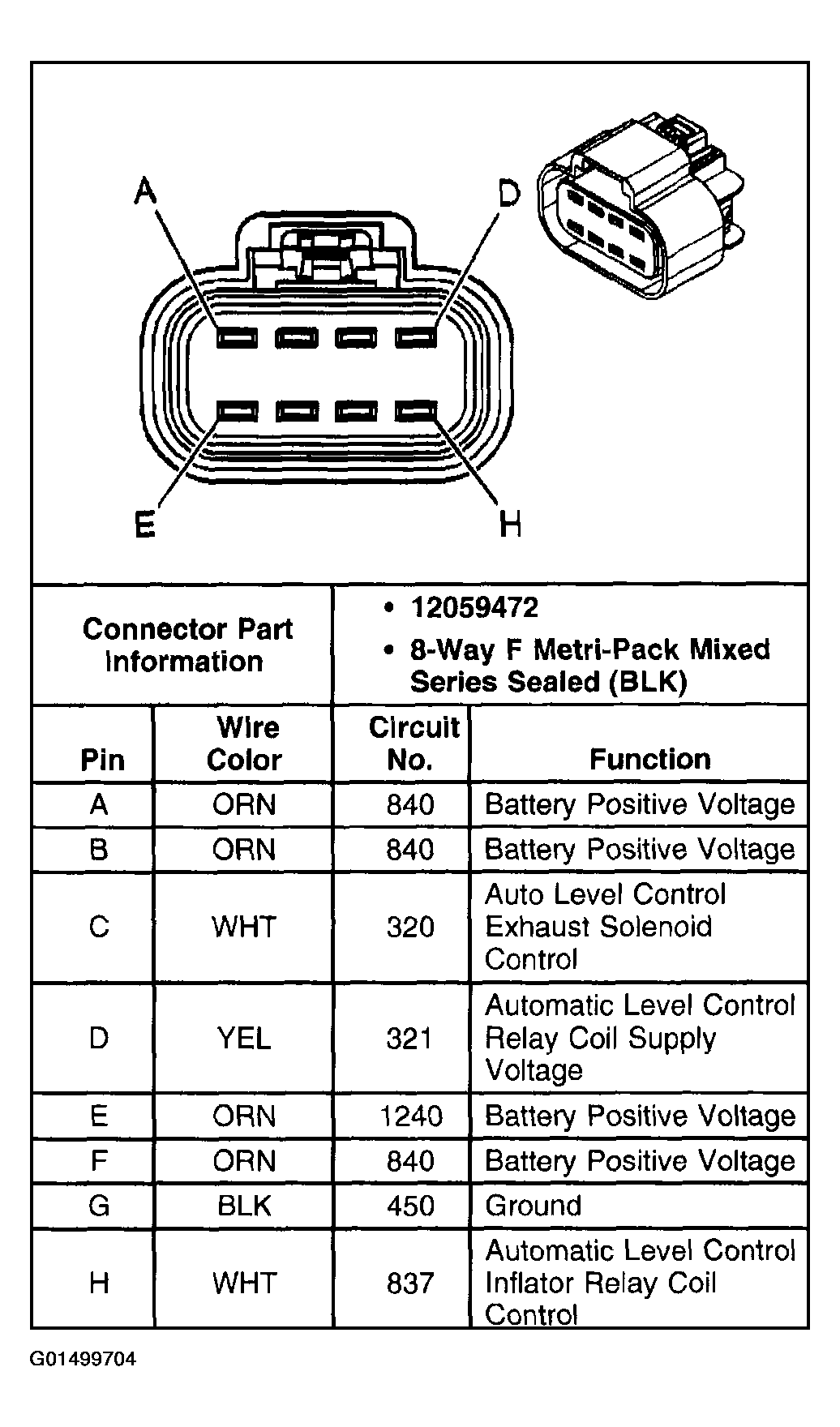

Fig 1: Auto Level Control (ALC) Air Compressor
G01499704Courtesy of GENERAL MOTORS CORP.
