Memory Seat And Mirror Module Connector End View C1

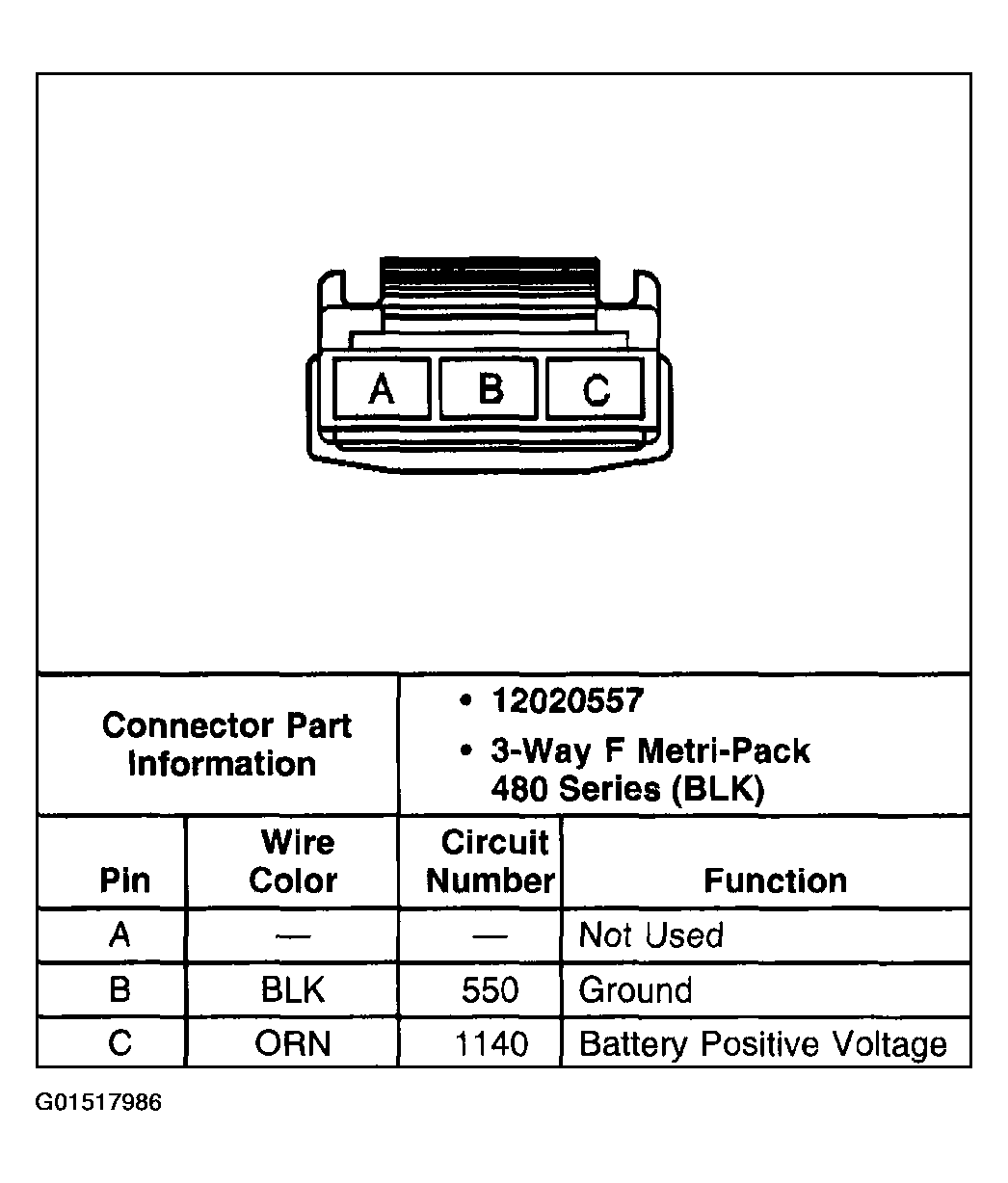

Fig 1: Memory Seat And Mirror Module C1 (A43)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
