Object Sensor Connector End View - LR Middle

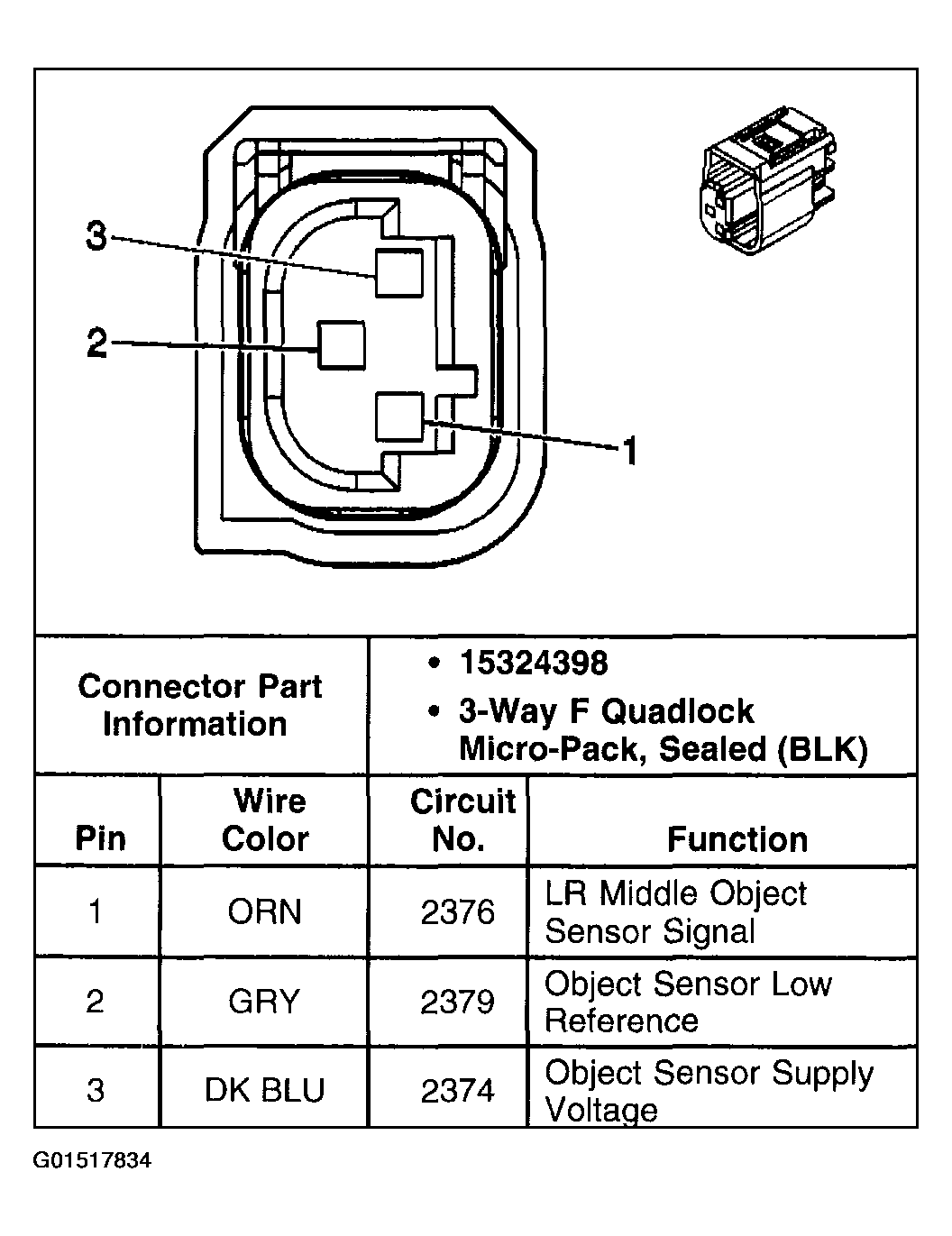

Fig 1: Object Sensor - LR Middle

G01517834

Courtesy of GENERAL MOTORS CORP.
