Removal Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

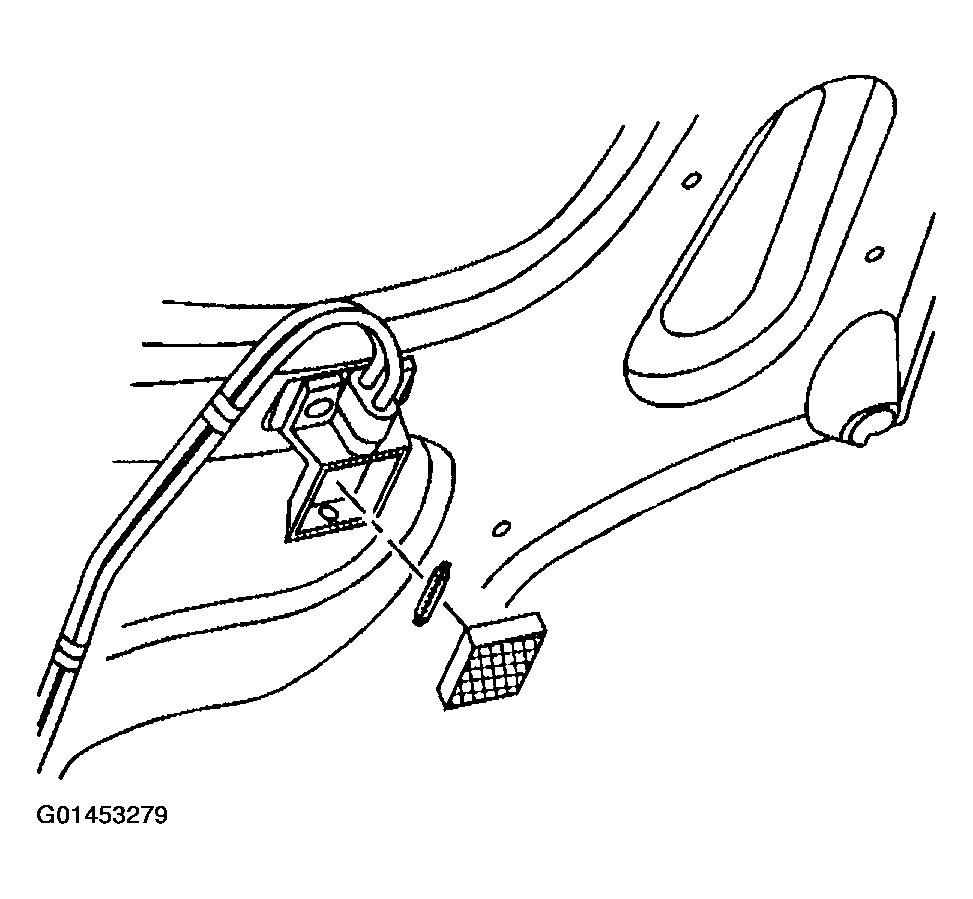

- Remove the underhood lamp lens cover.
Grasp the lens cover and depress the upper and lower locking tabs to release.
- Remove the bulb from the underhood lamp.
Gently grasp the bulb, lift the bulb to release tension, then swing the top edge of the bulb away from the connector.
