Output Shaft: Installation

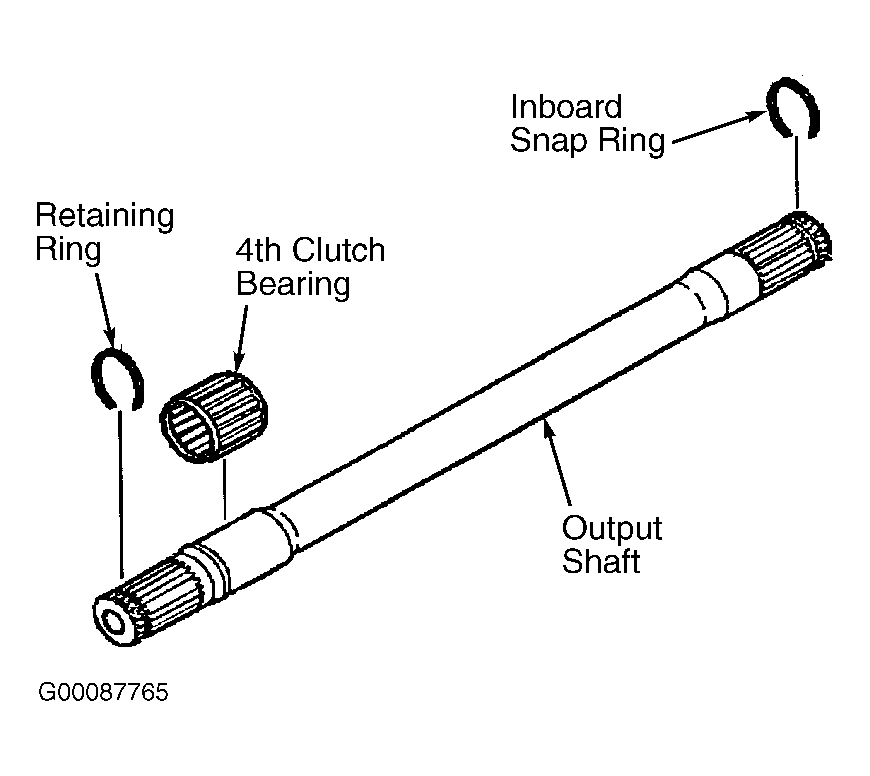

  1. Install the drive axle retaining ring and the output shaft differential inboard snap ring onto the output shaft. See Figure . Install the fourth clutch bearing onto the output shaft. See Figure .

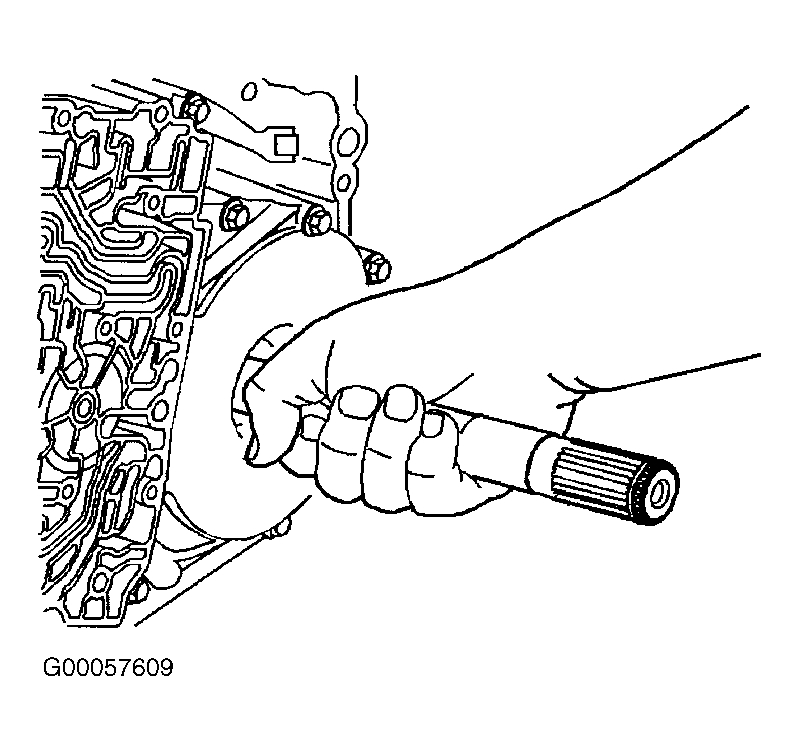

  2. Hold the front differential carrier in place and carefully install the output shaft into the transaxle through the left wheel opening. See Figure .
  3. Extend the output shaft through the differential side gear. Install the case extension housing. See CASE EXTENSION HOUSING  .
