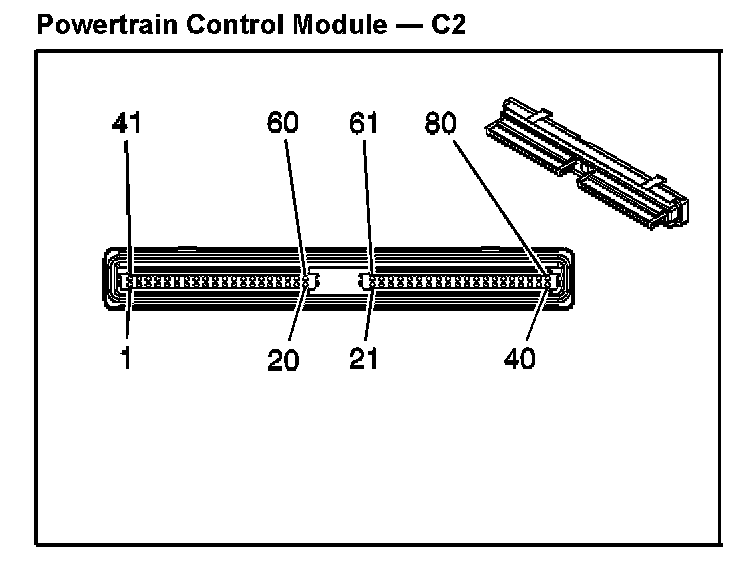

Powertrain Control Module (PCM) Connector C2

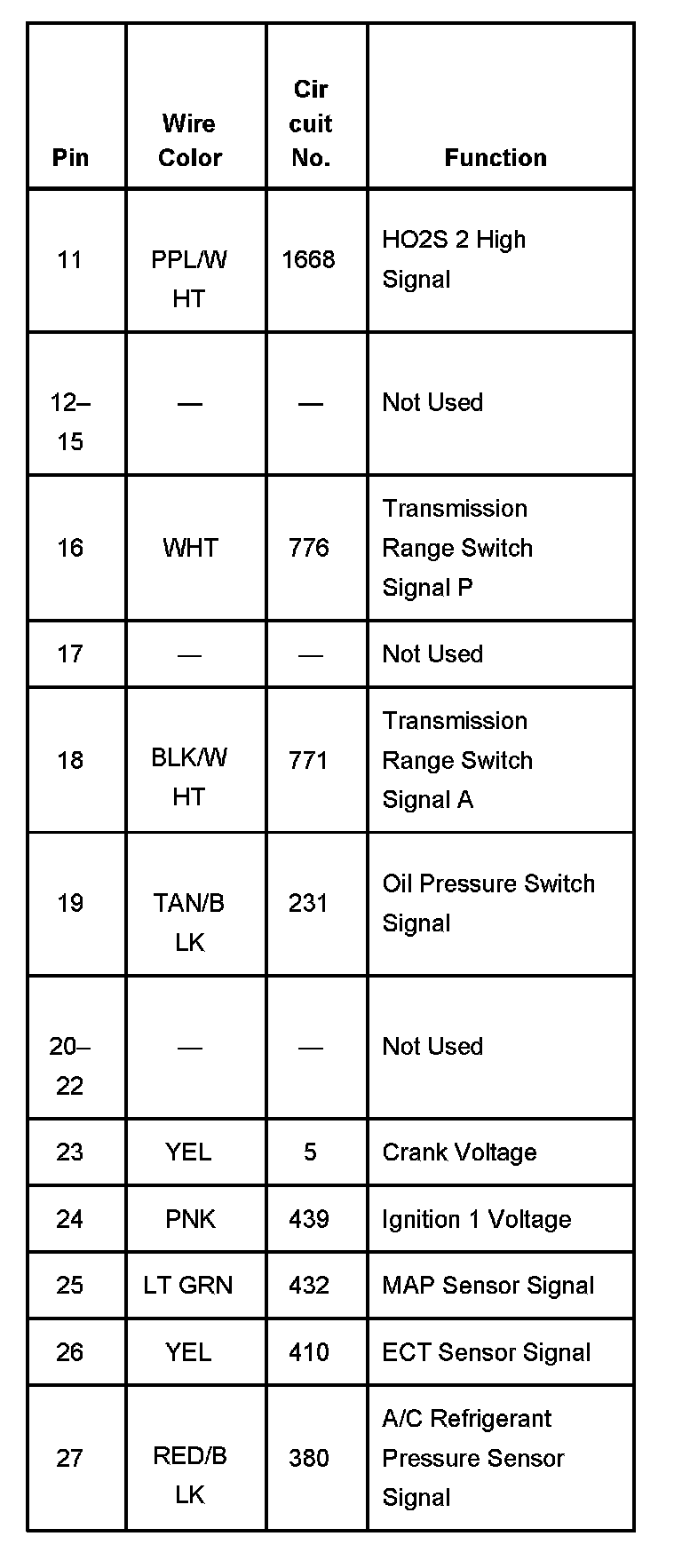

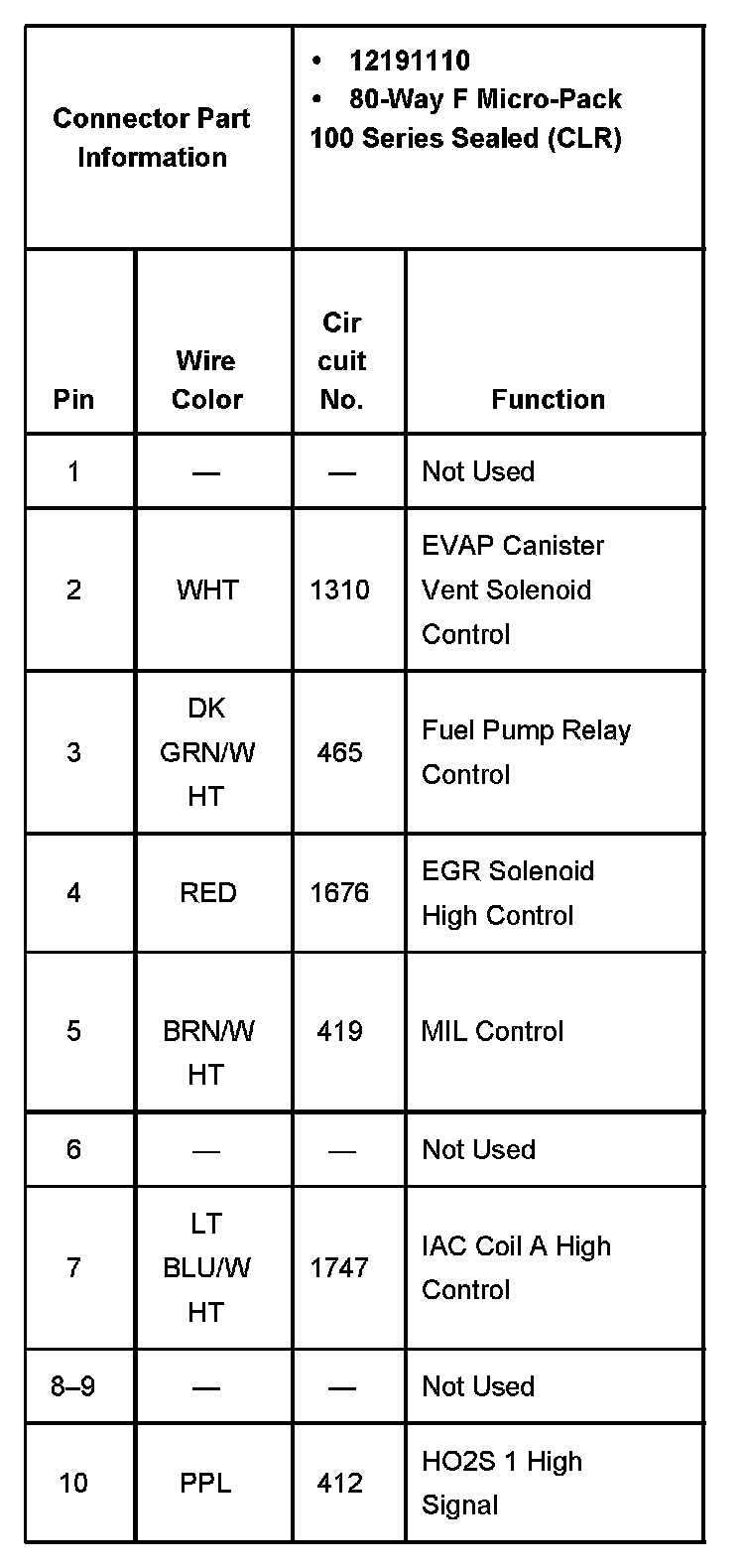

Powertrain Control Module - C2 Part 1:

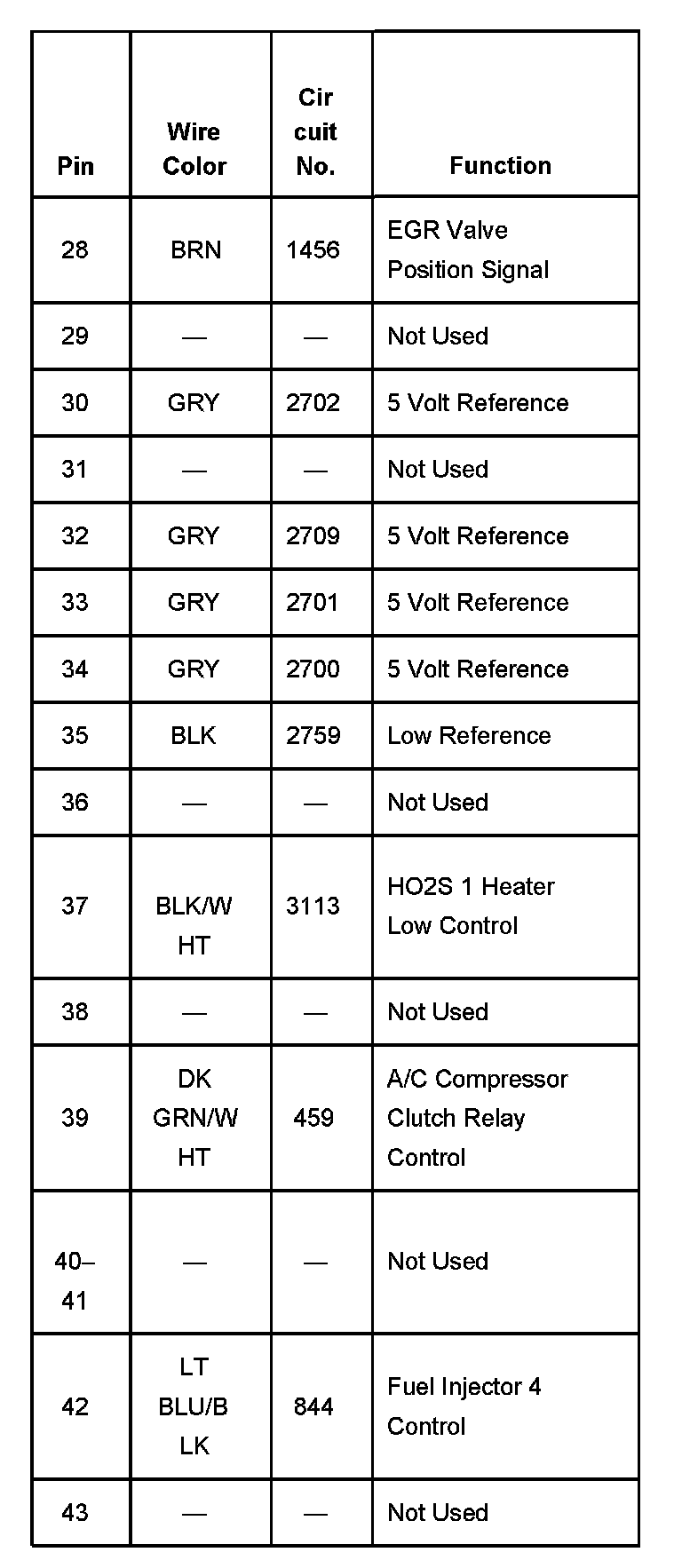

Powertrain Control Module - C2 Part 2:

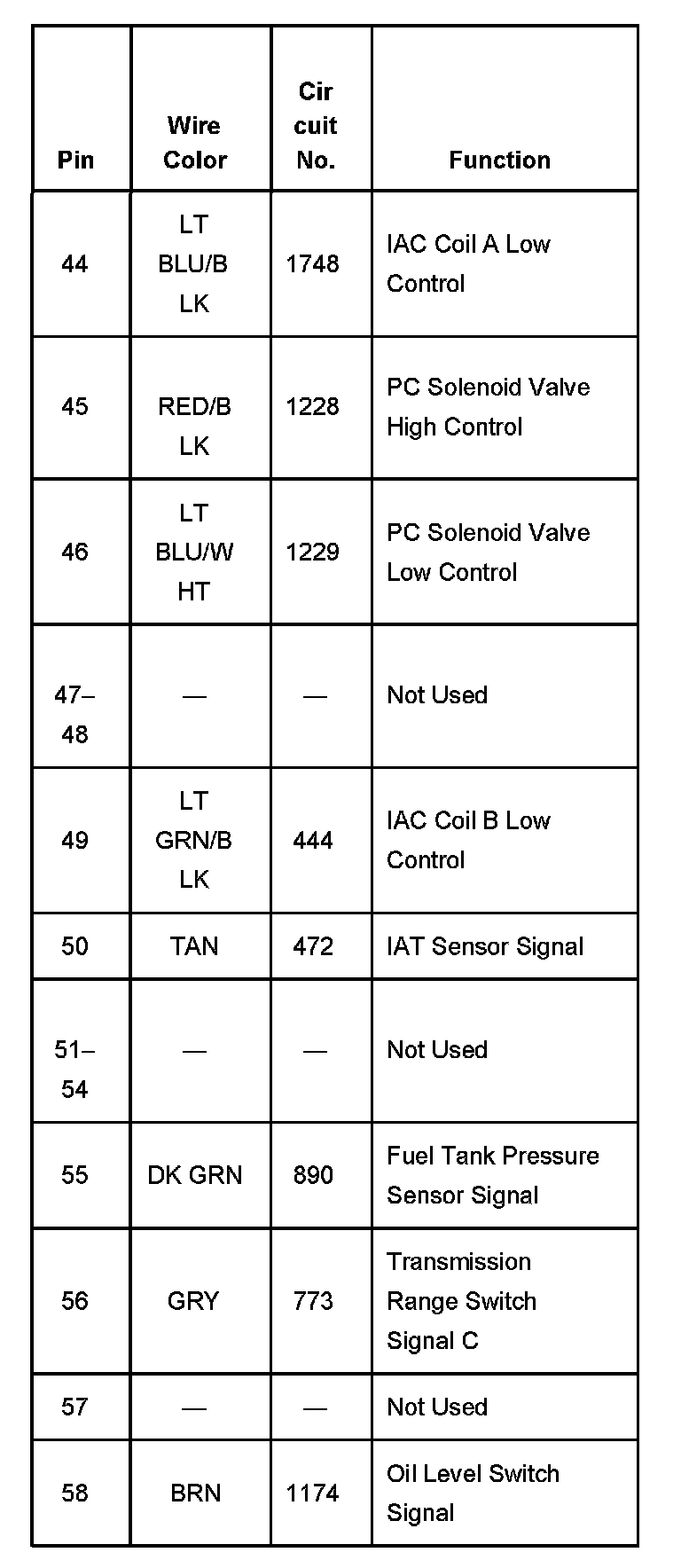

Powertrain Control Module - C2 Part 3:

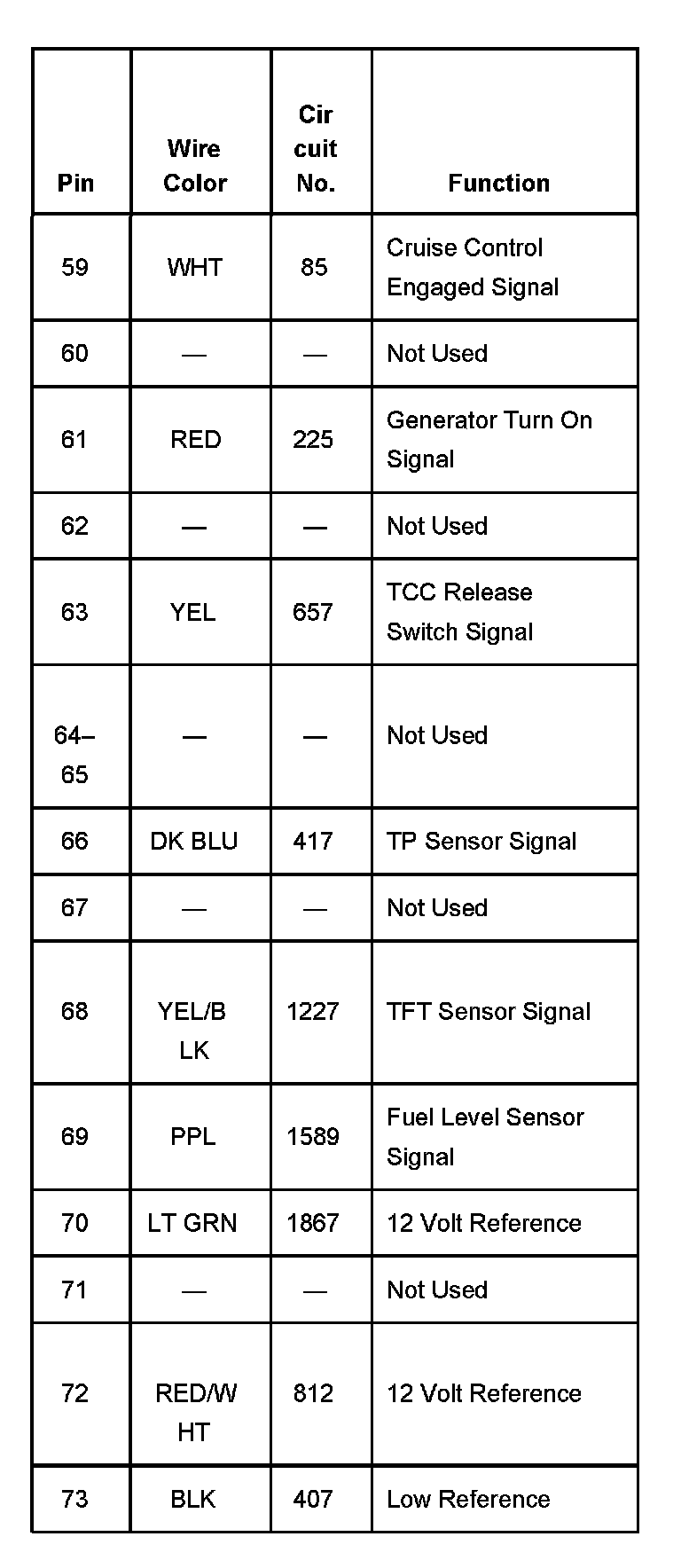

Powertrain Control Module - C2 Part 4:

Powertrain Control Module - C2 Part 5:

Powertrain Control Module - C2 Part 6:

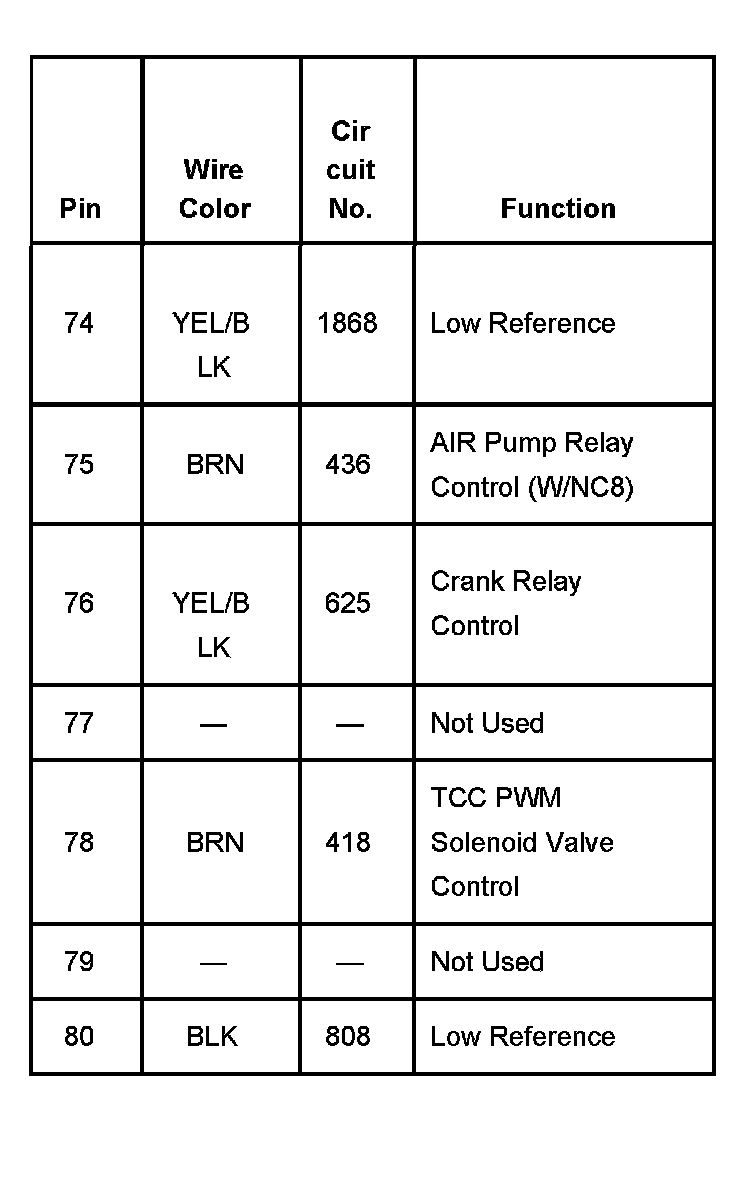

Powertrain Control Module - C2 Part 7:
