Internal Components

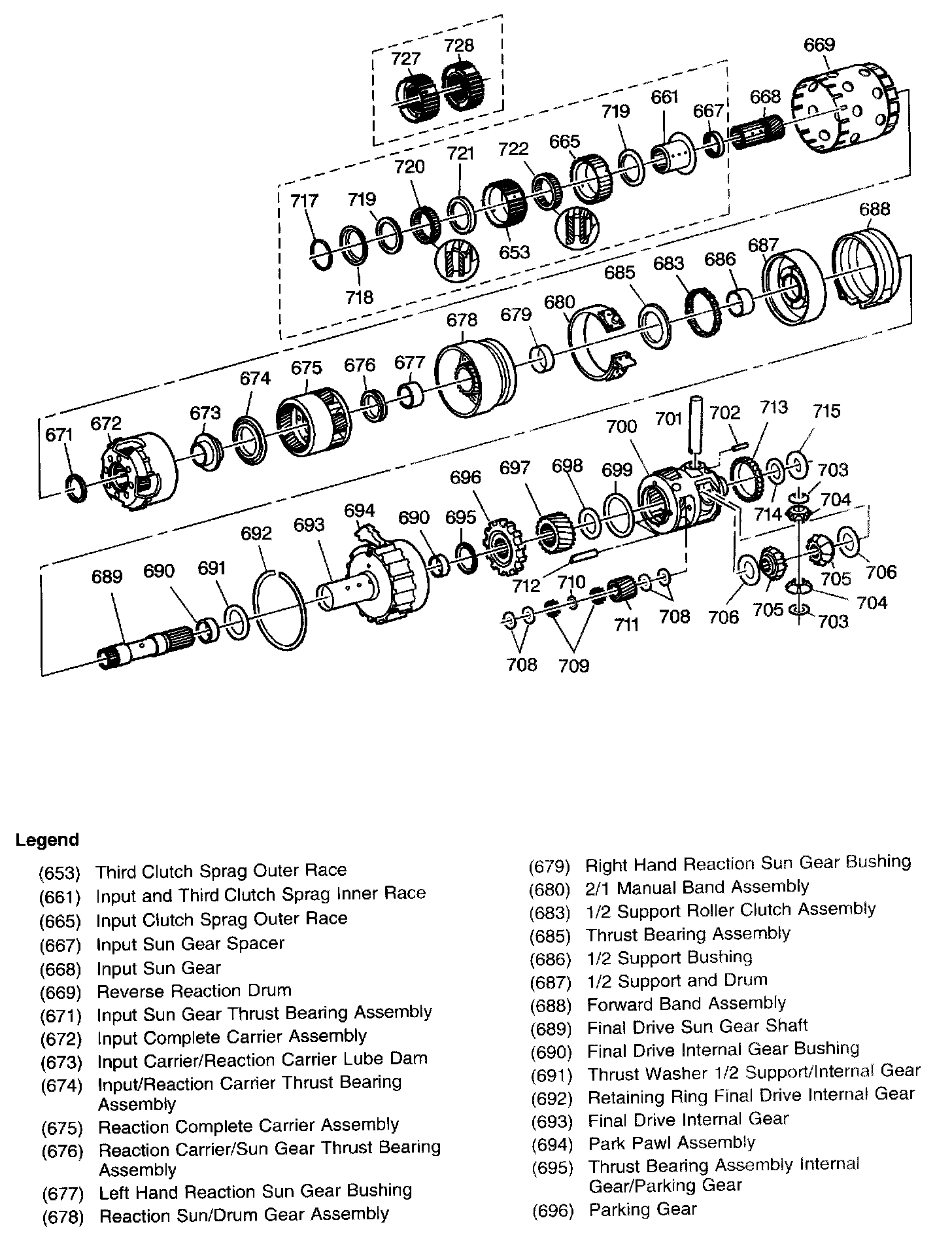

Internal Components Part 1 Of 4:

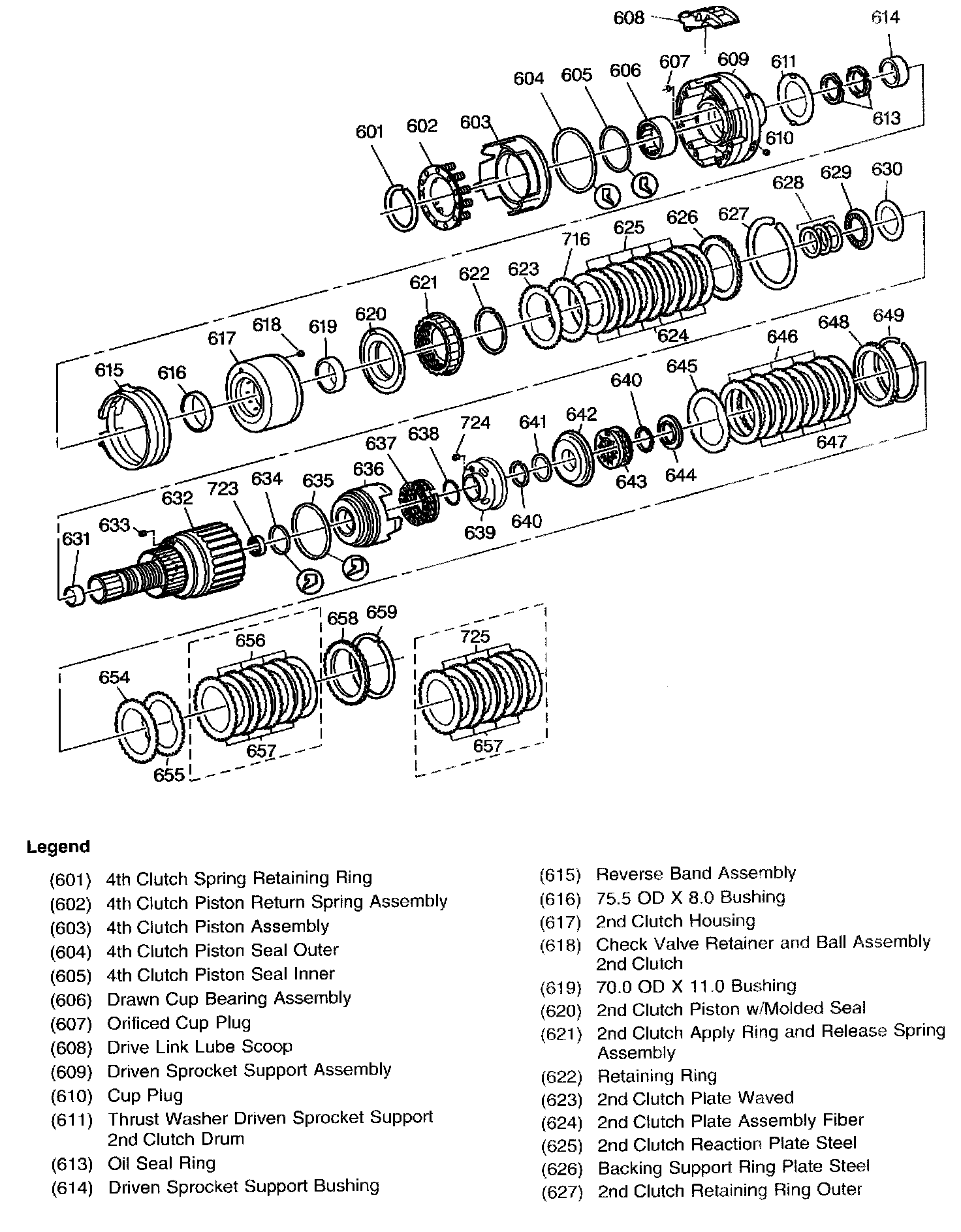

Internal Components Part 2 Of 4:

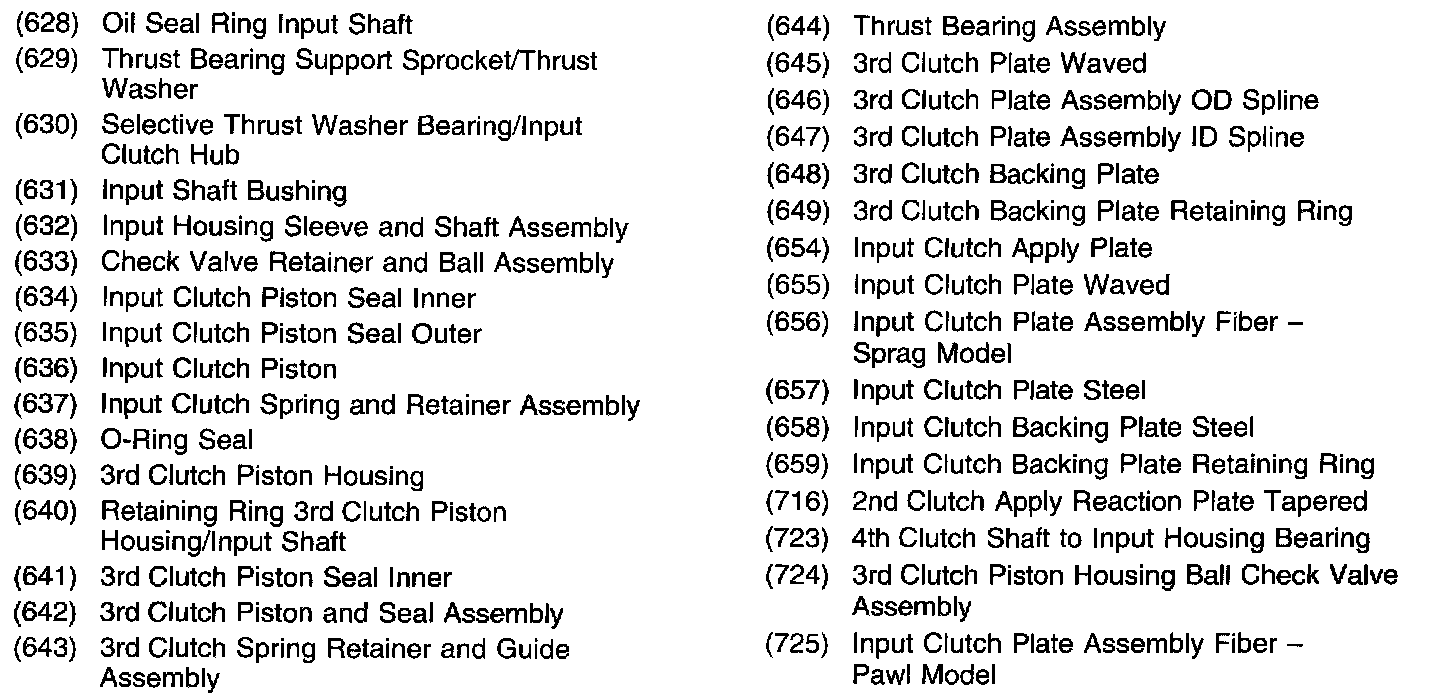

Internal Components Part 3 Of 4:

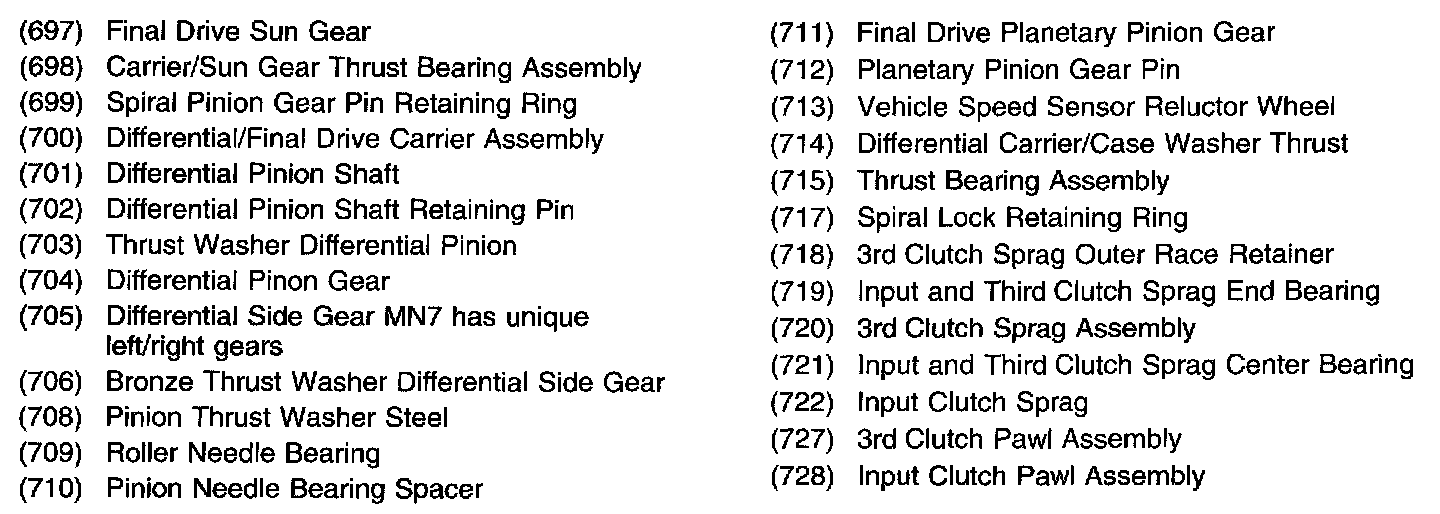

Internal Components Part 4 Of 4:
