Transfer Case

Transfer Case Disassembled View

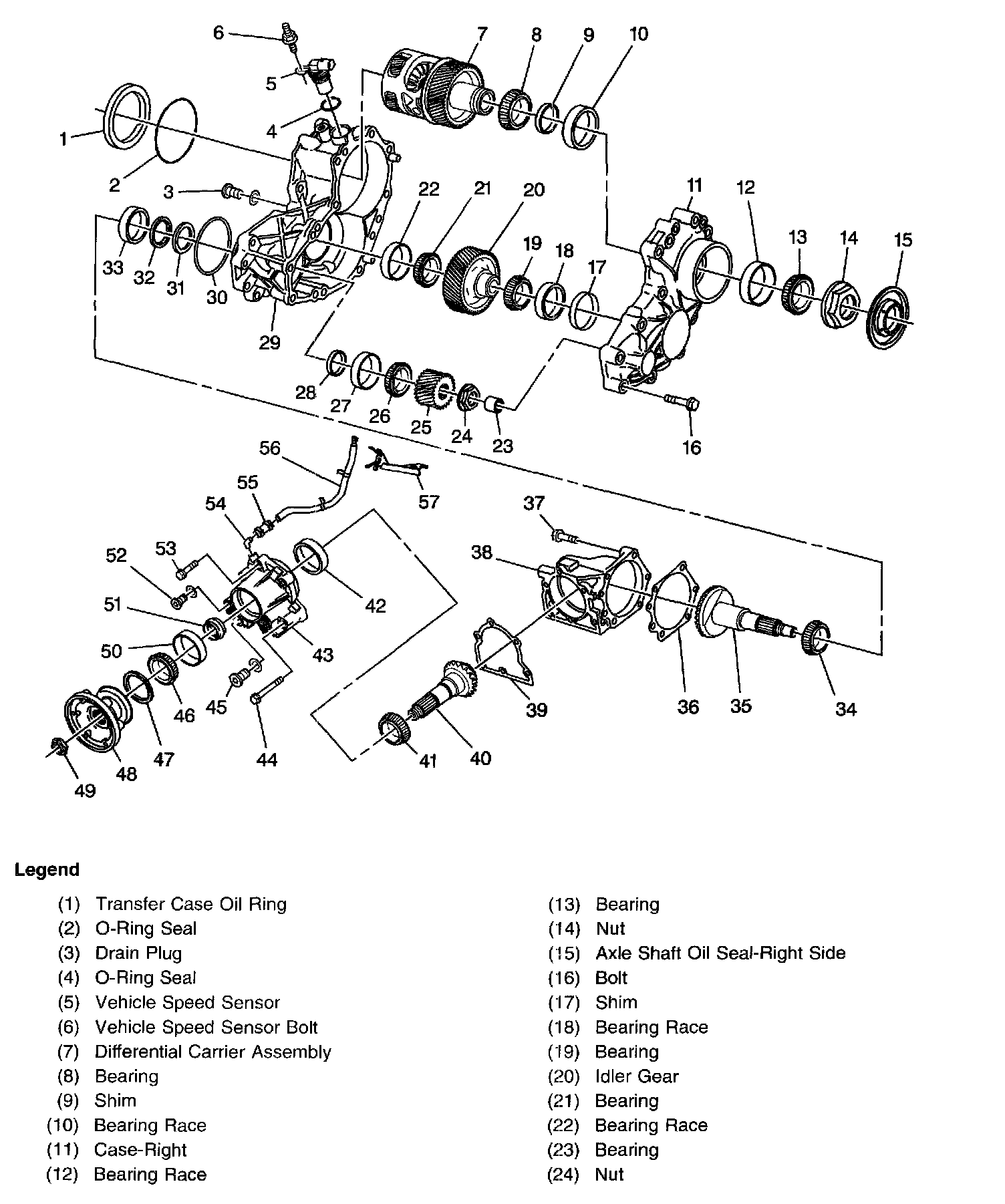

Part 1 of 2

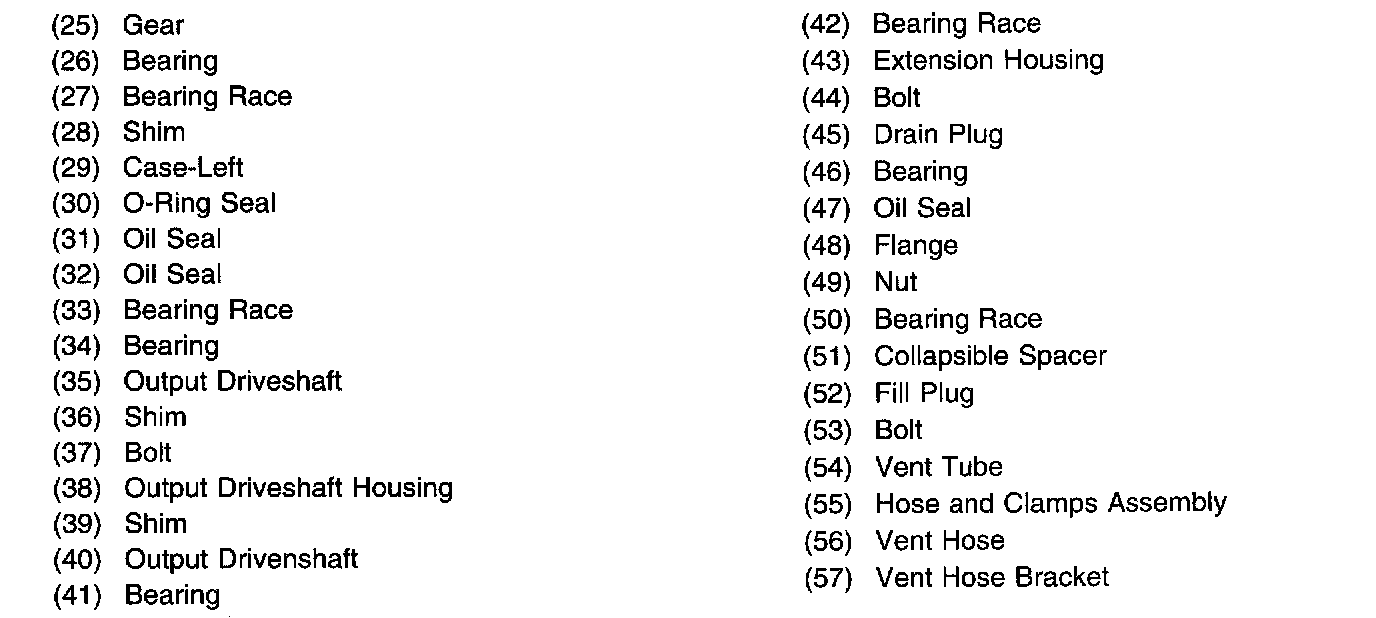

Part 2 of 2

Transfer Case Assembly

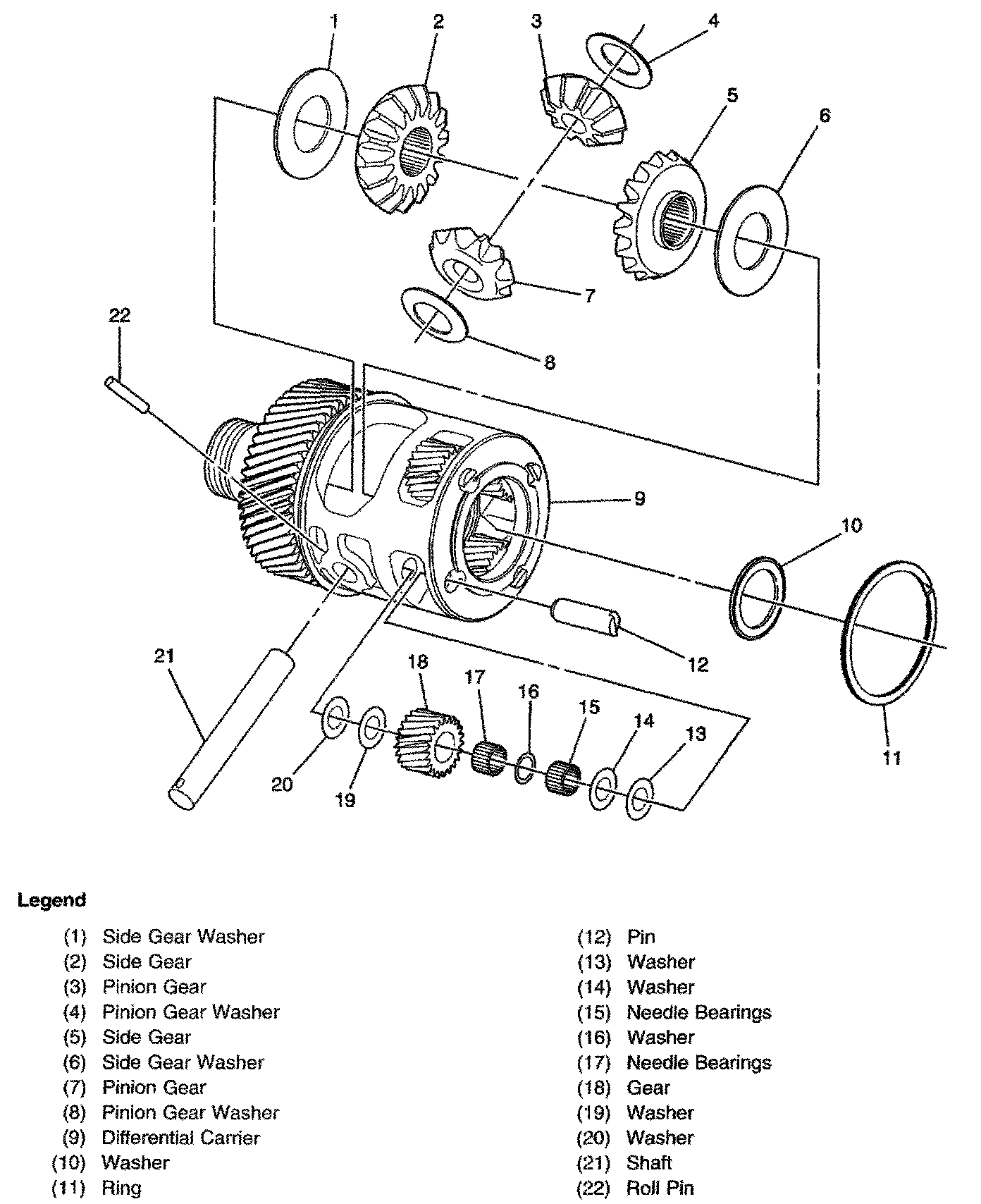

Carrier Assembly
