System Specifications

Cylinder Head Torque Specification in this article has been updated per TSB# 02-06-01-003 (01/2002)

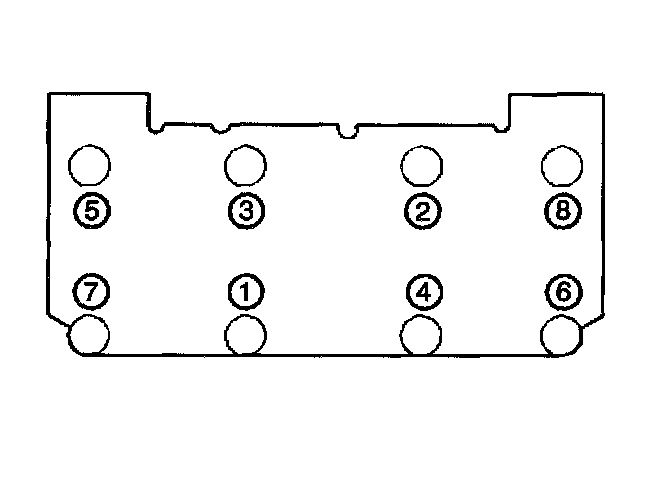

Tighten the cylinder head bolts in sequence to 60 Nm (44 ft. lbs.).

Turn the bolts an additional 95 degrees using the J 36660-A.
