Steering Controls Component Views

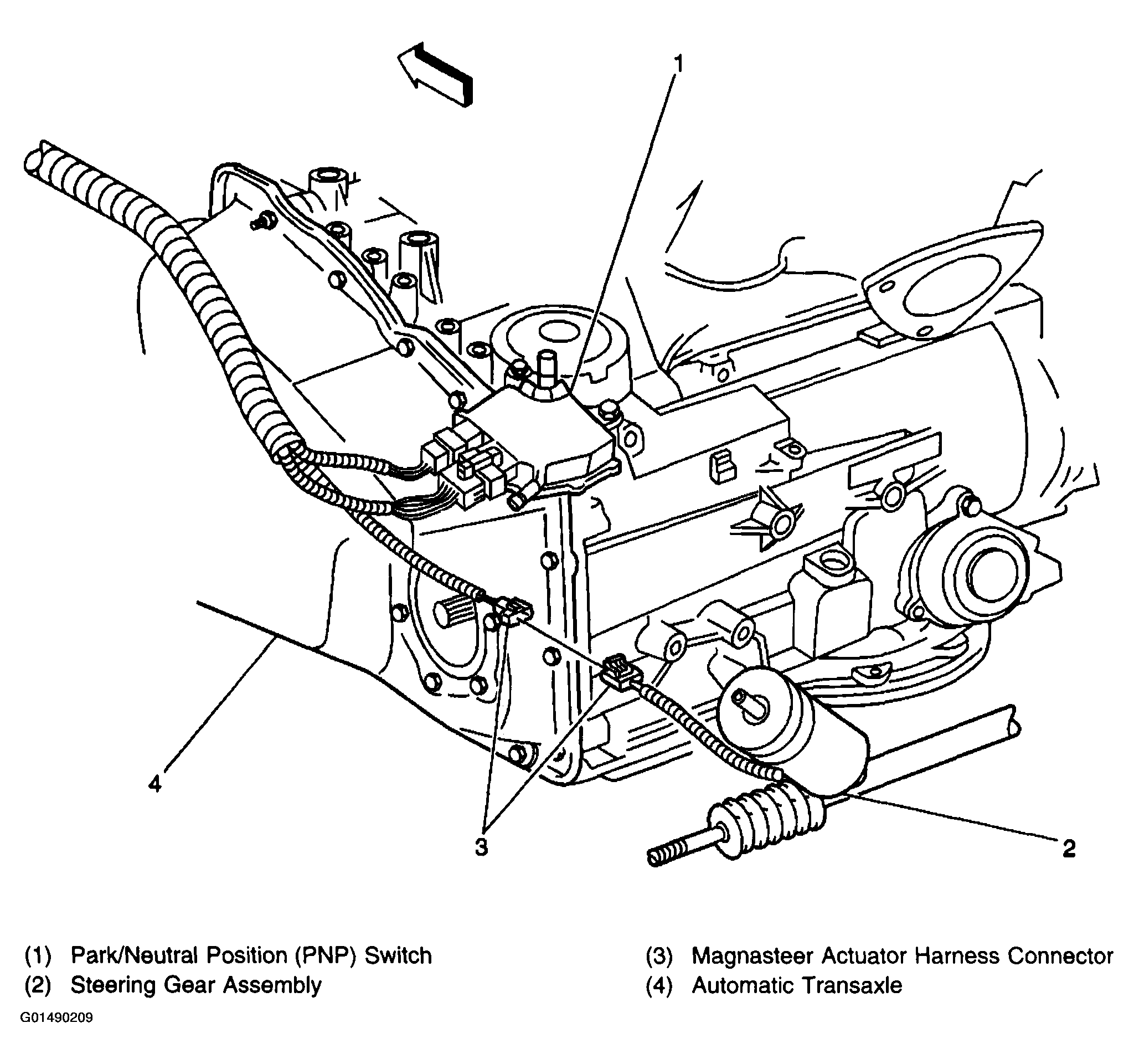

Fig 1: Top Of Automatic Transaxle (LH Side Of Engine Compartment)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
